St. Barth 1014 Patio Cover 423×298×240 cm Anthracite – 8mm Twin-Wall Panels & Snow Load Supports
Größe
: 10 × 14 ft
About this item:
- Roof made from 8mm thick polycarbonate twin-wall panels with UV protection
- High snow load capacity of 125 kg/m², including snow load supports
- Includes mosquito net and curtains (180 g/m² polyester) on a dual-track system
- Solid aluminum posts (7.6 cm) with stainless steel screws
- Can be used against a house wall or freestanding as a patio cover
- Integrated water drainage for rain protection
Guaranteed Secure Checkout
| Item number | WF-937453 |
| Brand | Sojag |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
0.0
0 reviews
Questions (8)
SOJAG St. Barth Aluminum Patio Cover 10x14
Modern, durable, and a great look are the hallmarks of the new aluminum patio cover from Canada's largest and most well-known gazebo and canopy manufacturer, SOJAG.

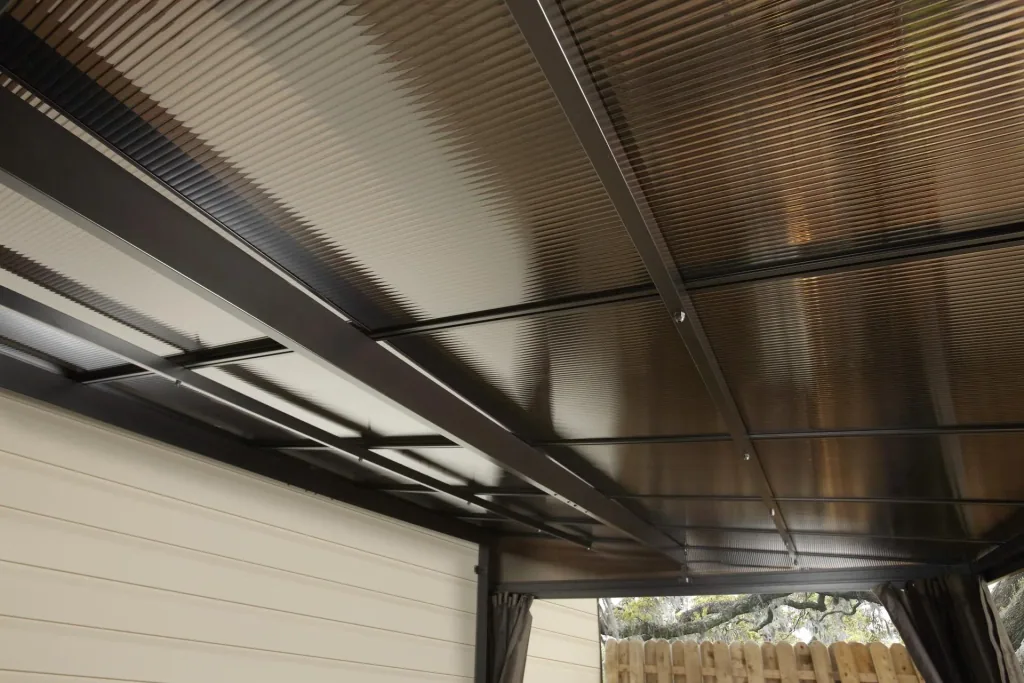

The St. Barth canopy offers an exceptional snow load of 125 kg/m², and all aluminum components are permanently rust-proof. The roof is made of 8 mm double-wall panels and two reinforced poles. These components ensure particularly high stability and can easily withstand weather conditions such as rain, snow, or sun (UV).
The same applies to the solid construction made of durable, powder-coated aluminum (post thickness 7.6 cm), which is stabilized by two poles. Even the screws are made of stainless steel. This means the patio cover can remain in place all year round and does not need to be dismantled in winter. The included snow load supports provide additional stability for your canopy.
Includes nylon mosquito nets and 180g/m² polyester curtains, which can be installed together thanks to a dual-track system.
Unlike other models, this one isn't either one or the other; instead, both the mosquito net and the curtains can be used simultaneously. Mounting clips are included.
The patio cover comes in a sophisticated anthracite color. Matching gray curtains are included.
Easy assembly by two people using standard tools and detailed step-by-step instructions. Assembly time approximately 4-5 hours. The feet each have three holes, which means you will need 12 screws and dowels to attach them to the ground. We recommend a flat surface made of wood, concrete, or paving stones.
Special Features:
- Solid powder-coated aluminum construction
- Modern and unique look
- Sturdy 8 mm roof panels
- Includes mosquito net and curtains
- Designed for year-round outdoor use
- Includes snow load supports

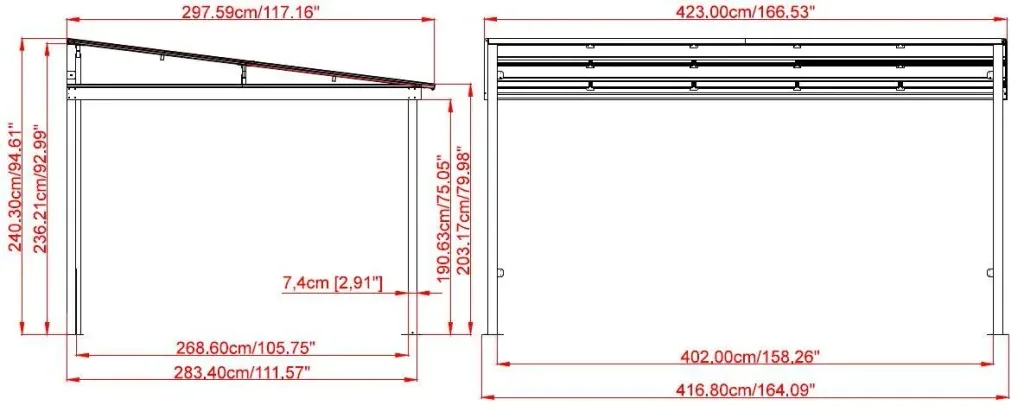

Technical Specifications:
- Width: 424 cm
- Depth: 296 cm
- Ridge height: 240 cm
- Wall height: 191 cm
- Weight: 95 kg
- Floor space: 12.55 m²
- Snow load: 125 kg/m²
- Post thickness: 7.6 cm
- Color: Anthracite
- Roof material: 8 mm twin-wall panels
- Frame material: Rust-resistant aluminum
| Exterior dimensions | |
|---|---|
| Exterior dimensions | 424 x 296 cm |
| Wall height | |
| Wall height | 191 cm |
| Weight | |
| Weight | 95 |
| Ridge height | |
| Ridge height | 240 cm |
| Snow load | |
| Snow load | 125 kg/m² |
| Colors | |
| Colors | anthracite |
| Material | |
| Material | aluminum |
| Panel thickness | |
| Panel thickness | 8 mm |
EU-Responsible Name: HAJUS AG; Hr. Stanislav Maer
EU-Responsible Street: Lise-Meitner-Straße
EU-Responsible House No: 7
EU-Responsible Post Code: 30926
EU-Responsible Town: Seelze
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +49 5151 87798 10

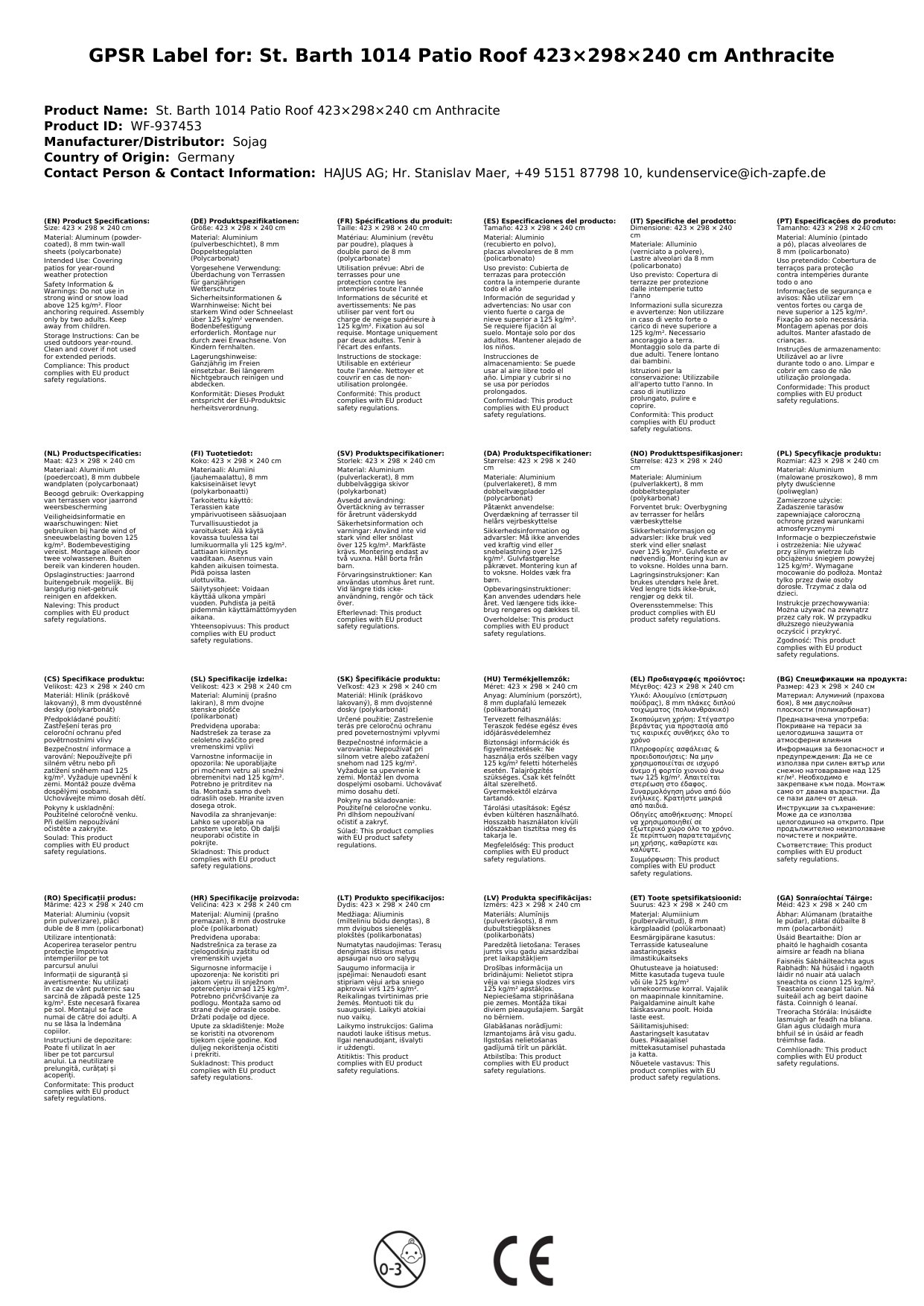

GPSR attachment:
