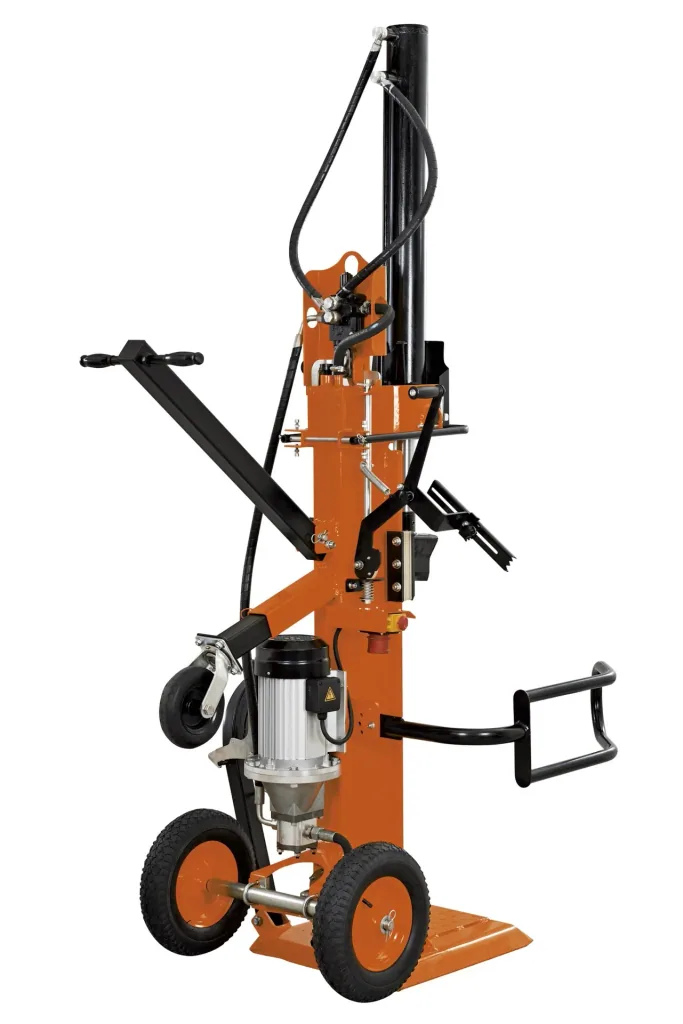

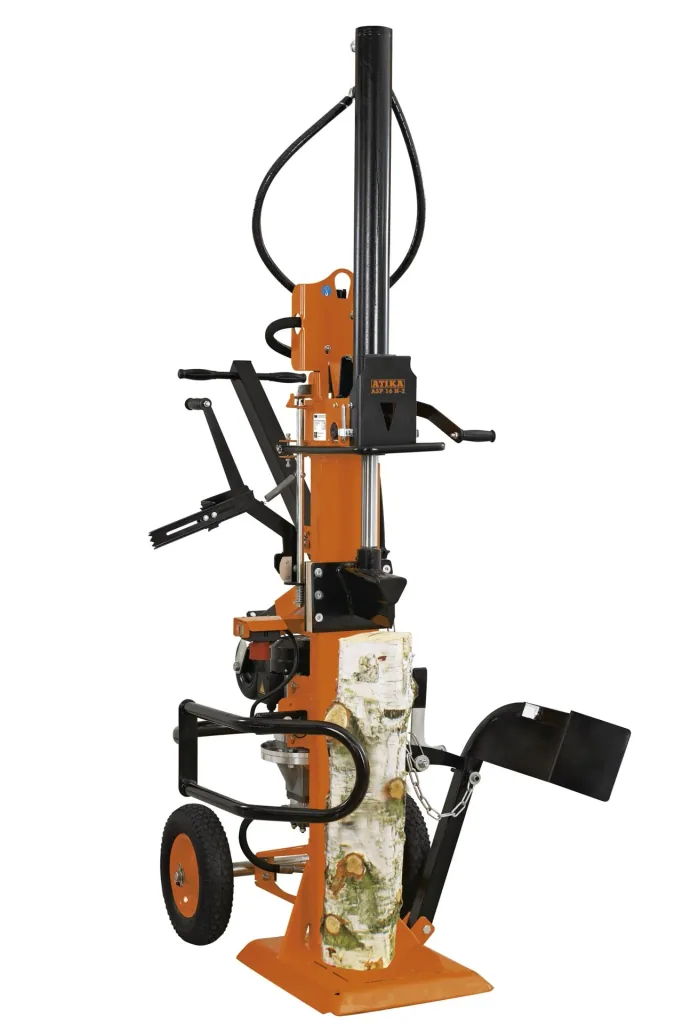

Firewood splitter "ASP 16 N-2"

• Complies with the latest EU product safety standard EN 609:2017
• With 2 forward speed levels
• Safety requirements according to the latest European standard
• Back-friendly and easier work thanks to the low base plate and standard log lifter
• More safety when splitting thanks to the fixing claw and protective arm
• Smooth-running two-hand safety operation
• Chassis and carrying handle for easy movement

The professional firewood splitter ATIKA ASP 16 N-2 makes heavy work with wood easier. Meter-long logs are processed into firewood comfortably, quickly, safely, and with little effort. Simple firewood preparation for professional users as well as fireplace and tiled stove owners. The powerful motor and robust construction guarantee good splitting results. With 2 forward speed levels, safety requirements according to the latest European standard. The low base plate and standard log lifter make working easier and easier. The locking claw and protective arm ensure greater safety when splitting. Smooth two-handed safety operation. The chassis and carrying handle make the firewood splitter easy to move despite its size and weight.

ATTENTION: There is no splitting cross for this model – these have been discontinued since 2019. prohibited!

Technical details:

• Three-phase motor: 400 V3~ 50 Hz
• Power P1: 4100 W
• Splitting force: 160 kN (16 tons) +- 10%
• Maximum length of split material: 1100 mm
• Maximum diameter of split material: 300 mm
• Maximum splitting stroke: 948 mm
• Splitting column: 150 x 100 mm
• System pressure: 27.7 MPa (277 bar)
• Hydraulic system oil quantity: 18 liters
• Forward speed 1: 14.2 cm/s
• Forward speed 2: 4.6 cm/s
• Return speed: 6.4 cm/s
• Protection arm and Log lifter
• Wheels and transport handle
• Sound pressure level at the workplace idle LPA: <80 dB (A)

Weight: 257.8 kg

Scope of delivery:

• 1 x firewood splitter "ASP 16 N-2"
• 1 x set of wheels
• 1 x transport handle
• 1 x protective sleeve
• 1 x log lifter
• 1 x operating instructions
