Electric firewood splitter "ASP 5 N-2 UG", with base frame, 5 tons

• Compact, handy, robust design
• Easy handling for guaranteed good splitting results
• Complies with the latest EU product safety standard EN 609:2017
• Increased work safety thanks to smooth two-handed operation and access protection

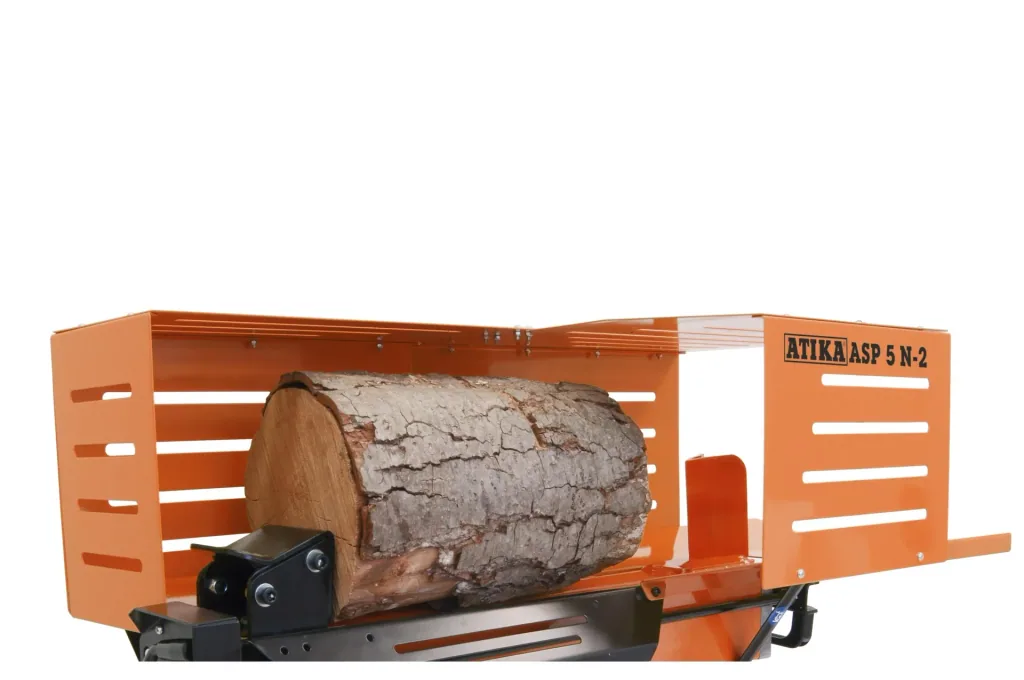

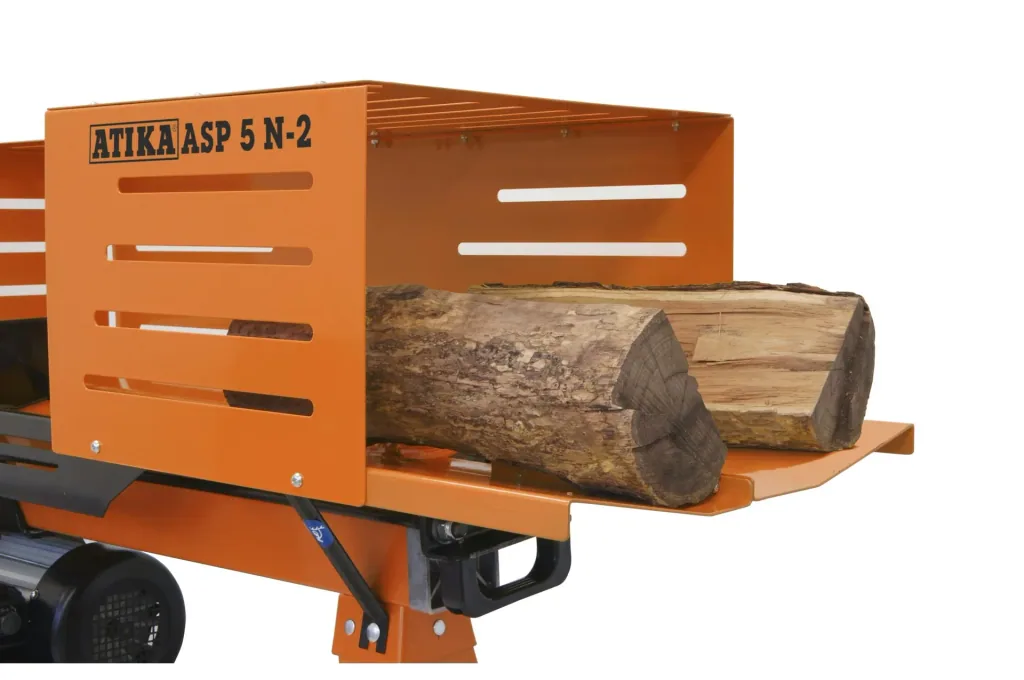

• Log tray prevents split wood from falling uncontrollably
• Additional handle and wheels ensure easy transport

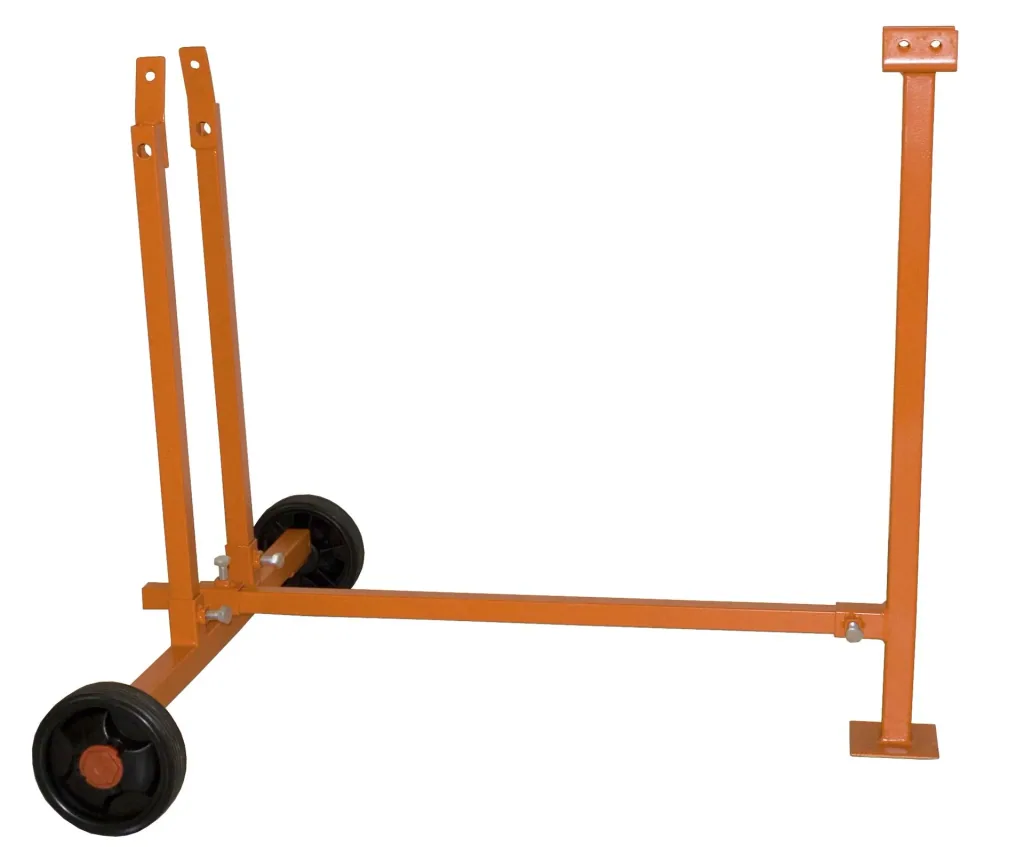

• With base frame

This log splitter can be used as a tabletop device or as a freestanding model. The device stands firmly and securely on the included frame. Simply insert logs, and the machine turns them into kindling. It processes logs up to 52 cm long and 25 cm in diameter. The machine splits them with a splitting force of an impressive 50 kN (5 t). This is achieved through an electro-hydraulic splitting mechanism, powered by a 5.5 kW electric motor. This hydraulic system generates such force that it inevitably splits each log. You place the logs one after the other into the holder and then remove the logs. This allows you to process sawn-off sections of tree trunks or wooden beams one after the other. The electric log splitter splits them into manageable pieces that fit easily into the stove. The logs can also be used for campfires. Whether in the tabletop version or attached to the frame, the device has two casters on one side. These casters allow the machine to be moved. During transport, the weight rests largely on these casters, making the 61 kg machine easy to move.

The standard for firewood machines introduced in 2018 has further expanded safety precautions for log splitters and saws. Buyers of the ASP 5 N from ATIKA benefit from this, as it meets all the requirements of this standard. This applies, for example, to consistent two-handed operation: Each splitting process is initiated with both hands. This way, both of the operator's hands are secured while processing wood, and if the operator releases the hand, the splitting wedge stops immediately. Furthermore, the wood is covered so that other people cannot easily reach into the processing area. Such measures ensure comprehensive safety during wood processing.

The ASP 5 N electric log splitter from ATIKA is a safe device for convenient, mechanical wood processing. Thanks to its high power, it splits logs up to 52 cm long. Its safety technology is state-of-the-art. The machine can be operated either on a table or on the supplied frame.

Technical specifications:

• AC motor: 230 V - 50 Hz
• Power P1: 2200 W (S3 ​​25%)
• Splitting force: 50 kN (5 tons) +- 10%
• Maximum splitting length: 520 mm
• Maximum splitting stroke: 370 mm
• System pressure: 20.6 MPa (206 bar)
• Hydraulic system oil quantity: 3.5 liters
• Piston rod diameter: 30 mm
• Two-hand operation with access protection
• Handle and wheels
• Sound pressure level at the workplace when idling LPA: 78.8 dB (A)
• Sound pressure level at the workplace processing LPA: 89.8 dB (A)

Weight: 61 kg

Scope of delivery:

• 1 x firewood splitter "ASP 5 N-2 UG"
• 1 x base frame
• 1 x operating instructions
