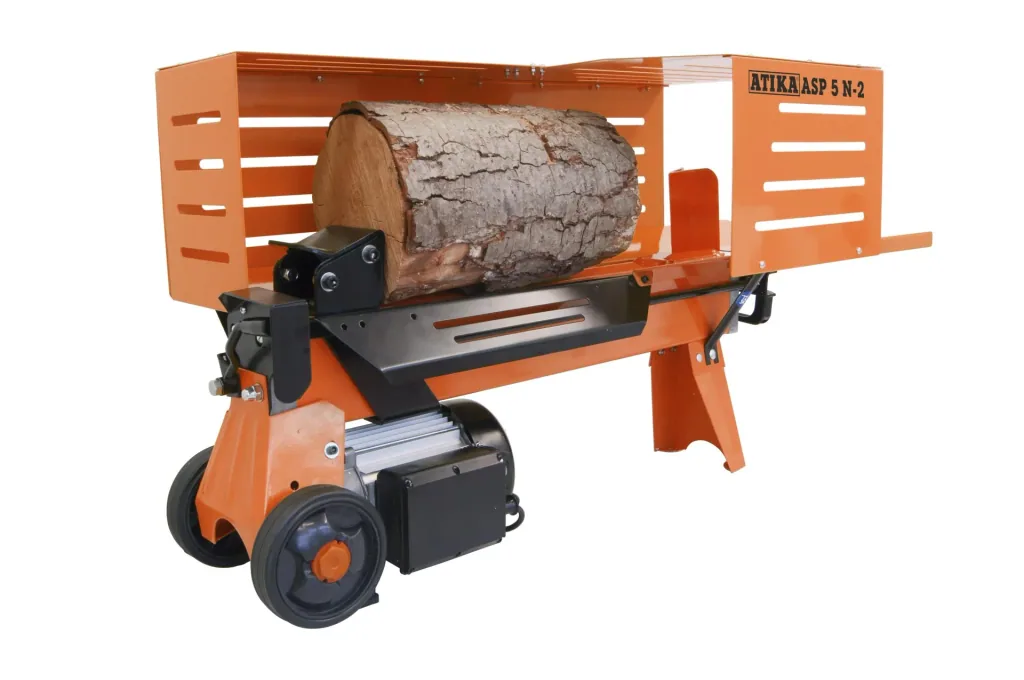

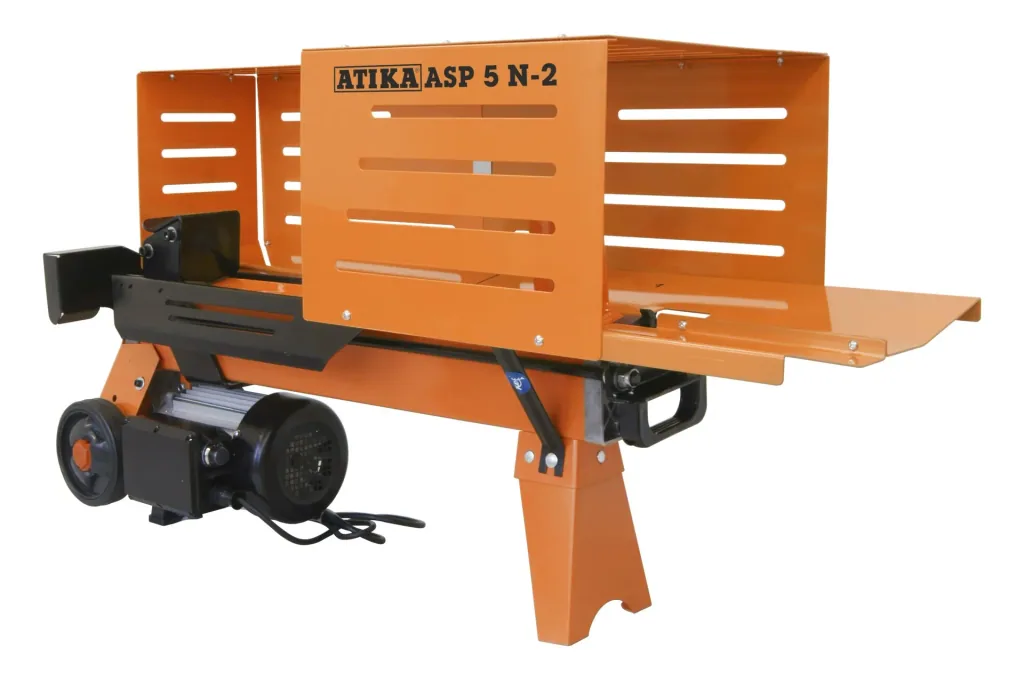

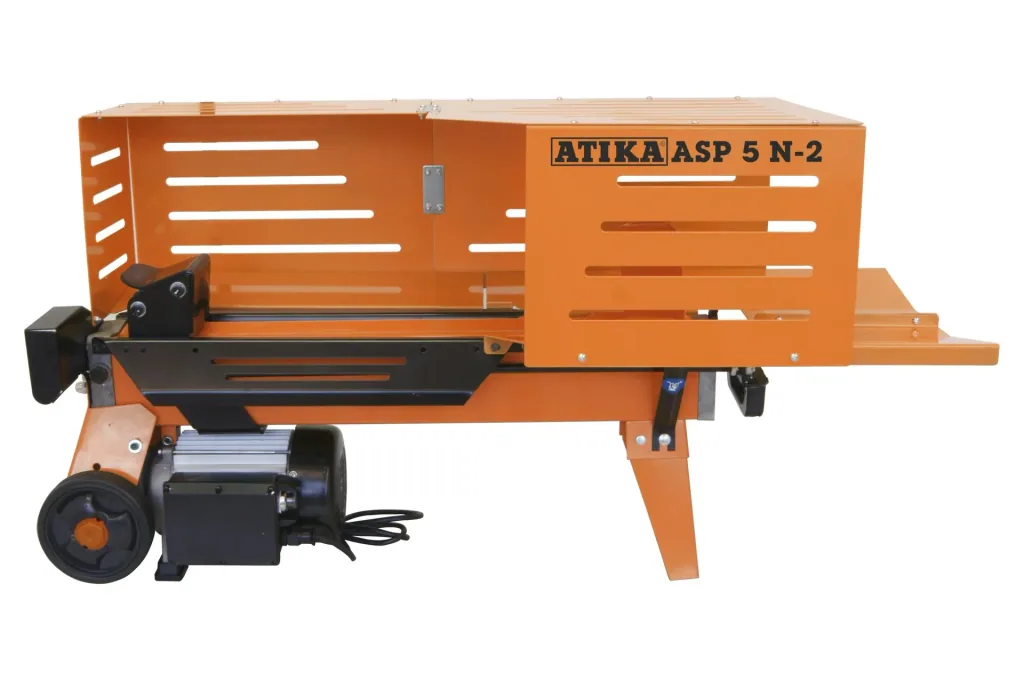

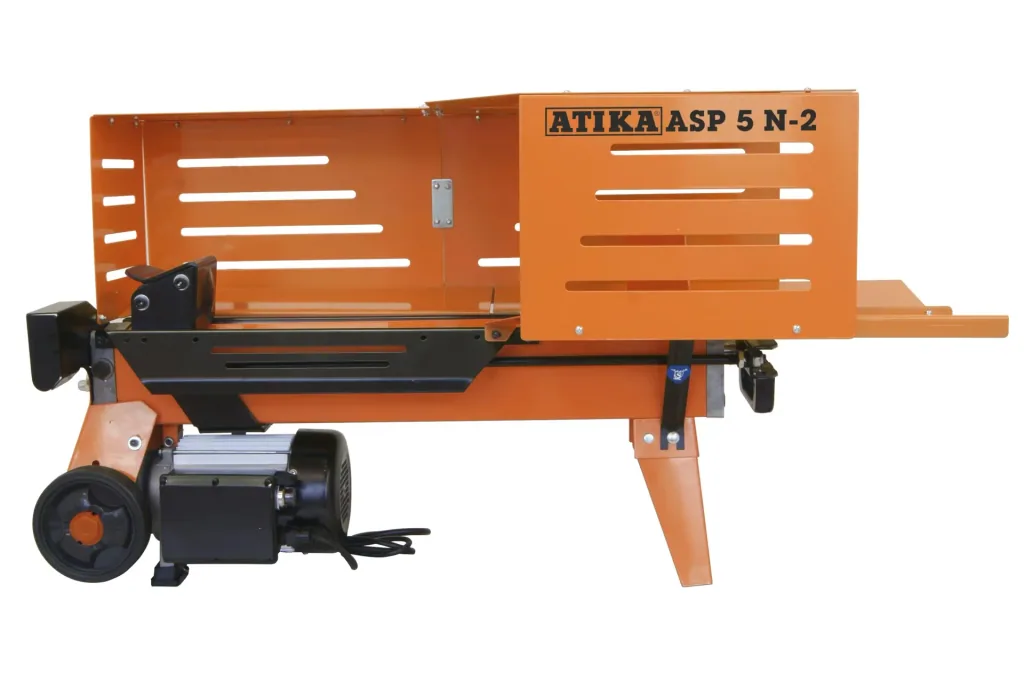

Firewood splitter "ASP 5 N-2", hydraulic splitter, 230V, 5 t
About this item:
- Hydraulic splitter, 5 t force
- 230V motor, 2200 W power
- Max log length: 520 mm
- Two-hand operation, access protection
- Includes handle and wheels
Guaranteed Secure Checkout
| Item number | WF-937541 |
| Brand | Altrad Lescha Atika |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Compact, handy, robust design
- Easy to use for guaranteed good splitting results
- Complies with the latest EU product safety standard EN 609:2017
- Increased work safety thanks to smooth two-handed operation and access protection

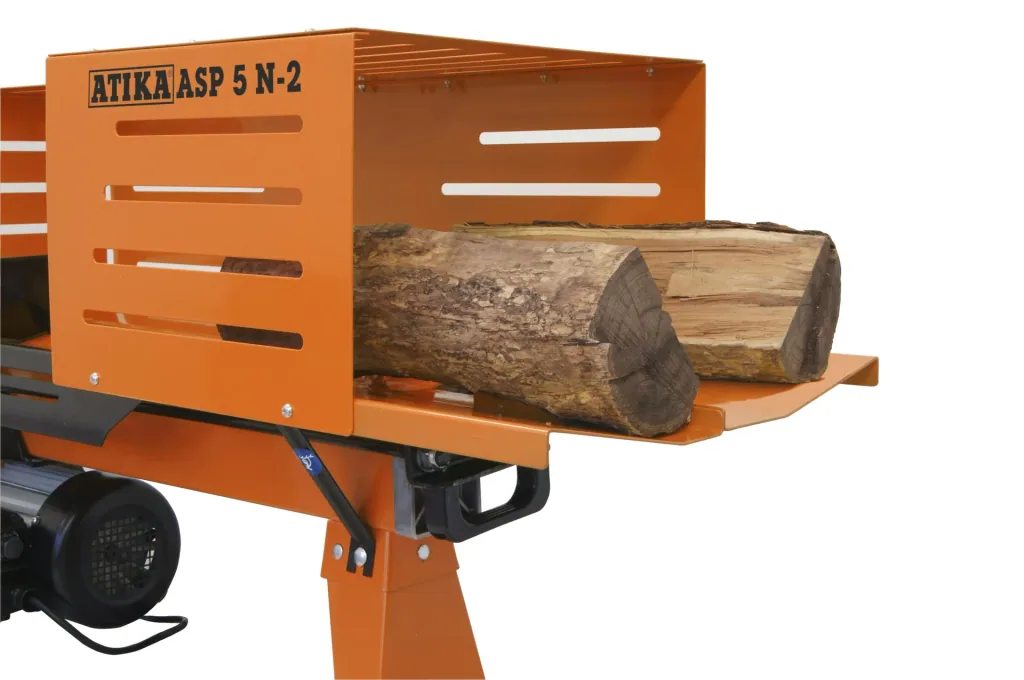

- Wood tray prevents split wood from falling down uncontrollably
- Additional handle and wheels ensure easy transport
The firewood splitter is ideal for processing logs into firewood quickly, safely, and with minimal effort. The ideal solution for private users, fireplaces, and tiled stove owners.
Technical specifications:
- AC motor: 230 V - 50 Hz
- Power P1: 2200 W (S1)
- Splitting force: 50 kN (5 tons) +- 10%
- Maximum length of split logs: 520 mm
- Maximum splitting stroke: 370 mm
- System pressure: 20.6 MPa (206 bar)
- Hydraulic system oil quantity: 3.5 liters
- Piston rod diameter: 30 mm
- Two-hand operation with access protection
- Handle and wheels
- Sound pressure level at the workplace when idling LPA: 78.8 dB (A)
- Sound pressure level at the workplace processing LPA: 89.8 dB (A)
Weight: 55 kg
Scope of delivery:
- 1 x firewood splitter "ASP 5 N-2"
- 1 x operating instructions
| Weight | |
|---|---|
| Weight | 55 kg |
| Colors | |
| Colors | orange |
| Maximum splitting length | |
| Maximum splitting length | 520 mm |
| Splitting force in tons | |
| Splitting force in tons | 5 t |
| Technical features | |
| Technical features | 2-hand operation |
| Technical features | Access protection |
| Technical features | Handle |
| Technical features | Wheels |
| Drive | |
| Drive | 230V motor |
| Voltage | |
| Voltage | 230 |
EU-Responsible Name: ALTRAD Equipment Germany GmbH
EU-Responsible Street: Josef-Drexler-Straße
EU-Responsible House No: 8
EU-Responsible Post Code: 89331
EU-Responsible Town: Burgau
EU-Responsible Country: Deutschland
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +49 8222 4130-0

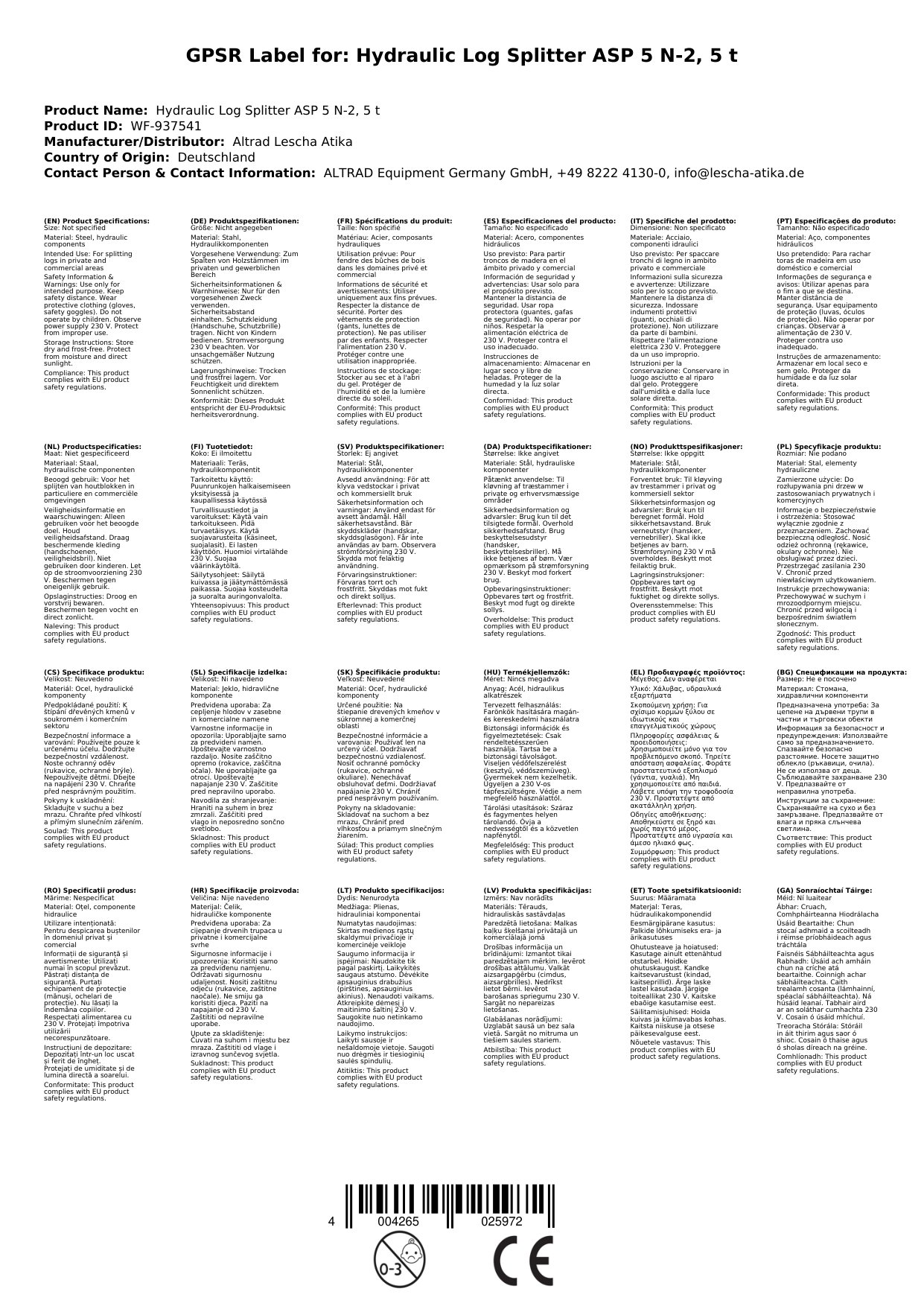

GPSR attachment:
Download
