Wood band saw HBS300J 230 Volt
Guaranteed Secure Checkout
| Item number | WF-942806 |
| Brand | Holzmann |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Saw width from 6 mm to 15 mm possible
- 2 band speeds
- Extendable table
- Mobile base frame

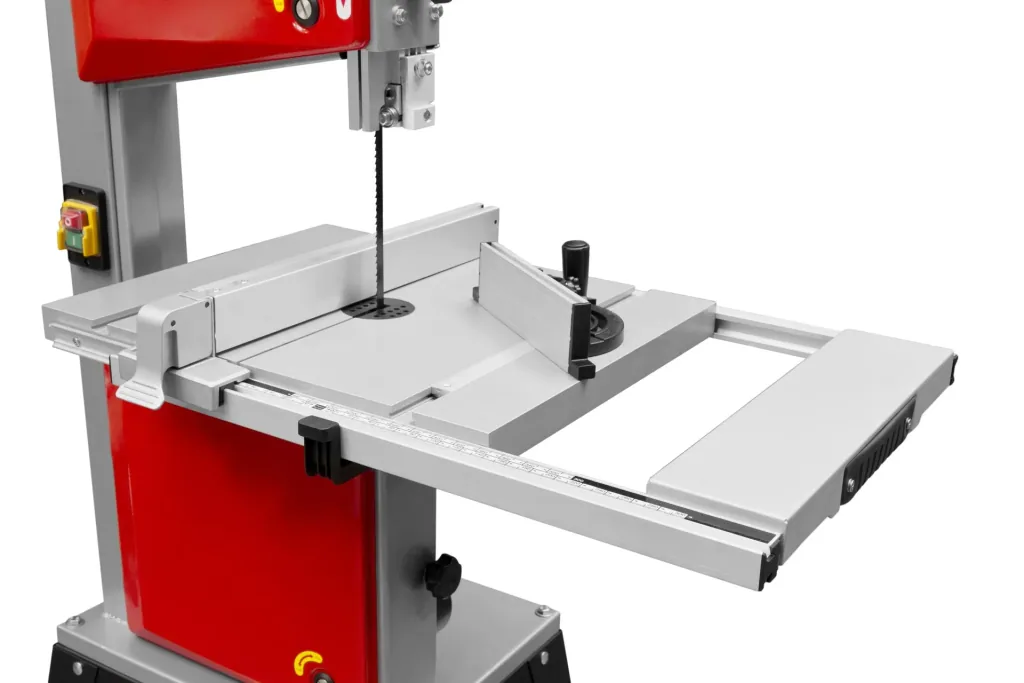

Die-cast aluminum rollers with a special rubber coating ensure a long service life of the band saw blade. Cast iron table with a precisely ground and polished surface, tiltable up to 45° forward.
Technical Specifications
- Motor power S1: 750 watts
- Motor power S6: 1050 watts
- Voltage: 230 volts
- Maximum cutting height 90°: 165 mm
- Idler wheel diameter: 315 mm
Dimensions
- Table height: 1000 mm
- Table size: 600 – 860 x 400 mm
- Saw blade width: 6 – 15 mm
- Saw blade: 2240 mm
- Extraction connection: 40/50/75/100 mm
- Thrust: 305 mm
- Pivoting range: 0 – 45°
- Cutting width at the parallel stop: 300 mm
Weight: 78 kg
Scope of delivery
Band saw blade
Mobile base frame
Ripstop
Miter stop
| Saw blade width | |
|---|---|
| Saw blade width | 18 mm |
| Weight | |
| Weight | 78 kg |
| Voltage | |
| Voltage | 230 V |
| Saw blade length | |
| Saw blade length | 2,240 mm |
| Cutting height | |
| Cutting height | 165 mm |
| Swivel range | |
| Swivel range | 0 - 45 degrees |
| Table size | |
| Table size | 600 - 800 x 400 mm |
| No-load speed | |
| No-load speed | 1,400 rpm |
| Power output | |
| Power output | 750 W |
