Vario pillar drill SB162VN_230V
Guaranteed Secure Checkout
| Item number | WF-942811 |
| Brand | Holzmann |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Variable speed with LCD display
- Solid base plate for good stability
- Drilling depth stop
- Extendable work table
- Aluminum motor according to IP54

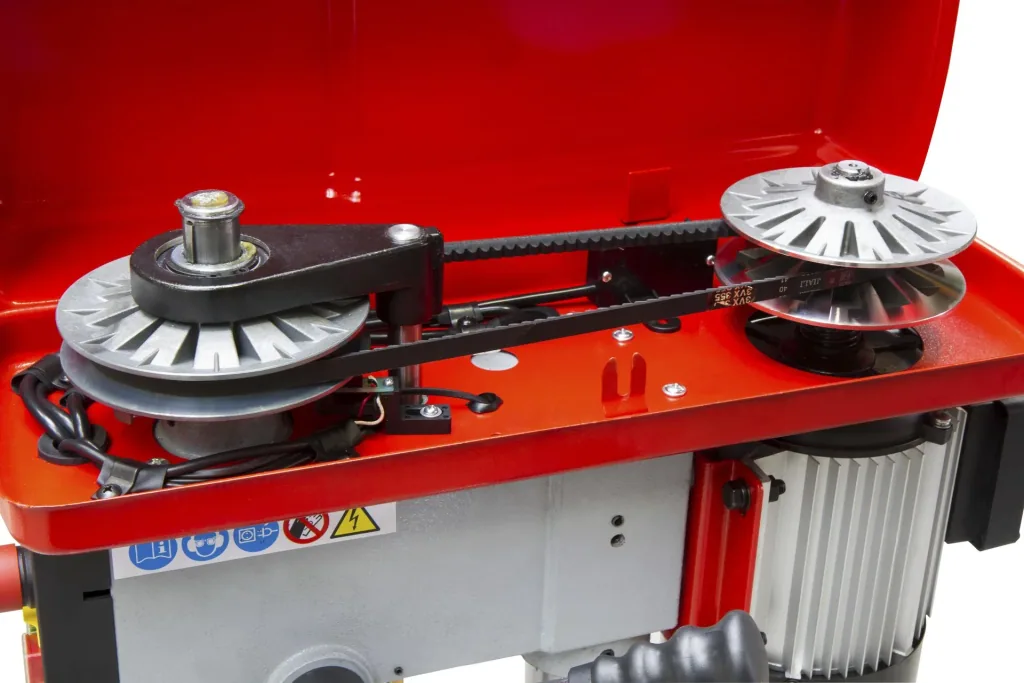

Rigid drilling column with ground surface. Rotating drilling table with adjustable height via rack and pinion. Practical three-arm lever with drilling depth scale. Fold-away keyless chuck cover made of Plexiglas. VARIO gearbox. Includes drill centering laser and work light.
Technical Data
- Voltage: 230 Volt / 50 Hz
- Protection class: I
- Drill spindle mount: MK2/MT2
- Sound pressure level: 59 dB(A)
- Sound power level: 78 dB(A)
- Speed: 390 – 2200 rpm
- Motor power S1: 500 watts
Dimensions
- Throat: 150 mm
- Installation dimensions: 310 x 570 x 910 mm
- Spindle stroke: 90 mm
- Distance spindle-base plate: 540 mm
- Table size: 243 x 243 mm
- Maximum drilling capacity: 16 mm
- Column diameter: 60 mm
- Base plate: 413 x 246 mm
Weight: 38 kg
Scope of delivery
- 1 x Vario pillar drill
| Weight | |
|---|---|
| Weight | 40 kg |
| Drill chuck type | |
| Drill chuck type | keyless chuck |
| Protection class | |
| Protection class | I |
| Spindle stroke | |
| Spindle stroke | 90 mm |
| Drive | |
| Drive | 230 V motor |
| Drilling capacity in steel | |
| Drilling capacity in steel | 16 mm |
| Voltage | |
| Voltage | 230 V |
| External dimensions | |
| External dimensions | 310 x 570 x 910 |
| Projection | |
| Projection | 150 mm |
| Table size | |
| Table size | 243 x 243 mm |
| Drill chuck width | |
| Drill chuck width | 16 mm |
| Colors | |
| Colors | red |
| Colors | silver |
| No-load speed | |
| No-load speed | 390 - 2200 rpm |
| Power output | |
| Power output | 500 W |
