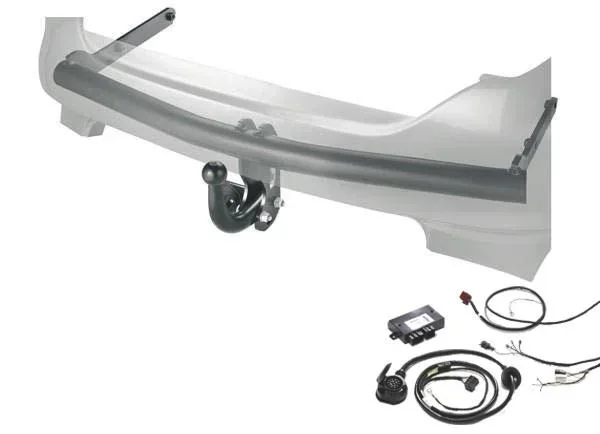

Trailer coupling kit "VW CRAFTER 2 PLATFORM 17", single tyres / MAN TGA
| Item number | WF-946637 |
| Brand | Westfalia-Automotive |
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choiceThere are no questions yet
Ask a question to learn more about the product
0.0
- With 4-hole ball head and 13-pin electrical kit (electrical kit with original connectors)
- With automatic parking aid deactivation
- For vehicles without tow bar preparation
- Parameterization of the vehicle electrical system required
- Cable harness contains permanent plus and charging cable
With this tow bar and the matching electrical kit from WESTFALIA-Automotive for the VW CRAFTER 2 PLATFORM 17- SINGLE TIRES / MAN TGA, you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement and therefore no additional costs for the TÜV inspection.
Protected against the weather and Each trailer hitch is protected from external influences by a special dipping process, cathodic dip painting.
The trailer hitch comes with all the screws, cables, plugs, etc. necessary for installation, as well as the installation instructions.
Technical specifications:
- Connection in the engine compartment
- D-value (kN): 17.5
- Support load: 150 kg
- Trailer load: 3500 kg
- Installation time: approx. 150 minutes
Weight: 26.51 kg
Scope of delivery:
- 1 x Trailer hitch
- 1 x Electrical kit
- 1 x Installation instructions
| Charging cable | |
|---|---|
| Charging cable | included |
| Turn signal monitoring | |
| Turn signal monitoring | CAN |
| D-value | |
| D-value | 21 kN |
| Trailer coupling weight | |
| Trailer coupling weight | 27 kg |
| Make | |
| Make | Volkswagen |
| Permanent plus | |
| Permanent plus | included |
| Towing capacity | |
| Towing capacity | 3,500 |
| Number of poles | |
| Number of poles | 13 |
| Installation time | |
| Installation time | 150 min |
| Cutout | |
| Cutout | no cutout |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
| Vehicle model | |
| Vehicle model | Flatbed |
| Year of manufacture | |
| Year of manufacture | 02/2017 |
| Power connection | |
| Power connection | front |
| Technical features | |
| Technical features | Single tires including ball plate, electrical kit for vehicles without pre-installation |
| Drawbar load | |
| Drawbar load | 150 kg |
| AHK system | |
| AHK system | KIT towing bracket with 4-hole ball plate (F40) including electrical kit |
| Electrical kit installation time | |
| Electrical kit installation time | 60 min |
| EPH deactivation | |
| EPH deactivation | yes |
| Coding/activation | |
| Coding/activation | required |
