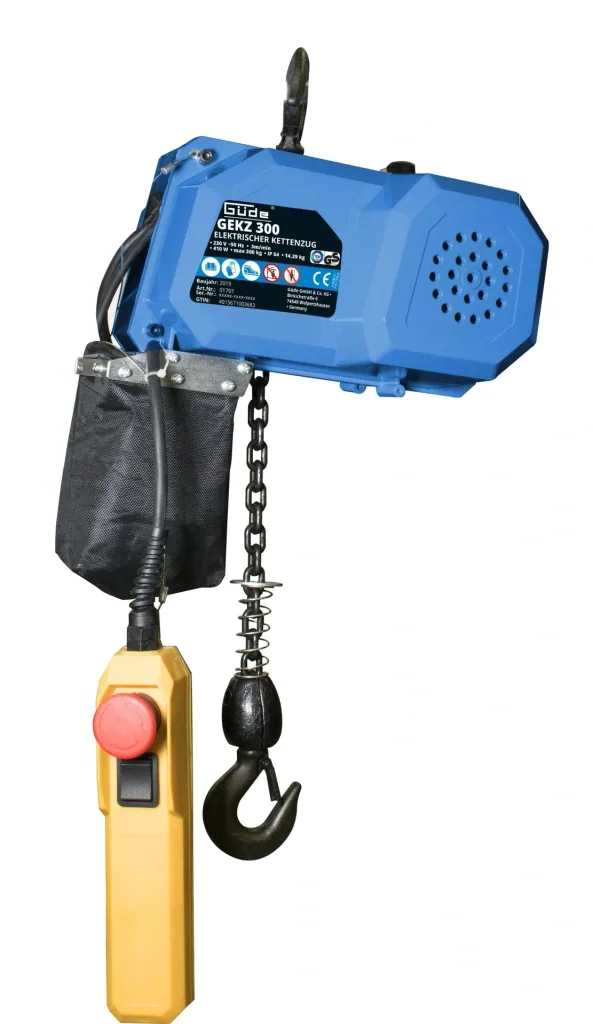

Electric chain hoist GEKZ 300
Guaranteed Secure Checkout
| Item number | WF-948965 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
• Limit switch to protect the motor when the chain is fully retracted
• One-hand operation with emergency stop
• Mechanical gear brake holds the weight even after switching off
• Maintenance-free chain, no lubrication required
• Quick and easy installation with fastening hooks
• Maximum lifting capacity 300 kg
• Low weight
• Precise lowering and lifting possible
• Very quiet
Technical data
• Mains voltage: 230 volts
• Frequency: 50 Hz
• Motor power (P1): 410 watts
• Rated current: 1.70 A
• Protection class (IP): 54
• Diameter lifting speed: 3 m/min
• Chain length: 3.00 m
• Operating cable length: 1.45 m
• Max. load: 300 kg
• Net / gross weight: 14.1 kg / 15.3 kg
Dimensions (L x W x H): 290 x 225 x 430 mm
Scope of delivery
• 1 x Electric chain hoist
| Weight | |
|---|---|
| Weight | 15,200 g |
| Drive | |
| Drive | 230 V motor |
| Current consumption | |
| Current consumption | 1,700 mA |
| Voltage | |
| Voltage | 230 V |
