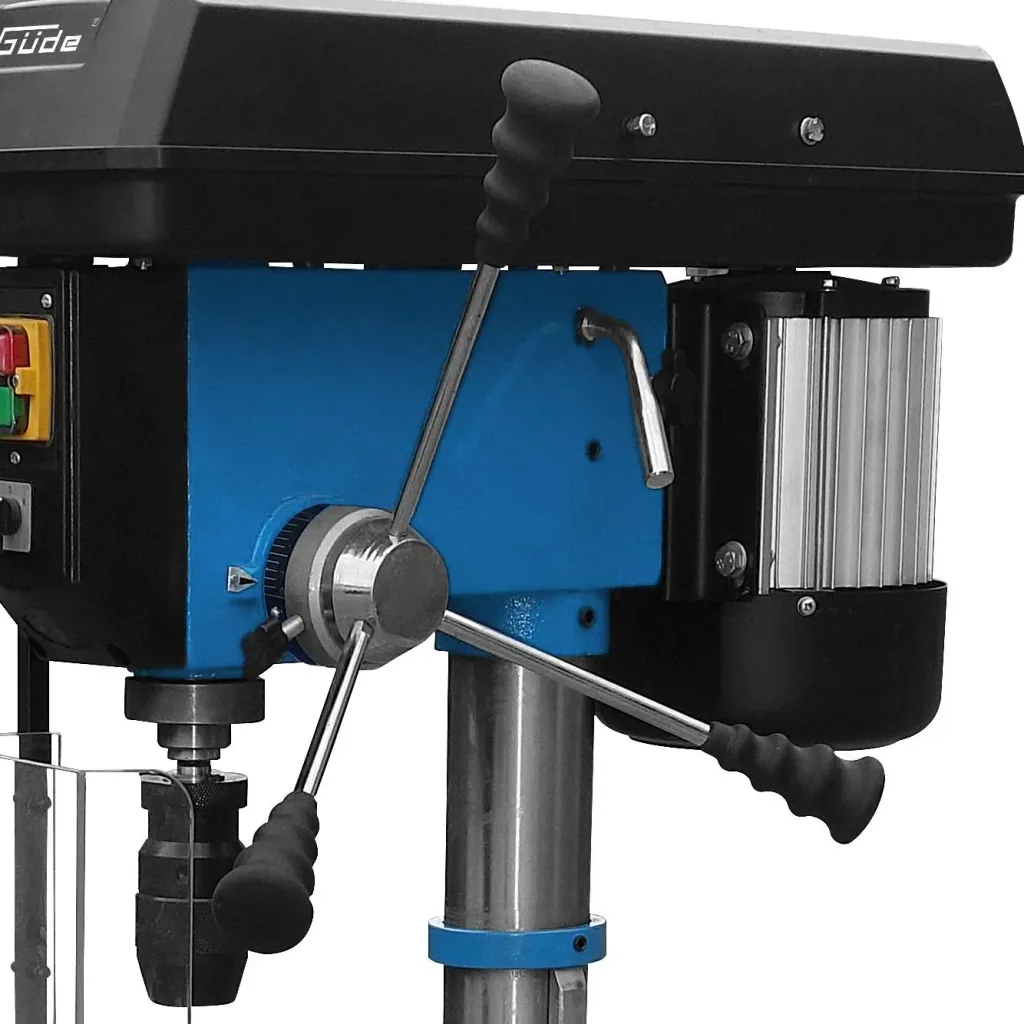

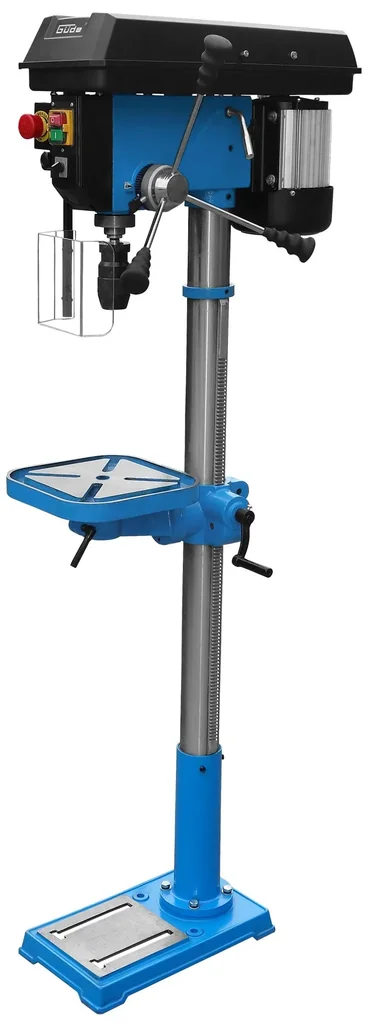

Column drill GSB 20/812 R+L
Guaranteed Secure Checkout
| Item number | WF-949100 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- V-belt drive, speed adjustment via stepped pulley
- V-belt tensioning system
- Ball-bearing drill spindle
- Keyless drill chuck 1-16 mm
- Spindle mount MK2 and drill chuck taper B16

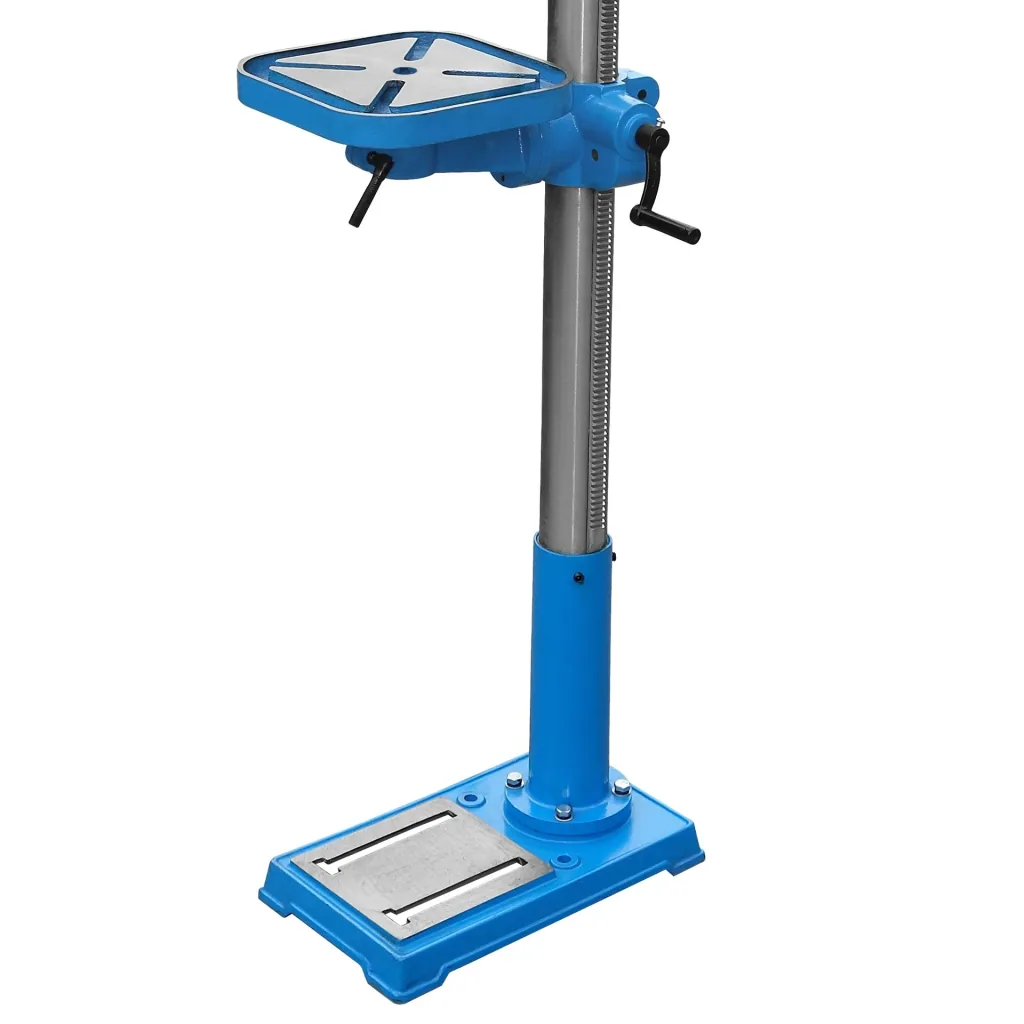

- Drill table size 260 x 260 mm
- Drill table height adjustable, +/- 45° tiltable and 360° pivotable
- Drill table with collecting troughs for coolant
- Adjustable drilling depth stop for precise drilling
- Max. distance between drill chuck and drill table 665 mm
- Max. Distance between drill chuck and base: 1100 mm
- Base size: 240 x 410 mm with slots for vice attachment
- Foldable chip guard with microswitch
- On/off switch with zero-voltage release
- Emergency stop switch
- Right/left rotation
Technical specifications:
- Mains voltage: 400 V
- Frequency: 50 Hz
- Spindle mount: 2 MK
- Operating mode: S2 15 min
- Protection class: I
- Motor power P1: 800 W
- Spindle stroke: 80 mm
- Spindle speed: 210-2500 min-1
- Number of steps: 12
- Throat: 170 mm
- Max. drill chuck clamping width: 16 mm
- Min. drill chuck clamping width: 1 mm
- Drill chuck taper: 16 B
- Drill diameter for steel: 20 mm
- Table width: 260 mm
- Table depth: 260 mm
- Base plate W x D: 240 x 410 mm
- Column diameter: 70 mm
- Connection cable length: 200 cm
- Cable type: H07RN-F
- Noise level LWA: 76.3 dB
- Dimensions L x W x H: 630 x 370 x 1,580 mm
- Net/gross weight: 53 kg/56 kg
| External dimensions | |
|---|---|
| External dimensions | 630 x 370 x 1580 |
| Table size | |
| Table size | 260 x 260 mm |
| Spindle mount | |
| Spindle mount | 2 MK |
| Voltage | |
| Voltage | 380 V |
| Cable length | |
| Cable length | 2 m |
| Weight | |
| Weight | 53 kg |
| Power output | |
| Power output | 800 W |
| Chuck width | |
| Chuck width | 16 mm |
| Protection class | |
| Protection class | I |
| Spindle stroke | |
| Spindle stroke | 80 mm |
| Drive | |
| Drive | 380 V motor |
EU-Responsible Name: GÜDE GmbH & Co. KG
EU-Responsible Street: Birkichstrasse
EU-Responsible House No: 6
EU-Responsible Post Code: 74549
EU-Responsible Town: Wolpertshausen
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +496871909137

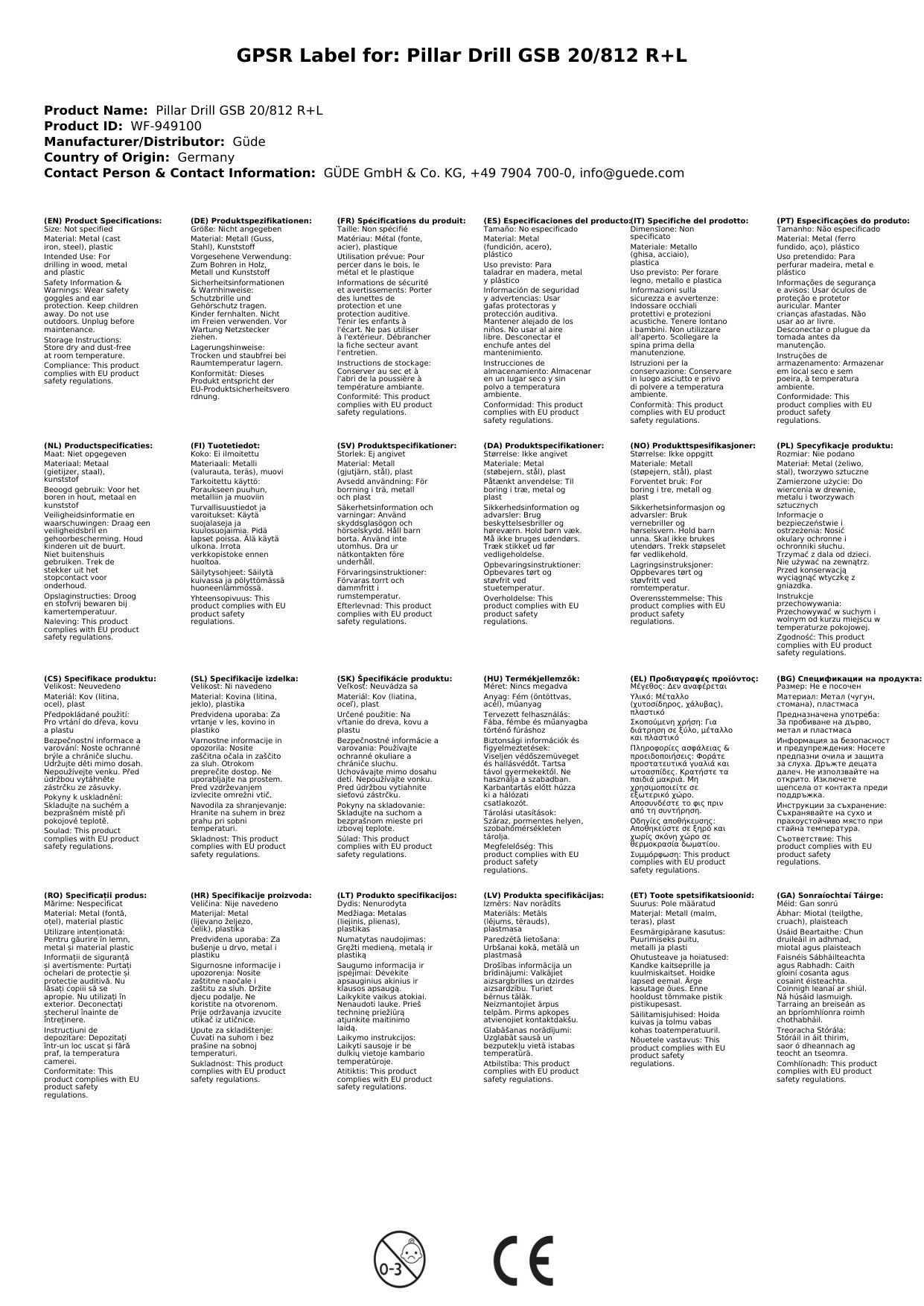

GPSR attachment:
