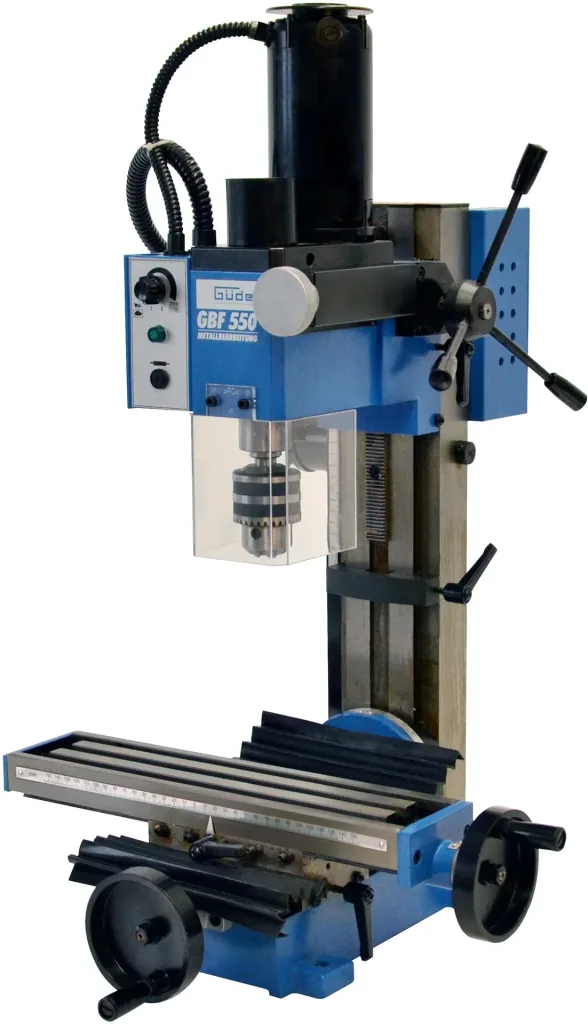

Mini drilling and milling machine GBF 550
Guaranteed Secure Checkout
| Item number | WF-949104 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews

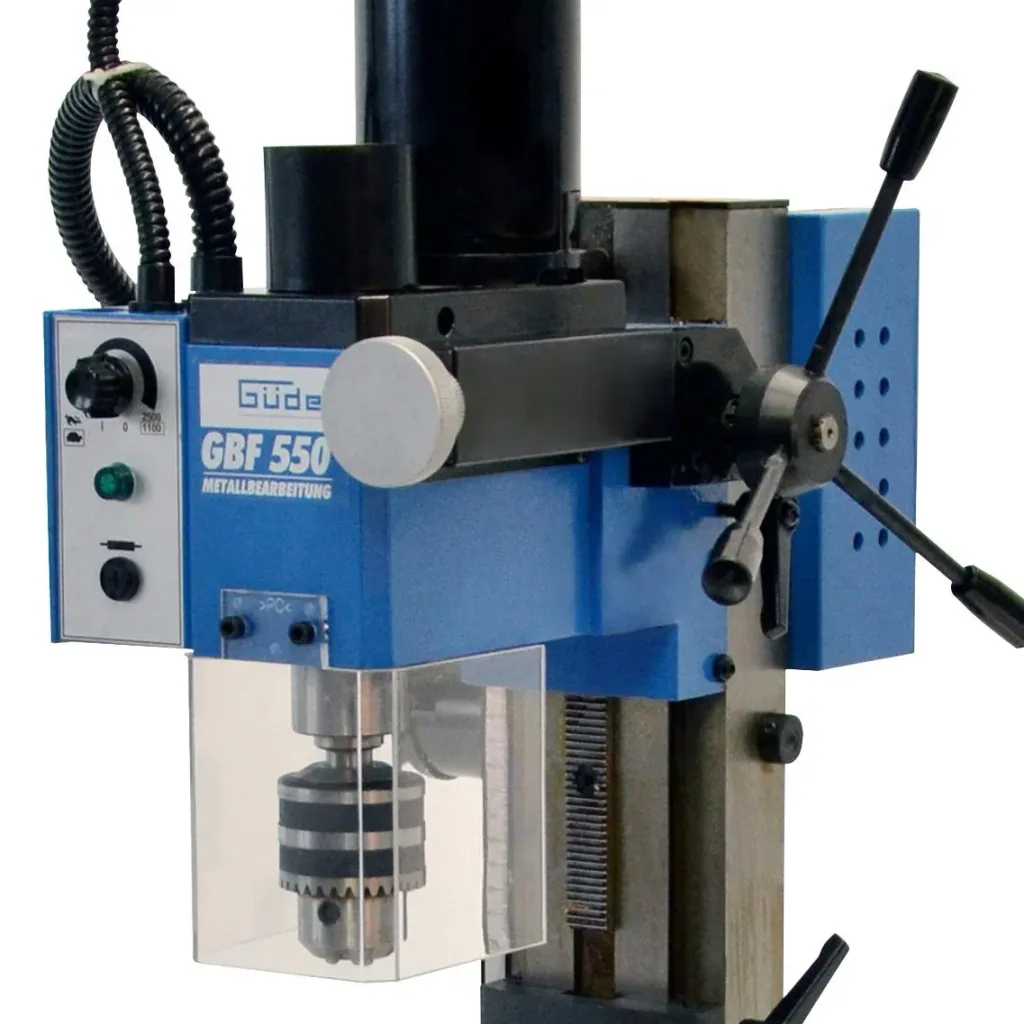

- Drill head can be tilted +/- 45°
- Spindle mount MK3 and drill chuck taper B16
- High concentricity (< 0.04 mm)

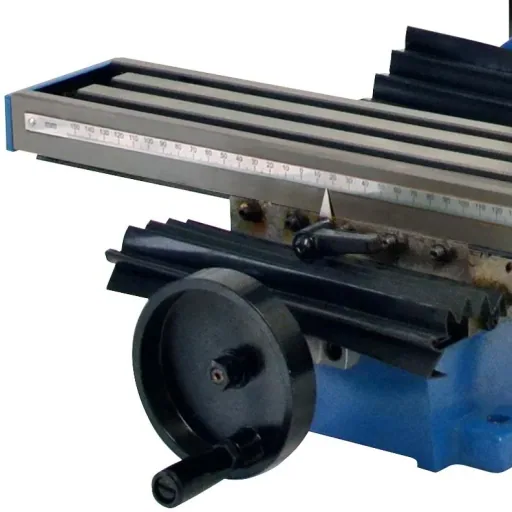

- Cross table 390 x 92 mm with 3 slots
- Handwheels with adjustable scale rings
- Fine adjustment for drilling and milling
- Fixing pin for spindle locking
- Spare fuse
- Chip guard
- Plastic oil container

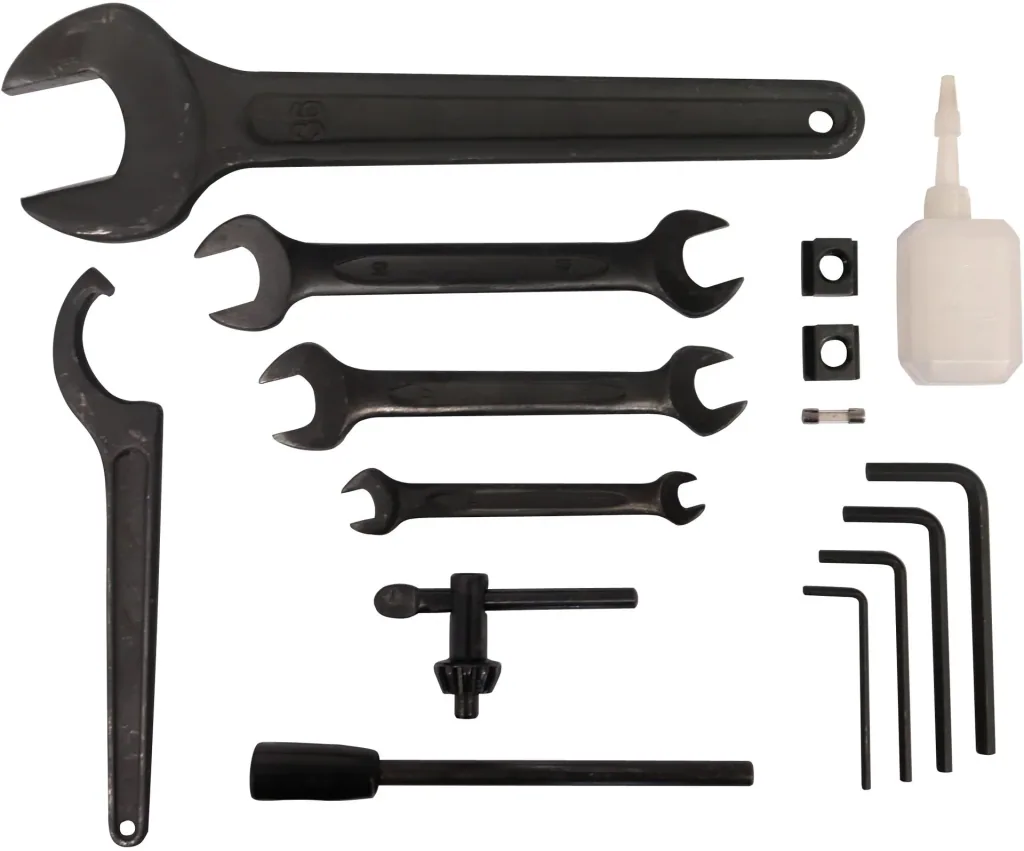

- Drill chuck, fork, hook & Allen key
Technical data
- Mains voltage: 230 V
- Frequency: 50 Hz
- Protection class: I
- Protection type (IP): 20
- Motor power (P1): 350 W
- Max. drilling diameter: 13 mm
- Spindle stroke: 120 mm
- Table width: 390 mm
- Table depth: 92 mm
- Max. Distance spindle-table: 220 mm
- Spindle speed level 1: 0 - 1100 rpm
- Spindle speed level 2: 0 - 2500 rpm
- Suitable for Morse taper: 3 MK
- Throat: 167 mm
- Machine head tiltable: - 45 / + 45 °
- Slot milling max.: 16 mm
- Face milling max.: 30 mm
- Noise level LWA: 82 dB
Dimensions: L x W x H: 520 x 510 x 600 mm
Net weight: 47 kg
Scope of delivery: 1 x mini drilling and milling machine GBF 550
| Idle speed | |
|---|---|
| Idle speed | 2500 rpm |
| Power output | |
| Power output | 350 W |
| Weight | |
| Weight | 49.2 kg |
| External dimensions | |
| External dimensions | 520 x 510 x 760 |
| Protection class | |
| Protection class | I |
| Voltage | |
| Voltage | 230 V |
| Number of gears | |
| Number of gears | 2 |
| Noise level | |
| Noise level | 82 |
EU-Responsible Name: GÜDE GmbH & Co. KG
EU-Responsible Street: Birkichstrasse
EU-Responsible House No: 6
EU-Responsible Post Code: 74549
EU-Responsible Town: Wolpertshausen
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +496871909137

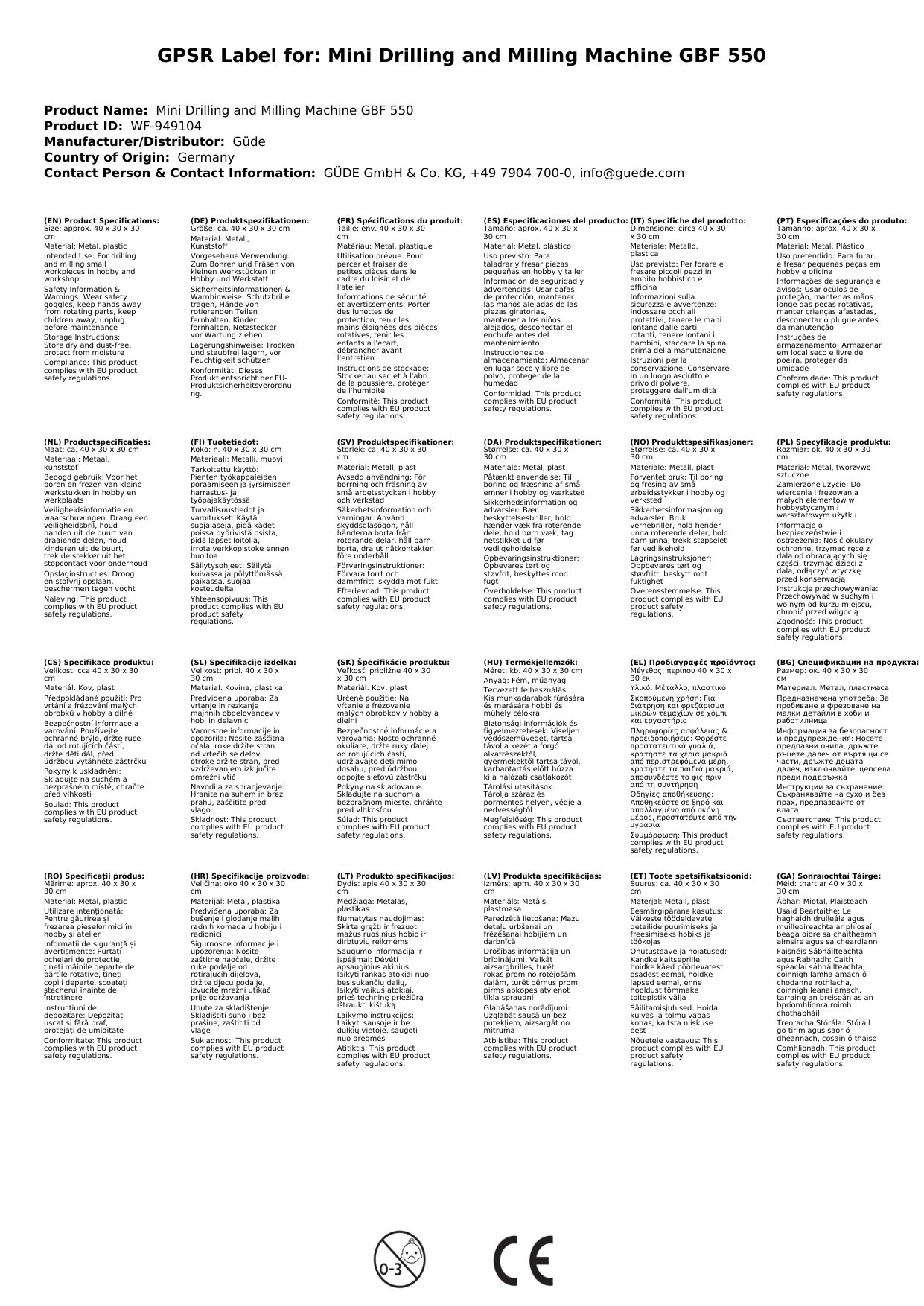

GPSR attachment:
