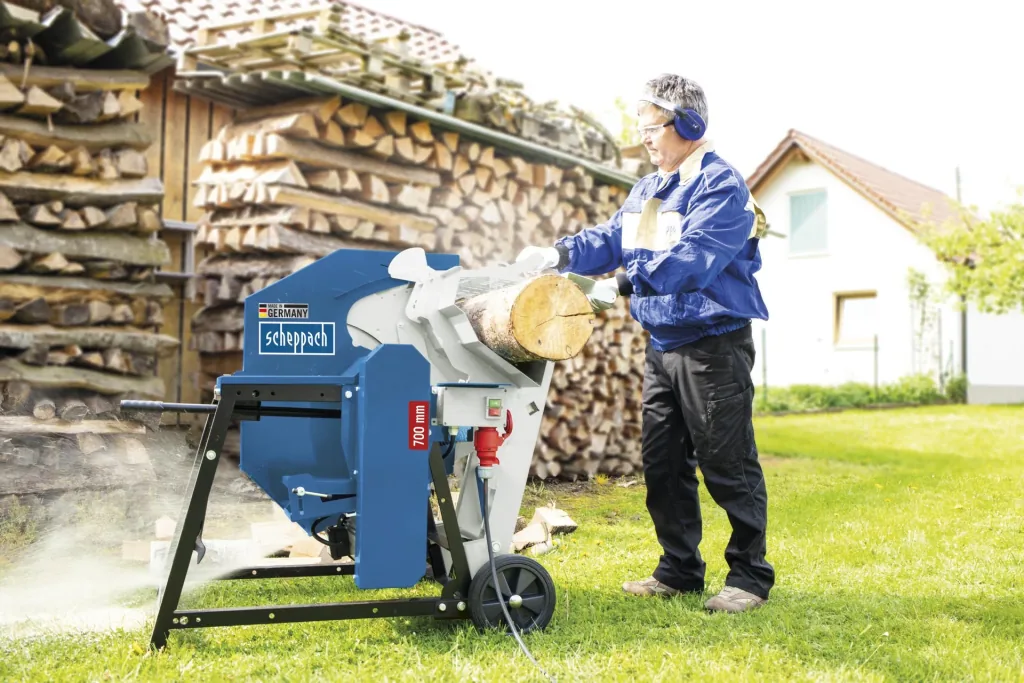

Swing saw "KW 7", 5200 Watt, 400 V, 700 mm saw blade
| Item number | WF-949804 |
| Brand | Scheppach |
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choiceThere are no questions yet
Ask a question to learn more about the product
0.0
· Powerful 700 mm HW saw blade for optimal cutting of all types of wood
· High cutting performance and energy-saving operation thanks to the ideal rocker pivot point
· Fast and ergonomic handling thanks to the patented protective flap
· Sturdy, welded angle iron frame
· Multiple logs in a single operation
With the "kw 7" tilting circular saw, you can process large quantities of round wood quickly, safely, and with minimal effort. The bottom-mounted motor with V-belt drive allows for maximum cutting depth. The saw is assembled and ready for use.
Technical data
- Power: 5200 watts
- Voltage: 380-420 volts
- Frequency: 50 Hertz
- V-belt drive
- Speed: 1400 min-1
- Number of teeth: 56
Dimensions: approx. 820 x 1060 x 1150 mm
Saw blade Ø: approx. 700 mm
Cutting Ø max.: approx. 260 mm
Firewood width: approx. 420 mm
Cutting length min.-max. 250-1500 mm
Color: Black, Gray, Blue
Material: Steel
Care instructions:
Weight: 152 kg
Scope of delivery
· 1 x "kw 7" rocker circular saw, 5200 watts
· 1 x instruction manual
| Drive | |
|---|---|
| Drive | 380V motor |
| Idle speed | |
| Idle speed | 1380 rpm |
| Power output | |
| Power output | 4,000 W |
| Noise level | |
| Noise level | 99 |
| Voltage | |
| Voltage | 400 V |
| Cutting material | |
| Cutting material | Wood |
| Disc/blade diameter | |
| Disc/blade diameter | 700 mm |
| External dimensions | |
| External dimensions | 1060 x 820 x 1150 |
| Weight | |
| Weight | 152 kg |
