WiFi IP outdoor camera

Always keep an eye on your home – easily via smartphone or tablet

Ideal for monitoring outdoor areas

Full HD video resolution with max. 15fps

Supports WiFi up to ~30m in open areas

Live monitoring via free iOS & Android app (worldwide)

Motion detection via PIR sensor (120°)

Protection class IP66 (dust & water resistant)

Alarm function (push notification) on your smartphone

Integrated microphone & Speaker for 2-way communication

H.264/H.265 video compression (for space-saving, high-quality recordings)

Loop recording with automatic overwrite

Day/Night mode: integrated IR filter with automatic switching

3 infrared LEDs for up to 15m night vision (850nm)

Monitor your home – conveniently even on the go. Controllable via the free iOS & Android app, you can access the camera manually or receive a push notification when motion is detected. Using the microphone and built-in speaker, you can talk to visitors at your front door – even when you're not at home.

Technical Specifications

Color Sensor: 1/2.9" CMOS (2 MP)

Minimum Illumination: 0.1 Lux @ (F2.0, AGC ON), 0 Lux with 3x IR LEDs

Lens / Shutter: f=3.6mm / 1/25s ~1/25000s

Supports MicroSD cards (HC/XC) up to 128GB (FAT32/exFAT) Class10

File Size (Night; in B/W): 1MB/min. (32GB = 10 days of continuous recording)

File Size (Day; in Color): 4.5MB/min. (32GB = 5 days of continuous recording)

Network Interface: 2.4GHz Wi-Fi; Radiated transmission power: max. 100mW

Power supply: DC 12V / 1A; Power consumption: max. 6W

Operating conditions: -20°C~+60°C, humidity max. 90% (non-condensing)

APP "Security Premium": iOS 9.0 or later; Android 7.0 or later

Dimensions:

• 200 x 80 x 60 mm (+180 mm antenna)

Weight

• 700 g

Scope of delivery

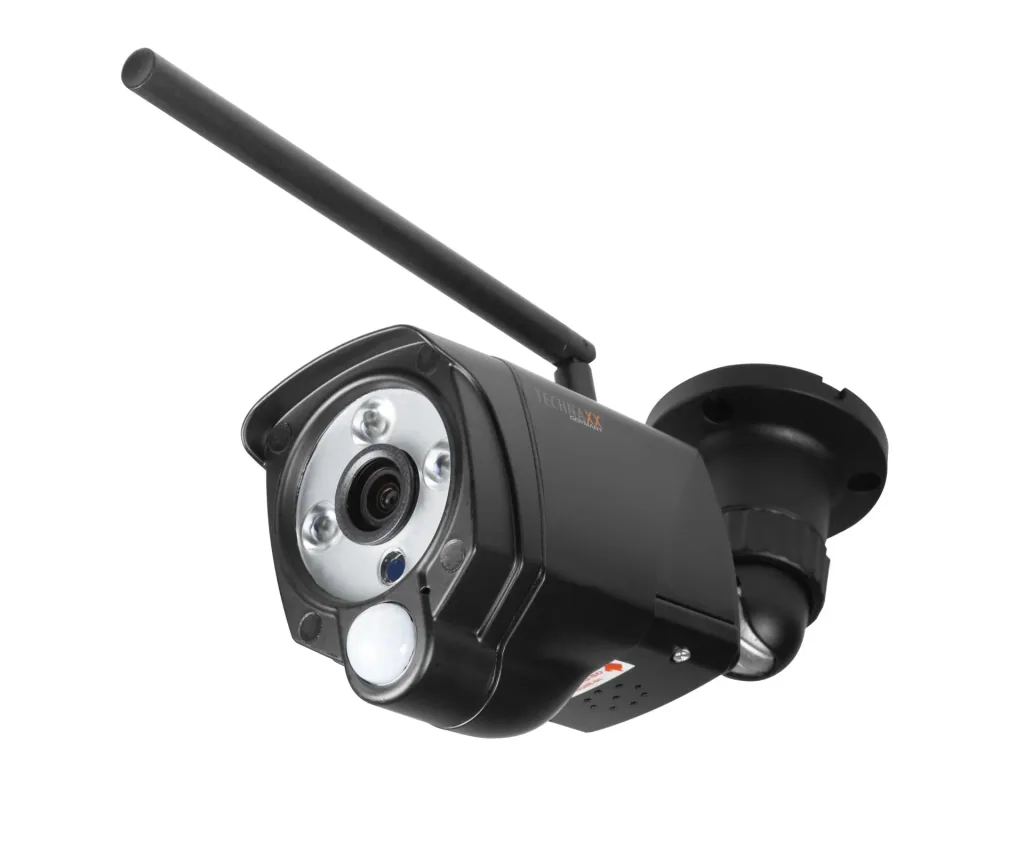

• Wi-Fi IP outdoor camera TX-145
• 1x 12V/1A power supply
• 3x screws and dowels
• 1x seal
• Instruction manual (short)
