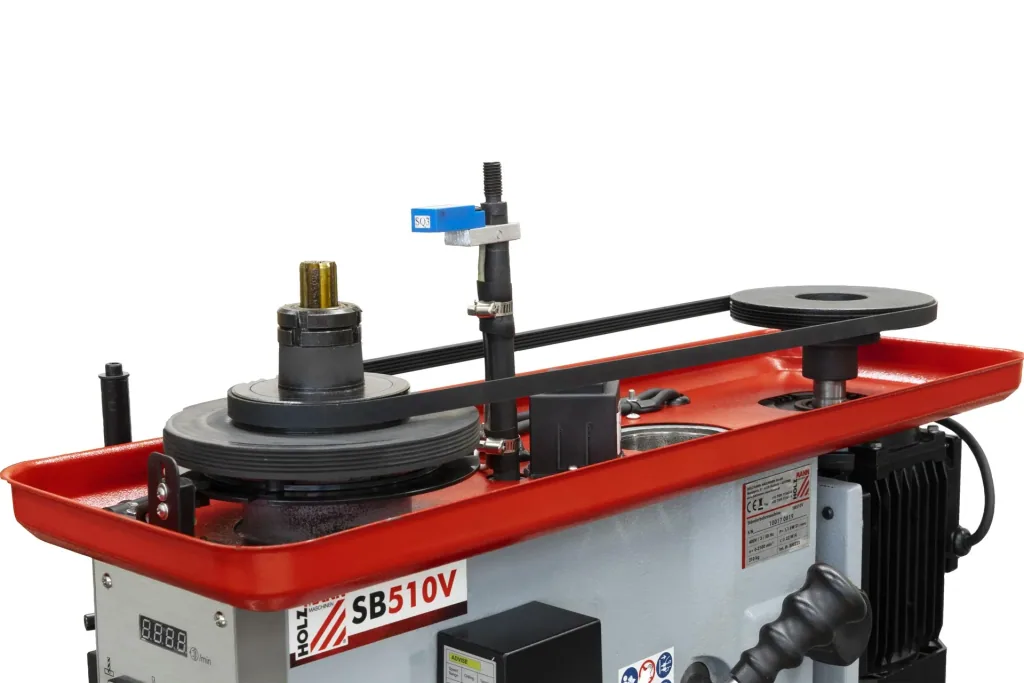

- Variable speed setting via frequency converter and LCD display
- Solid base plate for good stability
- Bending-resistant drilling column with ground surface
- Work table height-adjustable via rack and pinion
- Practical three-arm lever with drilling depth scale
- Foldable keyless chuck cover made of Plexiglas
- Drilling depth stop
- Thread cutting mode
Technical data
- Motor power S1 in W: 1100
- Voltage: 400V / 3 / 50Hz
- Protection class: IP22
- Cable length: 1.8 m
- Max. Drilling capacity in mm: ø32
- Thread size: max. M14
- Drill spindle mount: MK4 / MT4

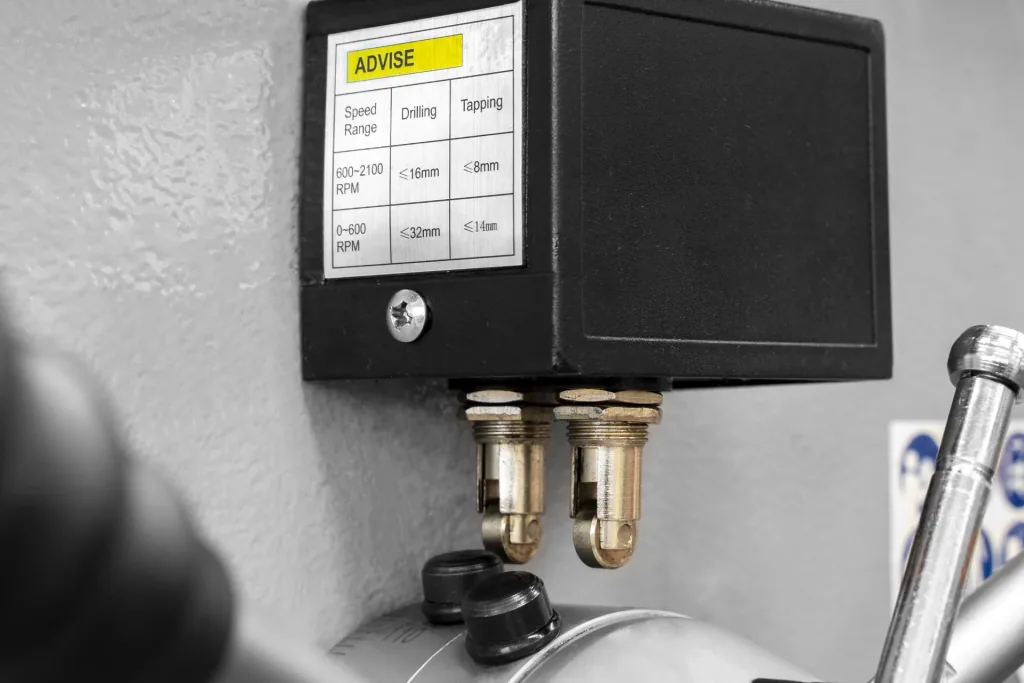

- Drill spindle speed in min-1 (I): 80-600; (II): 80-2100
- Max. distance spindle to table in mm: 815
- Distance spindle to base plate in mm: 1160
- Column diameter in mm: 98
- Spindle stroke in mm: 135
- Base plate in mm: 650 x 440
- Max. Table load in kg: 60
Dimensions
- Installation dimensions in mm: 830 x 550 x 1770
- Throat in mm: 245
- Table size in mm: 410 x 380
Weight
- Net weight 201 kg
Scope of delivery
- Billboard drill SB510V 400V
- Keyless chuck 1-16mm B16
| External dimensions | |
|---|---|
| External dimensions | 830 x 470 x 1770 |
| Table size | |
| Table size | 410 x 380 mm |
| Projection | |
| Projection | 245 mm |
| Chuck width | |
| Chuck width | 16 mm |
| Power output | |
| Power output | 1,000 W |
| No-load speed | |
| No-load speed | 80 - 2,100 rpm |
| Colors | |
| Colors | red |
| Colors | silver |
| Noise level | |
| Noise level | 88.1 |
| Chuck type | |
| Chuck type | keyless chuck |
| Number of gears | |
| Number of gears | 2 |
| Drilling capacity in steel | |
| Drilling capacity in steel | 32 mm |
| Voltage | |
| Voltage | 400 V |
| Cable length | |
| Cable length | 1.8 m |
| IP protection class | |
| IP protection class | IP22 |
| Carrying case | |
| Carrying case | no |
| Weight | |
| Weight | 201 kg |
| Right-left rotation | |
| Right-left rotation | true |
| Drive | |
| Drive | 380 V motor |
| Spindle stroke | |
| Spindle stroke | 135 mm |
