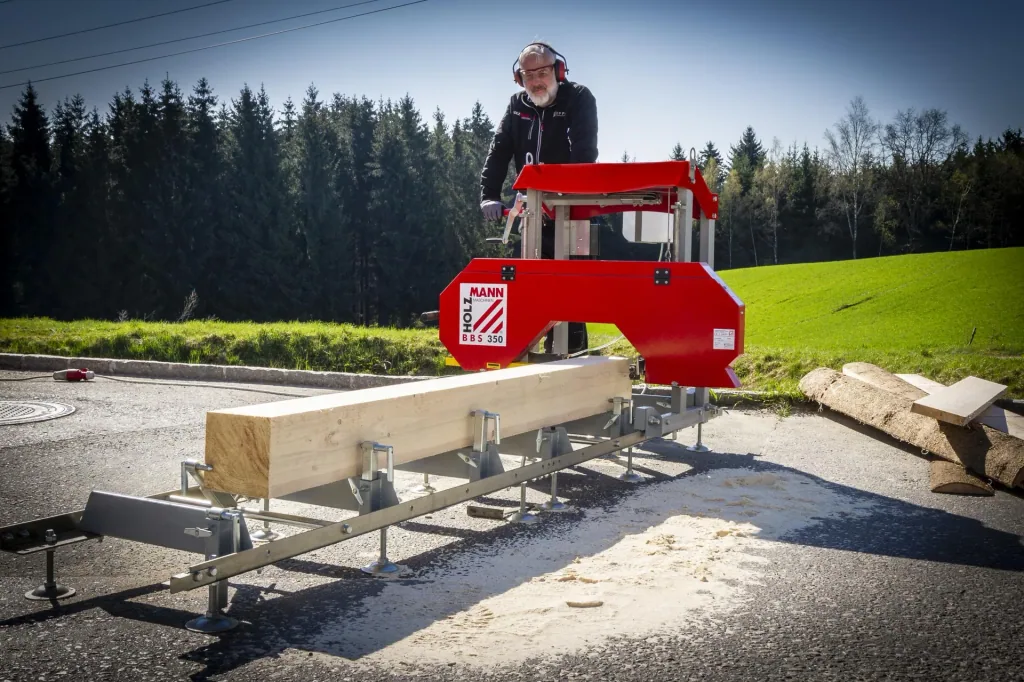

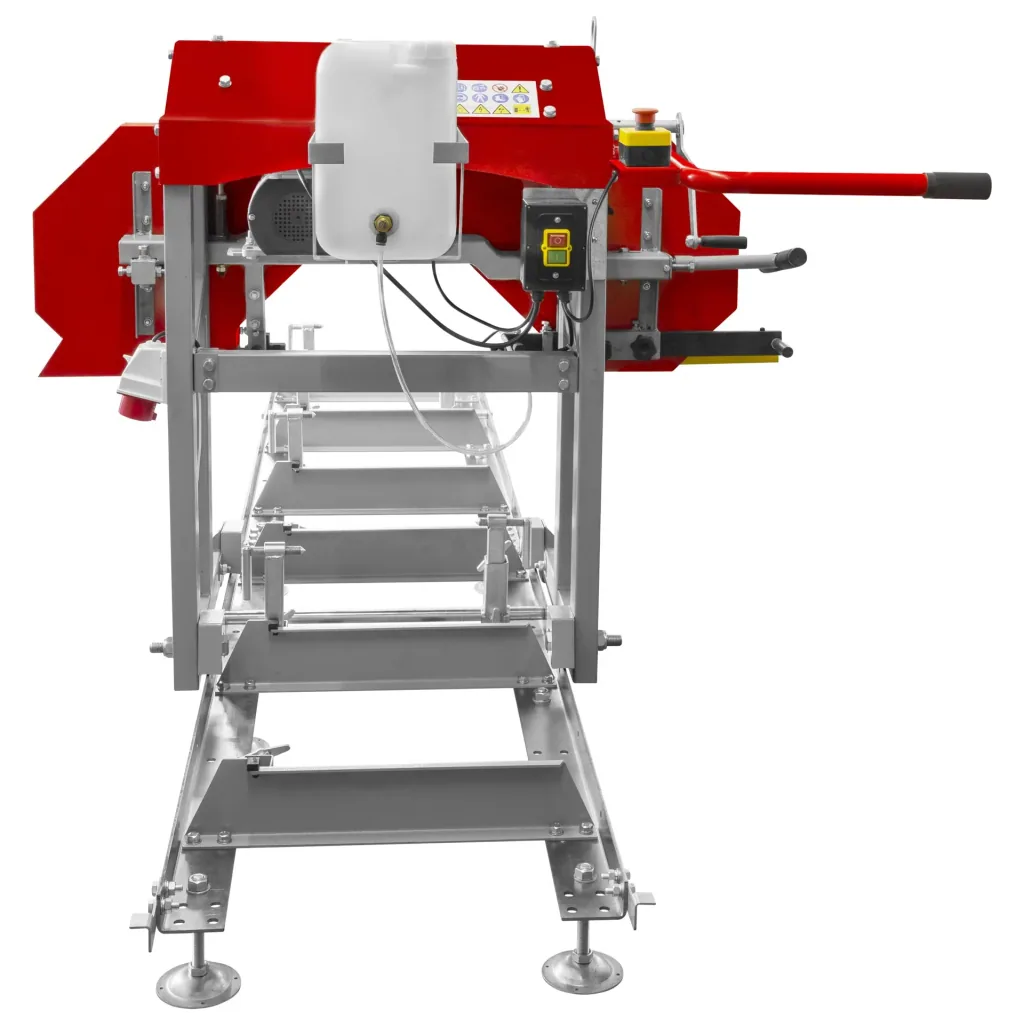

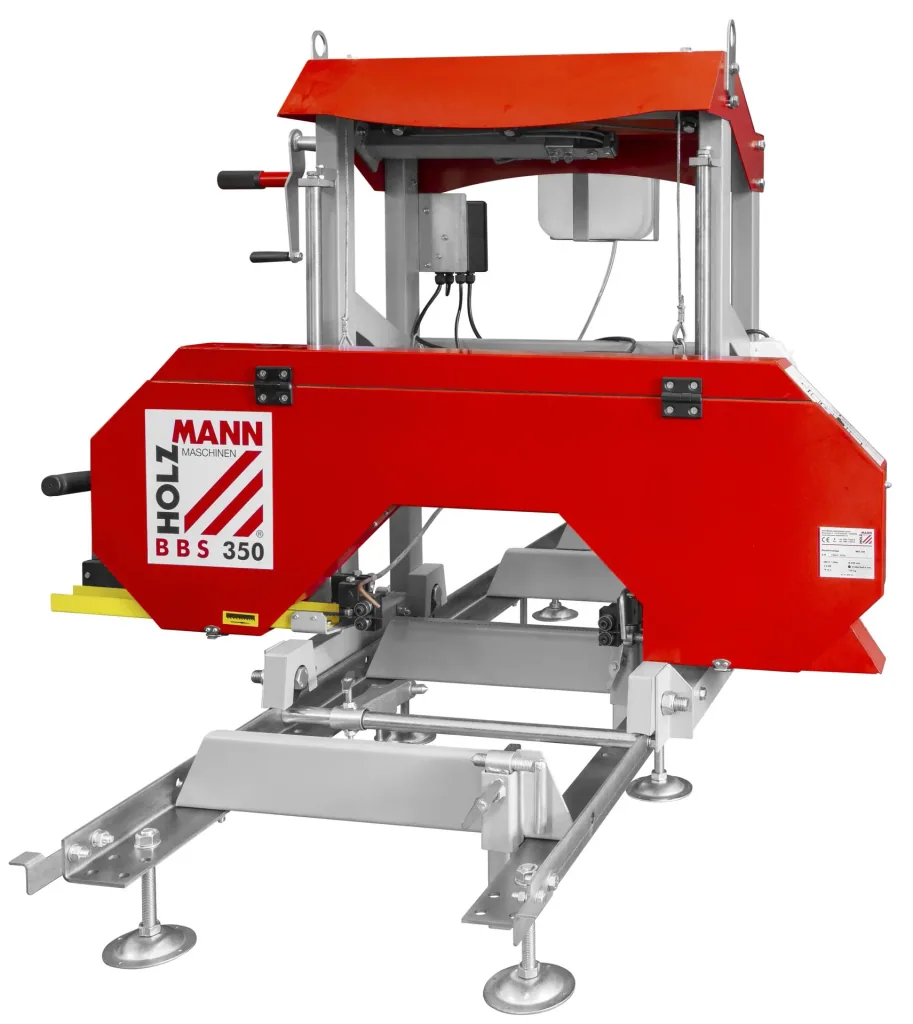

BBS350 400V block band saw
Guaranteed Secure Checkout
| Item number | WF-951432 |
| Brand | Holzmann |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- All types of wood can be cut with the same saw blade
- The maximum cutting length depends on the extension elements
- Max. Cutting length basic version 2.4 m
- Robust and vibration-free construction
- Minimal maintenance
- Easy operation
- Solid precision cast wheels
- Precision guide
- Eccentric clamp
- Manual cutting height adjustment
- Manual feed
- Carbon steel saw blade tooth pitch 4ZpZ
The saw is ideal for cutting soft, hard, dry or frozen wood or prisms.
Technical data
Motor power S1 in W 2200
Voltage 400 V / 3 / 50 Hz
Saw blade in mm 2750 x 19 x 0.9
Saw blade speed in m/min 840
Wheel diameter in mm 350
Max. log diameter in mm 360
Max. board width in mm 350
Extension section in m 1.5
Cutting gap in mm 1.5-2.2
Dimensions
Installation dimensions in mm 3100 x 1450 x 1220
Weight
170 KG
| Voltage | |
|---|---|
| Voltage | 380 V |
| External dimensions | |
| External dimensions | 3100 x 1450 x 1220 |
| Drive | |
| Drive | 380 V motor |
| Weight | |
| Weight | 170 kg |
| Output power | |
| Output power | 2,200 W |
