- 4-knife shaft ensures optimal planing results

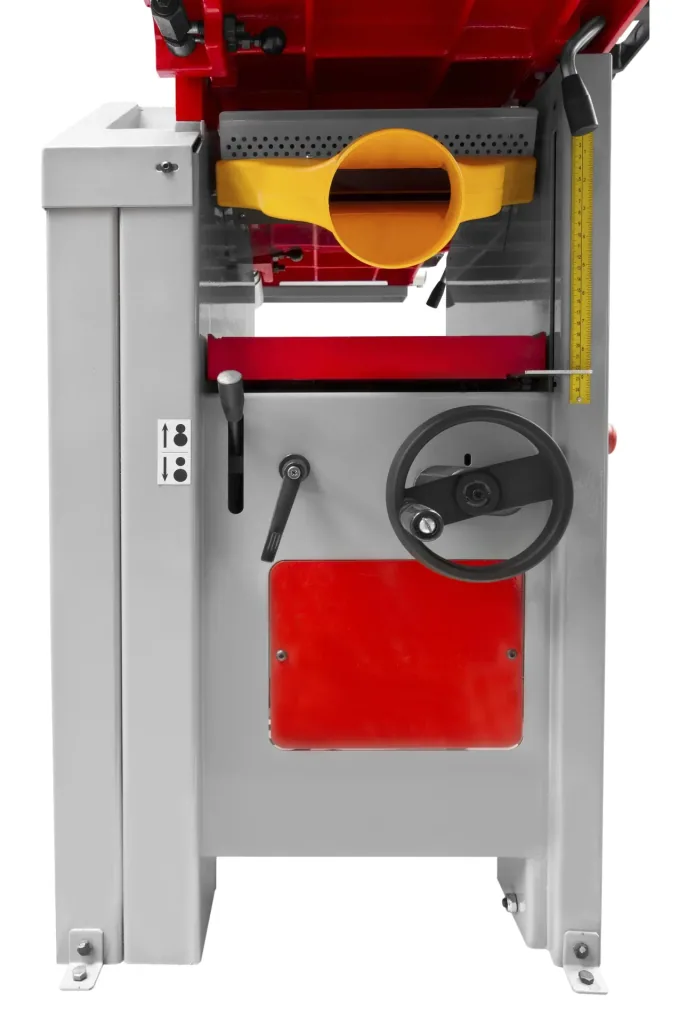

- smooth central height adjustment of the thicknessing table
- both cast iron tables can be folded out
- high-quality manufacture of the machine, among others. through laser cutting technology
Surface planing
Surface planing max. chip removal in mm 3
Surface planing stop in mm 1000 x 160
Swivel range of surface planing stop 90° - 45°
Surface planing table size in mm 1512 x 400
Surface planing table height in mm 900
Technical data
Motor power S1 in W 2200
Feed speed 5.5
Voltage 400V
Thicknessing
Thicknessing table size in mm 585 x 300
Thicknessing max. chip removal in mm 3
Planing general
Planer shaft diameter in mm 74
Planer shaft speed in min-1 4000
Number of planing knives: 4
Weight: 288 kg
| Feed speed | |
|---|---|
| Feed speed | 5.5 m/min |
| Drive | |
| Drive | 380V motor |
| Number of knives | |
| Number of knives | 4 |
| Planing width | |
| Planing width | 300 mm |
| Voltage | |
| Voltage | 400 V |
| Power output | |
| Power output | 2,200 W |
| Cutting height | |
| Cutting height | 225 mm |
| Idle speed | |
| Idle speed | 4,000 rpm |
| Weight | |
| Weight | 258 kg |
| External dimensions | |
| External dimensions | 1,665 x 575 x 930 mm |
| Table size | |
| Table size | 1,512 x 400 mm |
| Swivel range | |
| Swivel range | 90 to 45 degrees |
| Chip removal | |
| Chip removal | 3 mm |
| Noise level | |
| Noise level | 93 |
| Cutting width | |
| Cutting width | 304 mm |
