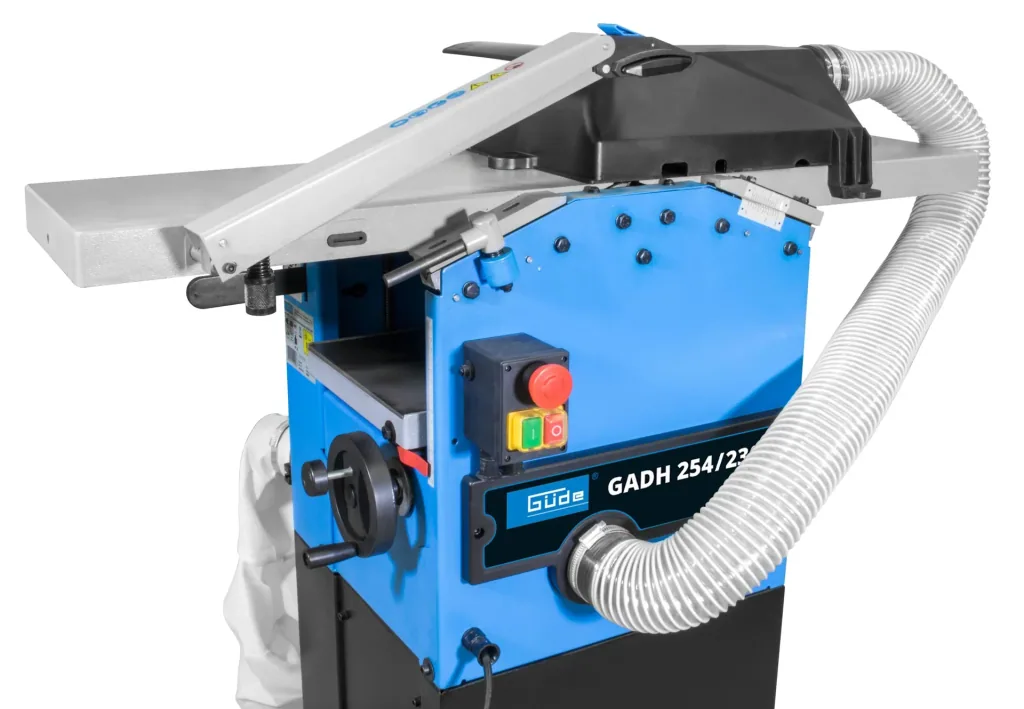

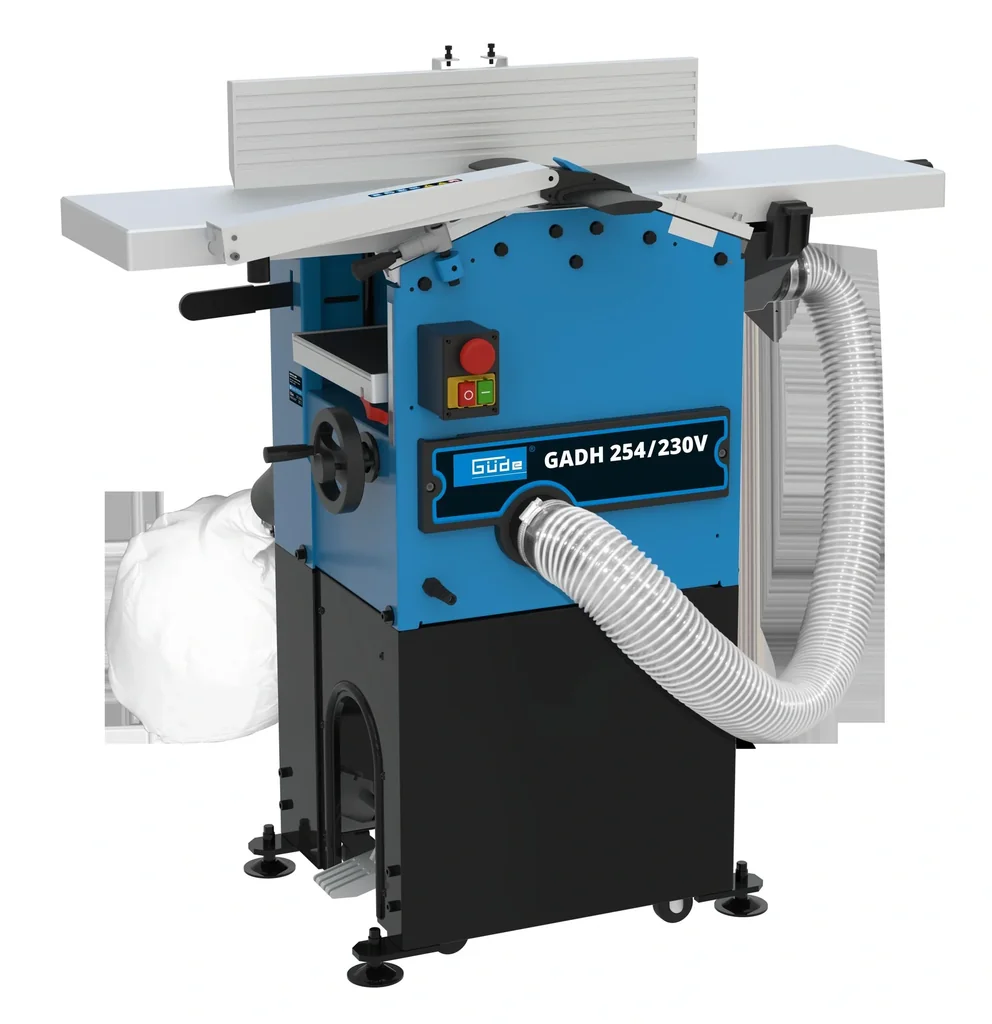

Jointer & thicknesser GADH 254
Guaranteed Secure Checkout
| Item number | WF-951894 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Planing tables made of die-cast aluminum
- Thickness table adjustment via handwheel 6-160 mm
- Integrated extraction system with external chip collection bag
- Chip extraction nozzle
- Safety switch with zero-voltage release
- Overload switch
- Closed base frame
- Cutter block with 2 HSS planer knives
- Parallel stop
Technical data
- Mains voltage: 230 V
- Frequency: 50 Hz
- Motor power (P1): 1800 W
- Planer block speed: 6700 min-1
- Number of knives: 2 pcs.
- Knives material: HSS
- Ø knife shaft: 63 mm
- max. Planing width: 254 mm
- max. Planing thickness: 6 - 160 mm
- max. Chip removal dressing: 0- 3 mm
- max. Chip removal thicknesses: 0 - 2 mm
- Size of dressing table: 1050 x 260 mm
- Size of thickness planing table: 480 x 254 mm
- max. Feed speed: 8 m/min
- Extraction nozzle diameter: 74 mm
- Noise level LWA: 98 dB
Dimensions:
Item (L x W x H): 1110 x 700 x 1020 mm
Weight: 83.2 kg
Color: blue, black, silver
Material: metal/plastic
| Weight | |
|---|---|
| Weight | 83.2 kg |
| Number of blades | |
| Number of blades | 2 |
| Voltage | |
| Voltage | 230 V |
| Planing width | |
| Planing width | 254 mm |
| Drive | |
| Drive | 230 V motor |
| Saw blade material | |
| Saw blade material | High-speed steel (HSS) |
| Feed speed | |
| Feed speed | 8 m/min |
| Noise level | |
| Noise level | 98 |
| External dimensions | |
| External dimensions | 1110 x 700 x 1020 |
| Table size | |
| Table size | 1050 x 260 mm |
| Chip removal | |
| Chip removal | 3 |
| Planing depth | |
| Planing depth | 160 mm |
| Power output | |
| Power output | 1,800 W |
| Colors | |
| Colors | black |
| Idle speed | |
| Idle speed | 6,700 rpm |
| Colors | |
| Colors | blue |
| Colors | silver |
EU-Responsible Name: GÜDE GmbH & Co. KG
EU-Responsible Street: Birkichstrasse
EU-Responsible House No: 6
EU-Responsible Post Code: 74549
EU-Responsible Town: Wolpertshausen
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +496871909137

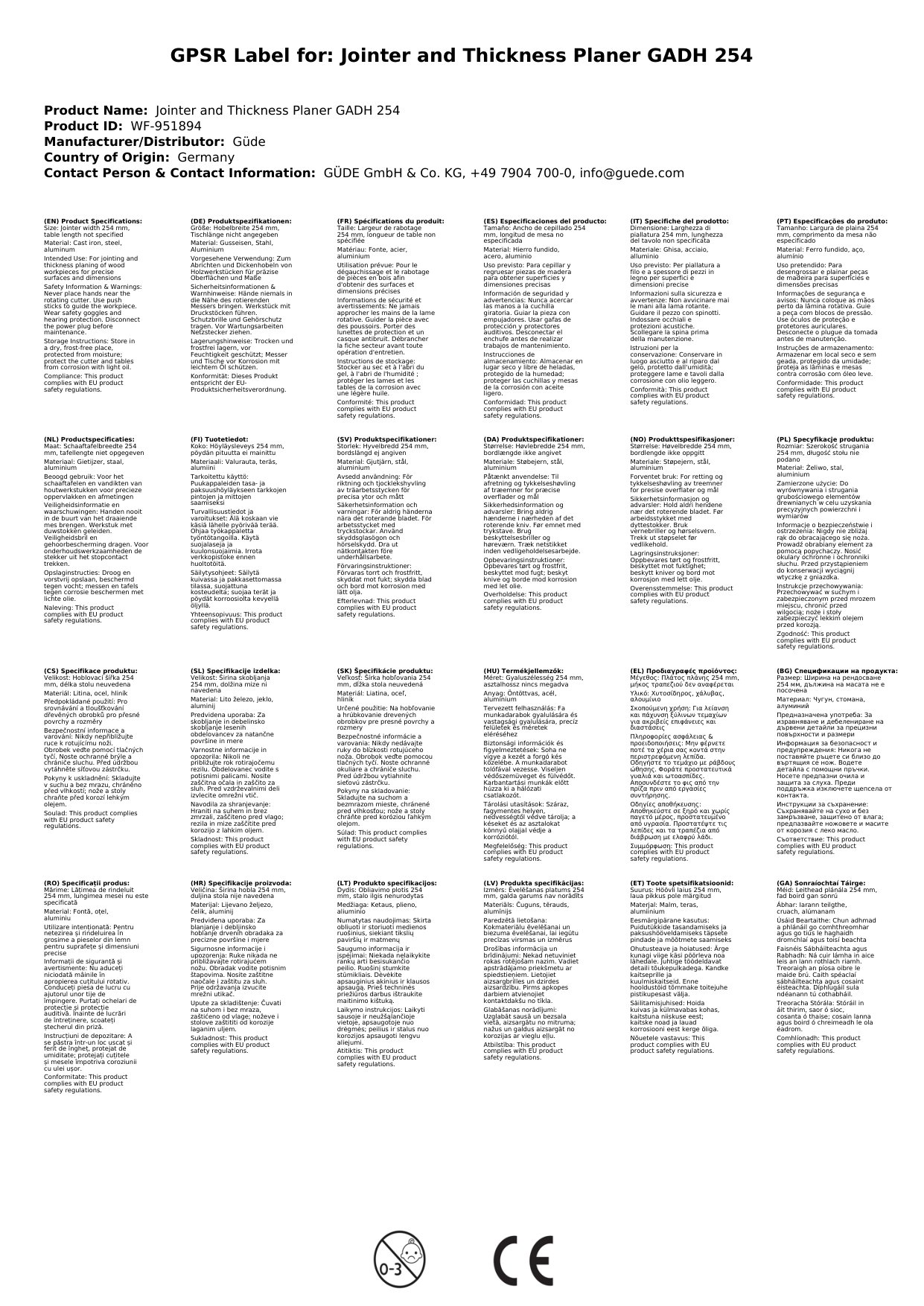

GPSR attachment:
Download
