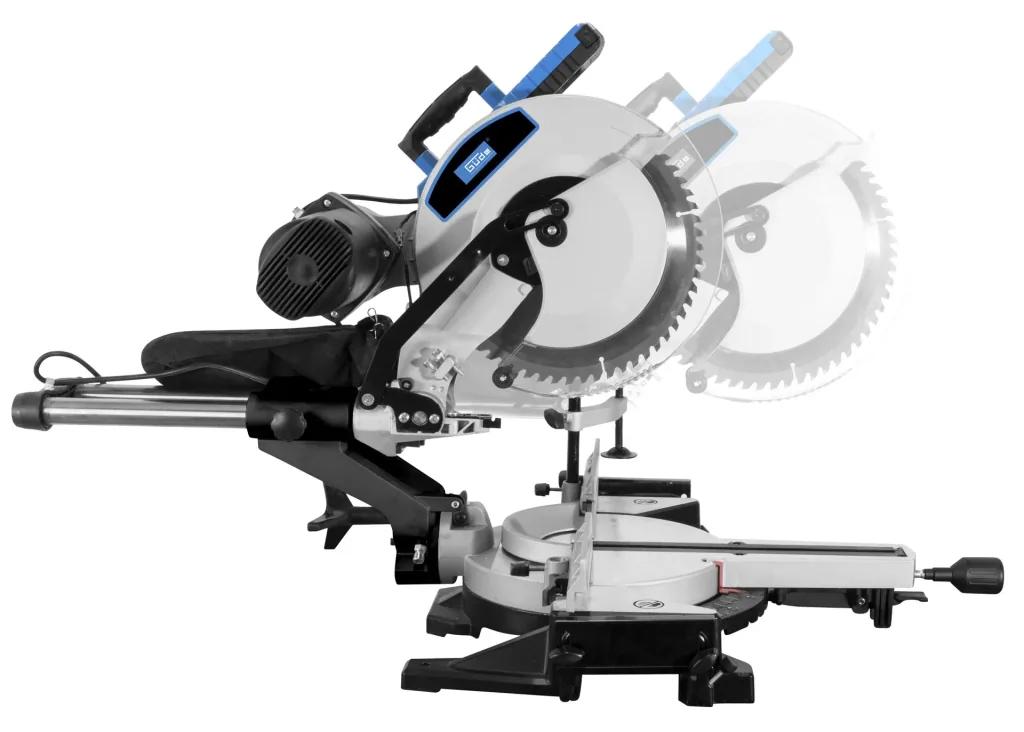

Radial arm saw GRK 3034.1 BSL
Guaranteed Secure Checkout
| Item number | WF-951916 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Belt operation
- Ball-bearing radial guide
Wide work table
- High aluminum stop
- With laser guide for precise work

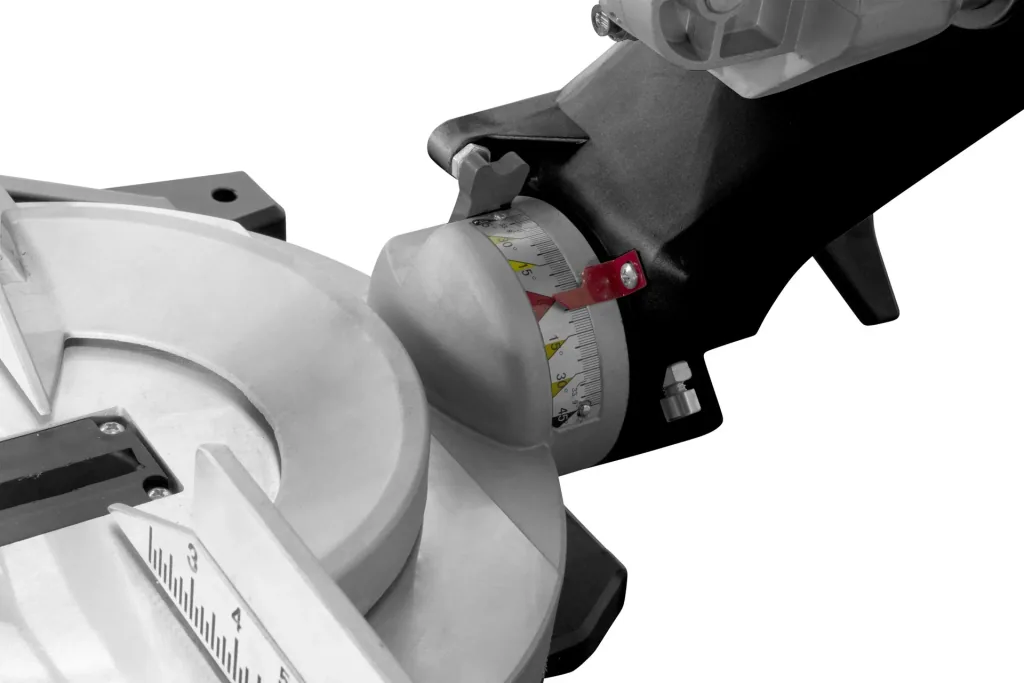

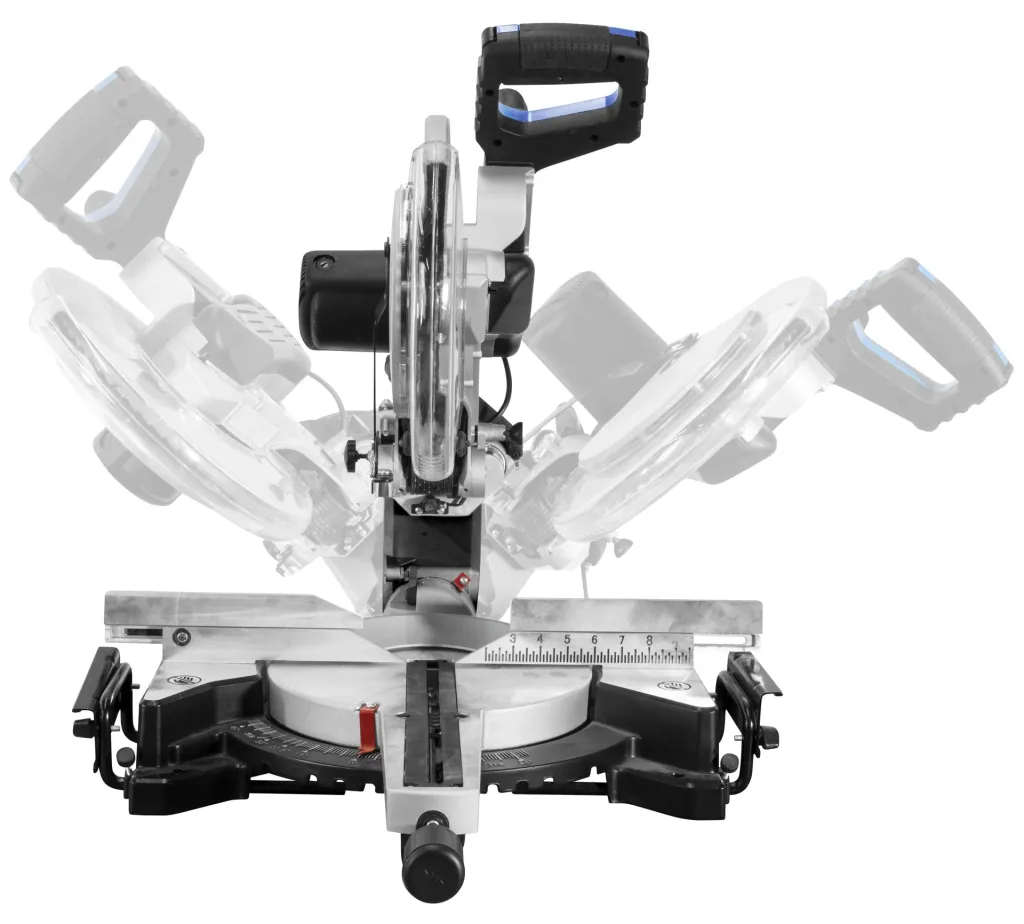

- Saw head pivots on both sides

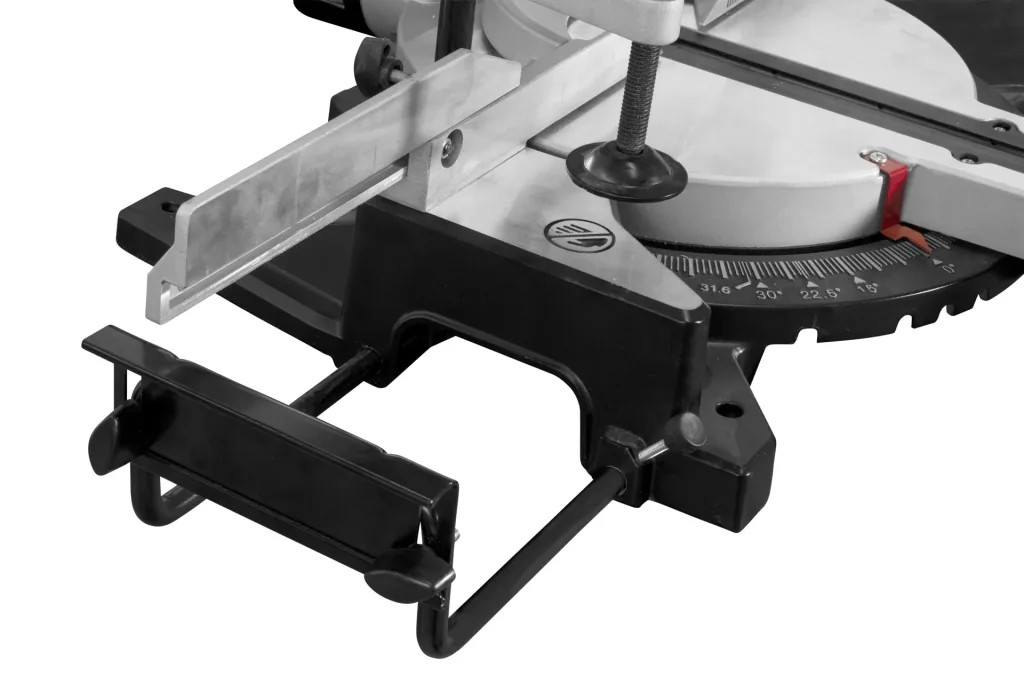

- Workpiece clamp
- Chip bag for reduced dust formation when sawing
- Connection for extraction system
- With transport lock and carrying handle
- According to the latest safety standards
Technical data:
- Mains voltage: 220-240 V
- Frequency: 50 Hz
- Operating mode: S6 25%
- Motor power (P1): 2000 W
- Motor speed: 5000/ 4800 1/min
- Length of the Connection cable: 200 cm
Mitre saw
- Cutting area (at 45°/45°): 75 x 230 mm
- Cutting area (at 45°/90°): 75 x 326 mm
- Cutting area (at 90°/45°): 106 x 230 mm
- Cutting area (at 90°/90°): 106 x 326 mm
- Saw blade diameter: 305 mm
- Saw blade bore: 30 mm
- Number of teeth: 60
Dimensions:
L x W x H: 1040 x 800 x 740 mm
Weight: 20.6 kg
| Weight | |
|---|---|
| Weight | 20.6 kg |
| Swivel range | |
| Swivel range | 45 to 90 degrees |
| Disc/blade diameter | |
| Disc/blade diameter | 305 mm |
| External dimensions | |
| External dimensions | 1040 x 800 x 740 |
| Power output | |
| Power output | 2,000 W |
| No-load speed | |
| No-load speed | 5,000 rpm |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 2 m |
| Drive | |
| Drive | 230 V motor |
| Center bore | |
| Center bore | 30 mm |
| Saw blade material | |
| Saw blade material | Hard metal (HM) |
| Inclination | |
| Inclination | 45 degrees |
