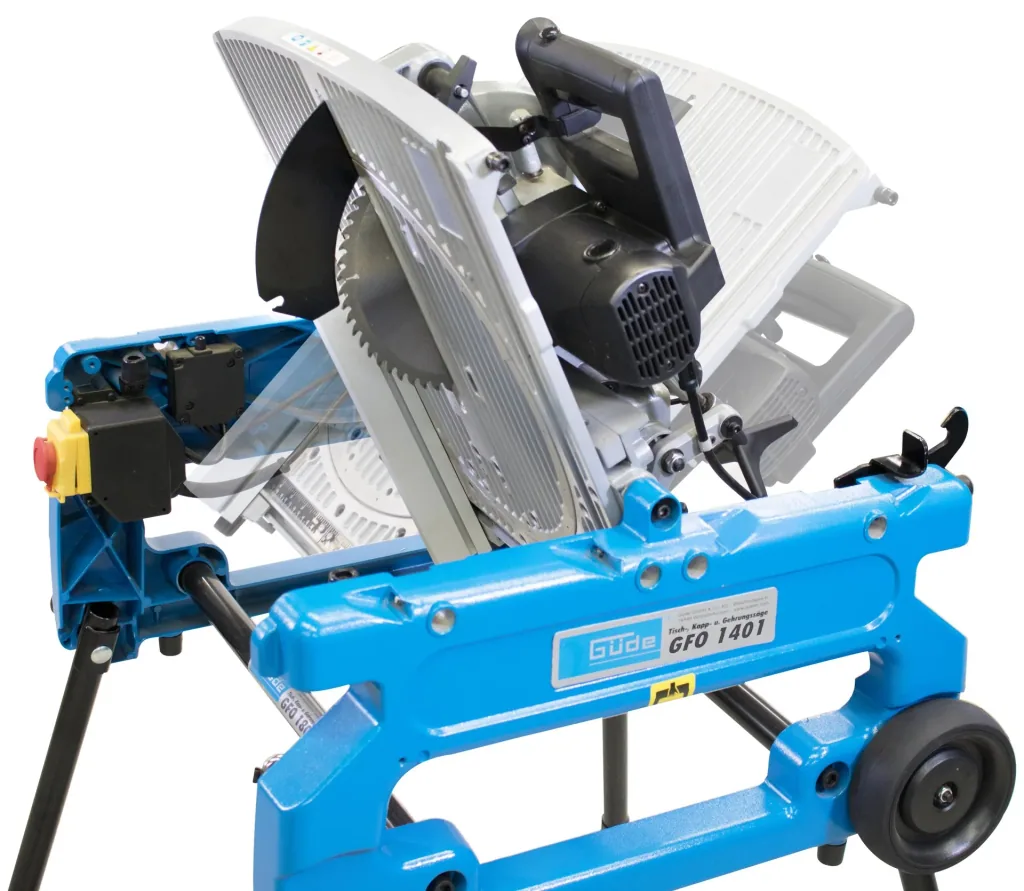

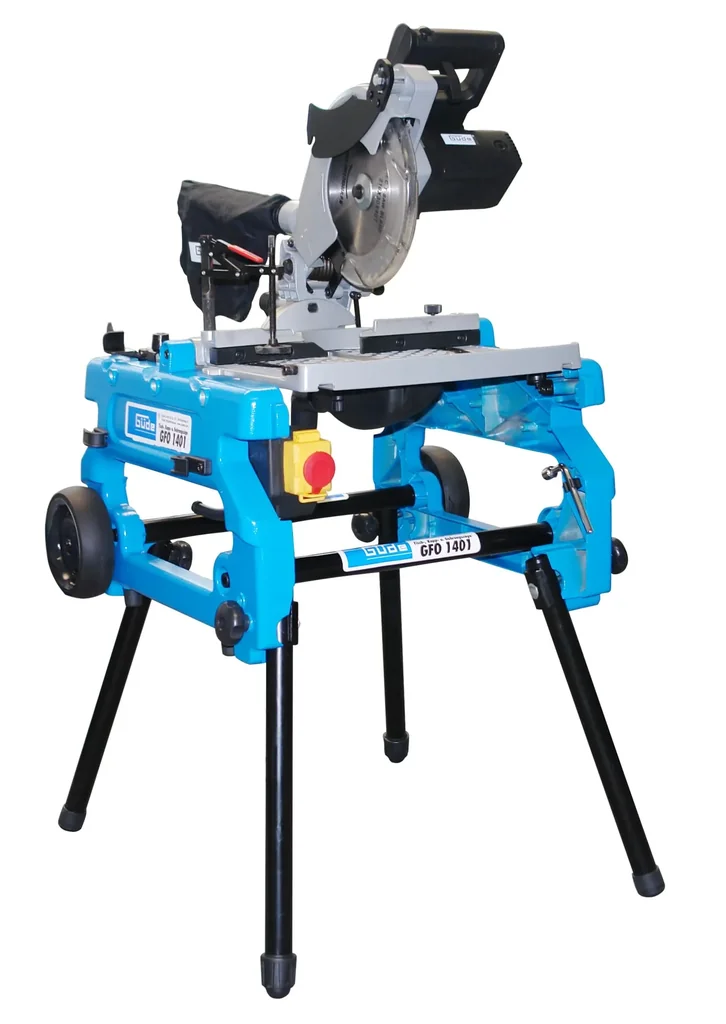

Table miter saw GFO 1401
Guaranteed Secure Checkout
| Item number | WF-951930 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Infinitely pivoting using a clamping lever
- Pivoting table
- Connection for extraction system
- Saw blade protective hood
- Dust bag
- Including parallel and miter stop
- Foldable feet
- 1 HM saw blade
Technical data
- Connection: 230 V / 50 Hz
- Max. power: 1400 W
- Saw blade speed: 5000 min -1
- Saw blade diameter: 216 mm
- Table size: 390 x 460 mm

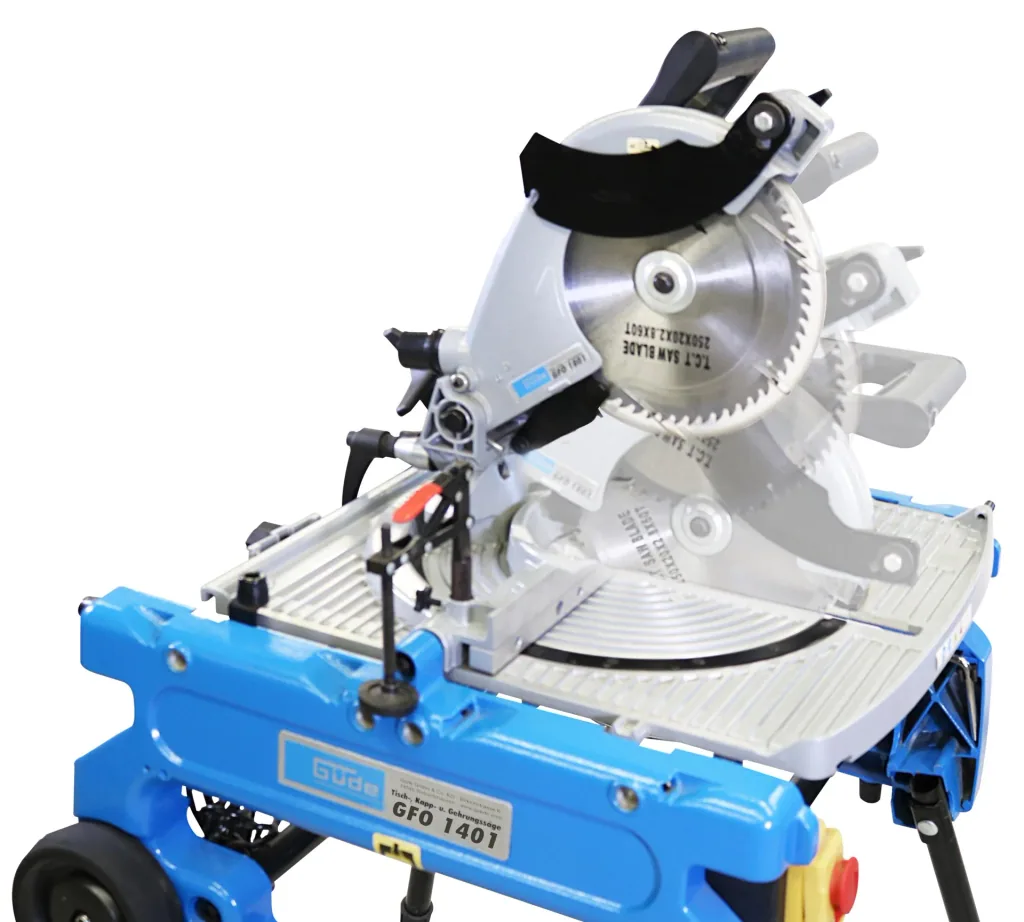

Cross-cut operation
- Max. cutting depth at 0° 0°: 58 x 120 mm
- Max. cutting depth at 45° / 45°: 40 x 85 mm
- Max. cutting depth at 0° / 45°: 40 x 120 mm
- Max. cutting depth at 45° / 0°: 58 x 85 mm

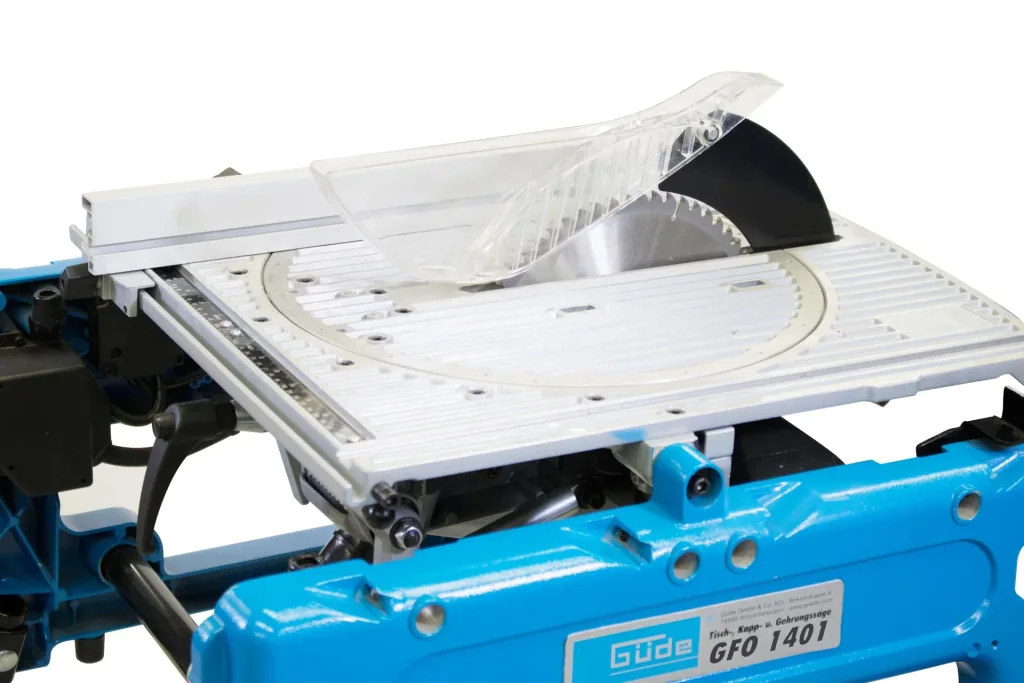

Tabletop operation
- Max. cutting depth at 0°: 52 mm
- Max. cutting depth at 45°: 25 mm
Dimensions
L x W x H: 680 x 620 x 960 mm
Weight: 28 kg
| Weight | |
|---|---|
| Weight | 28 kg |
| Voltage | |
| Voltage | 230 V |
| Center bore | |
| Center bore | 30 mm |
| Saw blade material | |
| Saw blade material | Hard metal (HM) |
| Inclination | |
| Inclination | 90 degrees |
| Drive | |
| Drive | 230 V motor |
| Swivel range | |
| Swivel range | 90 degrees |
| Disc/blade diameter | |
| Disc/blade diameter | 216 mm |
| Table size | |
| Table size | 390 x 460 mm |
| External dimensions | |
| External dimensions | 650 x 600 x 420 mm |
| No-load speed | |
| No-load speed | 5000 rpm |
| Power output | |
| Power output | 1,400 W |
| Cutting height | |
| Cutting height | 52 mm |
EU-Responsible Name: GÜDE GmbH & Co. KG
EU-Responsible Street: Birkichstrasse
EU-Responsible House No: 6
EU-Responsible Post Code: 74549
EU-Responsible Town: Wolpertshausen
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +496871909137

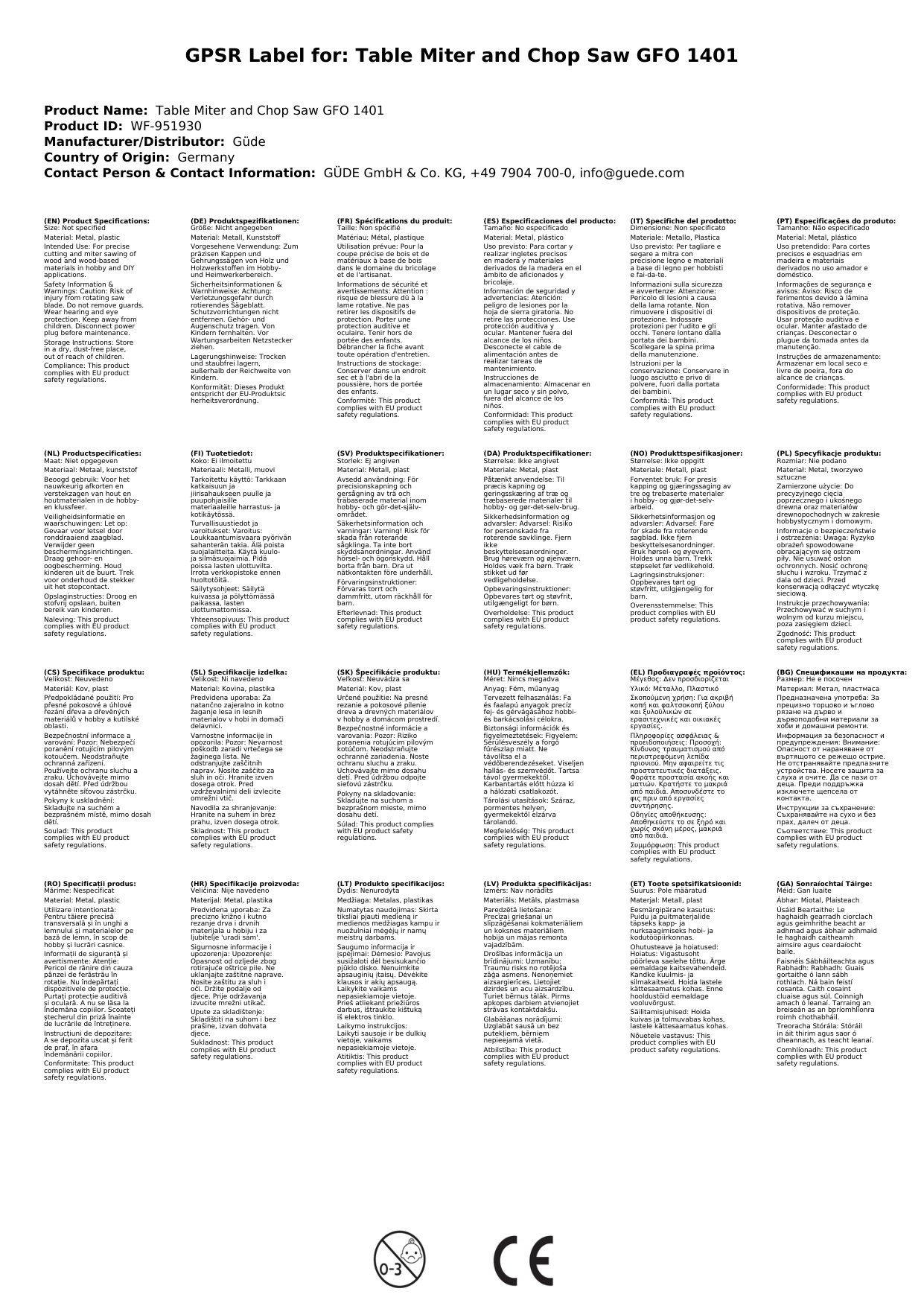

GPSR attachment:
Download
