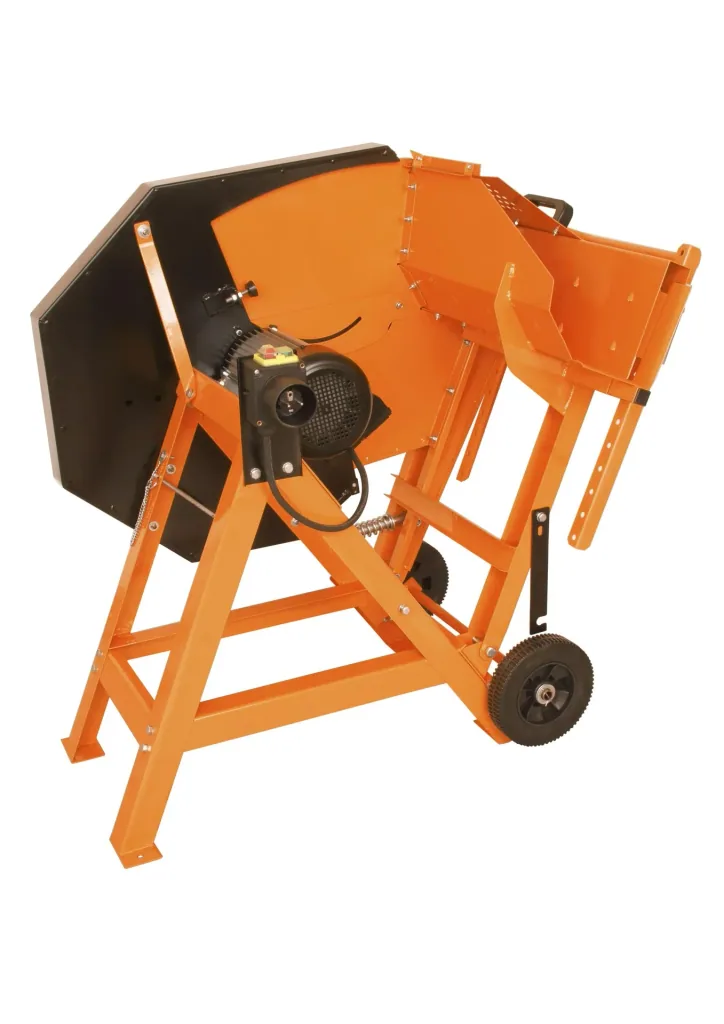

Firewood rocking circular saw "BWS 500-2"
About this item:
- 3.0 kW motor
- 505 mm saw blade
- 170 mm cutting capacity
- Adjustable height handle
- IP54 protection class
| Item number | WF-952128 |
| Brand | Altrad Lescha Atika |
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choiceThere are no questions yet
Ask a question to learn more about the product
0.0
- For logs up to max. Ø 170 mm
- Robust construction and powerful 3.0 kW AC motor
- Standard with high-quality saw blade with carbide-tipped teeth
- Complies with the latest European standard
Effective and fast sawing thanks to the powerful motor and the large HM saw blade

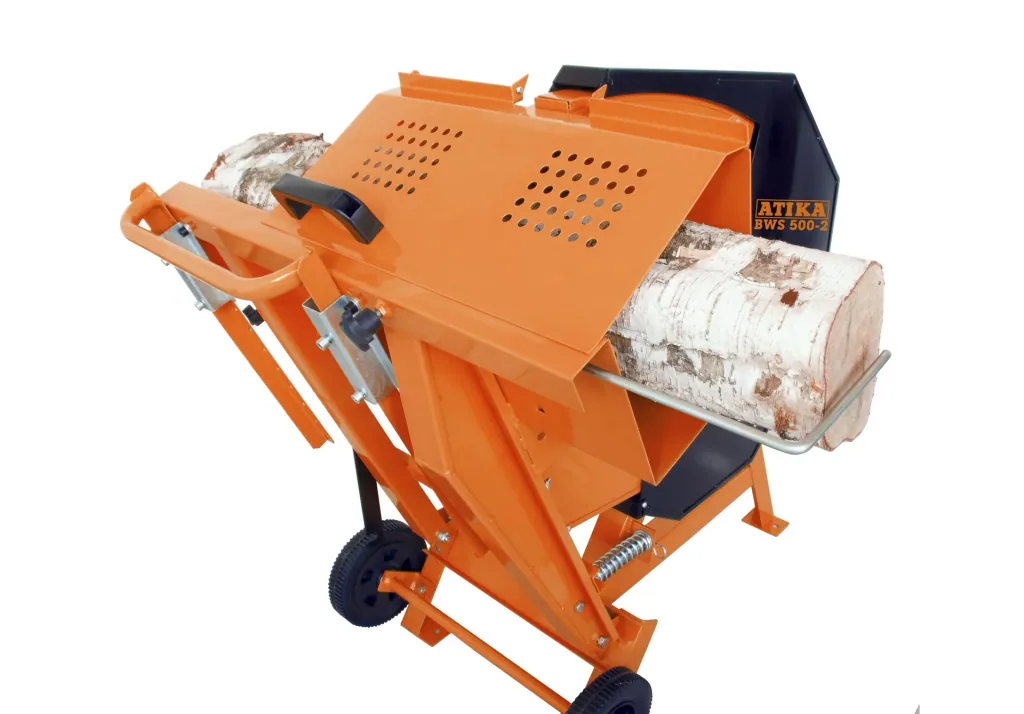

The "BWS 500-2" firewood rocker circular saw complies with the latest European standard. It ensures greater safety when cutting thanks to the protective flap and integrated rocker lock. The rocker, including the retaining teeth, prevents the log from twisting.
Thanks to the height-adjustable handle (working height adjustable in 10 steps from 810 to 1150 mm) This enables ergonomic and effortless work.
The rocking circular saw also features an adjustable longitudinal stop for equal-length pieces of wood and an adjustable support extension for long logs.
The integrated thermal protector automatically shuts off the motor in the event of an overload.
The saw is also equipped with a zero-voltage release as standard (restart protection in the event of a power failure).
Thanks to its compact design, the firewood rocking circular saw also saves space.
Technical Specifications
- Motor power: P1 (3.0 kW)
- Mains voltage: 230 volts
- Mains frequency: 50 Hz
- No-load speed: 2800 rpm
- Protection class: IP 54
- Mains fuse: 16 A slow-blow
- Saw blade (carbide-tipped saw blade): Æ 505 mm
- Saw blade bore: Æ 30 mm
- Number of teeth: 40
- Saw blade thickness: 2.6 mm
- Cutting width: 3.6 mm
- Cutting capacity: approx. Æ min. 30 mm to max. 170 mm
- Wood length: max. 1000 mm
- Wood length: min. 250 mm
- Adjustable working height: approx. 810 - 1150 mm
- Guaranteed sound power level: LWA 115 dB (A)
- Sound pressure level: LPA 96 dB (A)
- Measurement uncertainty factor: K 4 dB (A)
- Weight (with accessories) 57.6 kg
- Dimensions: (L x W x H) approx. 1015 x 809 x 994 mm
Color: Orange, Black
Material: Metal
Scope of delivery
- 1 x Firewood tilting circular saw "BWS 500-2"
- 1 x Longitudinal stop
- 1 x Support extension
- 1 x Operating instructions
| Center bore | |
|---|---|
| Center bore | 30 mm |
| Drive | |
| Drive | 230 V motor |
| Saw blade material | |
| Saw blade material | Hard metal (HM) |
| External dimensions | |
| External dimensions | 1015 x 809 x 994 |
| Fuse | |
| Fuse | 16 A |
| Disc/blade diameter | |
| Disc/blade diameter | 505 mm |
| Voltage | |
| Voltage | 230 V |
| IP protection class | |
| IP protection class | IP54 |
| Noise level | |
| Noise level | 96 |
| Cutting height | |
| Cutting height | 170 mm |
| Weight | |
| Weight | 57.6 kg |
| Power output | |
| Power output | 3,000 W |
| Idle speed | |
| Idle speed | 2,800 rpm |
