Table saw T 250 Eco-3, 230 V-50 Hz
About this item:
- Stable base for stability
- Saw blade Ø250mm, height adjustable up to 85 mm
- Saw blade adjustable up to 45° tilt
- Cross and miter fence adjustable up to 60°
- Rip fence with magnifying glass and scale
Guaranteed Secure Checkout
| Item number | WF-953256 |
| Brand | Altrad Lescha Atika |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Sturdy base frame
- Practical cross stop
- Quick-locking longitudinal stop with magnifying glass
- Continuous height and angle adjustment of the saw blade
The Atika T 250 ECO-3 table saw impresses with its compact design, numerous adjustment options, and low weight.
The compact table saw for quick and easy wood processing.
Features:
- Transparent saw blade protective cover for increased safety
- Ø250mm carbide saw blade with 24 teeth is continuously adjustable in height up to approx. 85 mm and in angle up to 45° using the smooth-running handwheel
- Sturdy base frame for high stability
- Practical cross and miter stop is adjustable up to 60° adjustable
- Robust steel - saw table guarantees a long service life
- Longitudinal stop with magnifying glass can be quickly locked and is guided on a profile bar with a mm scale
- 2 existing connections for chip extraction (on the saw blade and on the housing)
Technical data:
- AC motor 230 V - 50 Hz
- Power 230 V - 50 Hz 1800 watts
- Idle speed 5000 rpm
- Mains protection 10 A
- Carbide saw blade Ø 250mm
- Saw blade holder Ø 30mm
- Number of teeth 24
- Cutting height at 90° max. 85 mm
- Incline adjustment 0° - 45°
- Cross and miter stop 0° - 60°
- Table height with base frame 830 mm
- Motor overload protection switch
Weight: 17.0 kg
| Weight | |
|---|---|
| Weight | 17 kg |
| Cutting height | |
| Cutting height | 85 mm |
| Noise level | |
| Noise level | 107 |
| Protection class | |
| Protection class | II |
| Center bore | |
| Center bore | 30 mm |
| Drive | |
| Drive | 230 V motor |
| Power output | |
| Power output | 1,800 W |
| Idle speed | |
| Idle speed | 5,000 rpm |
| Fuse | |
| Fuse | 10 A |
| Disc/blade diameter | |
| Disc/blade diameter | 250 mm |
| Voltage | |
| Voltage | 230 V |
EU-Responsible Name: ALTRAD Equipment Germany GmbH
EU-Responsible Street: Josef-Drexler-Straße
EU-Responsible House No: 8
EU-Responsible Post Code: 89331
EU-Responsible Town: Burgau
EU-Responsible Country: Deutschland
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +49 8222 4130-0

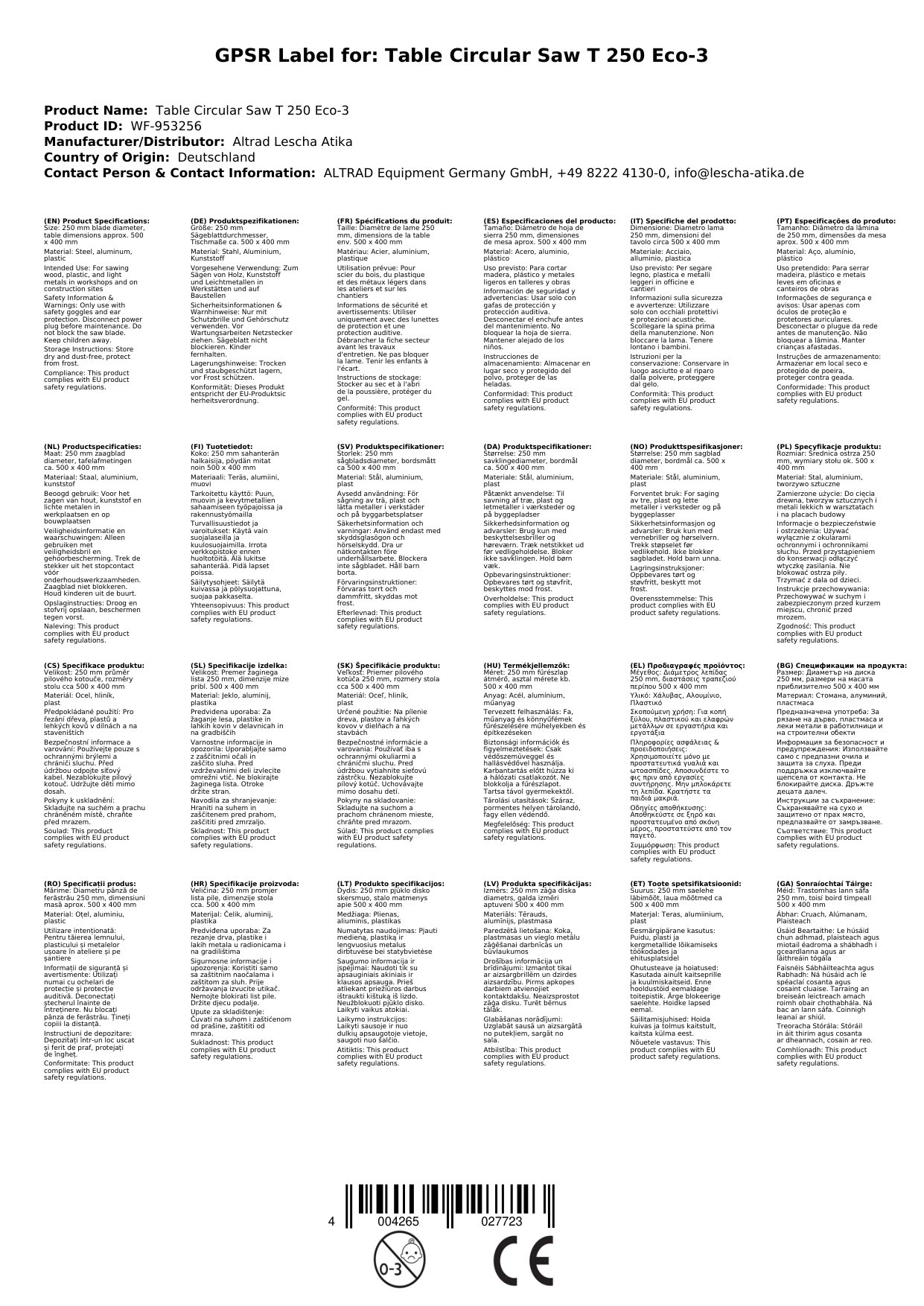

GPSR attachment:
