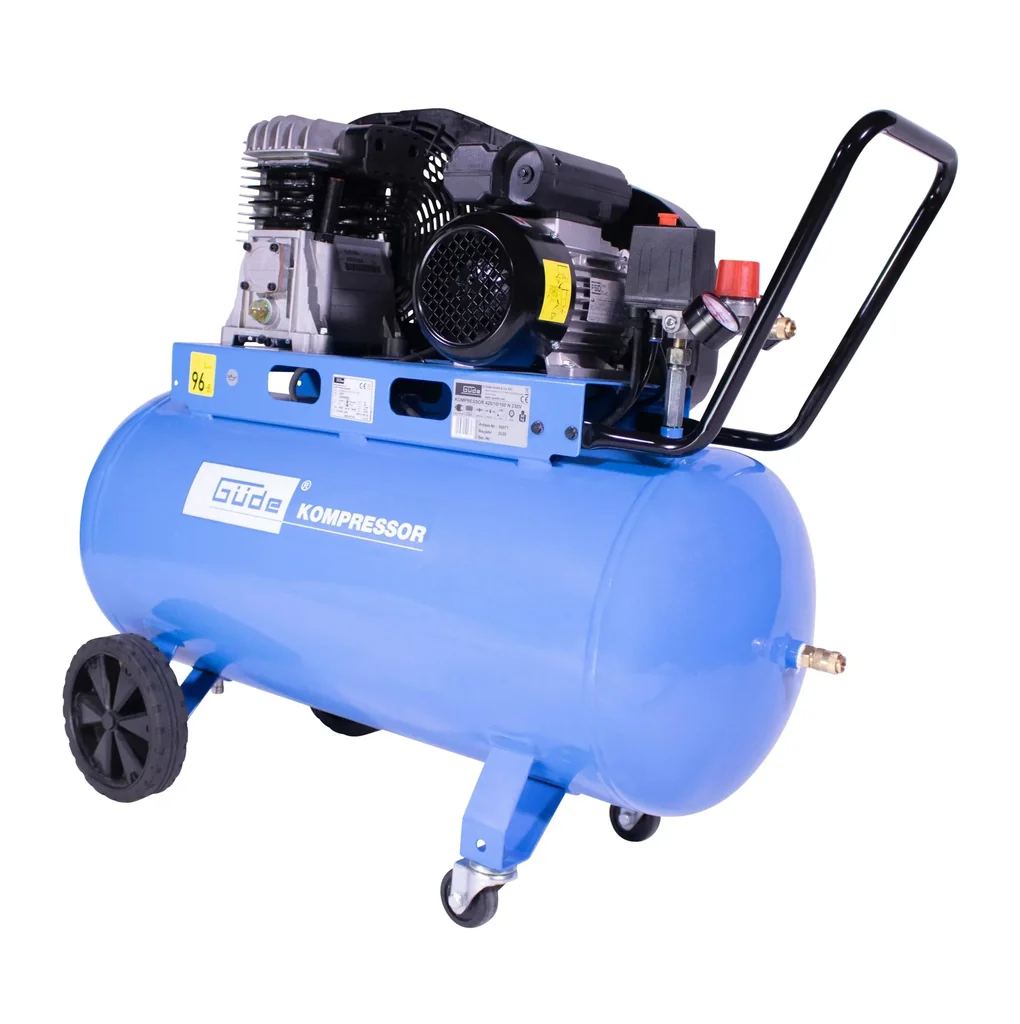

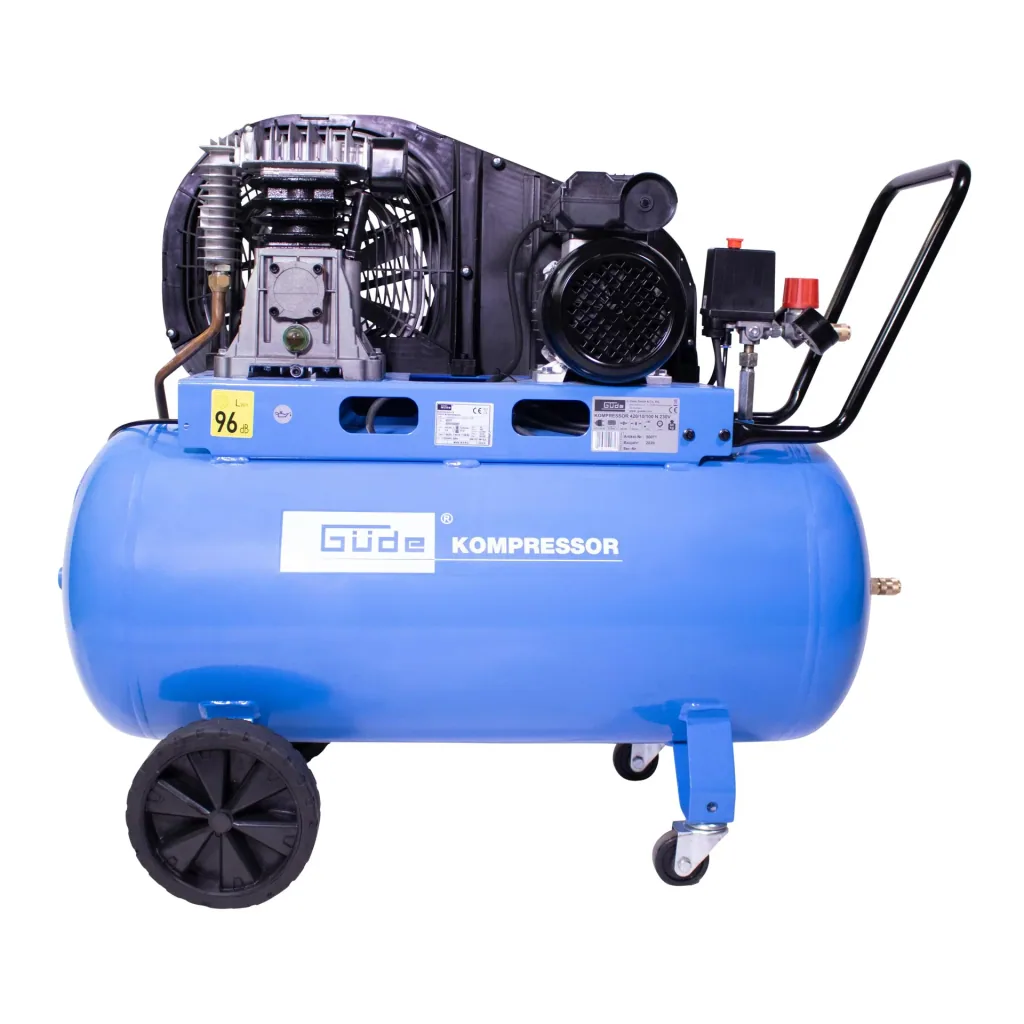

Compressor 420/10/100
Guaranteed Secure Checkout
| Item number | WF-954920 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews

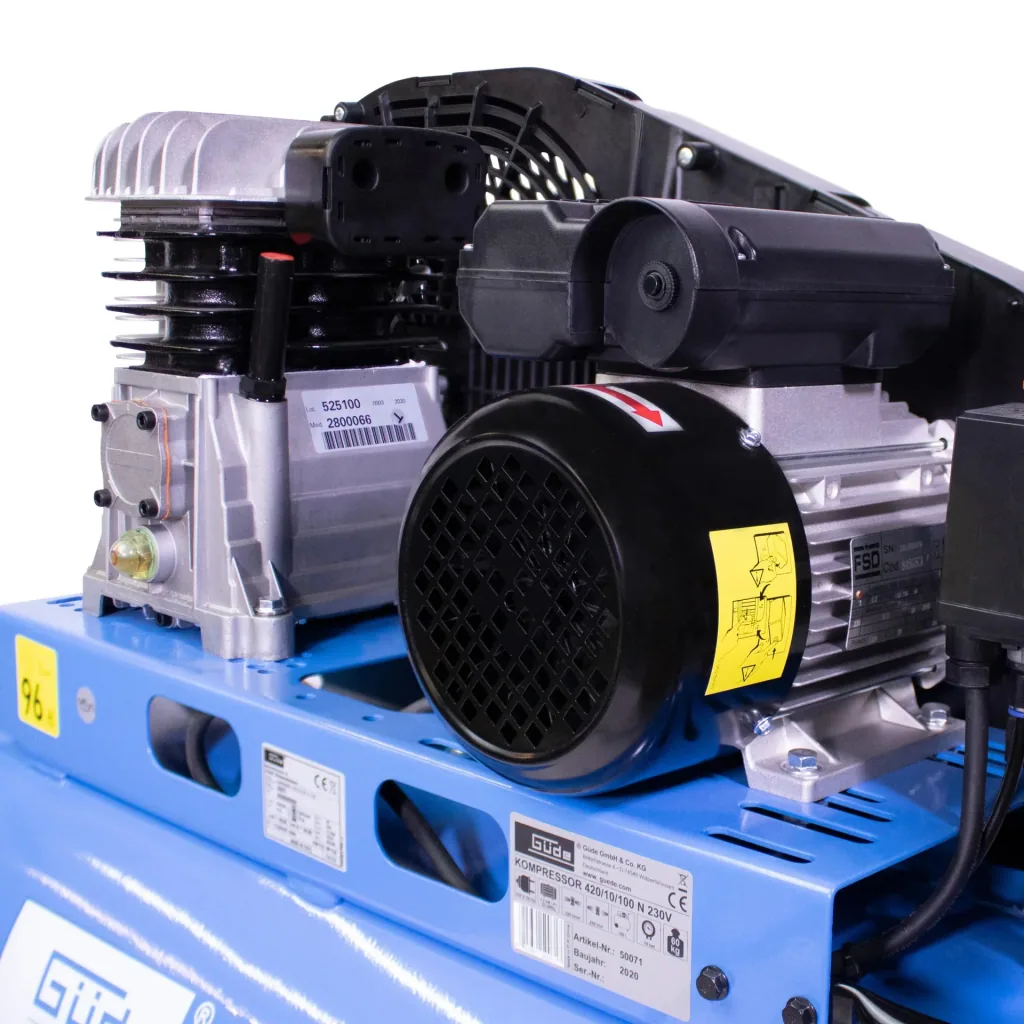

- Oil-lubricated 2-cylinder unit
- Belt drive
- Carrying handle
- Pressure switch

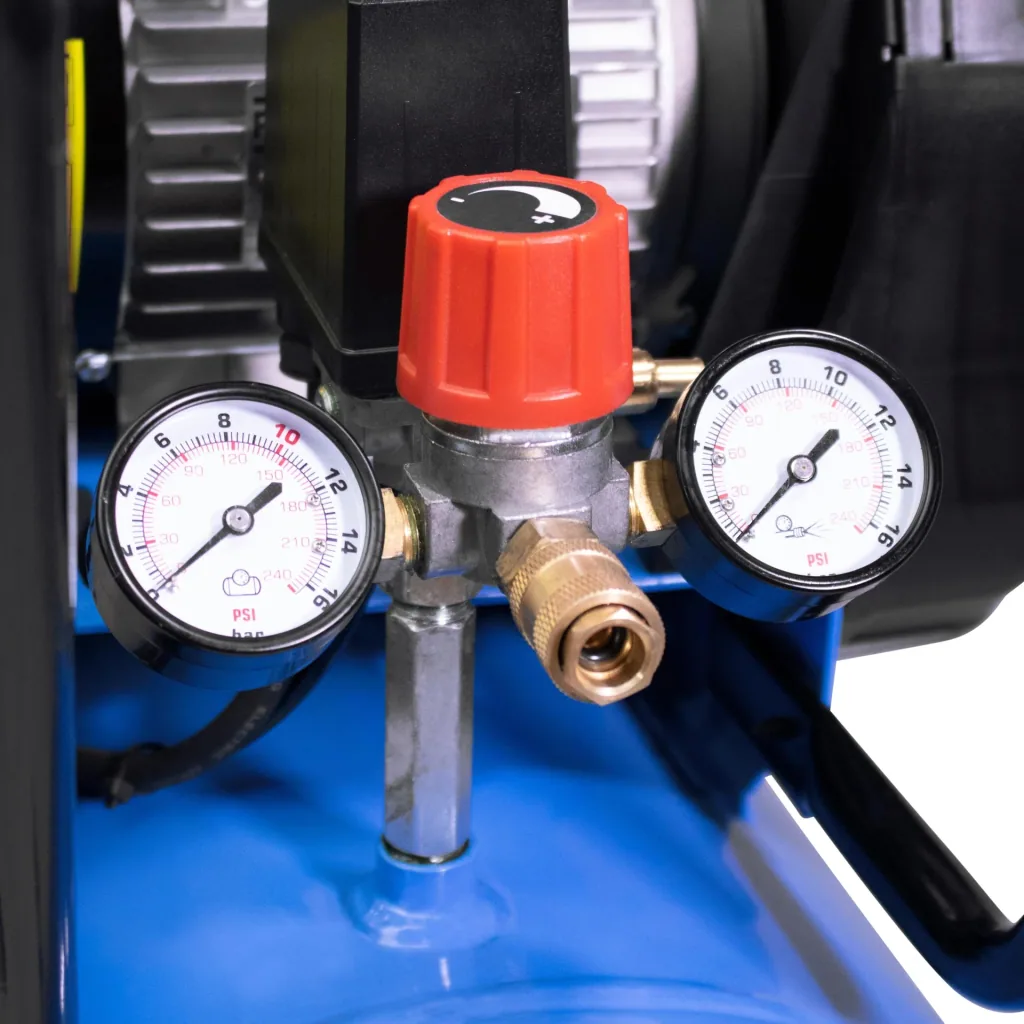

- 2 pressure gauges (boiler pressure and working pressure)
- 2 compressed air couplings
- Aftercooler
- Safety valve
- Check valve
- Condensate drain screw
- Air filter
- Overload protection

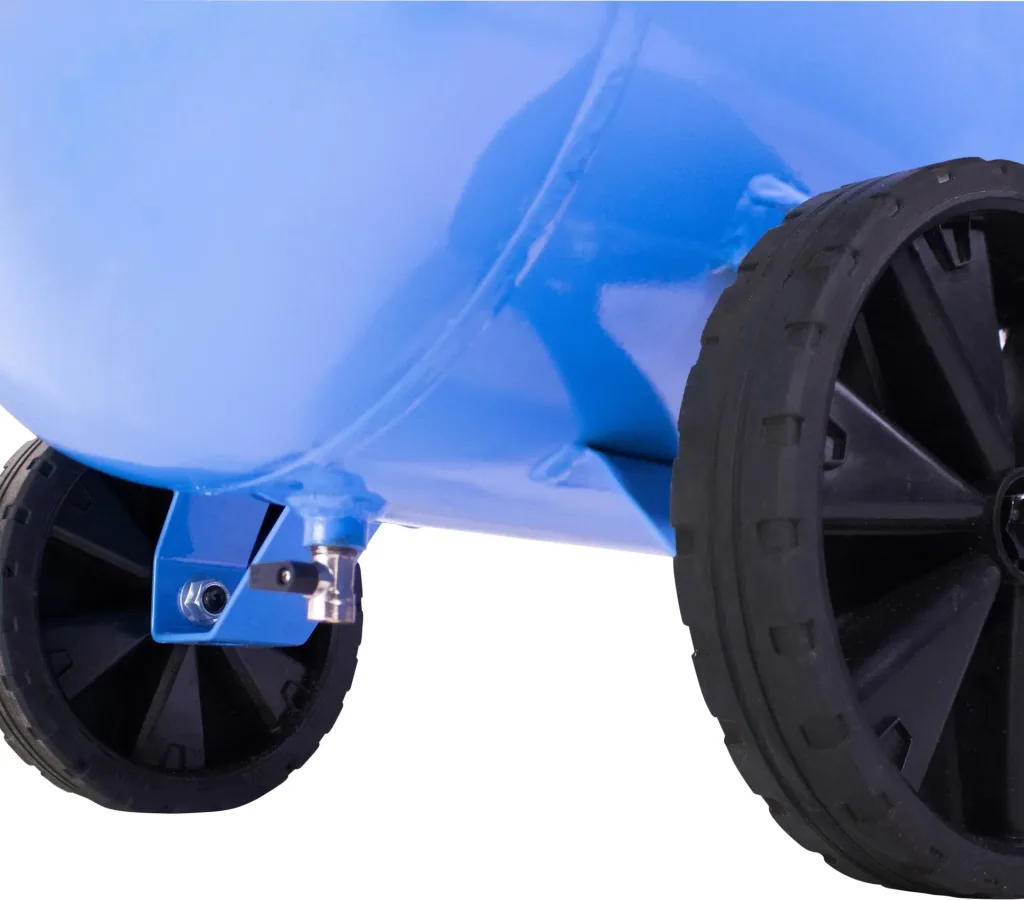

- Plastic wheels

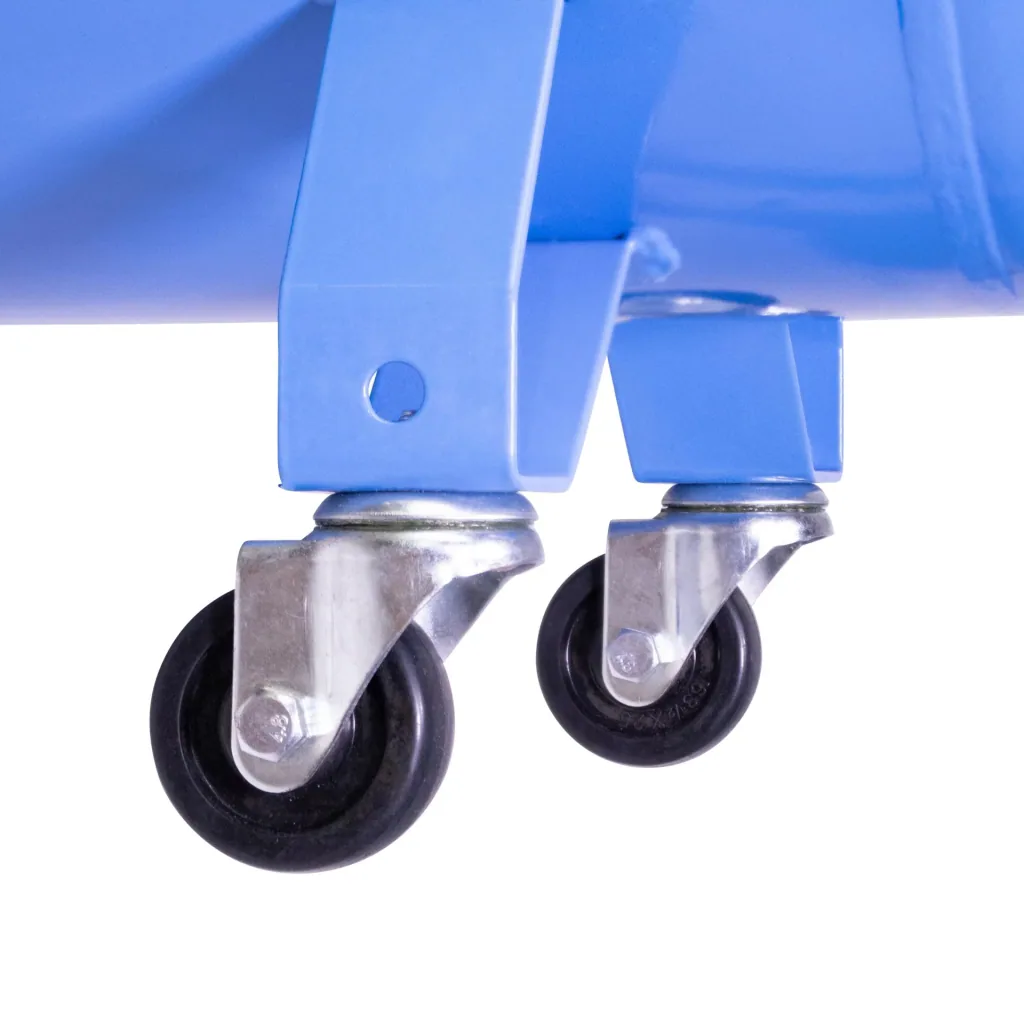

- 2 swivel castors
Technical data:
- Mains voltage: 230 V
- Frequency: 50 Hz
- Motor power (P1): 2.2 kW
- Operating mode: S3 60%
- Protection rating (IP): 20
- Aggregate: Oil lubrication
- Engine speed: 2850 1/min
- Compressor speed: 1323 min-1
- Suction power: 320 l/min
- eff. Delivery quantity 0 bar: 250 l/min
- eff. Delivery quantity 4 bar: 218 l/min
- eff. Delivery quantity 7 bar: 180 l/min
- max. Pressure: 10 bar
- Boiler capacity: 100 l
- Number of cylinders: 2
- Number of compressed air couplings: 2
- Pressure gauges: 2
- Length of connection cable: 140 cm
- Cable type: H05RR-F
Noise level LWA: 96 dB
Dimensions:
Item dimensions (L/W/H) in mm: 1050/480/850
Color: blue, black, silver
Material: plastic, metal
Weight: 62.1 kg
| Delivery rate | |
|---|---|
| Delivery rate | 250 l/min |
| Motor power kW | |
| Motor power kW | 2,200 W |
| Weight | |
| Weight | 62 kg |
| Tank capacity | |
| Tank capacity | 100 l |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 140 cm |
| Idle speed | |
| Idle speed | 2,850 rpm |
| Noise level | |
| Noise level | 96 |
| External dimensions | |
| External dimensions | 1,050 x 480 x 850 |
| Suction capacity | |
| Suction capacity | 320 l/min |
| Drive | |
| Drive | 230 V motor |
