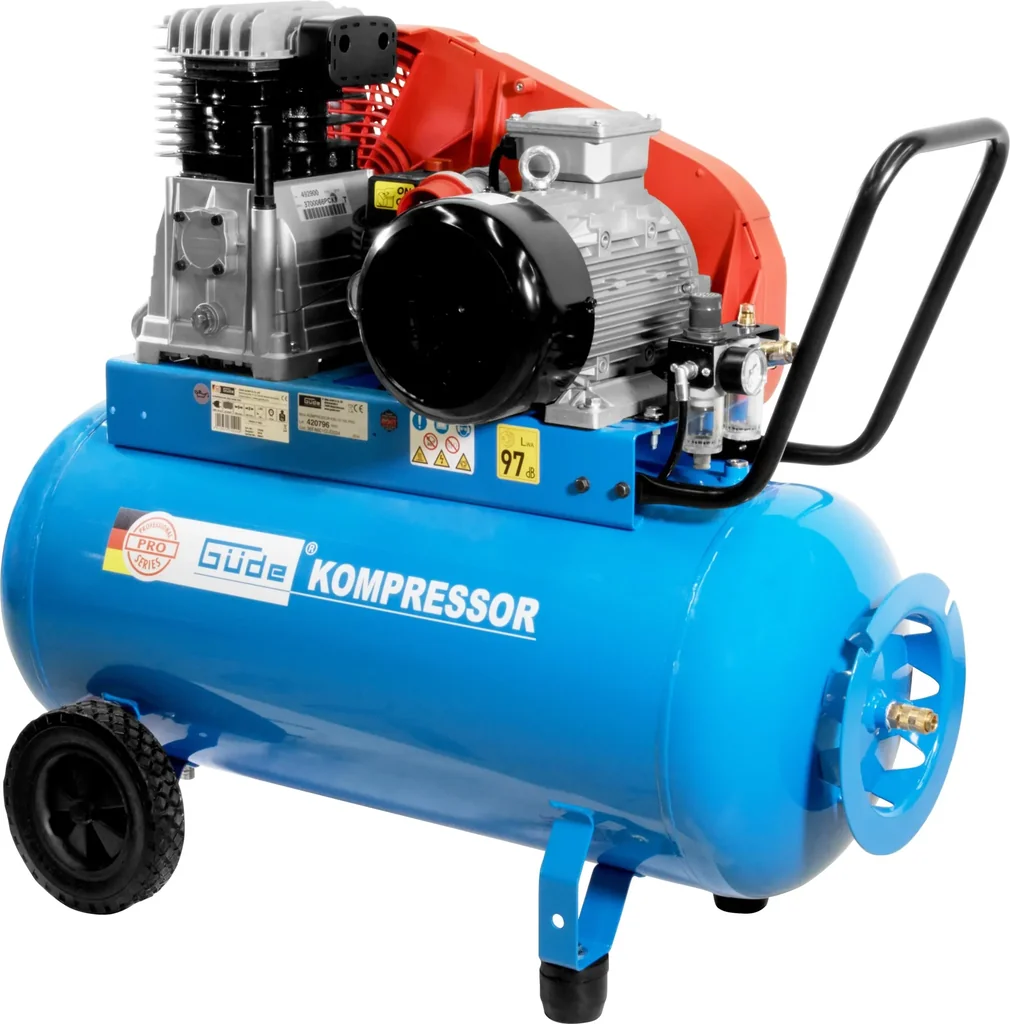

Compressor 635/10/90 PRO
Guaranteed Secure Checkout
| Item number | WF-954930 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Oil-lubricated 2-cylinder unit with belt drive

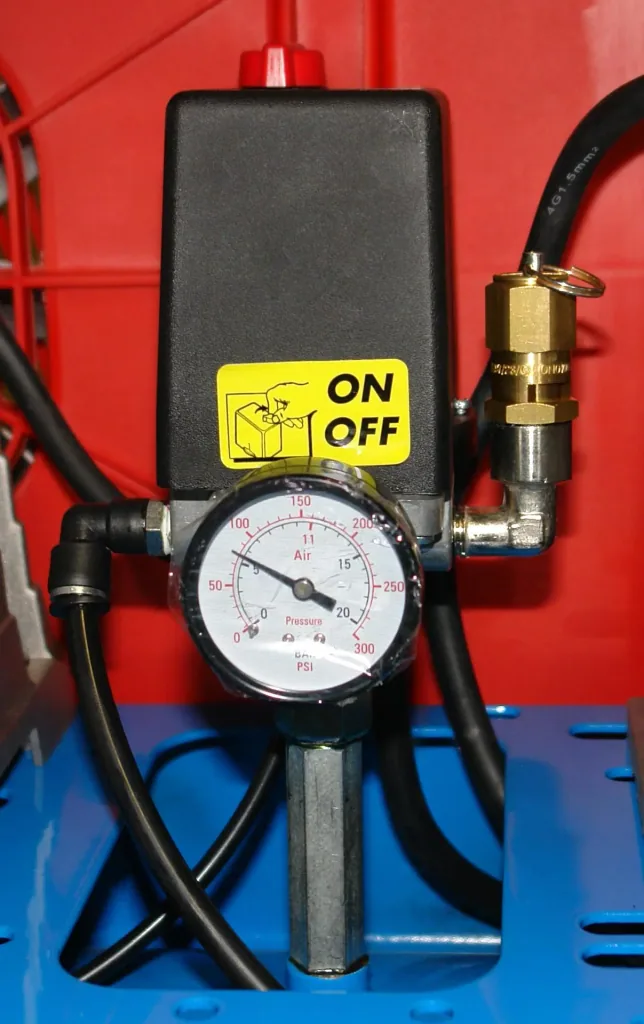

- Original Condor pressure switch

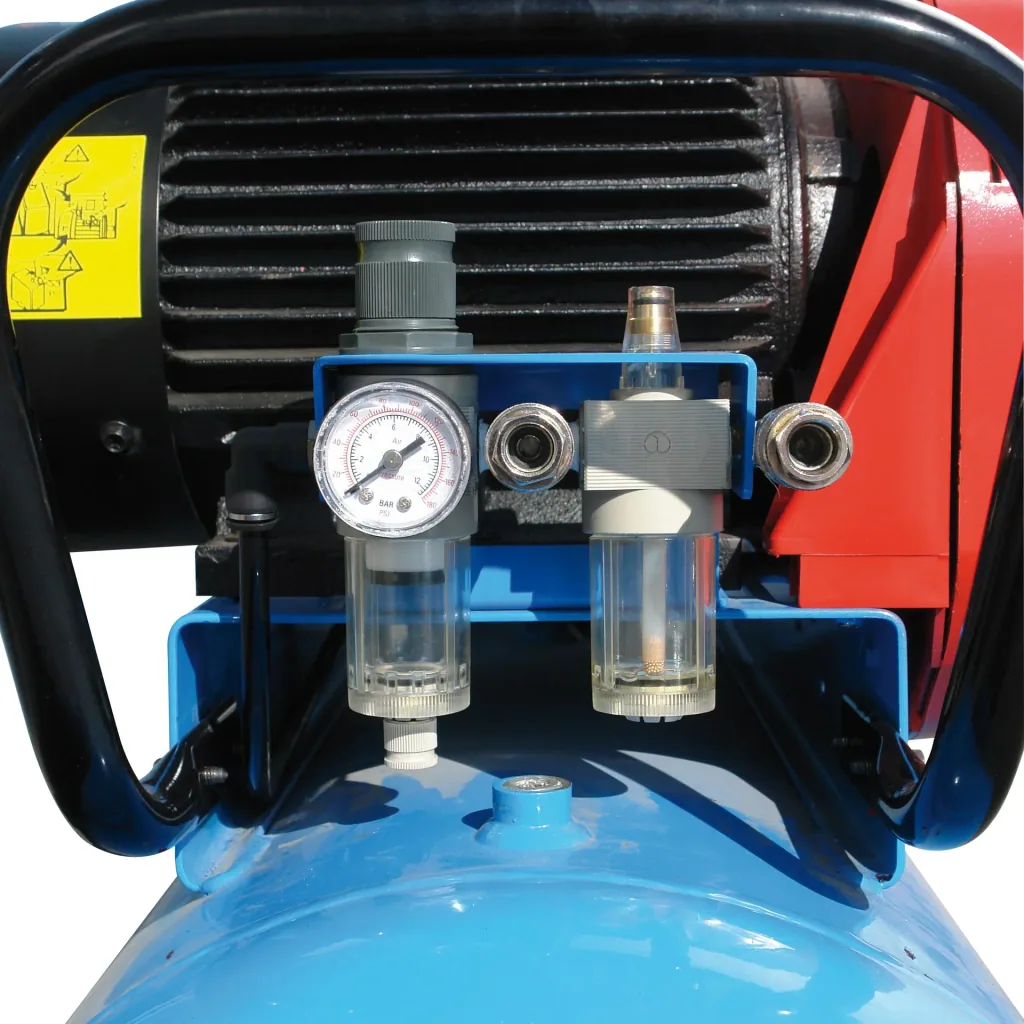

- Integrated pressure reducer and water separator
- Boiler pressure and working pressure gauges
- 3 compressed air couplings
- Safety valve and condensate drain screw
- Check valve
- Practical carrying handle
- Integrated air filter
- Overload protection & Aftercooler
- Hose reel
- Sturdy plastic wheels
Technical data
- Mains voltage: 400 V
- Frequency: 50 Hz
- Motor power (P1): 3.0 kW
- Protection class (IP): 44
- Aggregate: Oil lubrication
- Motor speed: 2840 rpm
- Compressor speed: 1400 rpm
- Suction capacity: 480 l/min
- Efficient delivery rate 0 bar: 400 l/min
- Efficient delivery rate 4 bar: 354 l/min
- Efficient delivery rate 7 bar: 307 l/min
- Max. Pressure: 10 bar
- Number of cylinders: 2
- Number of compressed air couplings: 3
- Pressure gauges: 2
- Cable type: H05RR-F
- Noise level LWA: 97 dB
Dimensions
- Tank capacity: 100 l
- Length of connection cable: 170 cm
| External dimensions | |
|---|---|
| External dimensions | 102 x 46 x 87 |
| Weight | |
| Weight | 73.3 kg |
| Carrying case | |
| Carrying case | no |
EU-Responsible Name: GÜDE GmbH & Co. KG
EU-Responsible Street: Birkichstrasse
EU-Responsible House No: 6
EU-Responsible Post Code: 74549
EU-Responsible Town: Wolpertshausen
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +496871909137

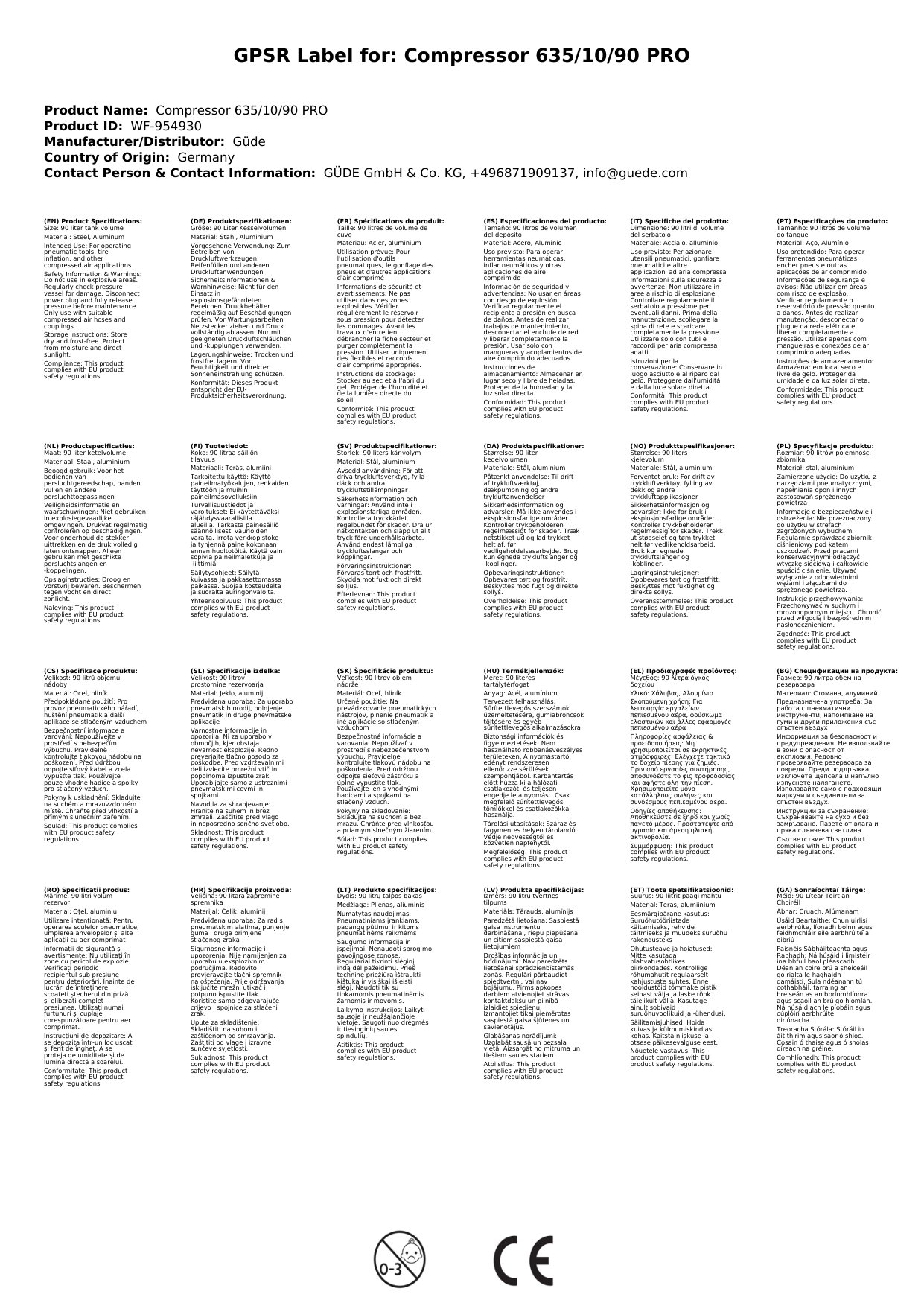

GPSR attachment:
Download
