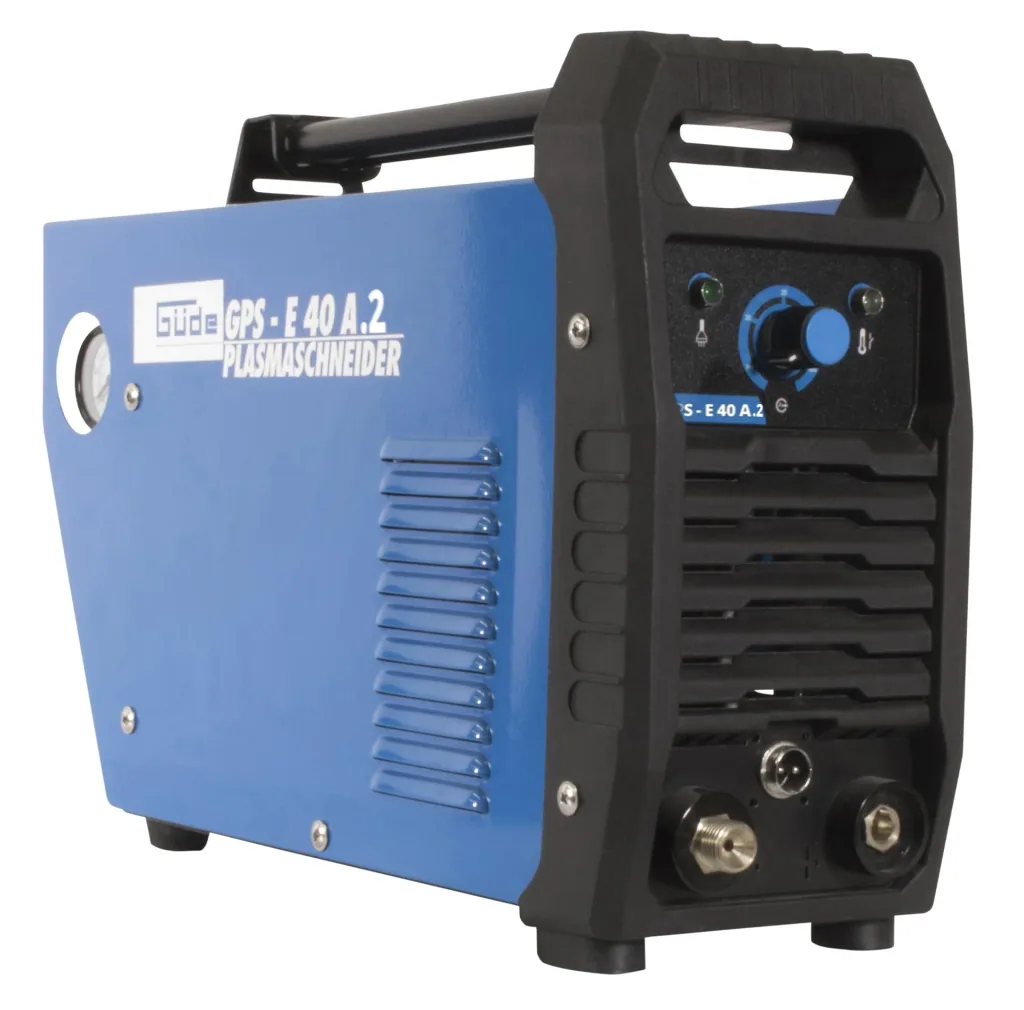

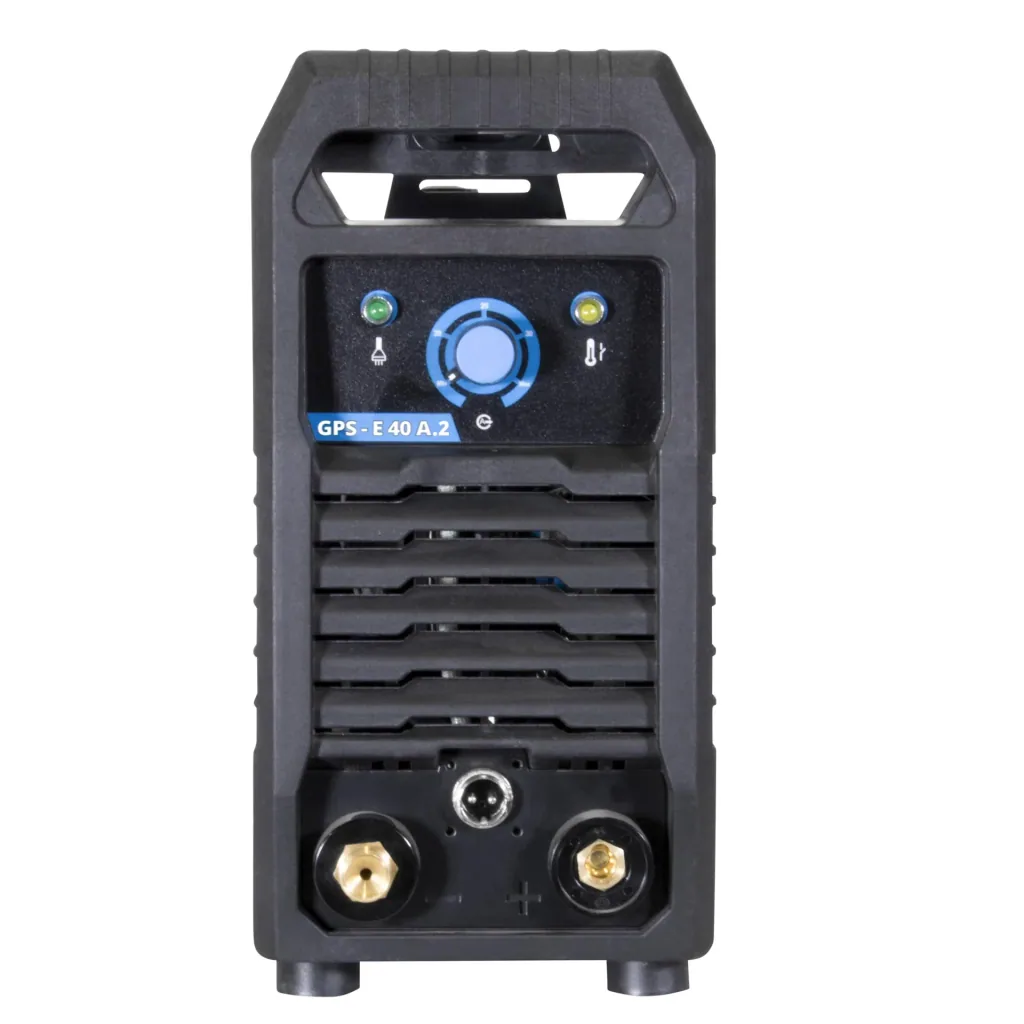

Plasma cutter GPS-E 40 A.2

• For max. 12 mm material thickness

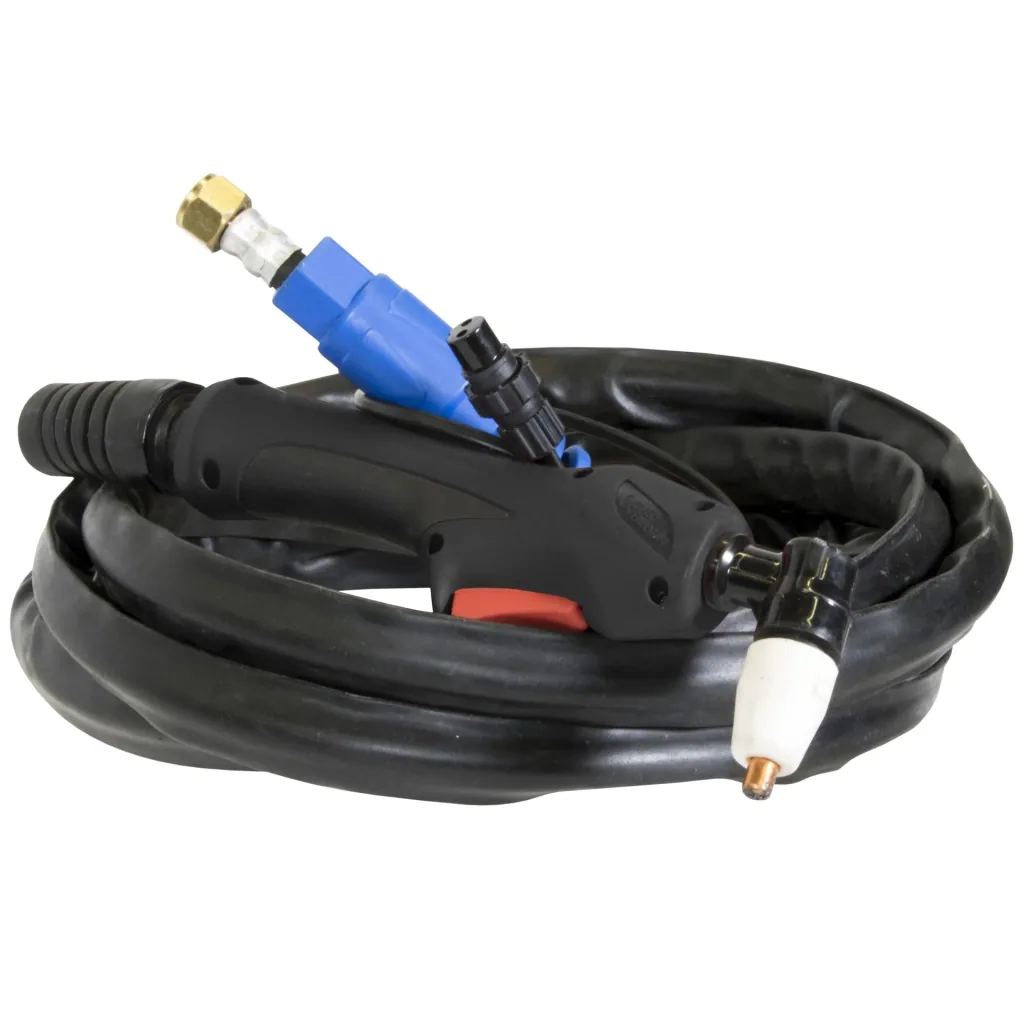

• 2.5 meter cutting torch

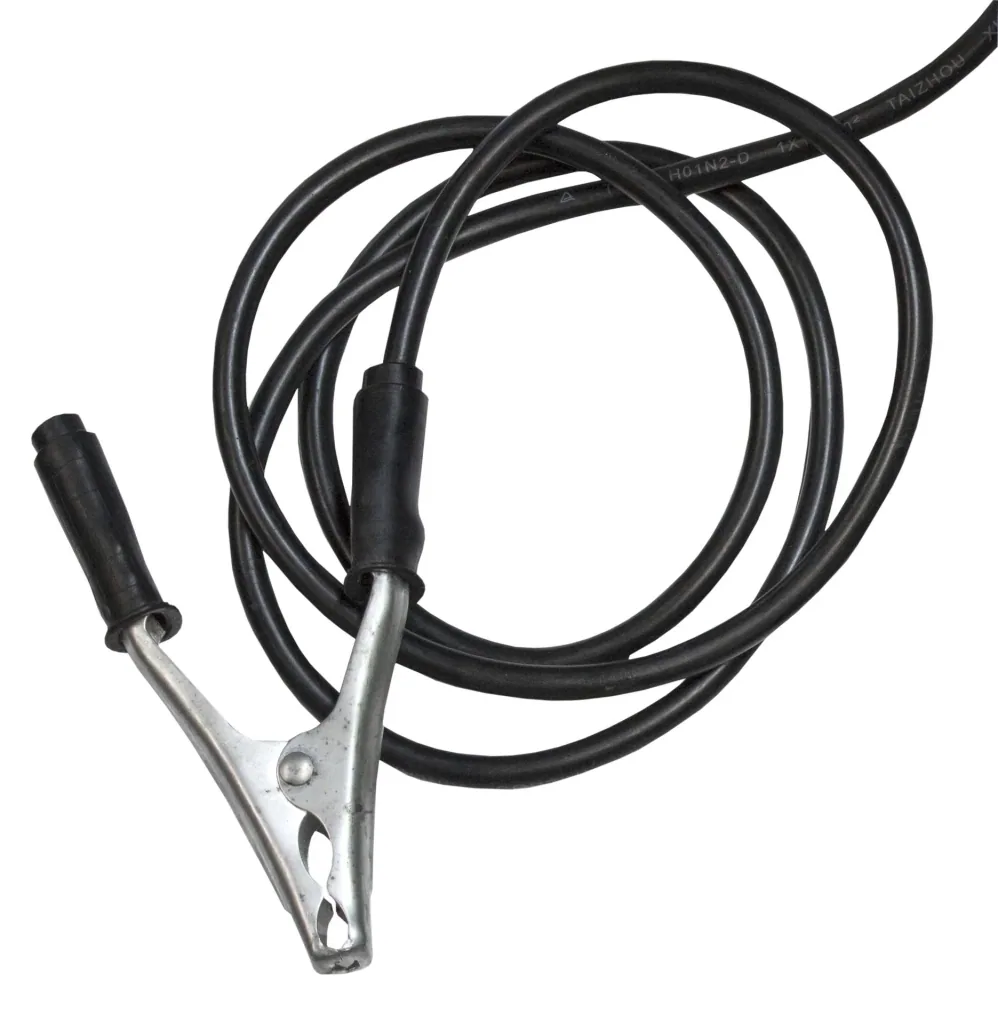

• Ground cable (9 mm plug connection)

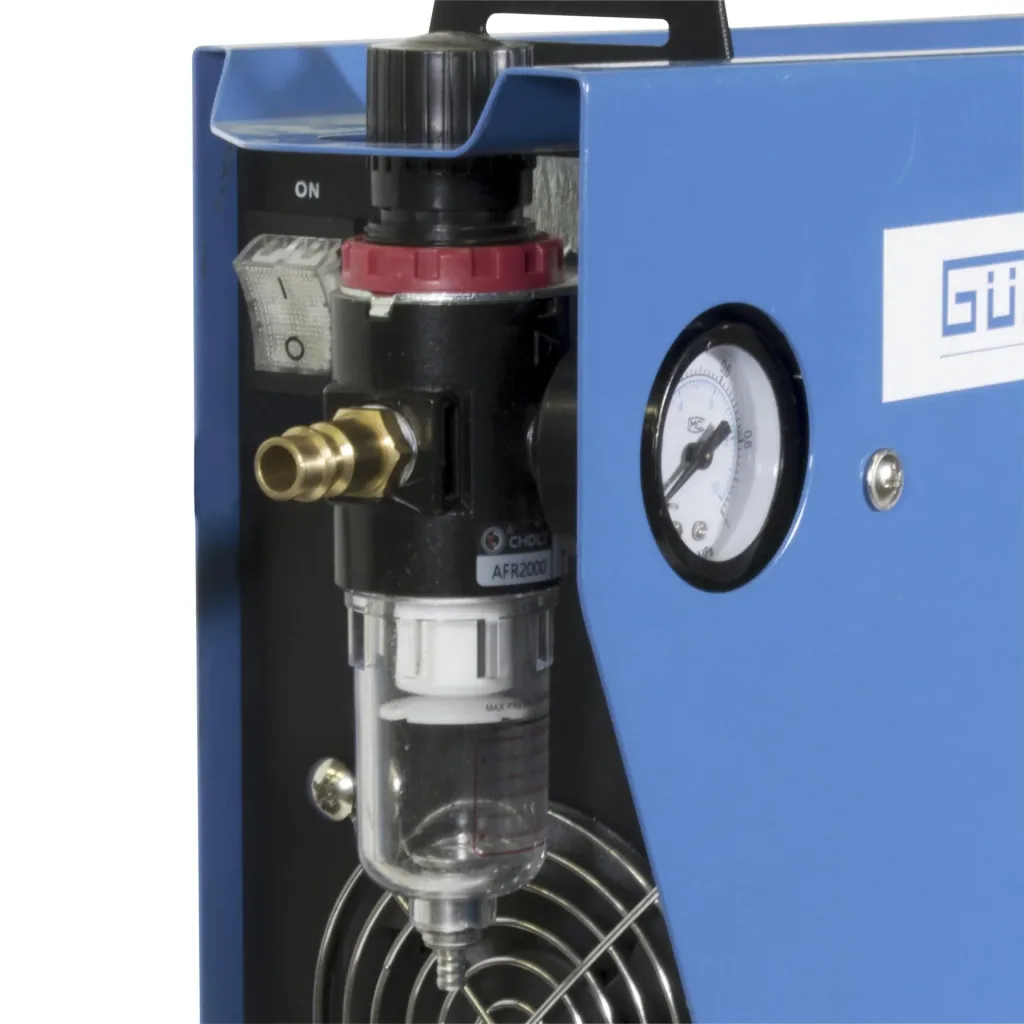

• Pressure reducer with pressure gauge, compressed air connection and water separator
• 2 replacement nozzle sets each

The Güde plasma cutter GPS-E A.2 is the ideal entry-level model for all DIY and hobby craftsmen who are committed to plasma cutting. In conjunction with a compressor with a minimum delivery rate of 150 liters/min, sheet metal and steel up to a maximum thickness of 12 mm can be cut quickly and effortlessly. Other materials such as aluminum, copper, brass or stainless steel can also be processed without any problems, even freehand cutting. This opens up a wide variety of possibilities in all forms for creative DIY enthusiasts and hobbyists. The GPS-E A.2, like all other Güde plasma cutters, is compatible with the pantograph # 20068. Using a corresponding template, creative shapes can be copied and cut out from a paper template or stencil onto sheet metal.

Technical specifications

• Mains voltage: 230 Volt
• Frequency: 50 Hz
• Protection class (IP): 21 S
• Insulation class: H
• Max. mains power 230V: 5.79 kVA
• Fuse, slow-blow: 16 A
• Open circuit voltage: 270 V
• Max. Welding current 230V: 15-40 A
• Duty cycle at max. current 230V: 40 ~ 20 A ~ %
• Recommended material thickness: 12 mm max.
• Net weight: 6.2 kg
• Gross weight: 8.6 kg

Dimensions: 407 x 142 x 286 mm

Color: blue, black

Material: metal, plastic

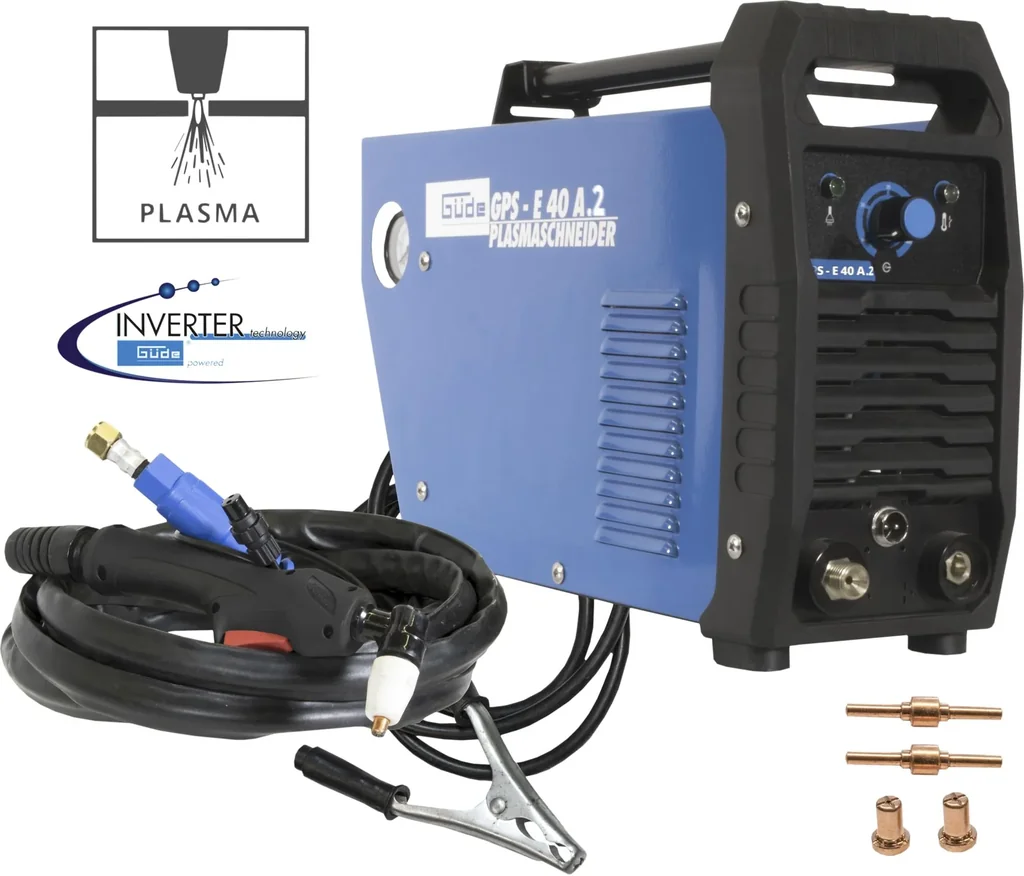

Scope of delivery:

• 1 x Plasma cutter GPS-E 40 A.2
• 2.5 meter cutting torch
• Ground cable (9 mm plug connection)
• 2 replacement nozzle sets each
