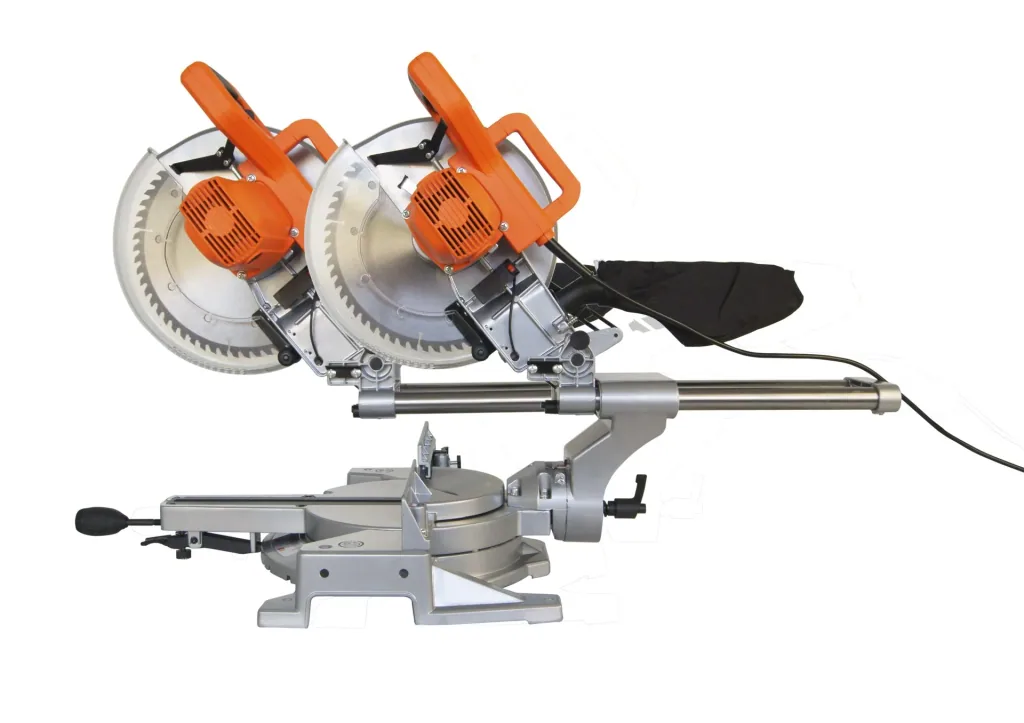

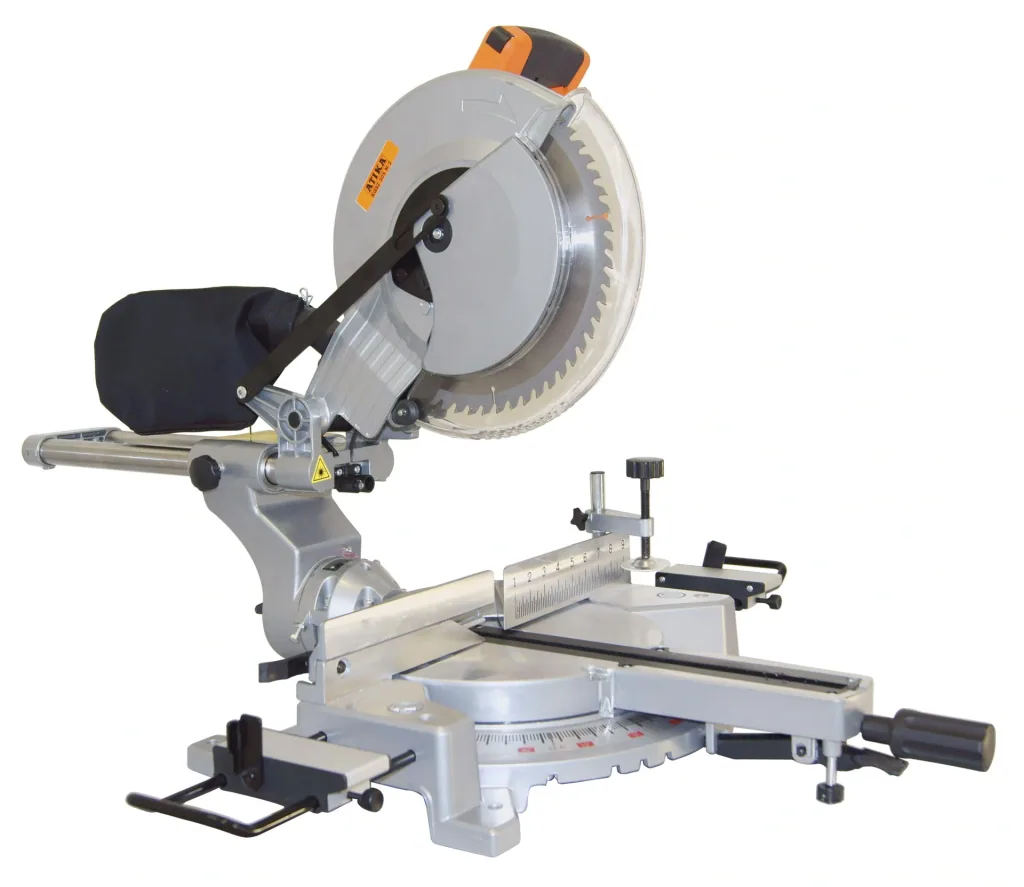

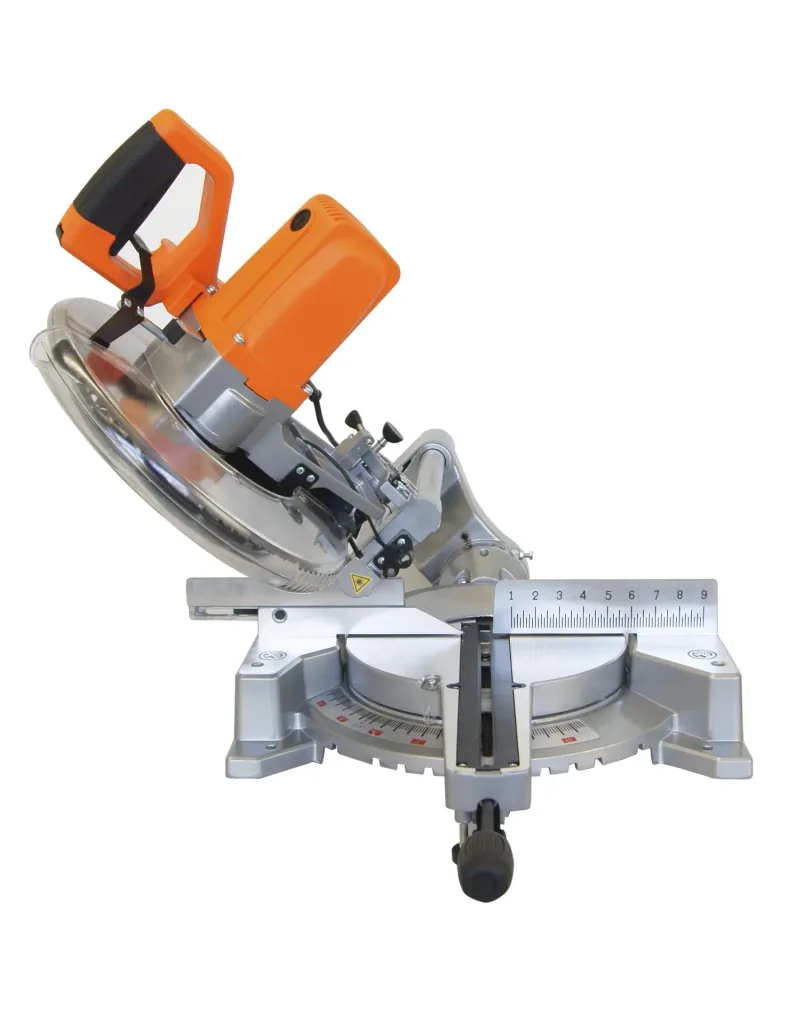

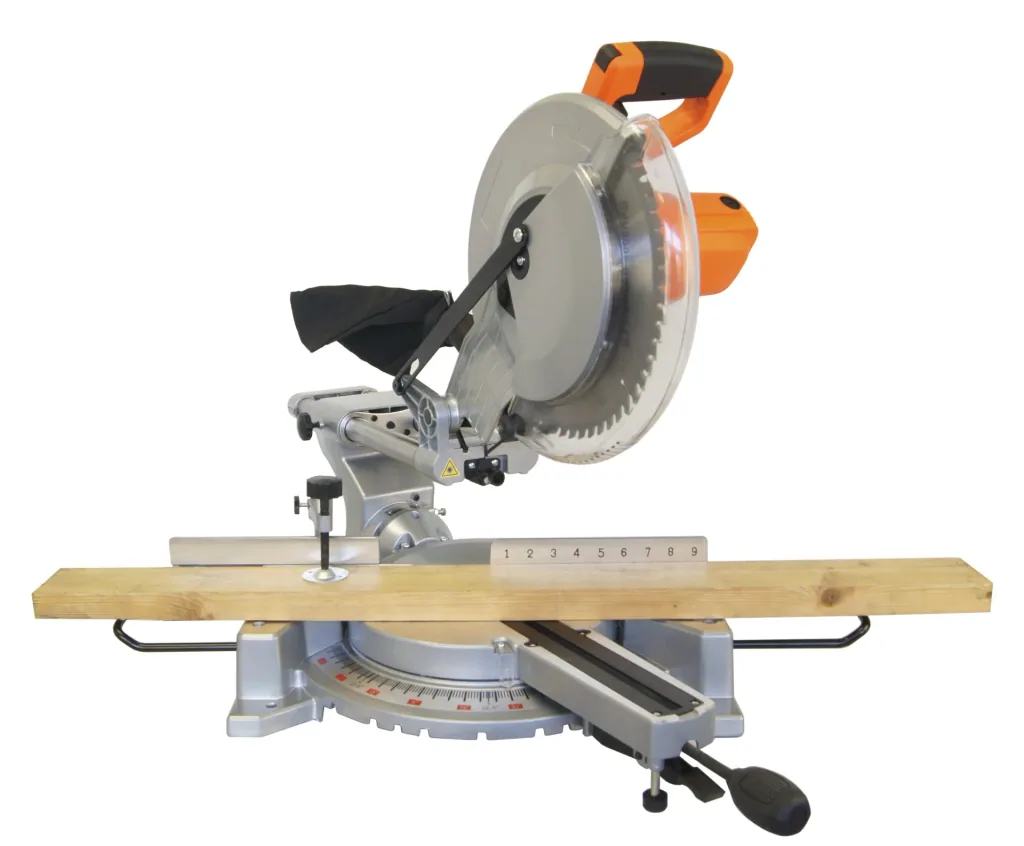

Mitre saw KGSZ 305 N-2 with pull function
About this item:
- 230 Volt AC motor
- 2000 Watts power output
- 4800 rpm no-load speed
- 90 x 310 mm workpiece
- 23 kg total weight
| Item number | WF-957793 |
| Brand | Altrad Lescha Atika |
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choiceThere are no questions yet
Ask a question to learn more about the product
0.0
- With laser
- Auxiliary stop
- Chip collection bag
- Workpiece supports
- Workpiece clamp
The stable, continuously rotatable aluminum saw table is equipped with a locking function for frequently used miter angles, an angle scale and a workpiece stop.
The rotatable saw table, the continuously adjustable saw head on the left side (0° - 45°) and the integrated cutting depth adjustment make the saw very versatile. Miter and double miter cuts as well as the creation of grooves are possible with this saw.
Greater safety when working thanks to the additional, adjustable auxiliary stop, the variable workpiece clamp, and the workpiece supports, so that even taller and larger workpieces can be processed safely.
The double-bearing pull function enables cutting widths of up to 310 mm, and the integrated laser ensures precise cutting.
Technical Specifications
- AC motor: 230 Volt ~ 50 Hz
- Power: 2000 Watts
- No-load speed: 4800 rpm
- Miter angle (left/right): 0° - 45°
- Saw head inclination (left-hand side): 0° - 45°
- Max. cross-section of the workpiece (straight cut): 90 x 310 mm
Weight: 18 kg / 23 kg
| Cutting depth | |
|---|---|
| Cutting depth | 90 mm |
| Voltage | |
| Voltage | 230 V |
| Weight | |
| Weight | 23 kg |
| Carrying case | |
| Carrying case | no |
| Idle speed | |
| Idle speed | 4800 rpm |
| Power output | |
| Power output | 2,000 W |
| Drive | |
| Drive | 230 V motor |
