- Large tailstock
- Robust base frame

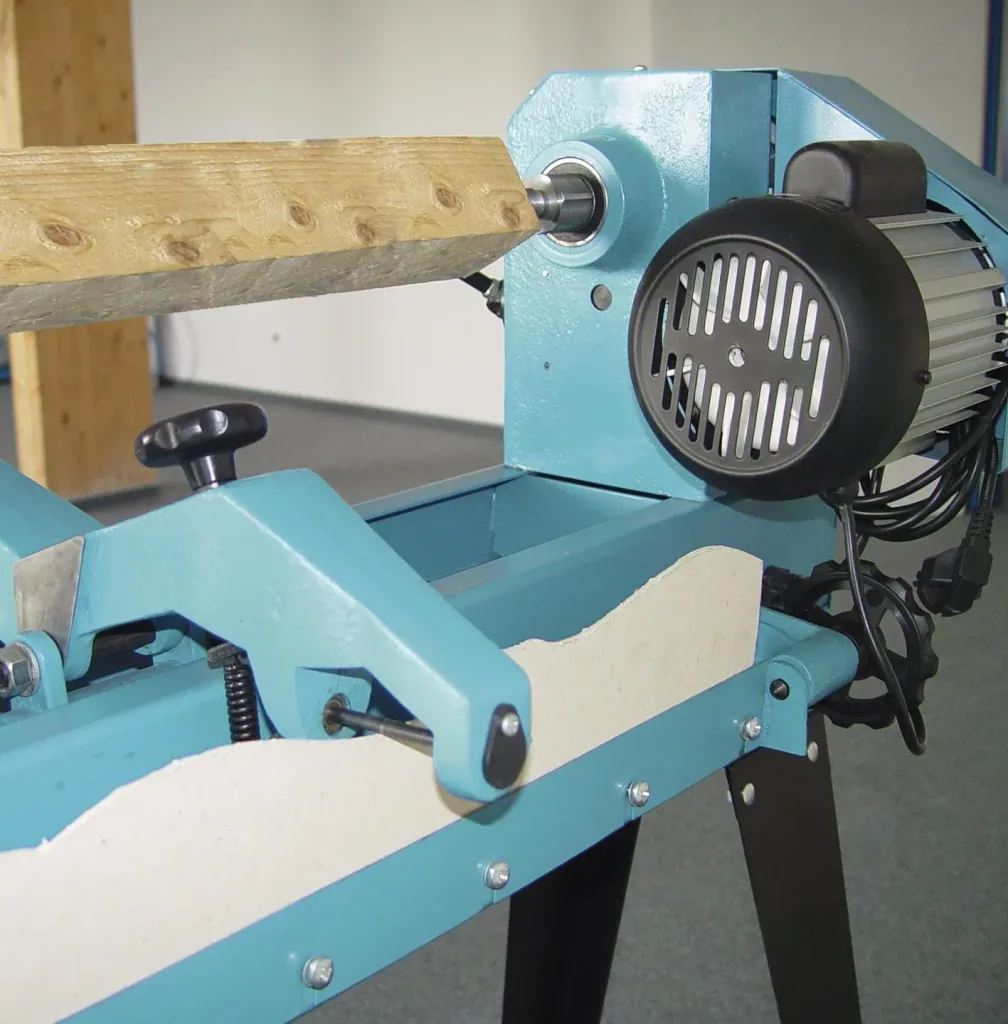

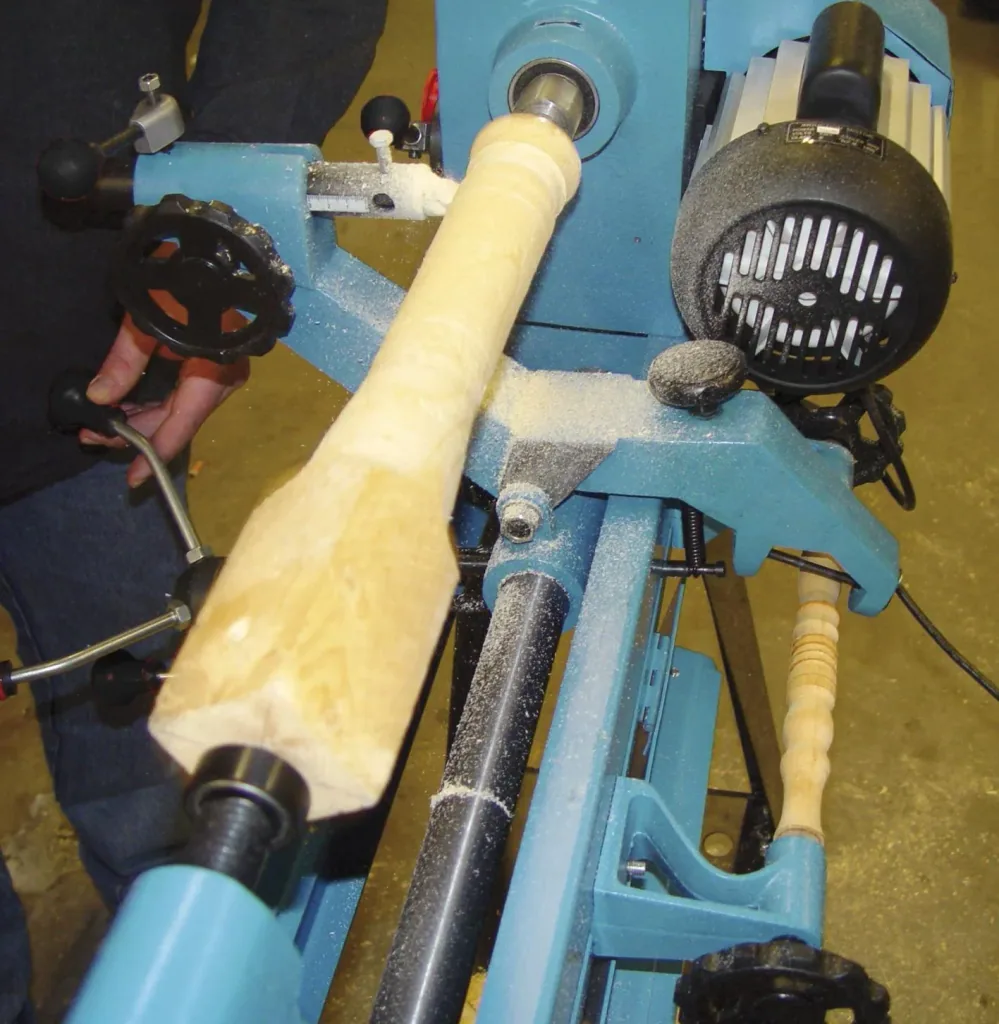

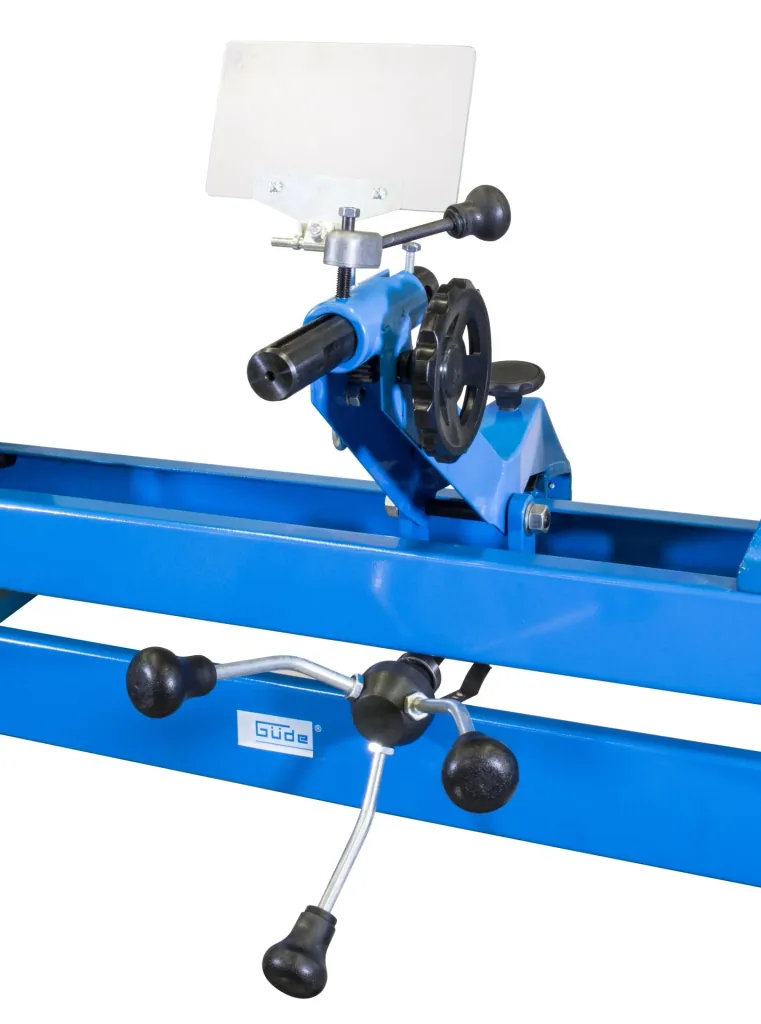

- Integrated copying device for templates and workpiece copies
- Centering center
- Faceplate
- Lathe tool
- Tools

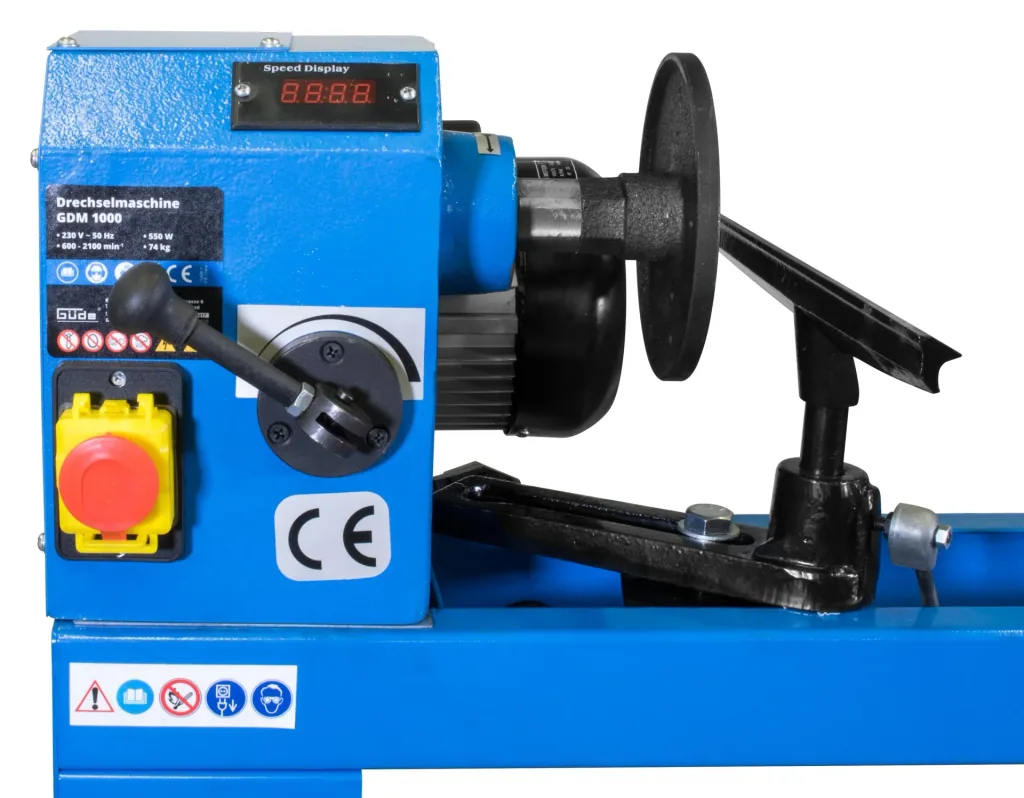

- Digital display

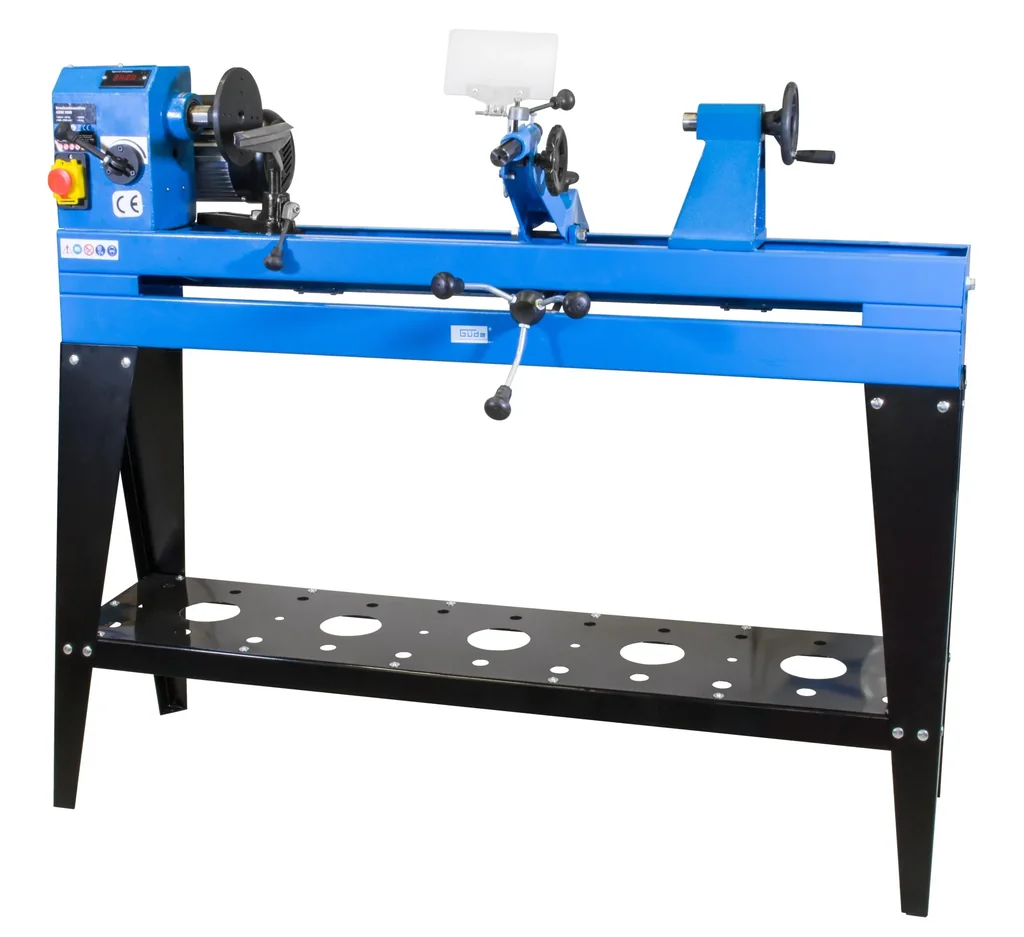

The Güde GDM 1000 wood lathe is the ideal machine for the do-it-yourselfer. It has a solid cast iron body with a steel bed and a large tailstock on a robust base frame. A professional copying device for templates and workpiece copies is integrated. Centering center, faceplate, lathe tool, and tools are, of course, included in the scope of delivery. The GDM 1000 also features a digital display, making reading much easier.
Technical Specifications
- Mains voltage: 230 V
- Frequency: 50 Hz
- Motor power (P1): 550 W
- Motor speed: continuously adjustable 600 - 2100 rpm
- Spindle speed: 600 - 2100 rpm
- Max. workpiece diameter: 280 mm
- Max. Clamping range: 935 mm
- Centre height: 140 mm
- Integrated copying device: yes
Dimensions: 1400 x 470 x 1185 mm
Color: blue, black
Material: metal, plastic
Weight: 67.5 kg

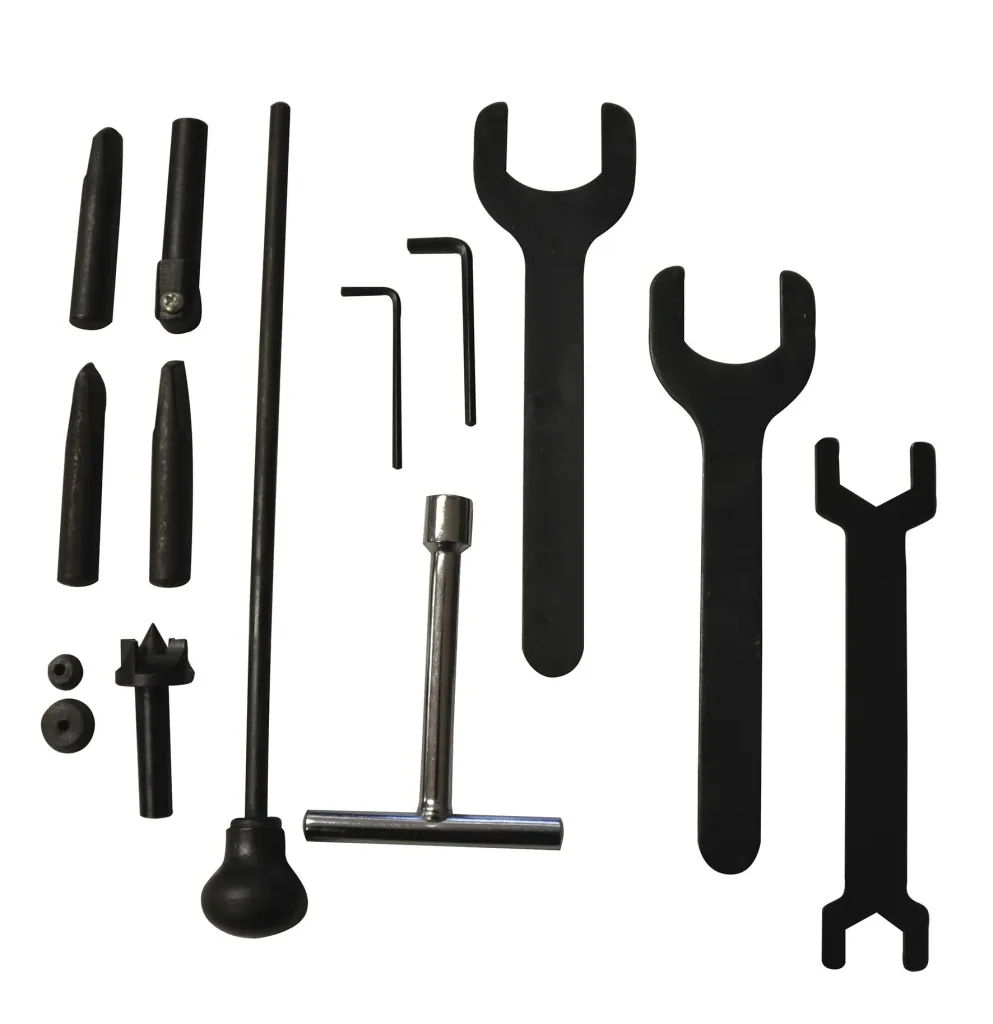

Scope of delivery
- 1 x wood lathe GDM 1000
- 1 x tool
| External dimensions | |
|---|---|
| External dimensions | 1400 x 470 x 1185 |
| Protection class | |
| Protection class | I |
| Drive | |
| Drive | 230V motor |
| Voltage | |
| Voltage | 230 V |
| Colors | |
| Colors | black |
| Colors | blue |
| Output power | |
| Output power | 550 W |
| Idle speed | |
| Idle speed | 2100 rpm |
| Weight | |
| Weight | 67.5 kg |
| Carrying case | |
| Carrying case | no |
