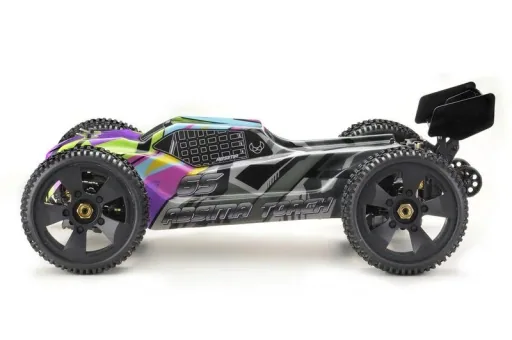

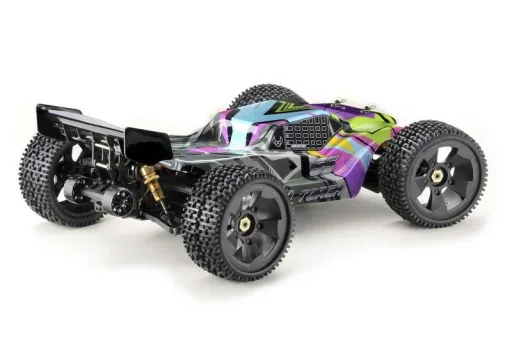

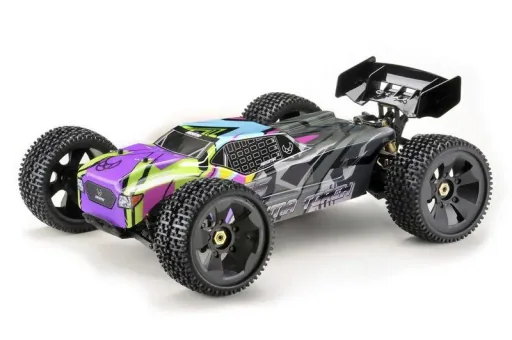

1:8 Green Power Elektro Modellauto RC Truggy "TORCH Gen2.0" 6S RTR

• Extremely durable composite plastic parts
• Fully adjustable chassis concept
• Monocoque wishbones
• Wheely bar
• Hardened steel motor pinion and spur gear
• Adjustable 16mm aluminum big bore shock absorbers
• 3 solid metal differential gears
• Downforce spoiler
• Adjustable spoiler mount
• 2-piece, sliding motor mounting concept for easy adjustment and installation
• Solid CVD axles - front & rear
• Medium steel drive shafts - front & rear
• Low profile tires with Racing compound
• "Saddle-pack" battery concept for perfect weight distribution
• 3mm black aluminum chassis plate with ABSIMA laser engraving
• Aluminum servo horn
• Separate water and dustproof receiver box
• Fully ball-bearing mounted
• Chassis side protection
• All aluminum parts finished in gold
• Aluminum 17mm wheel hex hubs
• Steel threaded rods
• Adjustable camber, track, and ride height
• High-speed pinion gear
• SPEED: UP TO 110 KM/H

Chassis concept

The chassis is fully tunable with adjustable ride height, tunable Shock absorbers, adjustable camber, adjustable toe-in, multiple shock mounting points, and an adjustable rear wing.

Durable aluminum parts such as the 3mm laser-engraved chassis plate, gold-colored wishbone mounts, bracing, and damper parts ensure a long chassis life and a first-class design.

Drive Concept

The drive concept - powered by HOBBYWING - leads its class in terms of performance and reliability, accelerating the vehicle to up to 110 km/h (6S version). The speed controller's cooling fan maintains constant temperatures during full-throttle operation. The 2100KV motor delivers powerful power to the wheels.

The recommendation for the optional high-speed reduction gear (pinion gear included) applies to operation on hard, level surfaces. Do not use the pinion gear for off-road driving, bashing, or constant start/stop driving, as doing so could damage the drive units (ESC/motor)!

Parameters such as braking force, motor brake, punch, run mode, and LiPo cutoff can be changed using a set button or a programming box (sold separately). XT60 connectors (6S version) ensure a reliable connection between the ESC and your selected batteries.

We recommend using high-quality, high-capacity batteries with a C-rate of at least 45C.

5.0mm CVD shafts front and rear, spur gears and differential gears, and 4.5mm metal dogbones are used for power transmission.

"Easy-use" motor mounting concept for quick and easy motor removal. Simply open 2 screws and slide it out!

Control concept

Our proven ABSIMA "CR2SV2" 2.4 GHz remote control guarantees a fast and reliable connection to your vehicle. The 15 kg metal gear servo with aluminum horn and durable high-performance tires ensure perfect steering on any surface.

Technical Data

• Scale: 1:8
• Drive type: 4WD
• Surface: Off-road
• Steel motor gear: Pinion: 13T / Main gear: 49T
• Pinion module: 1.0

Electronics

• ABSIMA "CR2SV2" 2.4GHz A.F.H.D.S. Remote control (servo reverse and dual rate function; foam steering wheel)
• Waterproof 150A HOBBYWING speed controller (BEC: 6V/4A; programmable functions: LiPo cut-off, run mode, braking force, motor brake, punch)
• Powerful 2100KV 4-pole sensorless brushless motor (600W, shaft diameter: 5mm, module 1)
• 15kg / metal gear steering servo (25T) with aluminum servo horn

Dimensions

• 555 x 445 x 200 mm (length x width x height)
• Wheelbase: 375mm
• Ground clearance: 45mm
• Wheel width: 70mm
• Tire diameter: 145mm

Weight

• Weight: 3970g (without batteries)

Scope of delivery

• Torch Gen2.0 Truggy - 6S Version
• 2.4GHz remote control "CR2SV2"
• High-speed pinion gear
• Instructions
