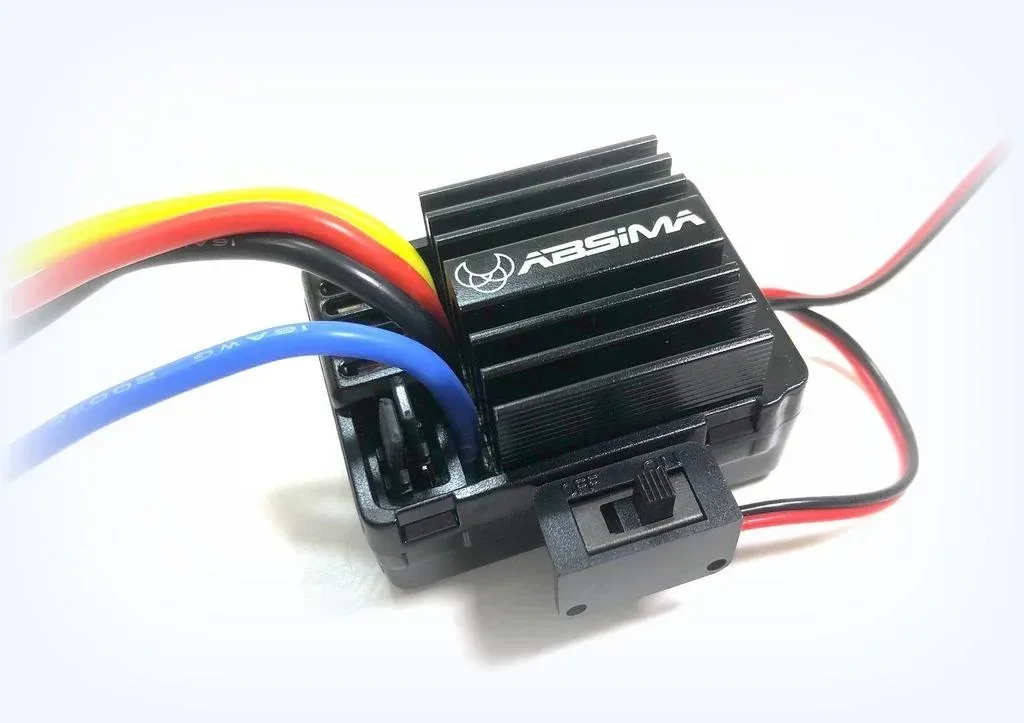

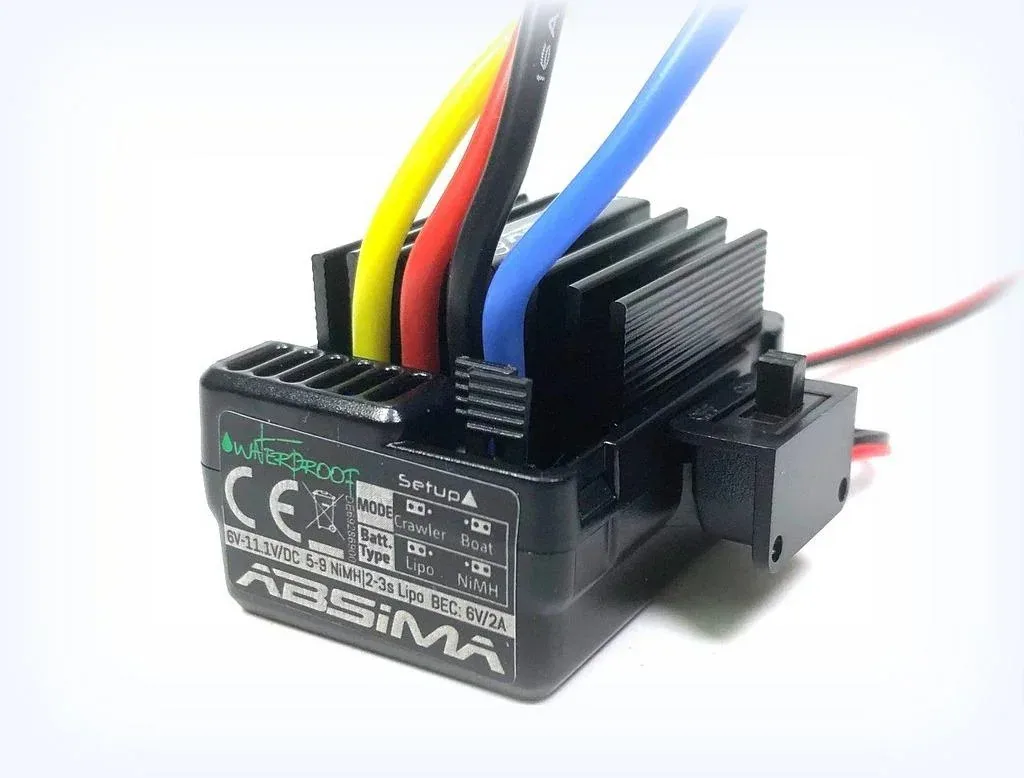

1:10 Brushed Speed Controller Crawler & Boat
Guaranteed Secure Checkout
| Item number | WF-961816 |
| Brand | Absima |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Waterproof and dust-proof "all-weather" crawler brushed speed controller
- Small housing dimensions
- Automatic range calibration between throttle and brake
- Single-click forward / reverse function with instantly reacting motor brake
- Battery "Low Power Auto - Cut Off"
- Fail Save function
Technical specifications
- Areas of application: crawler and boat
- Forward load: continuous load 40A / short-term load 180A
- Reverse load: continuous load 20A / short-term load 90A
- Operation with 5 - 9 cell NiMH battery / 2 - 3 cell LiPo battery
- Battery "Low Power Auto - Cut Off" (NiMH 5 - 9 cells at 4.5 V / LiPo 2 cells 6.5 V / LiPo 3 cells 9.75 V )
- Motor limit: when operating with 2 cells LiPo or 5 - 6 cells NiMH battery = motors of size 540 or 550 with = 12T or < 30,000 rpm per V
- Motor limit: when operating with 3 cells LiPo or 7 - 9 cells NiMH battery = motors of size 540 or 550 with = 18T or < 20,000 rpm per V
- Overheating protection at 100°
- Resistance forward 0.002 Ohm / reverse 0.004 Ohm
- BEC 6 V / 2 A (Linear mod BEC)
- Power transmission when reversing in crawler mode 100% / boat mode 25%

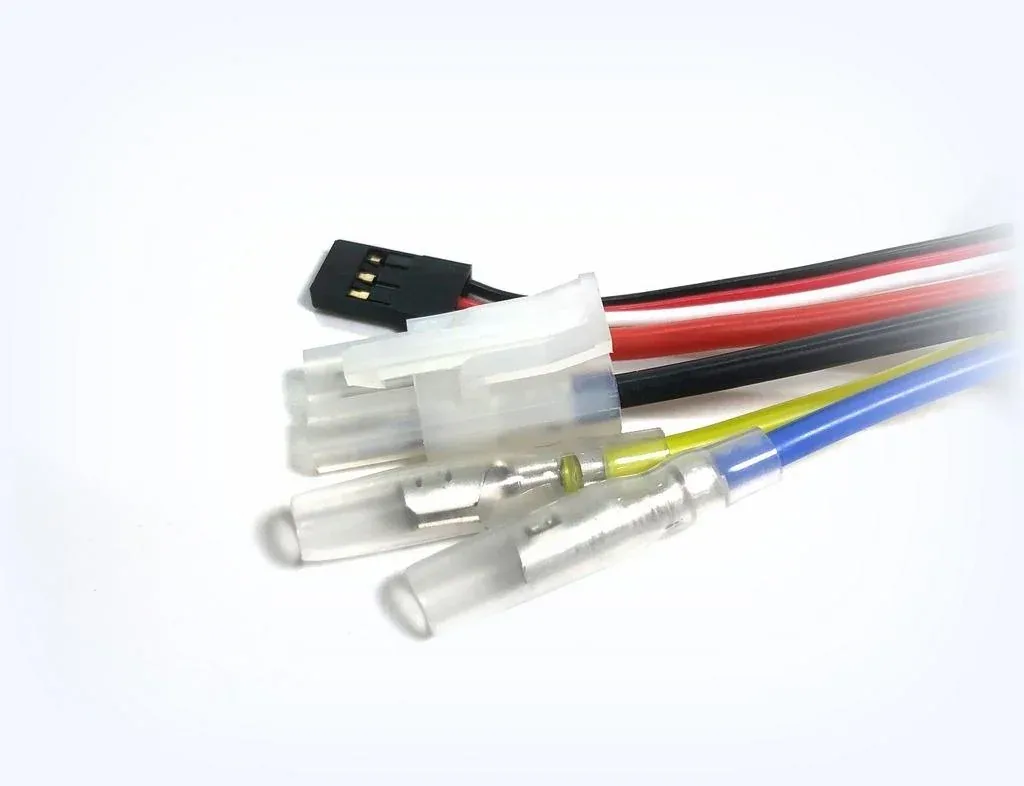

- Plug system: Tamiya
- Dimensions: (L/W/H) 46.5 x 34.0 x 28.5 mm
- Weight 70 g
- Plug & Drive System
- On/Off Switch
Scope of Delivery
- 1 Brushed Crawler / Boat Speed Controller
- Operating Instructions
