- Waterproof and dust-proof "all-weather" brushed speed controller
- Small housing dimensions
- Automatic range calibration between throttle and brake
- Double-click forward / reverse function with motor brake
- Battery "Low Power Auto - Cut Off"
- Fail Save function
Technical specifications
- Areas of application: Buggy / Truggy / Truck / Touring Car
- Forward load: Continuous load 40A / Short-term load 180A
- Reverse load: Continuous load 20A / Short-term load 90A
- Operation with 5 - 9 cell NiMH battery / 2 - 3 cell LiPo battery
- Battery "Low Power Auto - Cut Off" (NiMH 5 - 9 cells at 4.5 V / LiPo 2 cells 6.5 V / LiPo 3 cells 9.75 V )
- Motor limit: when operating with 2 cells LiPo or 5 - 6 cells NiMH battery = motors of size 540 or 550 with = 12T or < 30,000 rpm per V
- Motor limit: when operating with 3 cells LiPo or 7 - 9 cells NiMH battery = motors of size 540 or 550 with = 18T or < 20,000 rpm per V
- Overheating protection at 100°
- Resistance forward 0.002 Ohm / reverse 0.004 Ohm
- BEC 6 V / 2 A (Linear mod BEC)
- Power transfer when reversing 50%

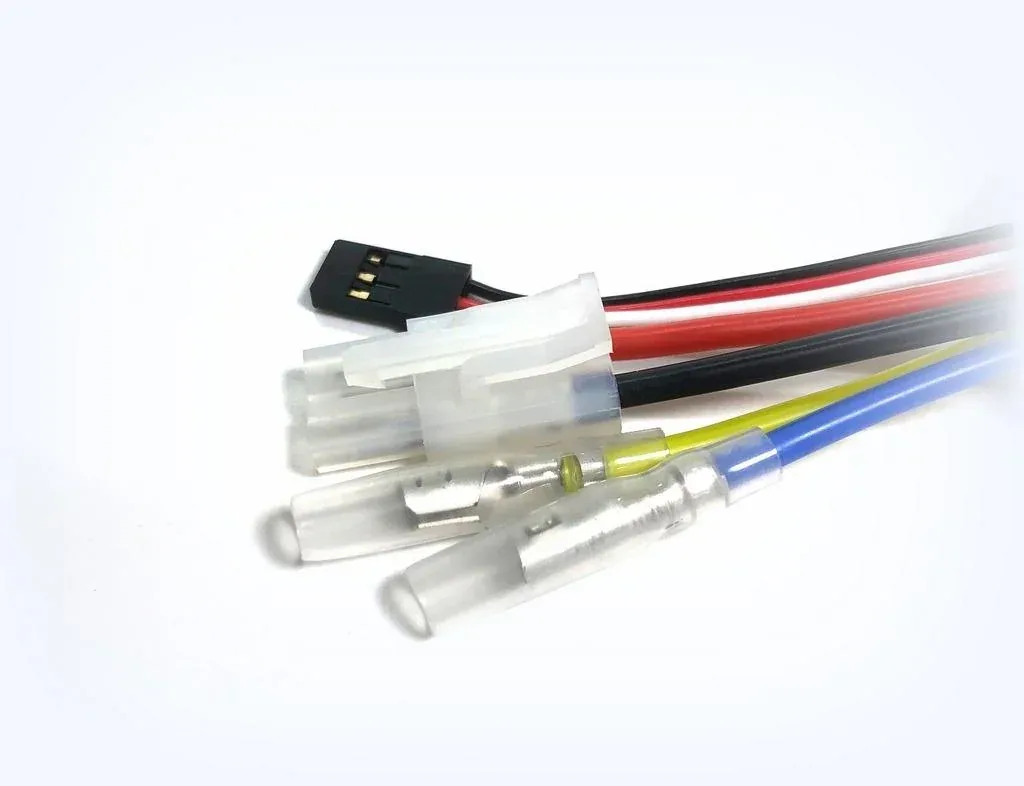

- Plug system: Tamiya
- Plug & Drive System
- On/Off Switch
Dimensions
- 46.5 x 34 x 28.5 mm (Length x Width x Height)
Weight
- 70 g
Scope of Delivery
- 1 pc. Brushed Speed Controller
- Instruction Manual
