Garagentorantrieb Smart DRIVE M, 500 N, 868,4 MHz

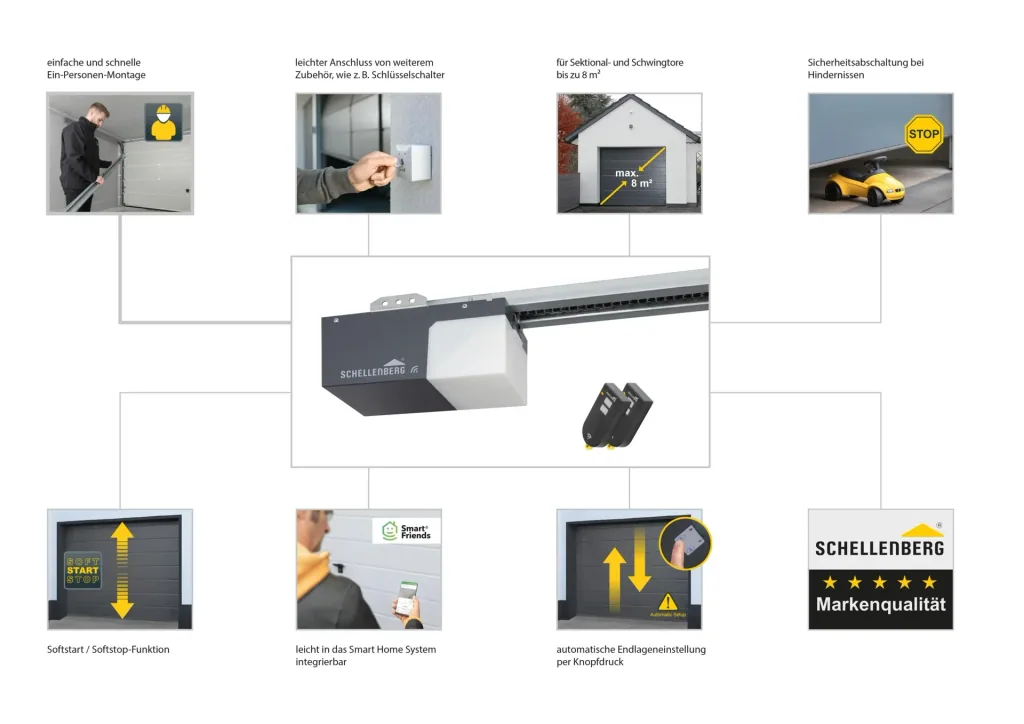

• Smart radio-controlled garage door operator for rail-guided doors up to 8 m² in size
• High level of radio security, compatible with the Smart Friends system
• Easy programming with automatic limit switch adjustment
• 2x radio handheld transmitters, 2-channel with 868.4 MHz included
• Connection of separately available LED garage lighting possible

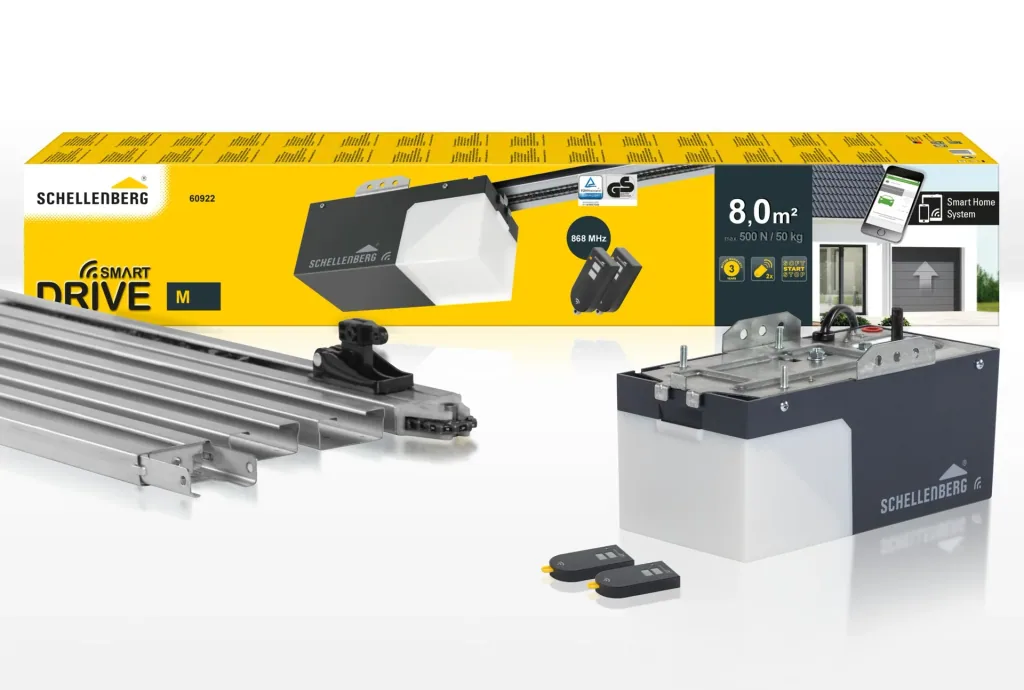

The compact Smart DRIVE M garage door operator with two 2-channel handheld transmitters enables the radio-controlled operation of rail-guided up-and-over and sectional doors up to 8 m² in size. It is compatible with the Smart Friends Smart Home system, allowing additional control via the Smart Friends app or a combination with other smart products. A high level of radio security, easy programming, and the option to expand with extensive accessories make the Smart DRIVE M an ideal entry-level model. The drive has a pulling force of 500 N and is suitable for garage doors weighing up to 50 kg. A door height of 2.35 m should not be exceeded.

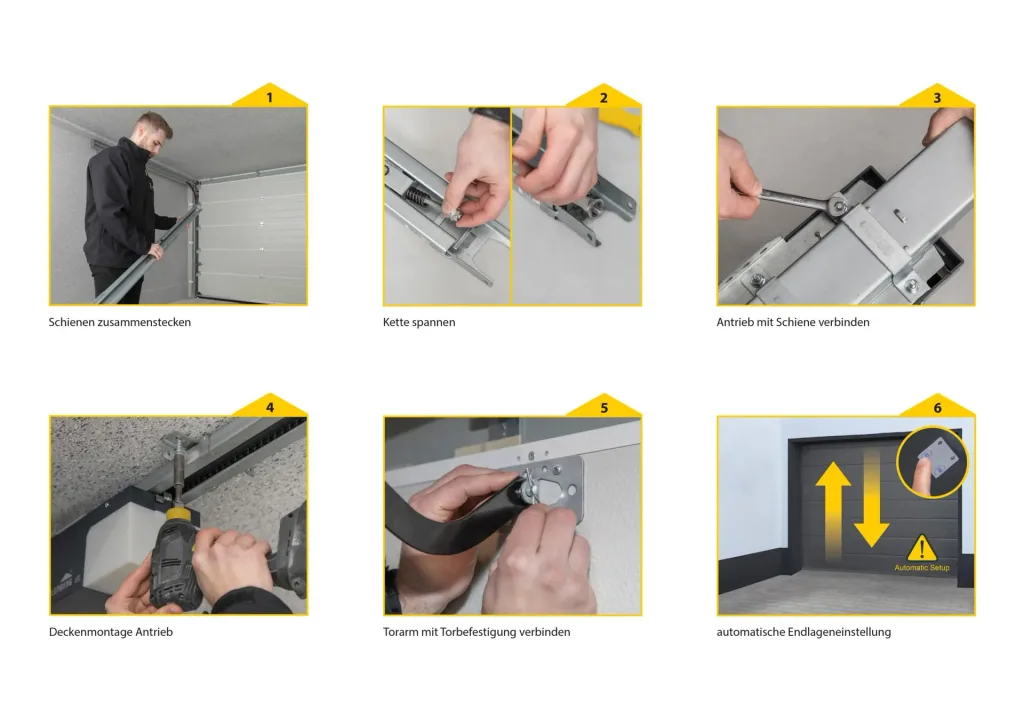

Thanks to its simple one-person installation and automatic limit position adjustment, the Smart DRIVE M is ready for use in a short time. The 4-part guide rail of the Smart DRIVE M is mounted to the ceiling with a minimum clearance of 35 mm and is made of galvanized, torsion-resistant steel. When the garage door drive is started up, the motor adapts to the existing garage door and automatically adjusts the force setting with each travel. When the set limit positions are reached, the motor switches off precisely thanks to electronic travel detection.

The motor head is mounted on a galvanized steel sheet, which gives the garage door drive greater stability. The control panel and other connection options are concealed inside under the light cover. The connections can be used, for example, for additional LED garage lighting or a wicket door contact. Energy-saving LED lighting is already integrated into the motor head. The lighting switches off automatically after three minutes of operation or can be manually switched on or off using the remote control, independently of the garage door opener. A wide range of other Schellenberg accessories is available separately.

To keep your home safe at all times, all garage door opener models feature automatic safety shutdown in the event of an obstruction, motor overheating protection, data retention in the event of a power failure, an emergency release for the inside, and tamper-proof radio transmission. The innovative, bidirectional radio transmission operates at a frequency of 868.4 MHz and enables the Smart DRIVE M to not only receive but also send signals.

Technical Specifications

• Operating voltage: 220-240 V/50 Hz
• Rated power: 200 watts
• Control voltage: 24 V DC
• Light source: LED
• Tensile force: max. 500 N/50 kg
• Protection class: IP20
• Radio frequency: SRS 868.4 MHz BIDI
• Total length: 3.14 m
• Standby power: approx. 5 watts
• Total weight: 14.15 kg
• Speed: 15 cm/sec., depending on the door weight
• Door height: max. 2.35 m
• Gate area: max. 8.0 m²

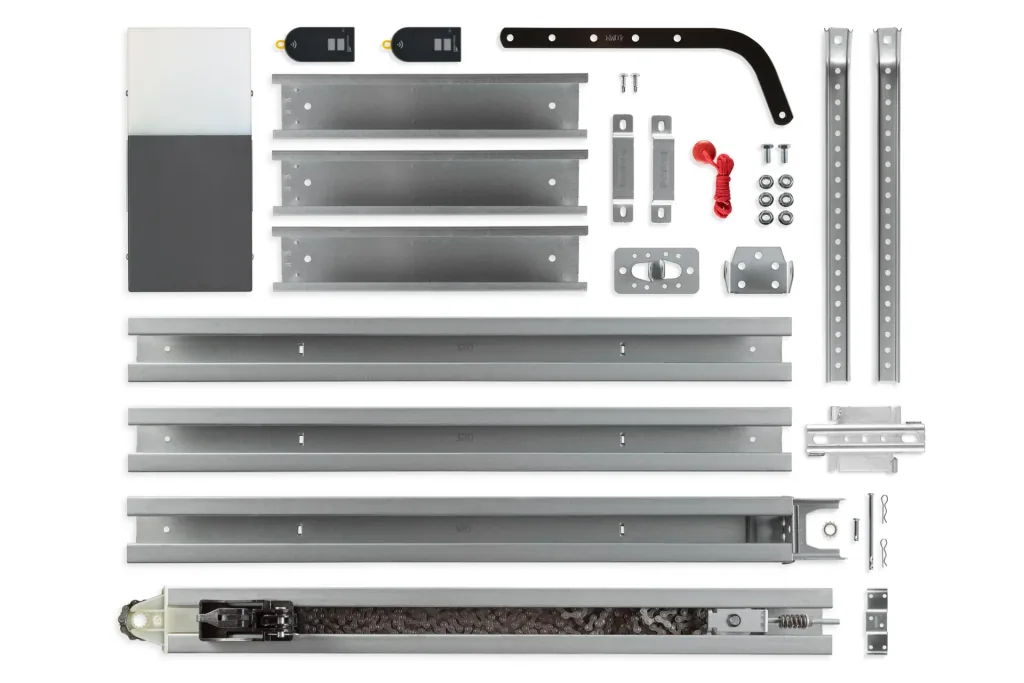

Scope of delivery

• 1 x motor head including power cable
• 2 x hand-held transmitters, 2-channel, 868.4 MHz
• 4 x guide rails, 75 cm each
• 3 x connectors for guide rails
• 1 x assembly instructions
• 1 x gate mounting bracket
• 1 x wall mounting bracket
• 2 x U-brackets
• 1 x emergency release for inside
• 1 x guide carriage
• 1 x gate arm
• 2 x ceiling suspensions
• 1 x limit block
