Smart DRIVE radio handheld transmitter, 4-channel, 868.4 MHz, anthracite

• Handy control of up to 4 door openers
• Easy programming to the garage door opener
• Radio frequency of 868.4 MHz
• Additional loop in gray for color-coding the handheld transmitter
• Compatible with the Schellenberg DRIVE M, L, and XL garage door openers

The Smart DRIVE radio handheld transmitter with four buttons is used for the handy remote control of up to four Schellenberg garage door openers. At the touch of a button, the garage door can be conveniently opened or closed from a distance or from the car. Furthermore, it is possible to control the lights of the compatible Smart DRIVE M, L, or XL garage door openers independently of driving mode. Additional connected lights, such as the Schellenberg LED garage lighting, can also be switched on or off separately using the remote control.

Thanks to the four channels, up to four garage door openers can be programmed and then operated using a single remote control. The radio transmission, operating at a frequency of 868.4 MHz, is secure against unauthorized interception and has a range of 20 m outdoors. Included in delivery are a battery and an additional gray loop, which can be used to connect, for example, a garage door opener. B. a key ring or carabiner can be attached.

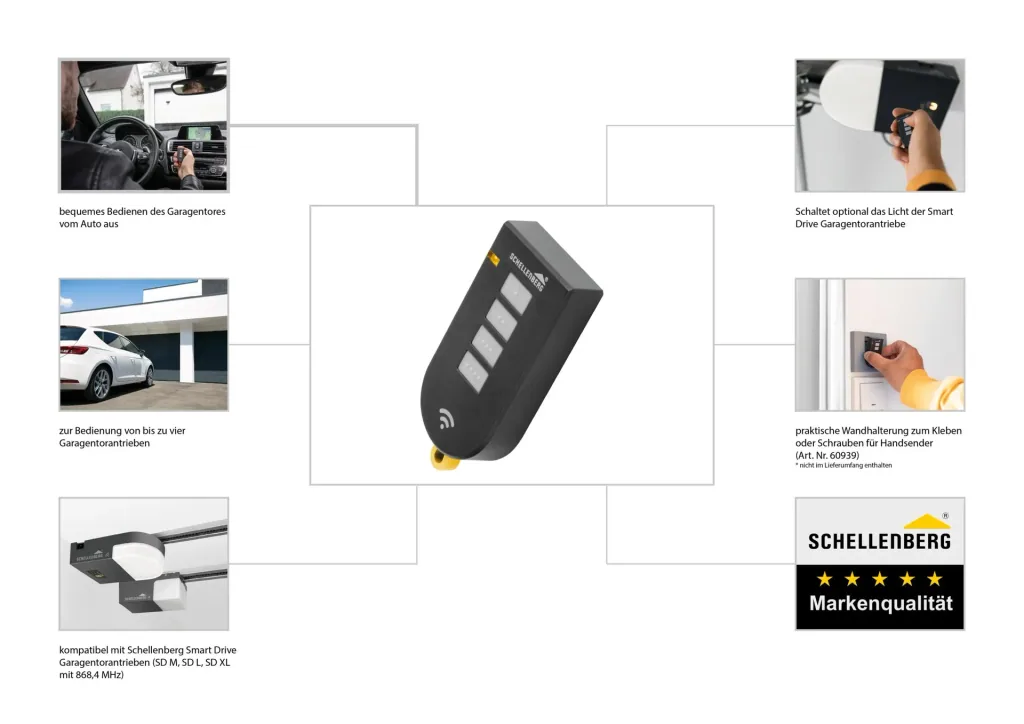

The Smart DRIVE radio hand-held transmitter is suitable for the following Schellenberg garage door openers of the latest generation:

• Smart DRIVE M garage door opener
• Smart DRIVE L garage door opener
• Smart DRIVE XL garage door opener

Technical specifications

• Channels: 4
• Radio frequency: 868.4 MHz
• Range: 20 m in open field
• Voltage: 3 V DC
• Transmission power: max. 10 mW/10 dBm
• Power supply: CR2032 lithium button cell
• Protection class: IP20, only for dry indoor areas
• Ambient temperature: -10 °C to +55 °C

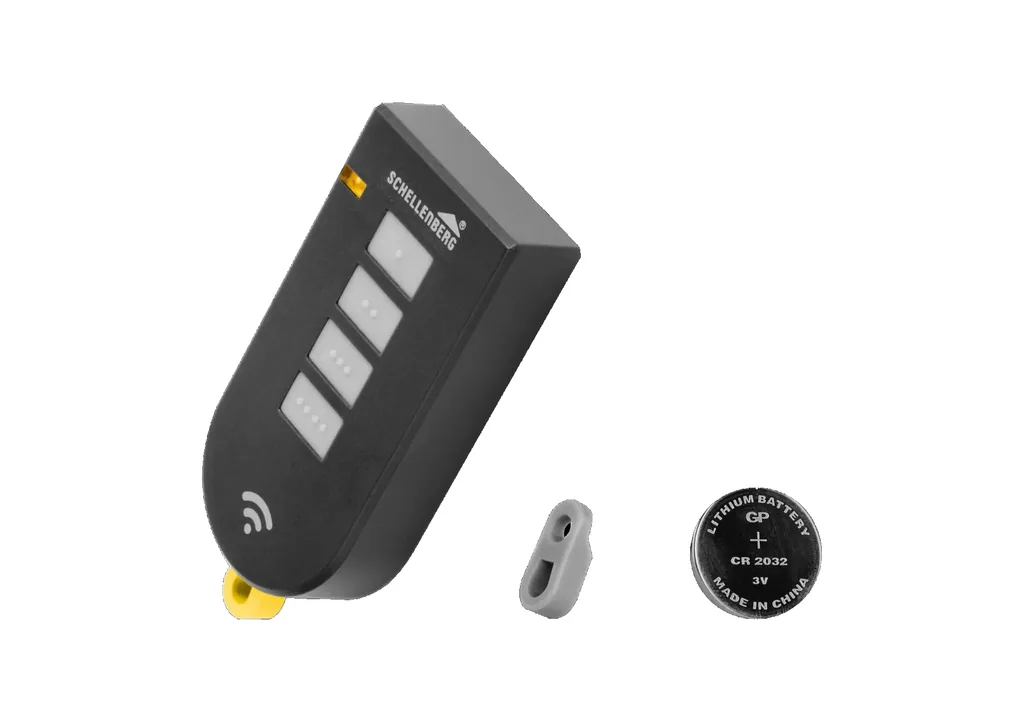

Scope of delivery

• 1 x Smart DRIVE wireless handheld transmitter
• 1 x CR2032 lithium button cell
• 1 x assembly instructions
• 1 x Loop, grey
• 1 x Loop, yellow (pre-assembled)
