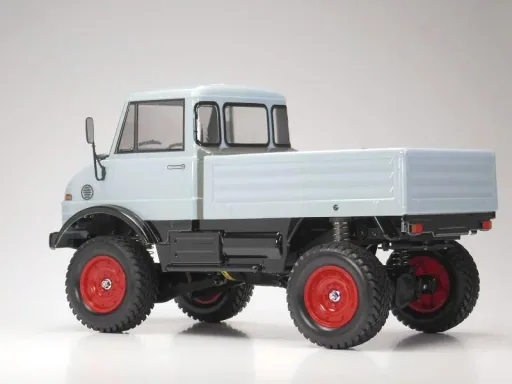

RC vehicle MB Unimog 406 U900 (CC-02) 1:10

TAMIYA presents the CC-02 (Cross Country) chassis, now with a Mercedes-Benz Unimog 406 body.

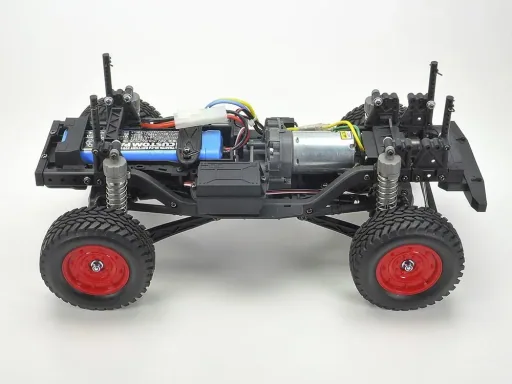

The CC-02 chassis is modeled after real off-road vehicles and features a frame chassis, front and rear cone differentials, and a 4-link suspension. The rigid axles at the front and rear make the model particularly off-road capable, and the 4 CVA oil-filled shock absorbers perfectly absorb every bump.

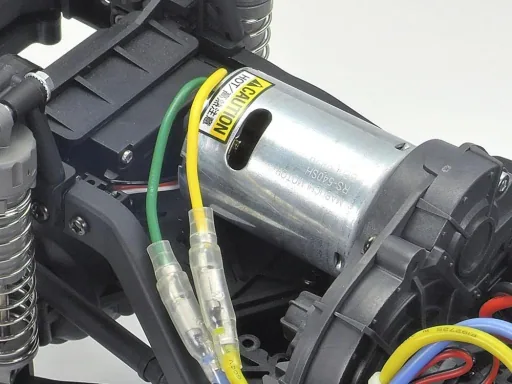

The drive is provided by a powerful 540cc engine mounted behind the front axle. This ensures good weight distribution when venturing off-road. Encapsulated around the engine is the gearbox, which transmits the power to the front and rear axles via movable cardan shafts.

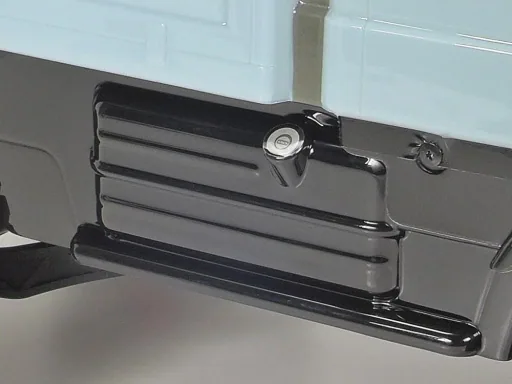

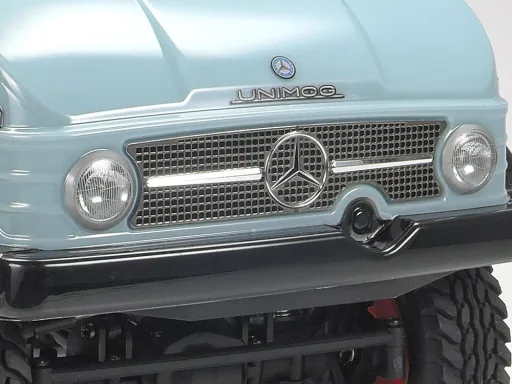

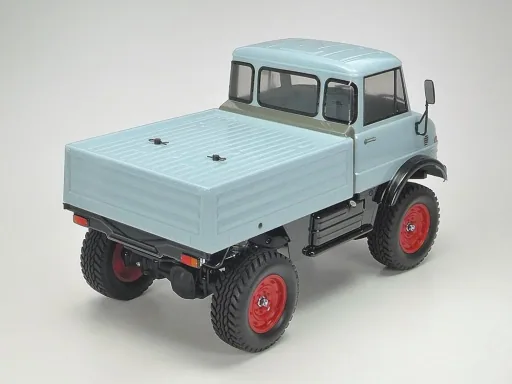

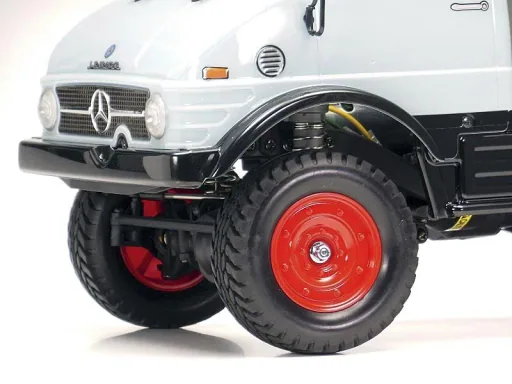

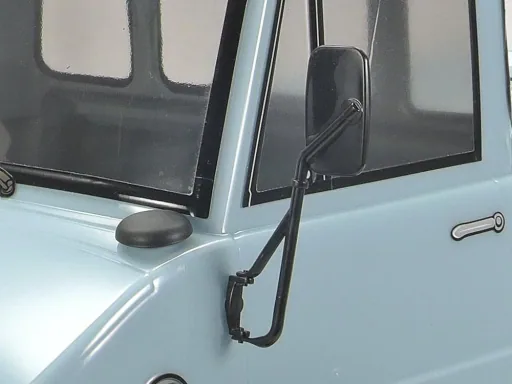

The body has the unmistakable design of the Mercedes Benz Unimog 406 and is made of polycarbonate.

Technical Specifications


• Kit model in 1:10 scale
• Prototypical polycarbonate body
• Short drive shaft (76mm) included
• The chassis was modeled on real off-road vehicles and has a frame for extra stability.
• For 4WD drive, the engine is located behind the front axle with a separate gearbox. The power of the engine is transmitted via central drive shafts to the differentials on the front and rear axles.
• 20 different reduction ratios can be set (11.09:1 to 29.28:1, different pinions sold separately)

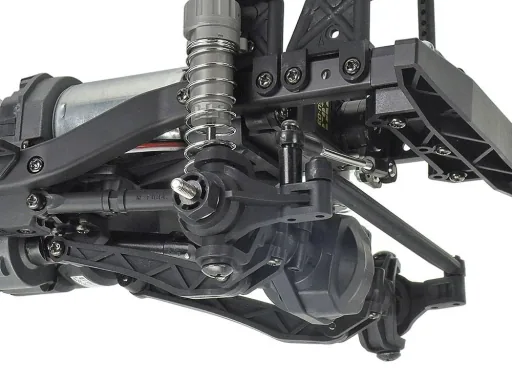

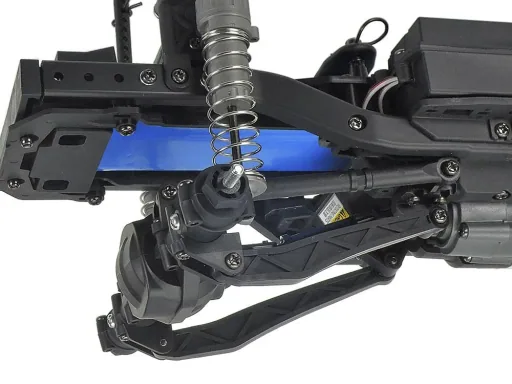

• 4-link suspension with CVA oil-filled shock absorbers
• Includes electronic speed controller

Dimensions

• 364 x 196 x 224 mm (length x width x height)
• Wheelbase: 267 mm

Required Accessories

• Remote control with Steering servo
• 7.2V NiMH battery pack
• Charger
• TAMIYA PS polycarbonate paint for the body

Scope of delivery

• Kit model
• Detailed illustrated assembly instructions
• Electronic speed controller
• 540 electric motor
• Polycarbonate body

WARNINGS:

Before beginning assembly, you should read and understand all instructions. If a child is assembling the model, a supervising adult should also read the assembly instructions.

Tools, including a knife, are used when assembling the kit. Extra caution is required to avoid injury.

If any difficulties arise during assembly, ask an adult to supervise the work, a model builder with RC experience, or a specialist dealer.

Use tools only for their intended purpose. Incorrect use may result in injury.

If you use paints and/or glue (not included in the kit), read and follow the enclosed instructions.

Keep the kit away from small children. Prevent children from putting any components in their mouths or pulling plastic bags over their heads.
