Smartphone Garage Door Opener PLUS with LED

• Turns your smartphone into an additional handheld transmitter
• For garage door or external door openers from various manufacturers
• No modification of the door opener necessary, external power supply required
• Easy pairing of up to 5 smartphones, clear feedback via LED
• Scan-safe radio coding, no access for unauthorized persons

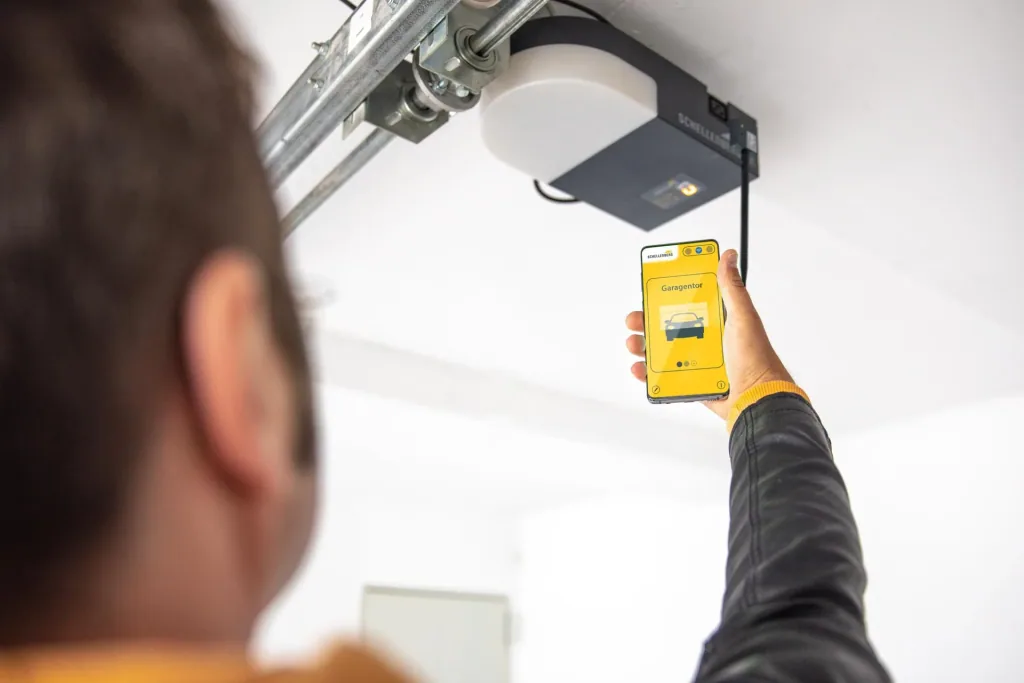

With the Smartphone Garage Door Opener PLUS, your smartphone becomes a handheld transmitter for garage and external door openers from various manufacturers. Using the radio module and a free app, you can conveniently open or close a garage or external door using your smartphone. The module is attached to the door opener and connected to the control system; no modification is necessary. The Garage Door Opener PLUS is powered externally via a power supply unit. After installing the required smartphone app, up to 5 smartphones can be paired and used as handheld transmitters. The pairing process is simplified by an LED feedback light on the receiver module. The radio, with a frequency of 2.4 GHz and a range of up to 15 m, is coded to be scan-safe and cannot be intercepted by unauthorized persons.

The smartphone app is compatible with garage and outdoor door openers from various manufacturers as well as with the following smartphones:

• Android: from operating system version 4.3
• iOS: from operating system version 7.1

Technical specifications

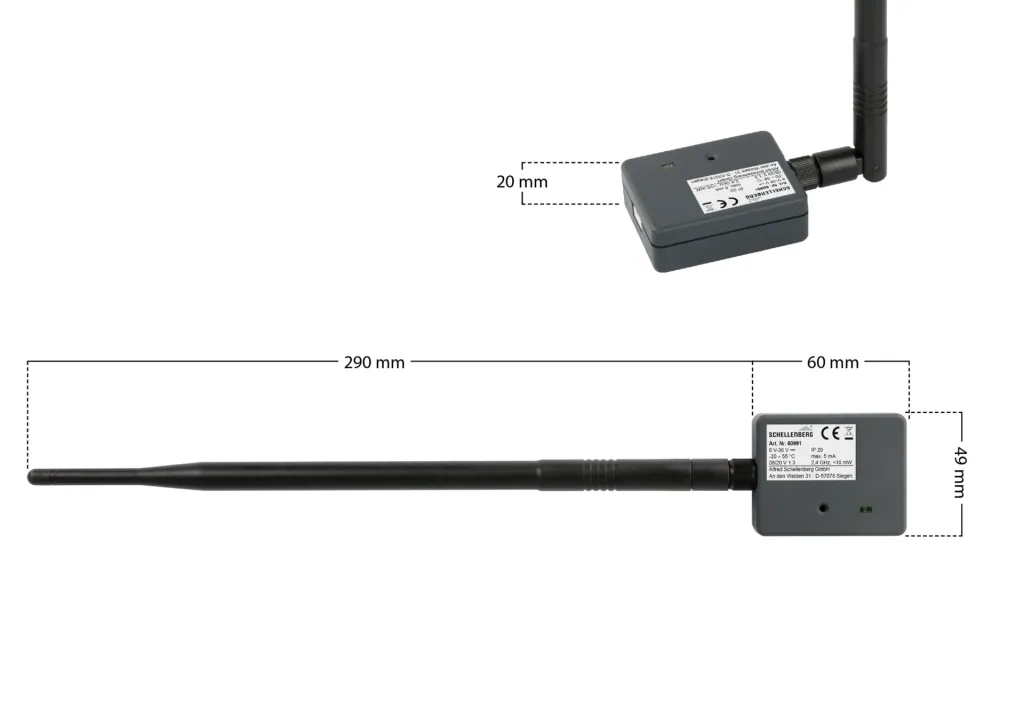

• Housing: 59 x 49 x 20 mm

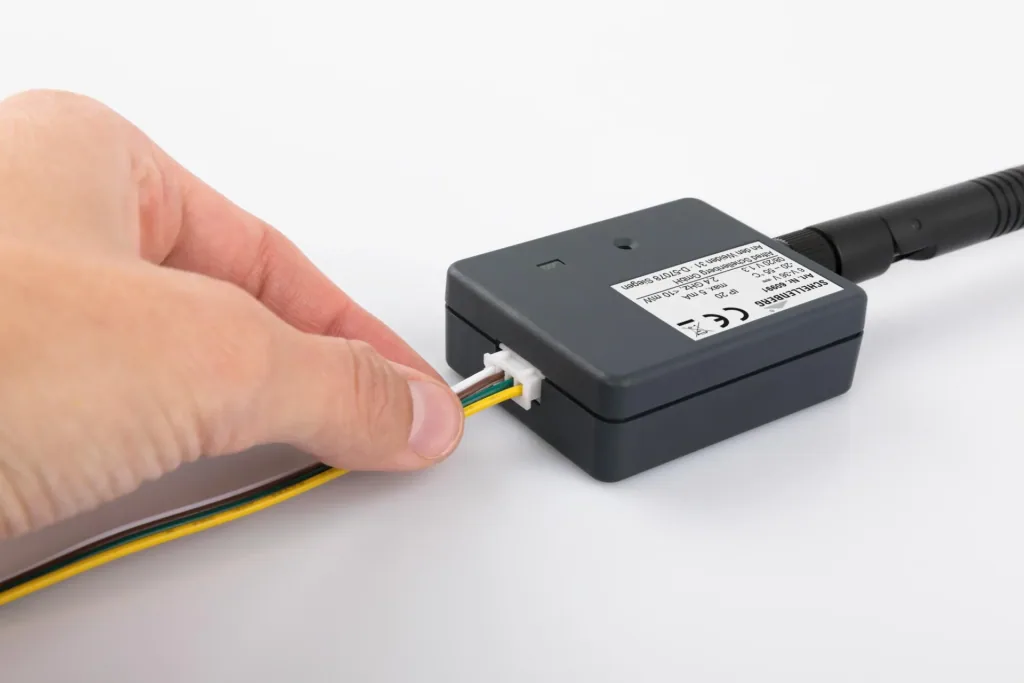

• Cable: 4-color, 400 mm long, connector
• Range: max. 15 m
• Operating voltage: 6 V-36 V DC
• Transmission power: max. 10 mW
• Current consumption: max. 5 mA DC
• Operating temperature: -10 to 55 °C
• Protection class: IP20, for dry rooms only
• Radio frequency: 2.4 GHz
• With LED feedback light: Yes

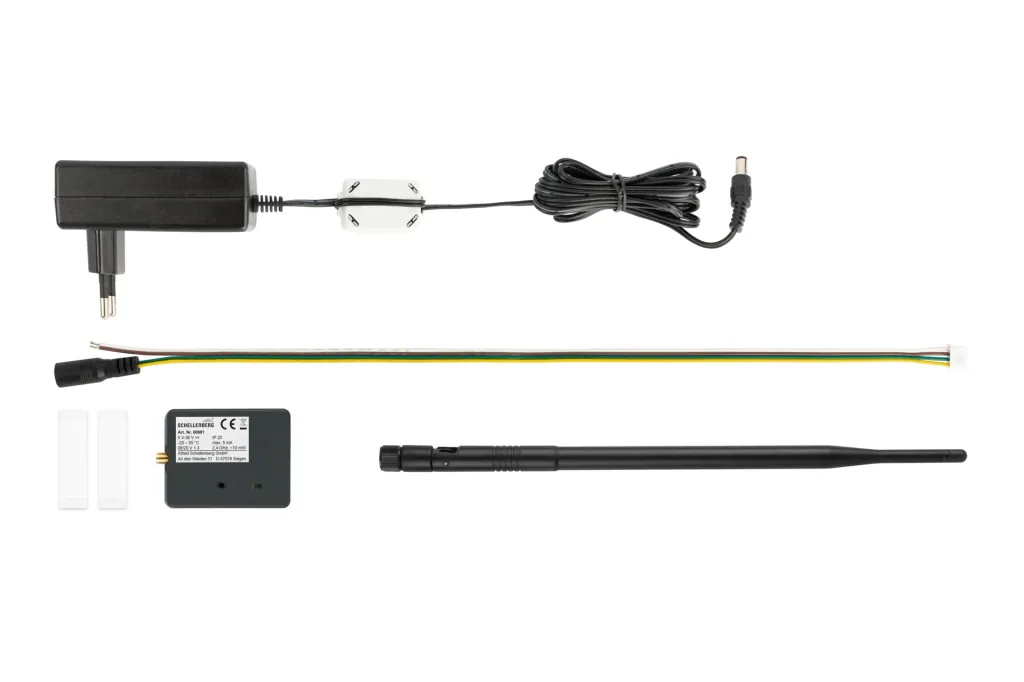

Scope of delivery

• 1 x radio receiver module
• 1 x antenna
• 1 x power supply
• 1 x connection cable
• 2 x double-sided adhesive tape
• 1 x app (free download)
• 1 x assembly instructions
