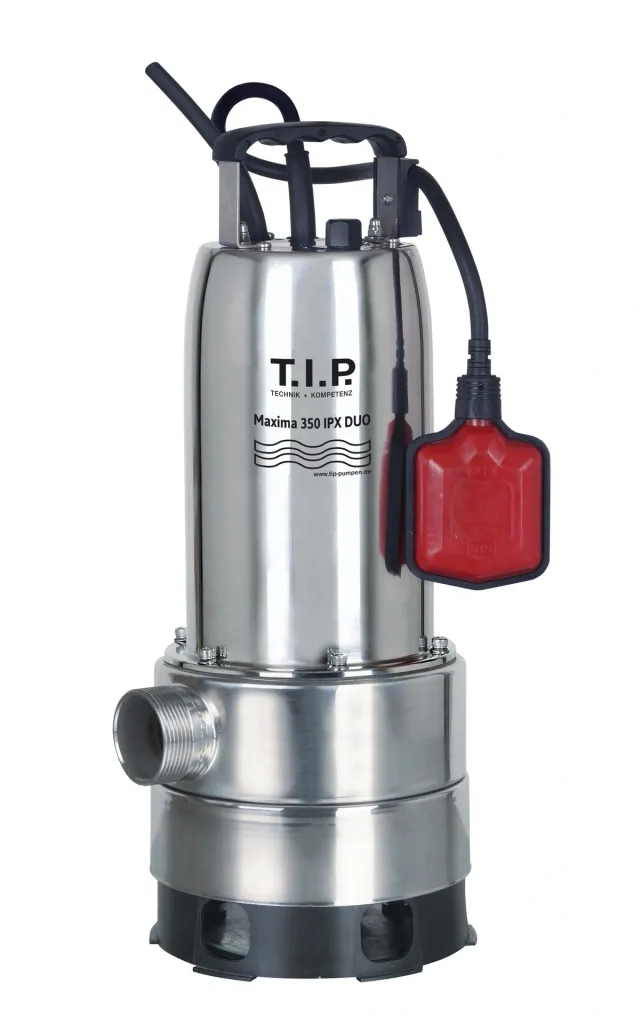

Submersible pump "Maxima 350 IPX DUO"

• 2-in-1 combination pump
• Innovative extendable pump base: Ideal for switching between dirty water and shallow suction
• High-quality workmanship: Motor and pump housing made of stainless steel
• Shallow suction down to 1 mm residual water level
• Float switch protects against dry running

The powerful combination submersible pump "Maxima 350 IPX DUO" is a true all-rounder among submersible pumps thanks to its extendable pump base. It can be transformed from a powerful dirty water pump into a shallow suction clear water pump with just one move. This multifunctionality makes it the perfect companion
when it comes to pumping, draining, and emptying basements, sewers, garden ponds, or cisterns. Thanks to its enormous performance, the "Maxima 350 IPX DUO" is also perfectly suited as an emergency drainage pump.

Note:

The flow rate of a pump depends primarily on the discharge head. The following table shows the performance of the "Maxima 350 IPX DUO" submersible dirty water pump at different delivery heads.

Example: If you pump water from a depth of 3 meters, you can expect a delivery rate of 14,700 liters per hour (dirty water operation).

Dirty water operation:

• 7 m: 4,200 l/h
• 5 m: 10,000 l/h
• 4 m: 12,200 l/h
• 3 m: 14,700 l/h
• 1 m: 19,300 l/h

Clear water operation:

• 7 m: 4,500 l/h
• 5 m: 9,700 l/h
• 4 m: 12,000 l/h
• 3 m: 14,000 l/h
• 1 m: 17,000 l/h

Technical specifications:

• Motor: 800 watts
• Maximum discharge head / maximum pressure: 8 m / 0.8 bar
• Maximum discharge rate: 20,000 l/h
• Suction level (clear water): 1 mm
• Suction level (dirty water): 35 mm
• Maximum grain size diameter: 30 mm / 1 mm
• Maximum immersion depth: 7 m
• Cable length: 10 m / H07RN8-F
• Pressure connection: 47.80 mm (1 1/2" AG)

Dimensions: approx. 268 x 224 x 416 mm

Color: Silver

Weight: approx. 7.2 kg

Scope of delivery

• 1 x combination submersible pump "Maxima 350 IPX DUO", with connection cable
• 1 x connection elbow with union nut
• 1 x multi-dimensional connector
• 1 x operating instructions
