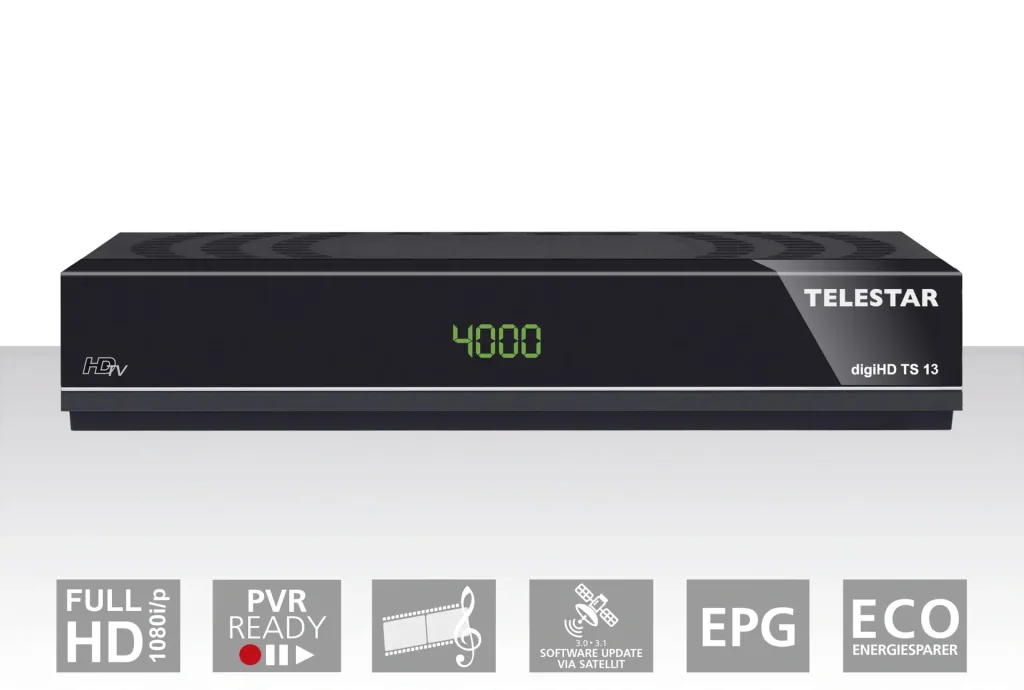

HDTV Sat Receiver, digiHD TS 13

• Receives freely available DVB-S programs in the best quality
• USB PVR function with TimeShift
• USB multimedia for various formats (e.g. MP3, AAC, etc.)
• Electronic program guide with multi-day preview
• Fast teletext, timer, and sleep timer

The TELESTAR digiHD TS 13 is a latest-generation HDTV satellite and multimedia receiver. In addition to the usual features such as EPI program information, automatic software updates, and parental controls, the receiver can be upgraded via USB to a digital video recorder with TimeShift (USB PVR Ready) and media player for various formats. Thanks to the integrated energy-saving power supply, the digiHD TS 13's power consumption during operation and standby is minimal. The receiver is already pre-programmed and is therefore immediately ready for use.

Technical Data

• Power consumption in on mode: 6 W
• Maximum operating power: 12 W
• LED power: 0.5 W

Audio coding

• Audio mode: Dual, Stereo
• Sampling frequencies: 32, 44.1, 48
• Audio compression: MPEG-1, MPEG-2

LNB

• Band switching: 22 kHz
• DiSEqC: 1.0, 1.2
• LNB voltage: 13 V
• Horizontal power supply: 18 V
• LNB power supply: 500 mA

• OSD languages: English, German, French, Spanish, Italian, Portuguese, Swedish, Russian
• Total program memory: 5000
• Teletext: Yes
• Teletext subtitles: Yes
• Sleep timer: Yes

Power supply

• Nominal voltage: 240 V
• Frequency: 50 Hz

Tuner

• DVB-S2: 10 - 31 Mbaud
• Frequency range: 950 - 2150 MHz
• DVB-S: 2 - 45 Mbaud
• DVB-S2: QPSK S2
• Input impedance: 75 Ω

Supported formats & Codecs

• Video formats: MKV, MP4, MOV, MPG, RMVB, RM, VOB, DAT, AVI
• Image formats: BMP, JPEG, GIF, PNG, TIFF
• Audio formats: MP3, AAC, WAV

Video encoding

Video compression: MPEG-4, 264, MPEG-2, MP@ML

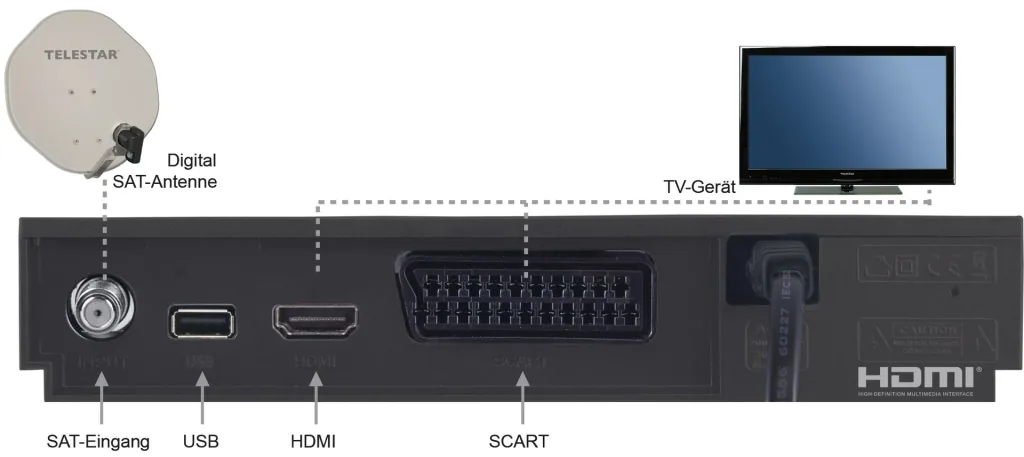

Connectors

• 1 x HDMI
• 1 x Scart
• 1 x USB 2.0
• 1 x Audio output digital optical
• 1 x F socket

Dimensions: (W x H x D) 18 x 4 x 10 cm

Weight: 290 g

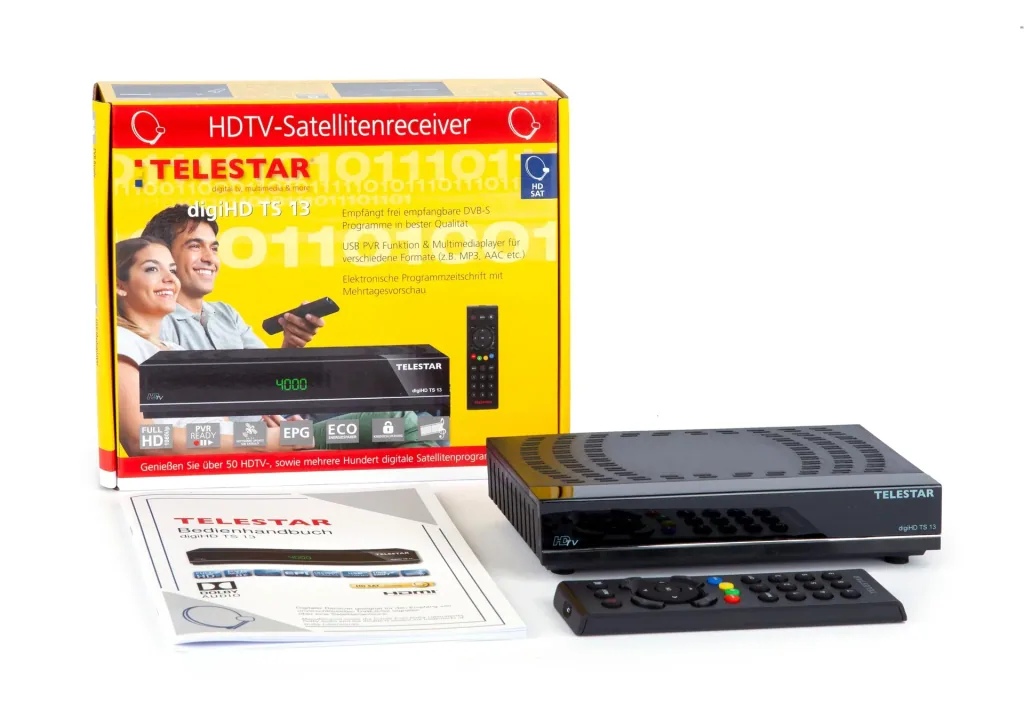

Scope of delivery

• 1 x TELESTAR HDTV satellite receiver, digiHD TS 13

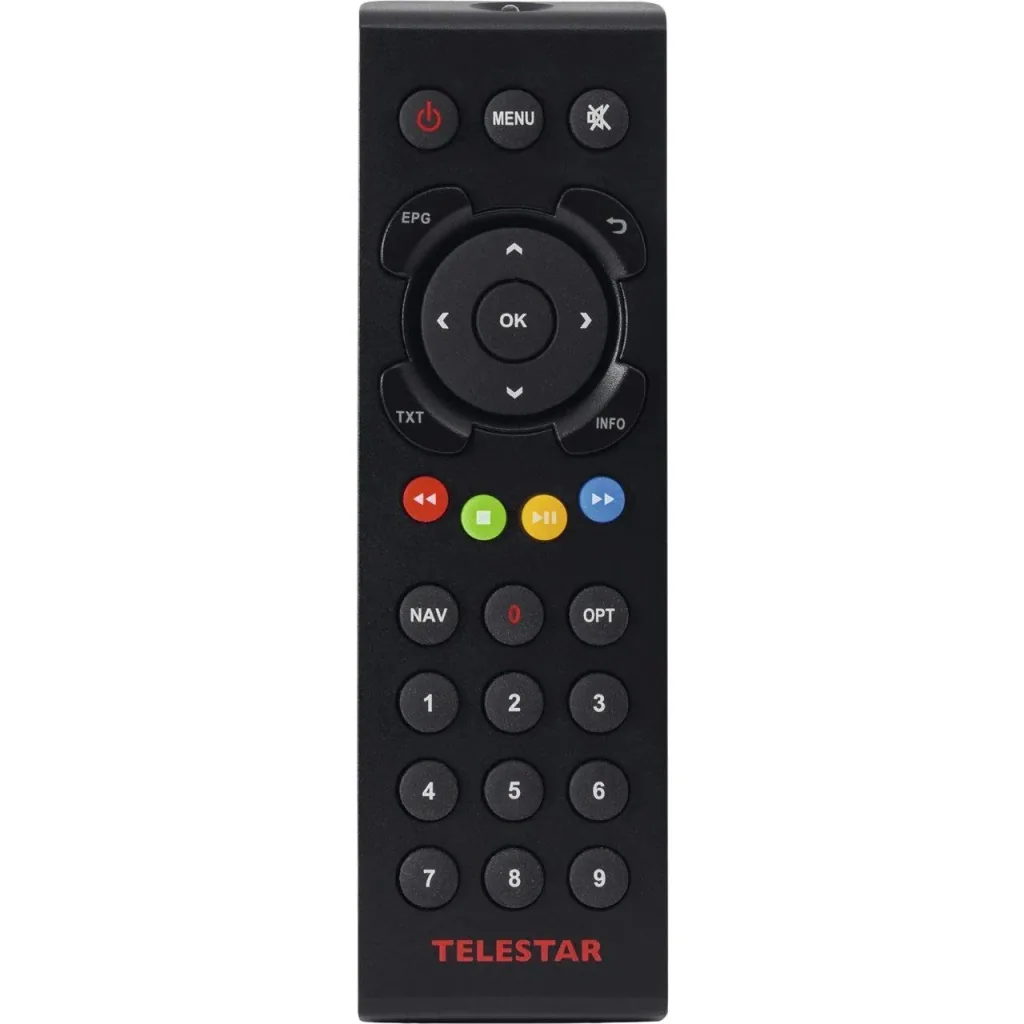

• 1 x remote control (including CR 2025 battery)
• 1 x power adapter
• 1 x user manual
