Screw-in Immersion Heater G1 1/2, V2A / V4A, Controller 0-95°C, 9.0kW Immersion Depth 650mm

Price:

394.95 €
🇩🇪  German quality since 1923
 Free shipping on orders over £ 85*
 Secure payment by invoice
Screw-in Immersion Heater G1 1/2, V2A / V4A, Controller 0-95°C, 9.0kW Immersion Depth 650mm
  2. Shop
  3. Household
  4. Fireplaces, Heaters
  5. Screw-In Heaters

Screw-in Immersion Heater G1 1/2, V2A / V4A, Controller 0-95°C, 9.0kW Immersion Depth 650mm

https://www.westfalia.uk/web/image/product.template/76410/image_1920?unique=1820d69
0 review
14 sold in the last 24 hours
Regelung : Regler 0–95 °C
Leistung : 9 kW

394.95 € 394.95 EUR 394.95 € Pay 131.65 € now with Klarna

469.99 € 773.69 €

(0.00 € / Units)
* incl. VAT,  incl. Shipping costs

2 people are viewing this right now
19.75 € Cashback with this purchase · 5 %
About this item:
  • Stainless steel 1.4404 material
  • Immersion depth 650 mm
  • Output power 9,000 W
  • Temperature range 30-80°C
  • IP66 protection class
Secure Checkout
Guaranteed Secure Checkout
Contact us
Item number WF-972839
Brand Schultze

Screw-in immersion heaters are versatile for heating liquid media. EHK G1 1/2 with V2A nipple is primarily for aggressive water and aqueous solutions.

3 tubular heating elements ø 8.5mm made of stainless steel 1.4404 hard-soldered into V2A nipple G1 1/2. 9000 W, 400 V 3(N)~, immersion depth 650 mm, surface load 10 W/cm², unheated zone 60mm. Automatic version with controller 0-95°C, stainless steel connection housing IP65.

For use in, for example, washing machines, dishwashers, tempering devices, laboratory equipment. The devices are designed exclusively for industrial and commercial purposes.

Supplied with cable gland PG16, without cable. When selecting, the permissible specific surface load for the respective medium must be observed and checked on site. Not permitted for enameled containers with protective anode.

Scope of delivery: 1 x Screw-in Immersion Heater G1 1/2, V2A / V4A, Controller 0-95°C, 9.0kW Immersion Depth 650mm

Immersion depth
Immersion depth 650 mm
Weight
Weight 2.54 kg
Output power
Output power 9,000 W
Operating voltage
Operating voltage 230/400 3(N) V
Material
Material Stainless steel 1.4404
Variants
Variants Screw-in heater
Unheated zone
Unheated zone 60 mm
IP protection class
IP protection class IP66
Built-in control
Built-in control 100 °C
Temperature range
Temperature range 30-80 °C
Surface load
Surface load 10 W/cm²
External dimensions
External dimensions Ø 8.5 mm
EU-Responsible Name: Friedrich Schultze GmbH
EU-Responsible Street: Am Birlenbach
EU-Responsible House No: 15
EU-Responsible Post Code: 57078
EU-Responsible Town: Siegen
EU-Responsible Country: Deutschland
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +49 271 89046-0

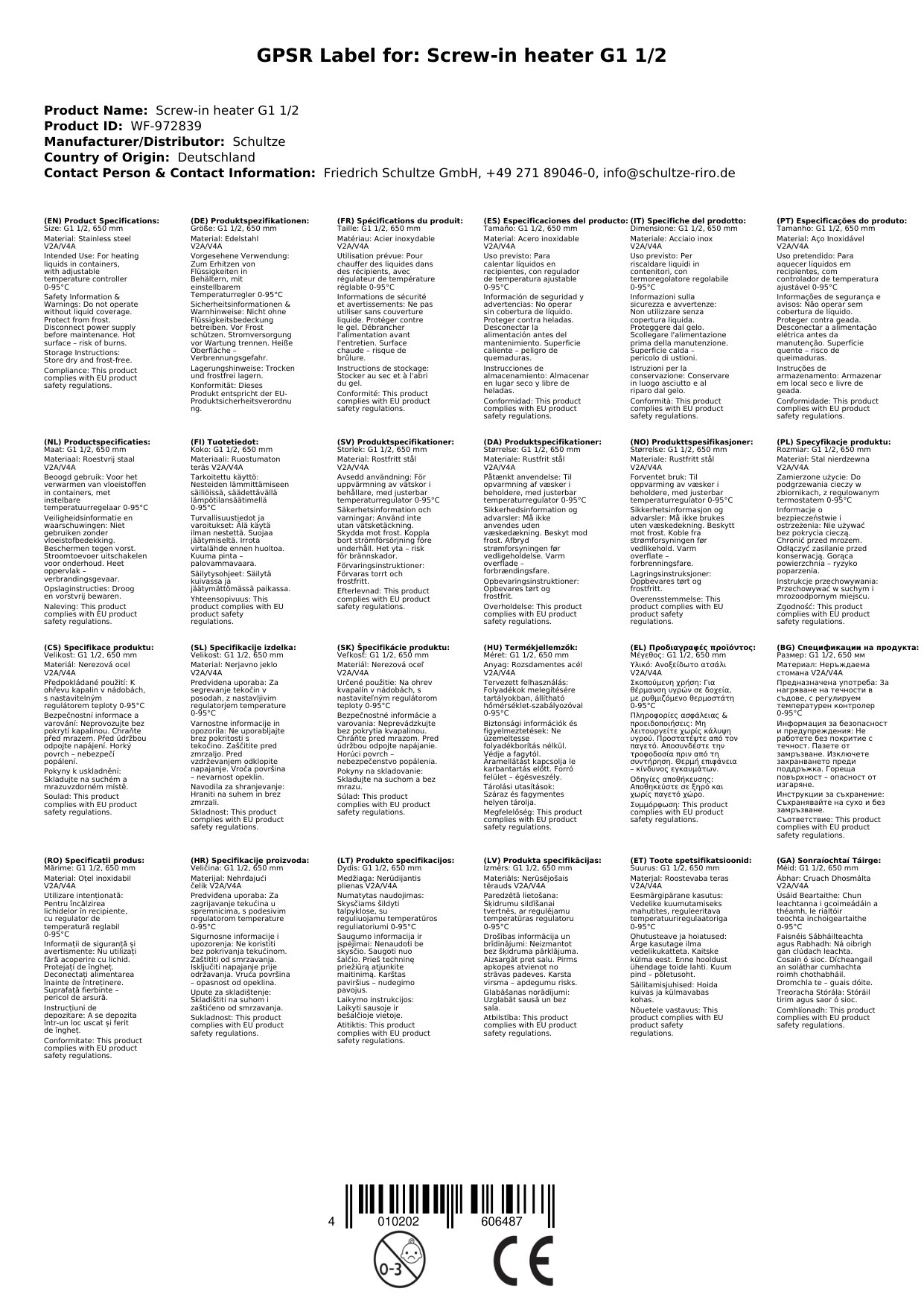

GPSR attachment: Download
