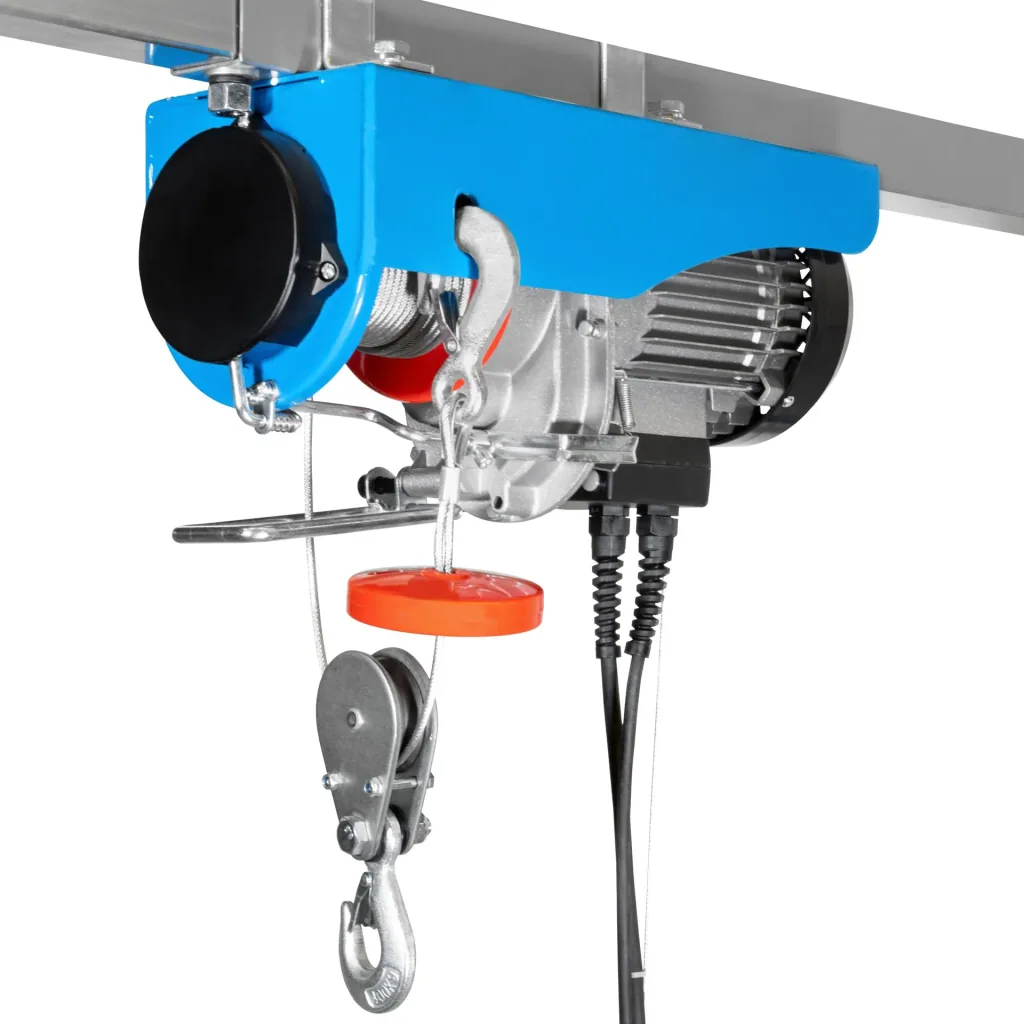

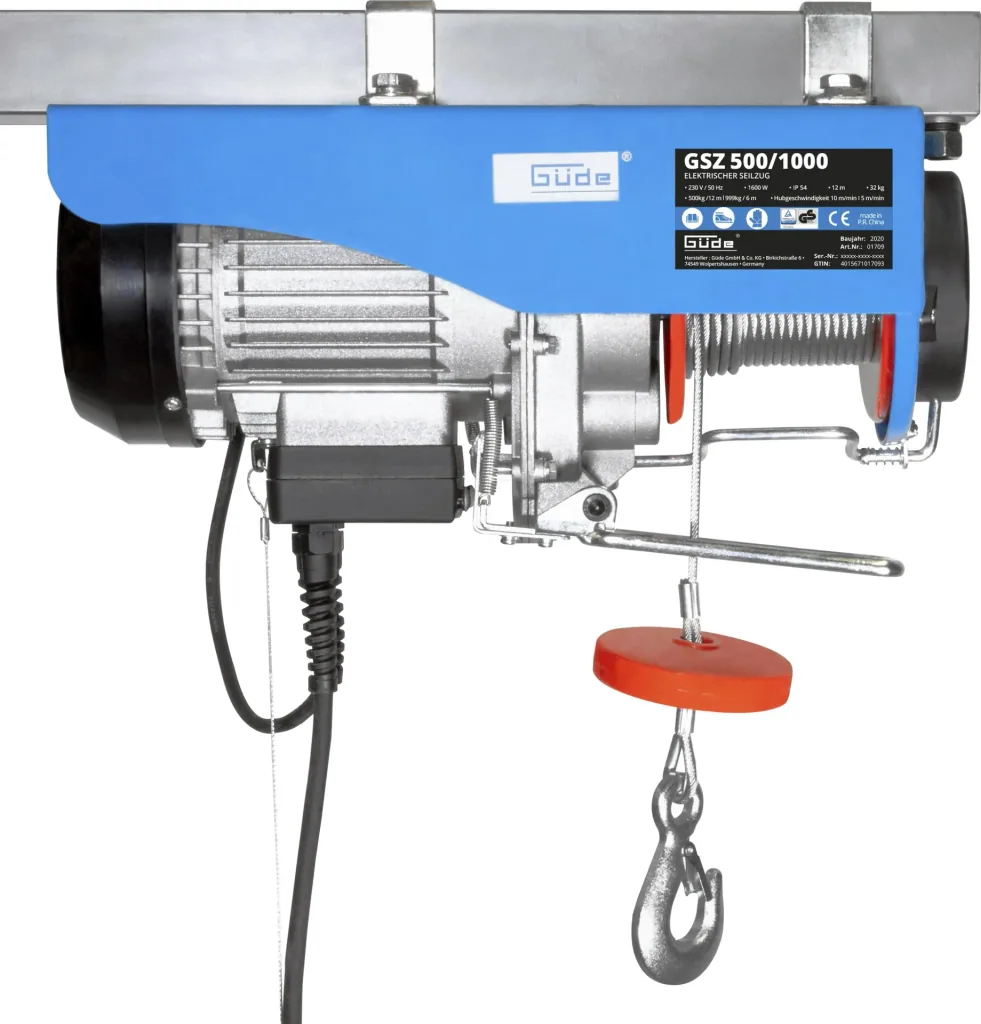

Electric wire rope hoist GSZ 500/1000
Guaranteed Secure Checkout
| Item number | WF-972958 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- For easy lifting and lowering of loads
- Motor and gear housing made of sturdy die-cast aluminum

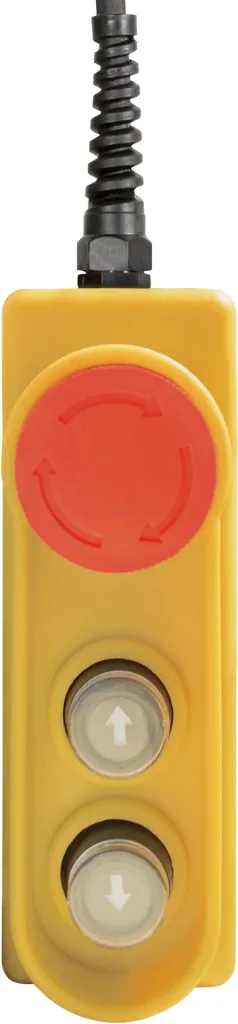

- Control element with emergency stop switch
- Even if the power supply is interrupted, the load remains securely suspended

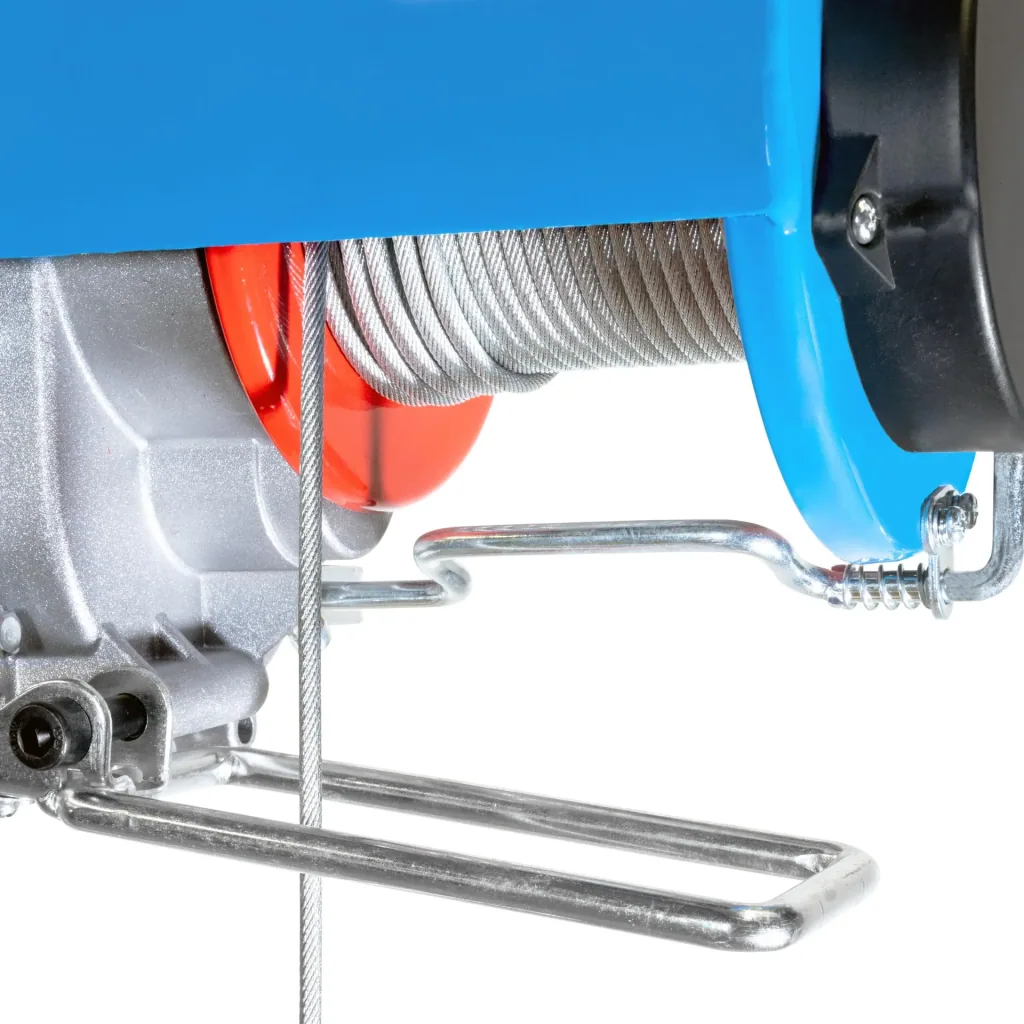

- Limit stop bar for raising and lowering
Our electric wire rope hoist is the ideal helper in the workshop, garage or storage rooms.
Technical data
- Mains voltage: 230 V
- Frequency: 50 Hz
- Motor power (P1): 1600 W
- Protection class: I
- Protection type (IP): 54
- Max. lifting capacity without pulley: 500 kg
- Max. Lifting height without pulley: 12 m
- Average lifting speed without pulley: 10 m/min
- Max. lifting capacity with pulley: 999 kg
- Max. Lifting height with pulley: 6 m
- Ø lifting speed with pulley: 5 m/min
Dimensions
- 500 x 195 x 270 mm
- Rope length: 12 m
- Rope diameter: 5.5 mm
- Operating cable length: 1.6 m
Weight
- Net weight: 32 kg
- Gross weight: 33 kg
Scope of delivery: Electric wire rope hoist GSZ 500/1000
| Weight | |
|---|---|
| Weight | 33 |
| Material | |
| Material | Plastic |
| Power output | |
| Power output | 1,600 W |
| Material | |
| Material | Metal |
| Voltage | |
| Voltage | 230 V |
| External dimensions | |
| External dimensions | 500 x 195 x 270 mm |
| Cable diameter | |
| Cable diameter | 5.5 mm |
| Drive | |
| Drive | 230 V motor |
| Cable length | |
| Cable length | 12 m |
EU-Responsible Name: GÜDE GmbH & Co. KG
EU-Responsible Street: Birkichstrasse
EU-Responsible House No: 6
EU-Responsible Post Code: 74549
EU-Responsible Town: Wolpertshausen
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +496871909137

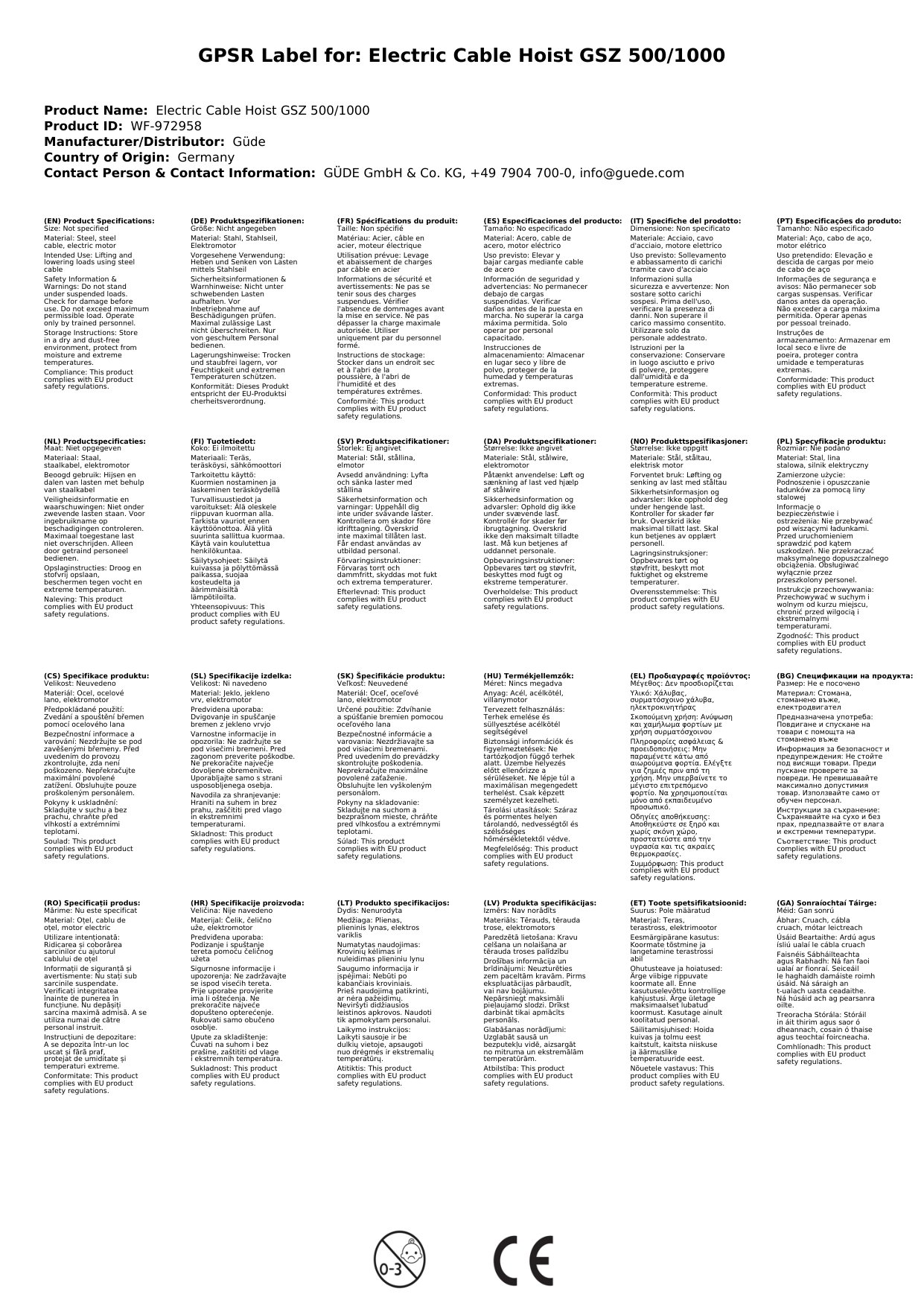

GPSR attachment:
Download
