- Sturdy cast iron construction
- Workpiece stop

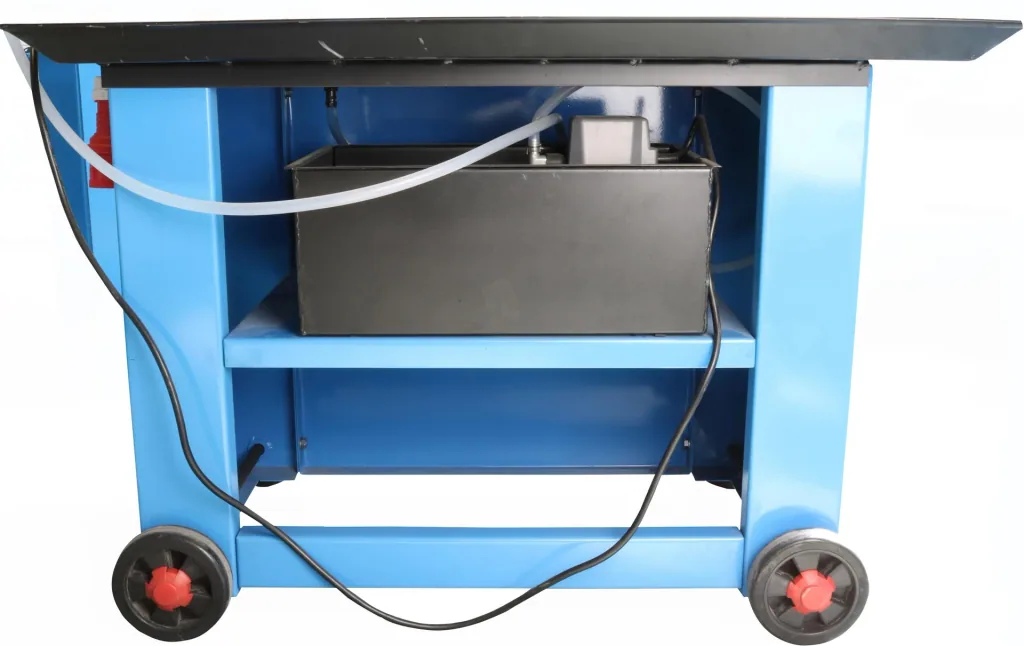

- Coolant system
- Chip brush
- Pivoting saw frame

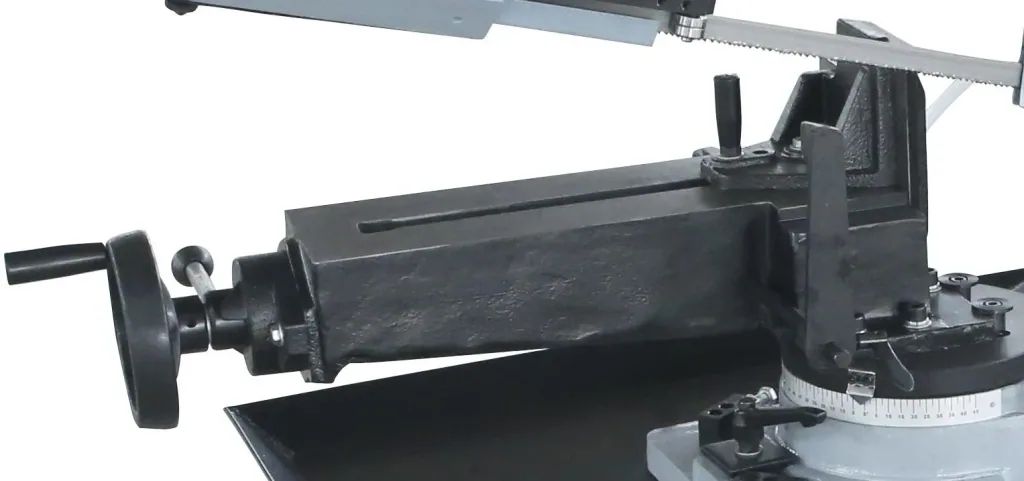

The MBS 220 metal band saw with its professional quick-action vice with eccentric clamping system and the 10-way ball-bearing saw blade guide is perfect for spark-free cutting of metal. The high-quality bi-metal saw blade and the automatic limit switch are further advantages of the MBS 220.
Technical Data
- Mains voltage: 400 V
- Frequency: 50 Hz
- Protection class (IP): 23
- Motor power (P1): 1.1 kW
- Cutting capacity round at 90°: 205 mm
- Cutting capacity round at 45°: 135 mm
- Cutting capacity rectangular at 90°: 205 x 215 mm
- Cutting capacity rectangular at 45°: 205 x 115 mm
- Width of the saw blade: 20 mm
- Length of the saw blade: 2360 mm
- Thickness of the saw blade: 0.9 mm
- Belt speed: 24 / 41 / 61 / 82 m/min
- Machine head swivel range: -45 to +45°
- Noise level LWA: 75 dB
Dimensions: 1,175 x 625 x 1,270 mm
Weight
- Net: 165.5 kg
- Gross: 198.8 kg
Scope of delivery
- 1 x MBS 220 metal band saw
- 1 x bi-metal saw blade
| Blade thickness | |
|---|---|
| Blade thickness | 0.9 mm |
| Voltage | |
| Voltage | 400 V |
| IP protection class | |
| IP protection class | IP23 |
| Saw blade length | |
| Saw blade length | 2,360 mm |
| Noise level | |
| Noise level | 75 |
| Saw blade width | |
| Saw blade width | 20 mm |
| Colors | |
| Colors | black |
| Colors | gray |
| Colors | blue |
| Power output | |
| Power output | 1.1 kW |
| Swivel range | |
| Swivel range | -45 to +45 degrees |
| Cutting material | |
| Cutting material | metal |
| External dimensions | |
| External dimensions | 1,175 x 625 x 1,270 |
| Weight | |
| Weight | 165.5 kg |
