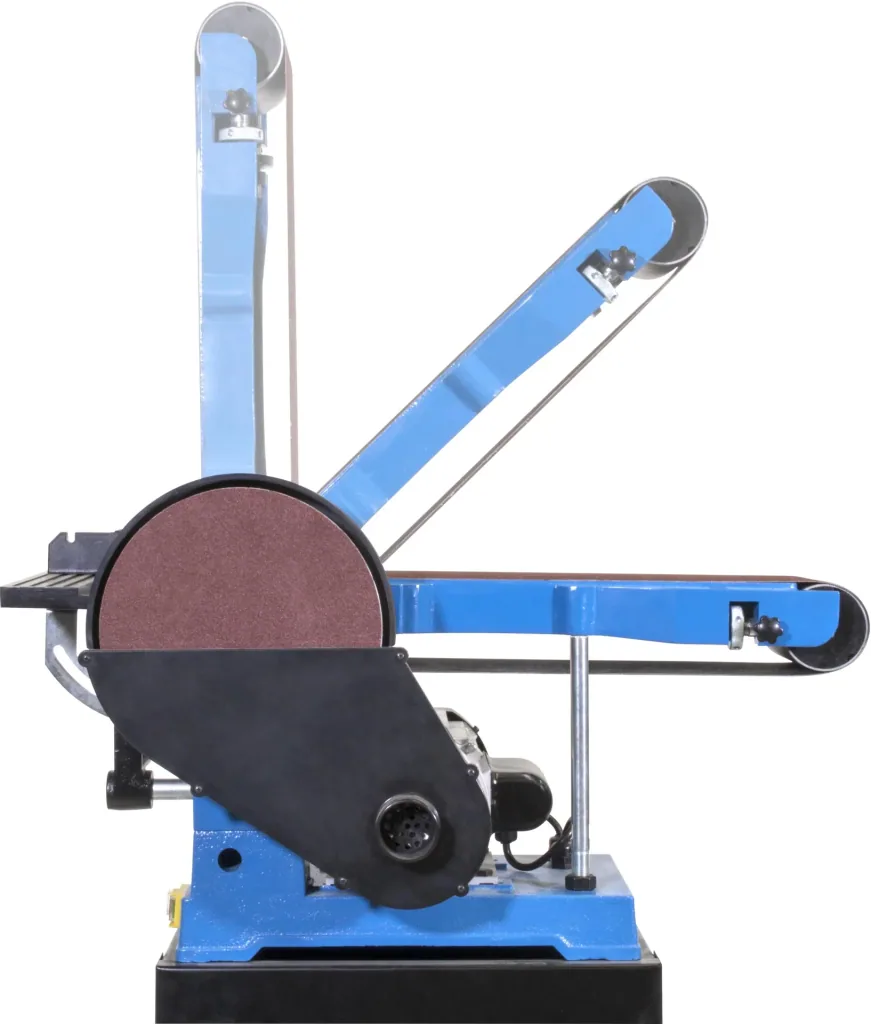

Belt and Disc Sander GBTS 1100
Guaranteed Secure Checkout
| Item number | WF-972979 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews

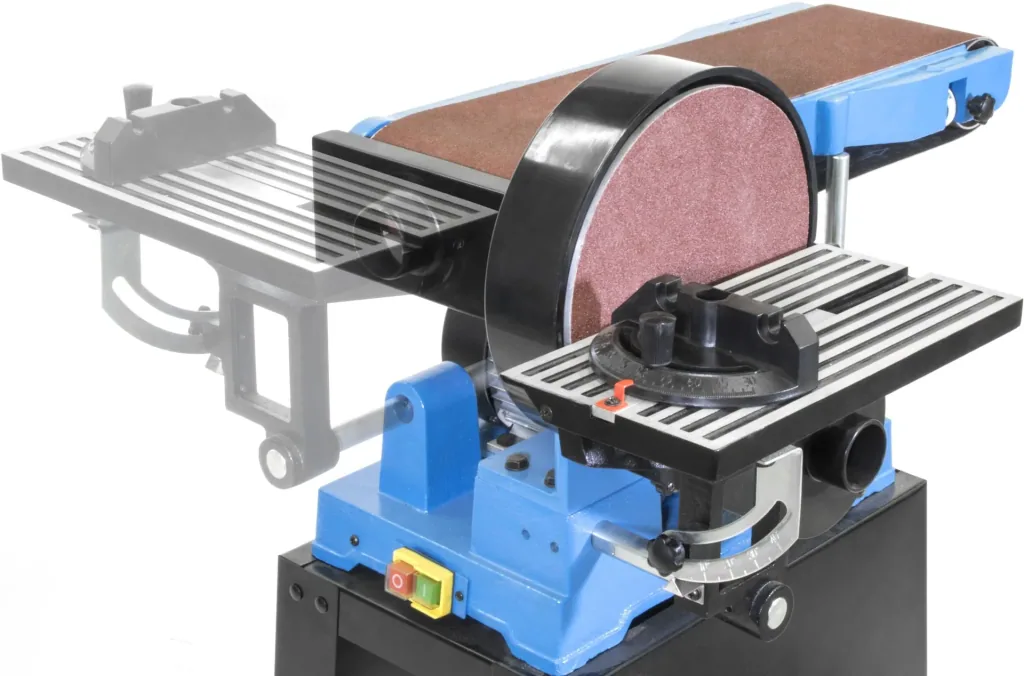

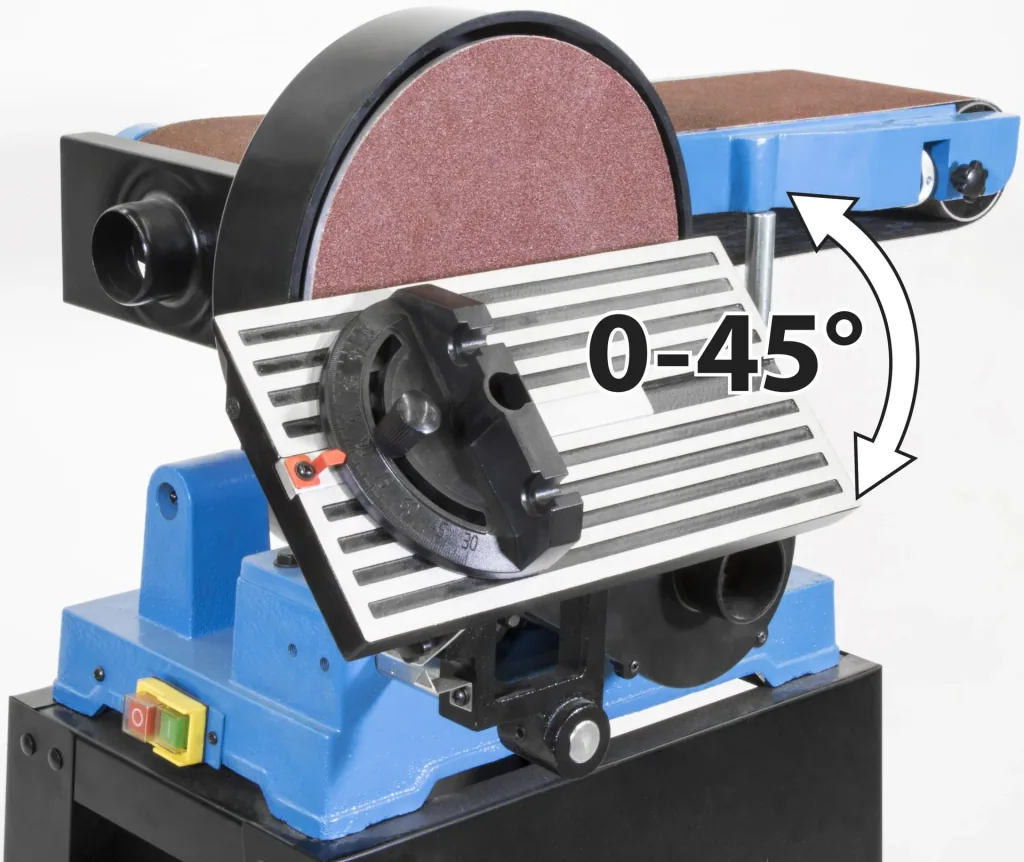

- Pivoting support table
- Sanding belt variably adjustable
- Cross stop

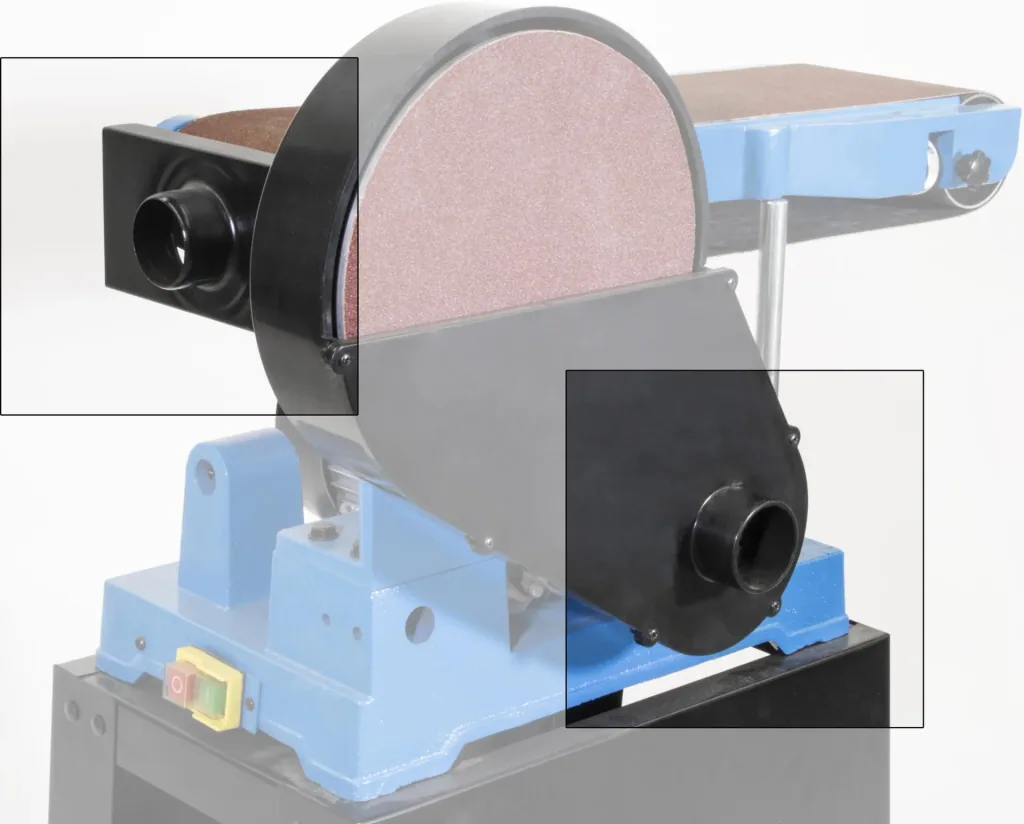

- Extraction nozzle for external extraction unit
- Stable and robust construction
Technical data
- Mains voltage: 230 V
- Frequency: 50 Hz
- Motor power (P1): 1100 W
- Belt speed: 5.8 m/s
- Grit of sanding belt: 80 K
- Diameter of hook and loop sanding disc: 230 mm
- Grit of hook and loop sanding disc: 120 K
Dimensions
- Dimensions of the sanding belt: 1220 x 150 mm
- Working surface LxW: 375x150 mm
- Length of the connection cable: 200 cm
- 720 x 525 x 1,383 mm
Material: Metal/Plastic
Weight
- Net: 39.63 kg
- Gross: 41.54 kg
Scope of delivery
- 1 x Belt & Disc Sander GBTS 1100
- 1 x Stable base frame
- 1 x Sanding belt K80 SB 150 x 1220 mm
- 1 x 38357 Velcro sanding disc 230 K80
| Drive | |
|---|---|
| Drive | 230V motor |
| Power output | |
| Power output | 1,100 W |
| Colors | |
| Colors | black |
| Colors | blue |
| Idle speed | |
| Idle speed | 1,500 rpm |
| Noise level | |
| Noise level | 75.6 |
| Weight | |
| Weight | 39.63 kg |
| Belt speed | |
| Belt speed | 5.8 m/s |
| Sanding belt width | |
| Sanding belt width | 152 mm |
| Disc/blade diameter | |
| Disc/blade diameter | 230 mm |
| External dimensions | |
| External dimensions | 720 x 525 x 1,383 mm |
| Belt length | |
| Belt length | 1,220 mm |
| Voltage | |
| Voltage | 230 V |
| Cable length | |
| Cable length | 2 m |
| IP protection class | |
| IP protection class | IPX0 |
| Sanding belt length | |
| Sanding belt length | 1,220 mm |
EU-Responsible Name: GÜDE GmbH & Co. KG
EU-Responsible Street: Birkichstrasse
EU-Responsible House No: 6
EU-Responsible Post Code: 74549
EU-Responsible Town: Wolpertshausen
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +496871909137

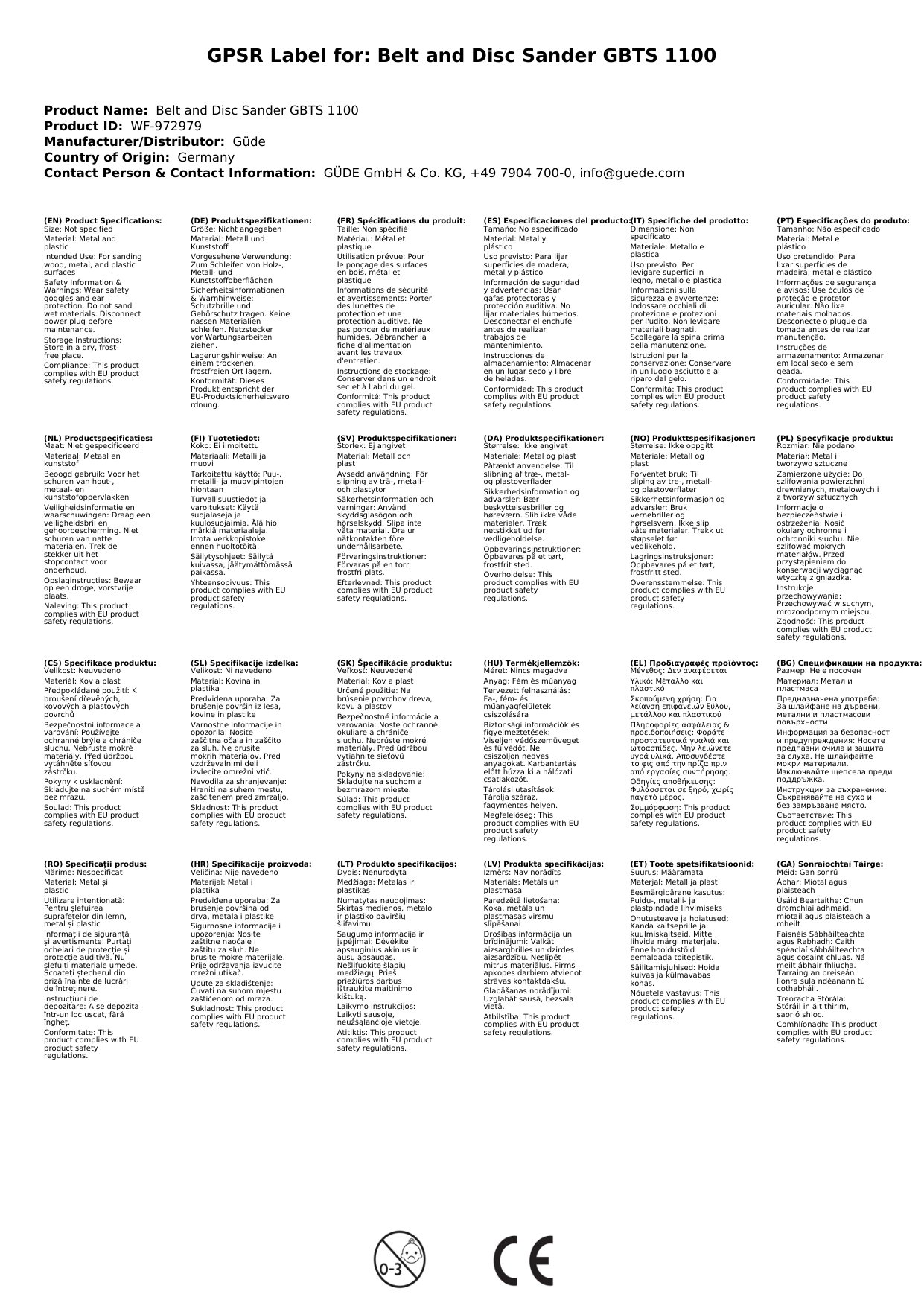

GPSR attachment:
Download
