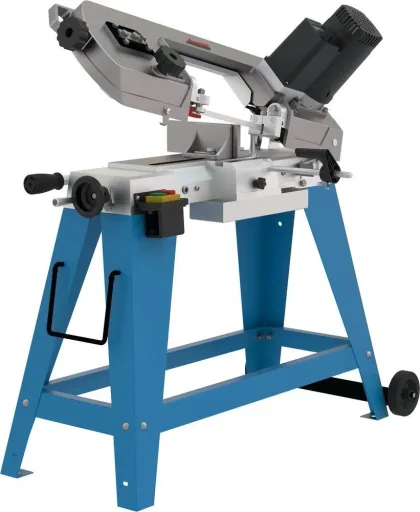

Metal band saw Digital MBSD 116
Guaranteed Secure Checkout
| Item number | WF-972994 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Vertical or horizontal band saw

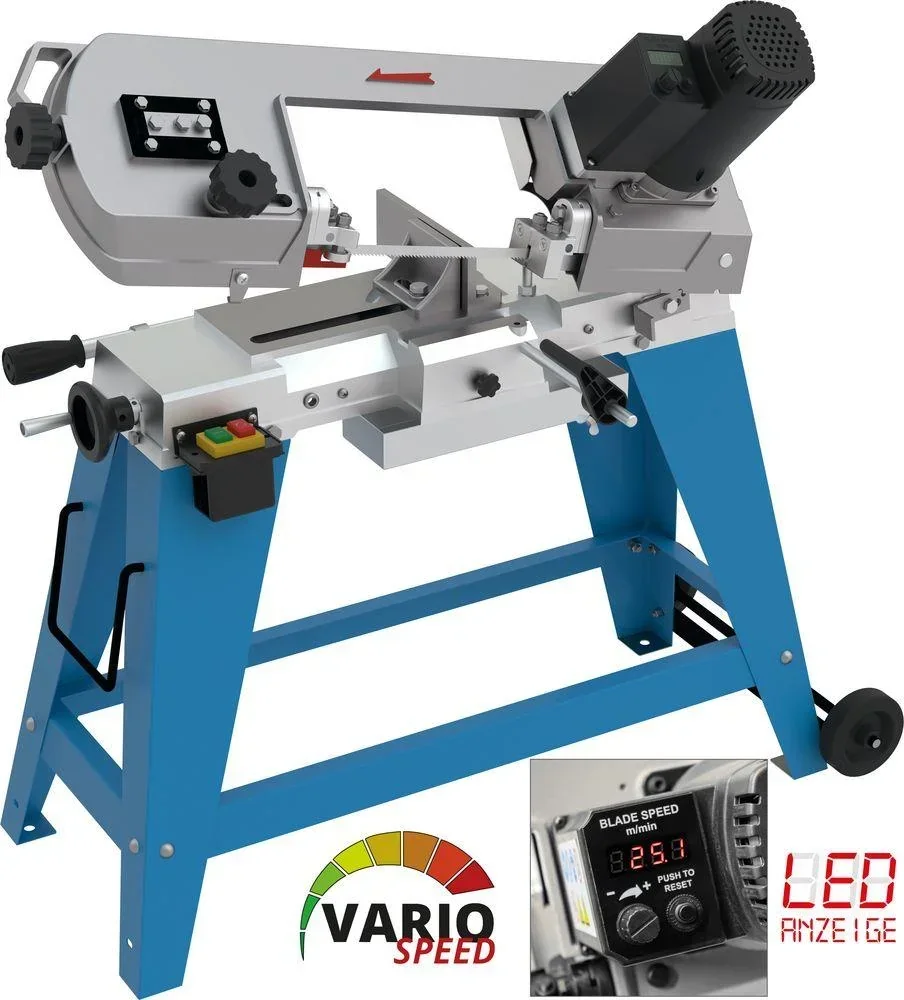

- Continuously, digitally adjustable cutting or band speed for various workpiece materials
- Sturdy construction
- Handle and practical transport wheels ensure maximum mobility
- Including mounted saw blade MBS115
This metal band saw impresses with its flexibility and precision. Angle cuts are no problem thanks to the swivel function. Furthermore, the band saw can be fixed in a vertical position, making vertical and horizontal cuts possible. A digital display allows the cutting speed to be precisely and continuously adjusted, thus optimizing the cutting quality. The saw can be easily moved on its casters by gently lifting it using the handlebar, yet remains stable at the selected location.
Technical Specifications
- Mains voltage: 230 V
- Frequency: 50 Hz
- Motor power (P1): 550 W
- Cutting capacity (round at 90°): 115 mm
- Cutting capacity (round at 45°): 70 mm
- Cutting capacity (rectangular at 90°): 100 x 140 mm
- Cutting capacity (rectangular at 45°): 70 x 90 mm
- Machine head swivel range: 90 - 45 °
Dimensions
- 980 x 450 x 900 mm
- Saw blade: 12.7 x 1642 x 0.65 mm
Weight
- Net: 44.6 kg
- Gross: 48 kg
Scope of delivery
- 1 x Digital metal band saw MBSD 116
- 1 x Saw blade MBS115
- 1 x Operating instructions
| Saw blade length | |
|---|---|
| Saw blade length | 1,642 mm |
| Voltage | |
| Voltage | 230 V |
| IP protection class | |
| IP protection class | IP20 |
| Noise level | |
| Noise level | 77 |
| Pivoting range | |
| Pivoting range | 45 degrees |
| Cutting material | |
| Cutting material | metal |
| Cutting material | plastic |
| External dimensions | |
| External dimensions | 980 x 450 x 900 |
| Drive | |
| Drive | 230 V motor |
| Saw blade width | |
| Saw blade width | 12.7 mm |
| Weight | |
| Weight | 44.6 kg |
| Power output | |
| Power output | 550 W |
| Colors | |
| Colors | blue |
| Colors | silver |
| Colors | black |
