- AVR (Automatic Voltage Regulation for Stable Performance)
- Low oil protection and carrying handle

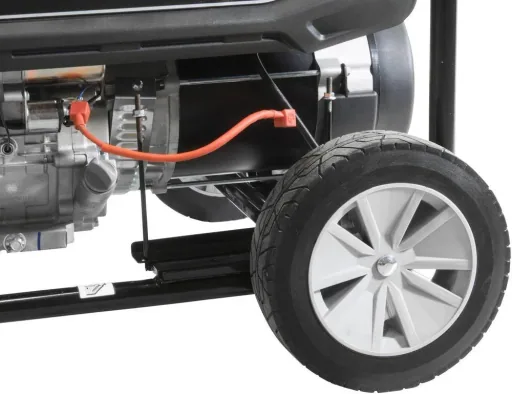

- Reversing starter and chassis
- Voltmeter and overload protection
- Electric starter via ignition key

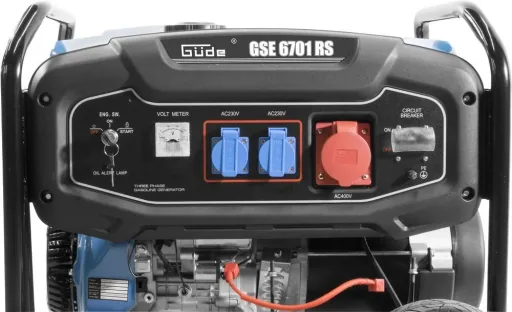

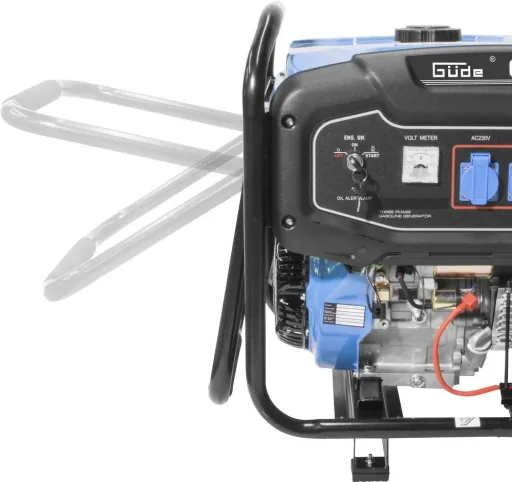

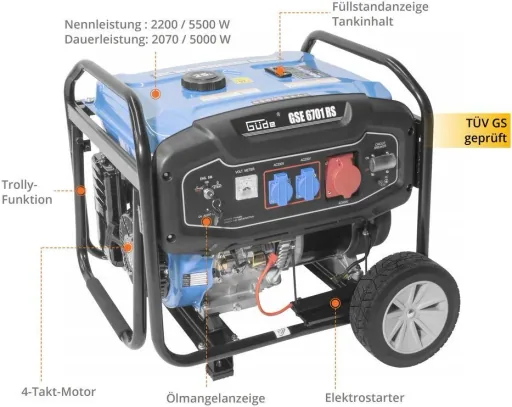

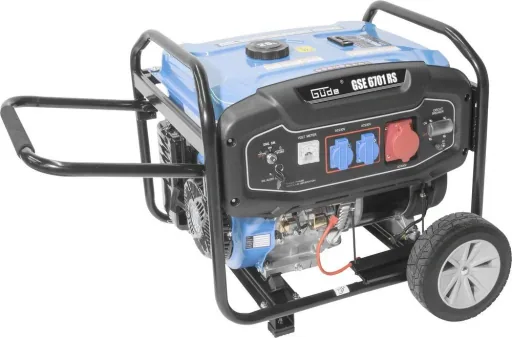

The GSE 6701 RS generator places particular emphasis on safety and functionality with its overload protection, low oil protection and electric starter via ignition key.
Please note that no electronically sensitive devices (e.g. laptops, cell phones, stereo systems) may be operated with this generator.
Battery for electric start not included.
Technical Data
- Output voltage: 230 | 400 V
- Output current: 9 | 9 A
- Frequency: 50 Hz
- Rated power: 2200 | 5500 W
- Continuous power: 2070 | 5000 W
- Engine type: 4-stroke OHV, air-cooled
- Engine power: 9.0 / 12.2 (kW / HP)
- Displacement: 420 cm³
- Rated speed: 3000 rpm
- Fuel: Petrol
- Tank capacity: 25 l
- Fuel consumption of the drive: 3.57 l/h
- Running time: 7 h
- Engine oil type: 15W40 | 10W30
- Engine oil: 1.1 l
- Protection class (IP): 23M
- Noise level LWA: 97 dB
Dimensions: 1020 x 690 x 650 mm
Weight
- Net: 86 kg
- Gross: 92 kg
Scope of delivery
- 1 x GSE 6701 RS generator
- 1 x Operating instructions
| Number of 230V sockets | |
|---|---|
| Number of 230V sockets | 2 |
| Noise level | |
| Noise level | 97 |
| Engine power hp | |
| Engine power hp | 12.2 hp |
| Fuel tank capacity | |
| Fuel tank capacity | 25 l |
| Displacement cc | |
| Displacement cc | 420 cc |
| Technical features | |
| Technical features | Recoil starter |
| Technical features | Voltmeter |
| Technical features | Electric starter |
| Technical features | Low oil level switch |
| Technical features | AVR |
| Technical features | Overload protection |
| Continuous power at 400 V | |
| Continuous power at 400 V | 5,000 W |
| Engine power kW | |
| Engine power kW | 9 kW |
| Weight | |
| Weight | 86 kg |
| Running time | |
| Running time | 7 hours |
| Continuous power at 230 V | |
| Continuous power at 230 V | 2,000 W |
| External dimensions | |
| External dimensions | 1,020 x 690 x 650 mm |
