- Outstanding propulsion and compaction performance
- Torsion-free and wear-free base plate
- The vibrating plate is reversible and features forward and reverse motion
- Low-oil protection and a sturdy steel frame for easy transport
- Foldable handle with vibration dampening

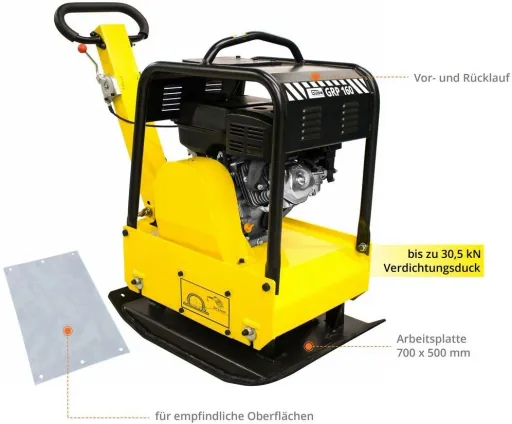

The "GRP 160" vibrating plate is ideal for repair work in gardening and landscaping. It boasts outstanding propulsion and compaction performance. Thanks to its robust wheels, the vibrating plate is easy to transport. The sturdy steel frame ensures easy transport. A polyurethane mat for sensitive surfaces is also included.
Technical Specifications
- Engine type: 4-stroke
- Engine power: 6.5 / 9 (kW / HP)
- Displacement: 270 cm³
- Idle speed: 1450 rpm
- Engine speed: Max. 3600 rpm
- Fuel: Unleaded gasoline
- Engine oil: 0.95 liters
- Engine oil type: 10W-40
- Eccentric oil type: 15W-40
- Eccentric oil: 0.4 liters
- Starting system: Recoil start
- Vibration shocks: 4500 rpm
- Running speed: 22 m/min
- Max. compaction pressure: 30.5 kN
- Compaction depth: 60 cm
- Noise level LWA: 105 dB(A)
Dimensions: approx. 1030 x 500 x 1060 mm
Working plate: approx. 700 x 500 mm
Weight: approx. 180.24 kg
Scope of delivery
- 1 x vibratory plate "GRP 160"
- 1 x polyurethane mat
- 1 x chassis
- 1 x operating instructions
| Noise level | |
|---|---|
| Noise level | 105 |
| Vibration shock | |
| Vibration shock | 4,500 m |
| Engine power | |
| Engine power | 9 hp |
| Running speed | |
| Running speed | 22 m/min |
| Weight | |
| Weight | 180.24 kg |
| External dimensions | |
| External dimensions | 1,030 x 500 x 1,060 mm |
| Compression pressure | |
| Compression pressure | 30.5 |
| Technical features | |
| Technical features | Recoil starter |
| Displacement | |
| Displacement | 270 cc |
| Drive | |
| Drive | 4-stroke |
| Compression depth | |
| Compression depth | 60 cm |
| Tank capacity | |
| Tank capacity | 6 l |
