- Low weight and compact design for ease of use
- Sturdy steel frame for easy transport
- Outstanding propulsion and compaction performance
- Automatic advance and low-oil protection
- Torsion-free and wear-free base plate

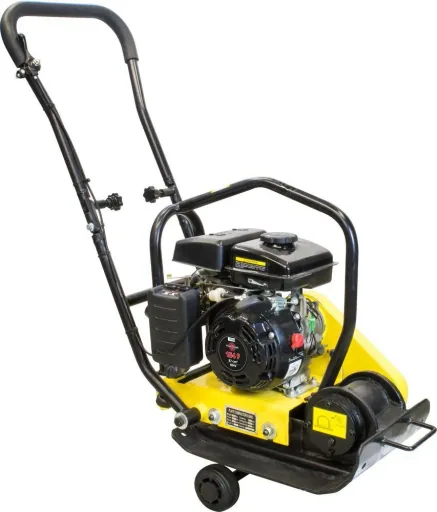

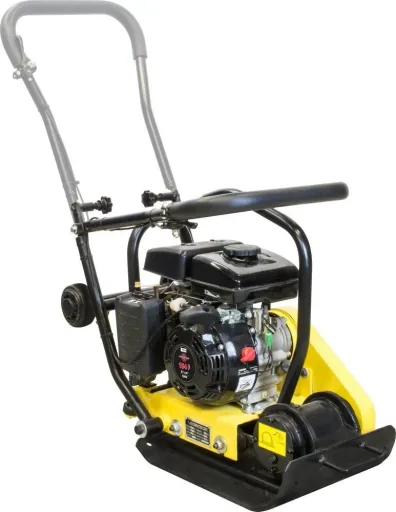

The "GRP 50" vibratory plate compactor is ideal for vibrating and compacting smaller areas. The integrated handle is foldable and dampened against vibrations. The scope of delivery includes a polyurethane mat for sensitive surfaces and a chassis.
Technical data
- Engine type: 4-stroke
- Engine power: 1.5 / 2.0 (kW / HP)
- Displacement: 79 cm³
- Idle speed: 1800 rpm
- Engine speed: Max. 3800 rpm
- Fuel: Unleaded petrol
- Engine oil: 0.4 l
- Engine oil type: 10 W-40
- Eccentric oil type: 15 W-40
- Starting system: Reverse start
- Vibration shocks: 5210 rpm
- Running speed: 6.5 m/min
- Max. Compaction pressure: 8.5 kN
- Compaction depth: 20 cm
- Noise level LWA: 105 dB
Dimensions: approx. 910 x 390 x 900 mm
Working surface: approx. 430 x 300 mm
Color: yellow, black
Weight: 53.42 kg
Scope of delivery
- 1 x vibratory plate "GRP 50"
- 1 x chassis
- 1 x operating instructions
| Compression pressure | |
|---|---|
| Compression pressure | 8.5 |
| External dimensions | |
| External dimensions | 910 x 390 x 900 mm |
| Weight | |
| Weight | 53.42 kg |
| Displacement cc | |
| Displacement cc | 79 cc |
| Drive | |
| Drive | 4-stroke |
| Tank capacity | |
| Tank capacity | 1.6 l |
| Compaction depth | |
| Compaction depth | 20 cm |
| Technical features | |
| Technical features | Recoil starter |
| Running speed | |
| Running speed | 6.5 m/min |
| Material | |
| Material | Steel |
| Noise level | |
| Noise level | 105 |
| Vibration shocks | |
| Vibration shocks | 5,210 m |
| Engine power hp | |
| Engine power hp | 2 hp |
