- Low weight and compact design for ease of use
- Sturdy steel frame for easy transport
- Outstanding propulsion and compaction performance
- Automatic advance and low-oil protection
- Torsion-free and wear-free base plate

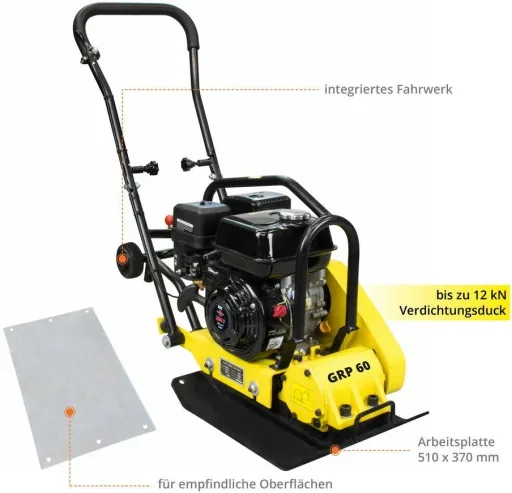

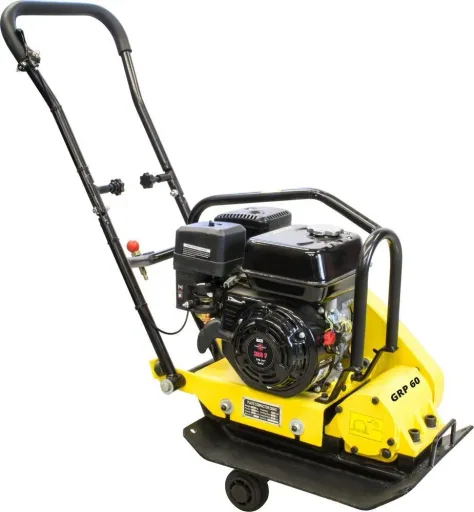

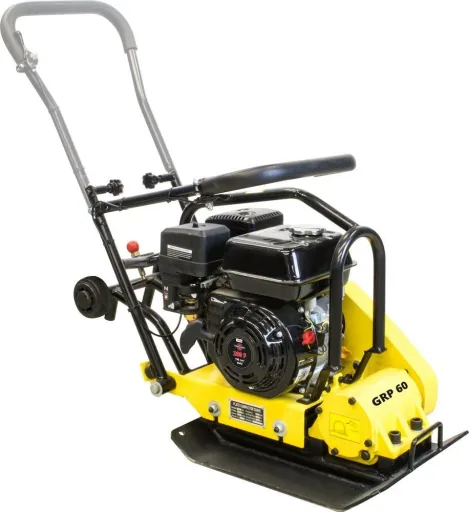

The Güde "GRP 60" vibratory plate compactor is suitable for gardening and landscaping work, for plastering and repair work. With this vibratory plate compactor, you can optimally compact and vibrate small areas. The low weight and compact design make the vibratory plate compactor very easy to use. The sturdy steel frame makes transporting it to and from the site very easy. The sturdy wheels ensure easy transport.
Technical Specifications
- Engine type: 4-stroke
- Engine power: 4.1 / 5.5 (kW / HP)
- Displacement: 196 cm³
- Idle speed: 1450 rpm
- Engine speed: max. 3600 rpm
- Fuel: Unleaded gasoline
- Engine oil: 0.6 l
- Engine oil type: 10 W-40
- Eccentric oil type: 15 W-40
- Eccentric oil: 0.18 l
- Starting system: Recoil start
- Vibration shocks: 4900 rpm
- Running speed: 20 m/min
- Max. compaction pressure: 12 kN
- Compaction depth: 28 cm
- Noise level LWA: 105 dB
Dimensions: approx. 1,060 x 380 x 920 mm
Working plate: approx. 510 x 370 mm
Color: Yellow, Black
Weight: 68.26 kg
Scope of delivery
- 1 x "GRP 60" vibrating plate
- 1 x Polyurethane mat for sensitive surfaces
- 1 x Chassis
- 1 x Operating instructions
| Vibration shock | |
|---|---|
| Vibration shock | 4,900 m |
| Engine power | |
| Engine power | 5.5 hp |
| Noise level | |
| Noise level | 105 |
| Technical features | |
| Technical features | Recoil starter |
| Displacement | |
| Displacement | 196 cc |
| Drive | |
| Drive | 4-stroke |
| Compaction depth | |
| Compaction depth | 28 cm |
| Tank capacity | |
| Tank capacity | 3.6 l |
| Compaction pressure | |
| Compaction pressure | 12 |
| External dimensions | |
| External dimensions | 1060 x 380 x 920 mm |
| Weight | |
| Weight | 68.26 kg |
| Running speed | |
| Running speed | 20 m/min |
