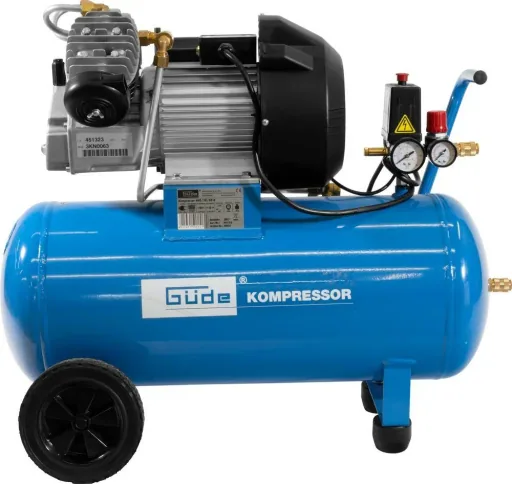

Compressor set "400/10/50 DG", 15 pieces

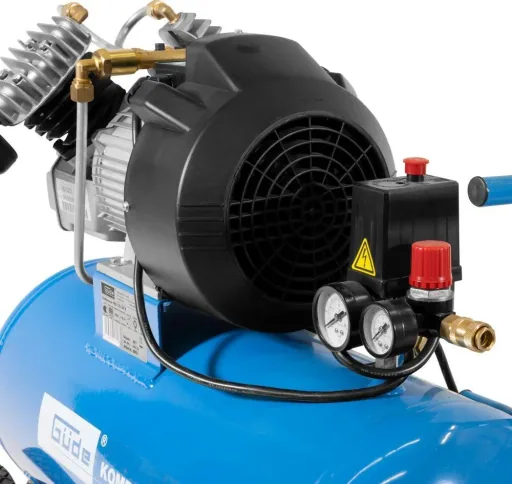

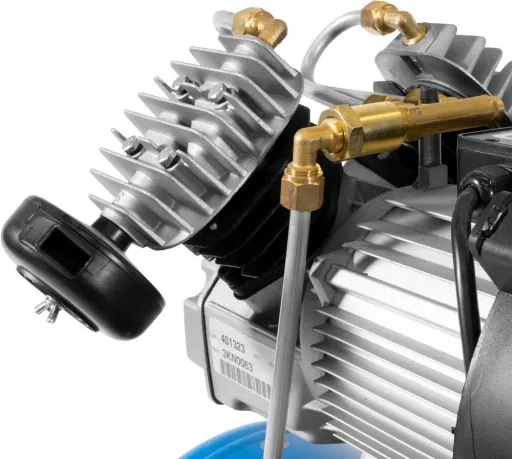

• Oil-lubricated 2-cylinder V-unit
• Direct drive and pressure switch

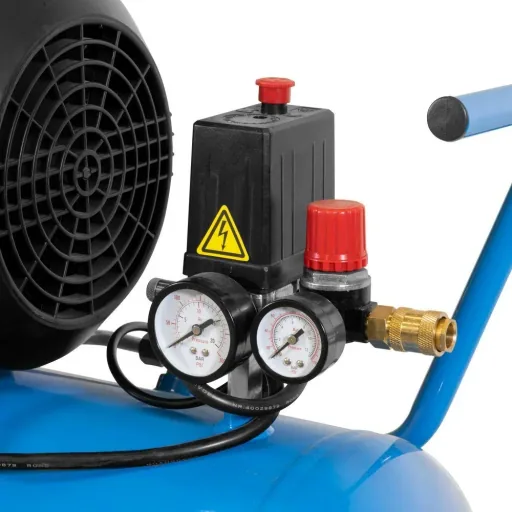

• Vessel pressure and working pressure gauges
• Pressure reducer and 2 compressed air couplings
• Safety valve and condensate drain valve

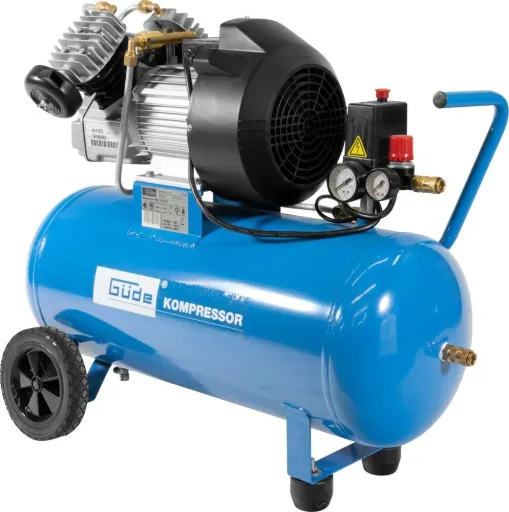

The Güde 400/10/50 DG compressor is a compressor with an oil-lubricated 2-cylinder V-unit and a powerful working pressure of max. 10 bar.

The two pressure gauges and the safety valve ensure regulated working and vessel pressure as well as optimal operational reliability.

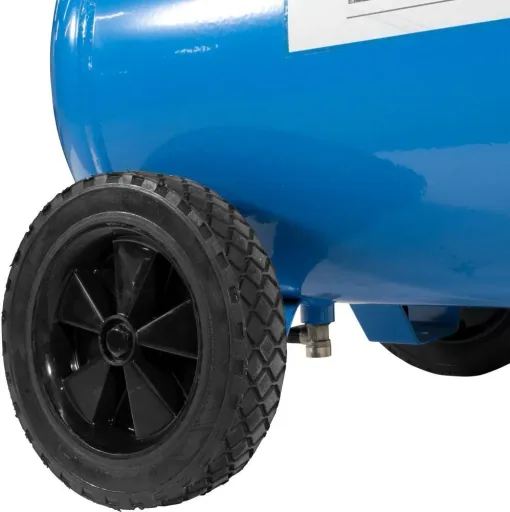

Large wheels and a carrying handle ensure that the compressor remains portable despite its considerable weight.

The suction capacity is approximately 395 liters per minute.

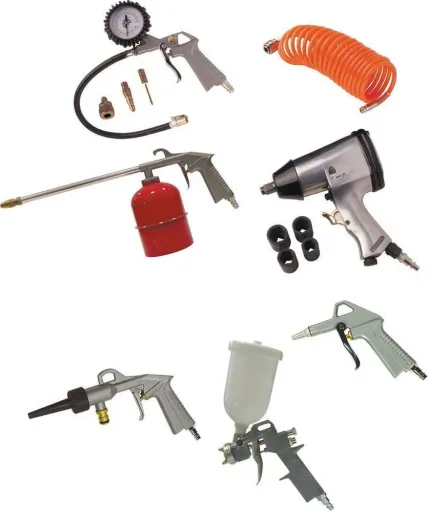

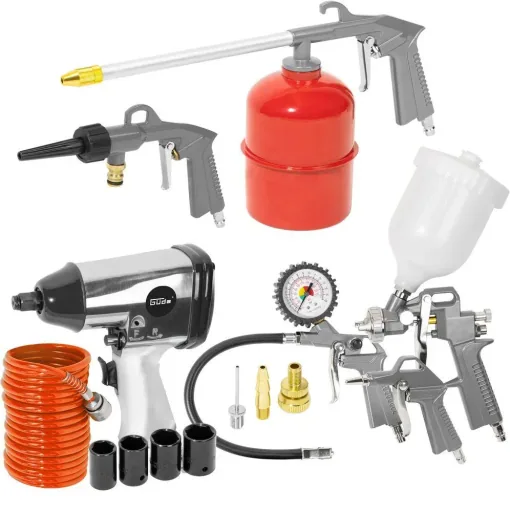

A 14-piece accessory set, consisting of a 5 m spiral hose, a blow-out hose, a paint spray hose, A water and oil spray gun, a tire inflator, a 3-way adapter set for inflating air mattresses, balls, etc., and a 5-piece impact wrench set are already included in delivery.

Technical specifications:

• Mains voltage: 230 volts
• Frequency: 50 Hertz
• Motor power (P1): 2.2 kW
• Operating mode: S3 50%
• Protection class (IP): 20
• Aggregate: Oil lubrication
• Motor speed: 2800 rpm
• Suction capacity: 395 l/min
• Eff. delivery rate 0 bar: 303 l/min
• Eff. delivery rate 4 bar: 218 l/min
• Eff. Delivery quantity 7 bar: 176 l/min
• Max. Pressure: 10 bar
• Tank capacity: 50 liters
• Number of cylinders: 2
• Number of compressed air couplings: 2
• Pressure gauges: 2
• Noise level LWA: 97 dB

Dimensions: approx. 780 x 400 x 670 mm

• Hose length: 5000 mm

Weight: 37.3 kg

Scope of delivery

• 1 x Compressor
• 1 x Blow-out, paint spray, water, and oil spray gun
• 1 x Tire inflator
• 1 x Spiral hose, 5 meters
• 1 x Adapter set 3-piece set
• 1 x ½" impact wrench set, 5-piece set
• 1 x instruction manual
