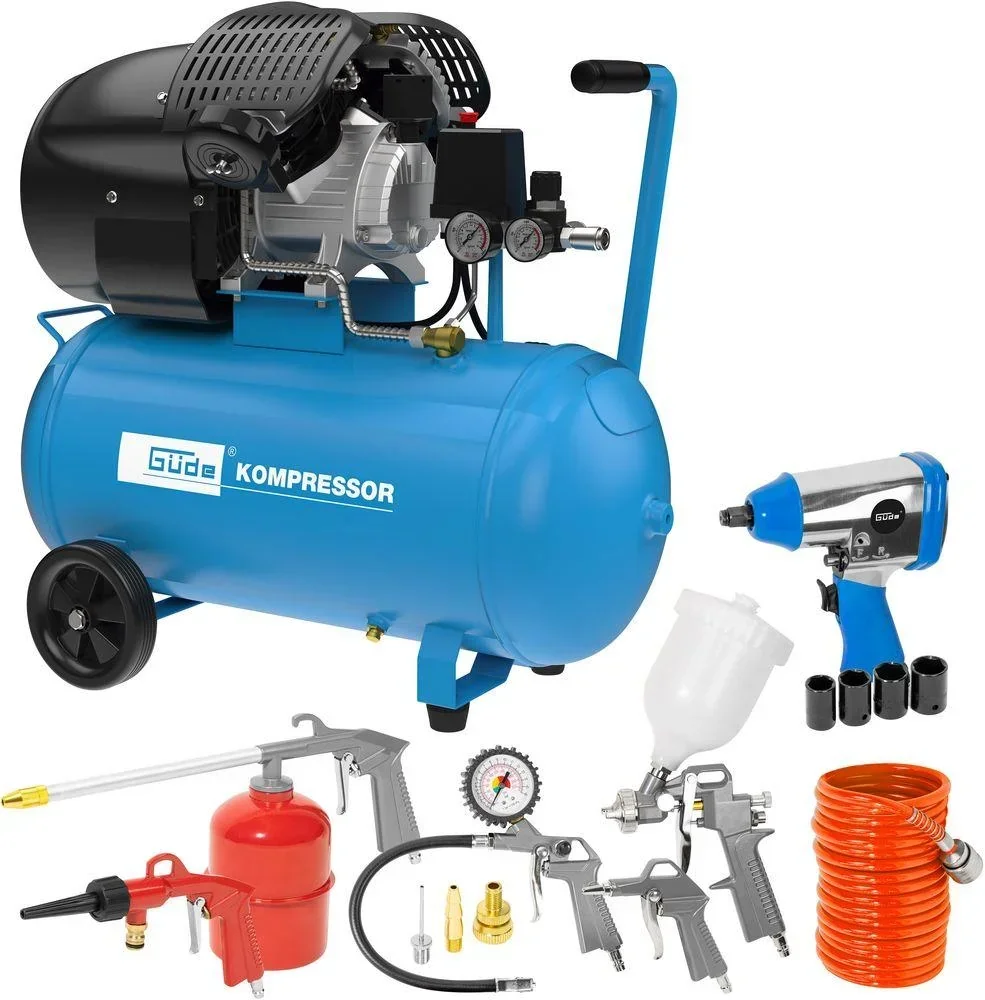

Compressor set 405/10/50, 15 pieces
Guaranteed Secure Checkout
| Item number | WF-973045 |
| Brand | Güde |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews

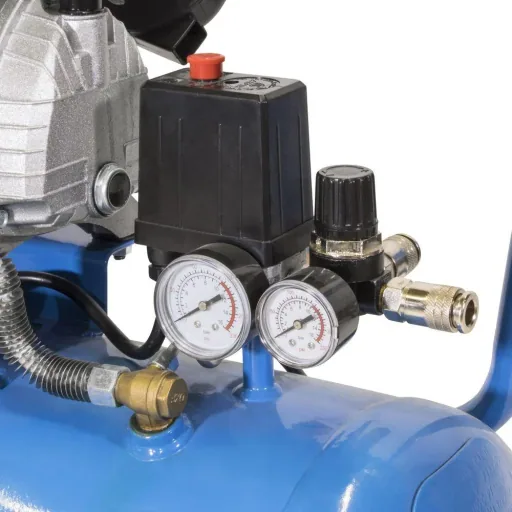

- Pressure switch
- Pressure reducer - easy adjustment of the working pressure
- Vessel pressure and working pressure gauges
- 2 compressed air couplings
- Safety valve and condensate drain plug
- Practical carrying handle
- Integrated air filter
- Sturdy plastic wheels
- Check valve
- Double base with rubber buffer
- Including extensive accessory set
The Güde "405/10/50" compressor is a compressor with an oil-lubricated 2-cylinder V-unit and a powerful working pressure of max. 10 bar. The two pressure gauges and the safety valve ensure regulated working and vessel pressure as well as optimal operational reliability. Large wheels ensure that the compressor remains portable despite its considerable weight. The suction capacity is approx. 320 l per minute.
Technical data
- Mains voltage: 230 Volt
- Frequency: 50 Hertz
- Motor power (P1): 2.2 kW
- Operating mode: S3 50%
- Protection class: I
- Aggregate: Oil lubrication
- Motor speed: 2850 1/min
- Suction capacity: 320 l/min
- Eff. delivery volume 0 bar: 250 l/min
- Eff. delivery volume 4 bar: 210 l/min
- Eff. delivery volume 7 bar: 170 l/min
- Max. Pressure: 10 bar
- Number of cylinders: 2
- Number of compressed air couplings: 2
- Pressure gauge: 2
- Noise level LWA: 95 dB
Dimensions
- Tank capacity: 50 l
- Hose length: 5 m

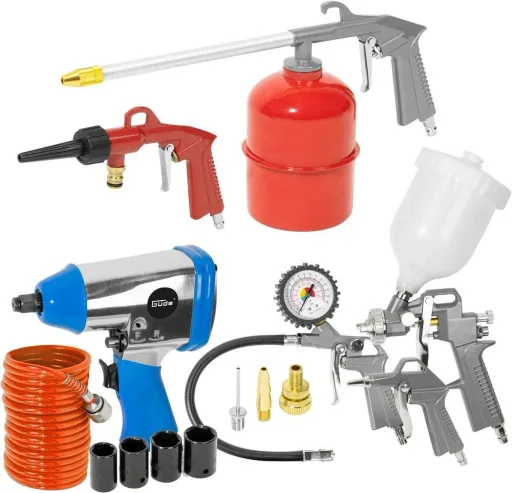

Scope of delivery
- 1 x Compressor
- 1 x Blow-out, paint spray, water and oil spray gun
- 1 x Tire inflator
- 1 x Spiral hose
- 1 x 3-piece adapter set
- 1 x ½" impact wrench set 5-piece set
- 1 x instruction manual
| Drive | |
|---|---|
| Drive | 230V motor |
| Weight | |
| Weight | 42 kg |
| External dimensions | |
| External dimensions | 680 x 360 x 640 |
EU-Responsible Name: GÜDE GmbH & Co. KG
EU-Responsible Street: Birkichstrasse
EU-Responsible House No: 6
EU-Responsible Post Code: 74549
EU-Responsible Town: Wolpertshausen
EU-Responsible Country: Germany
EU-Responsible Email: [email protected]
EU-Responsible Phone Number: +496871909137

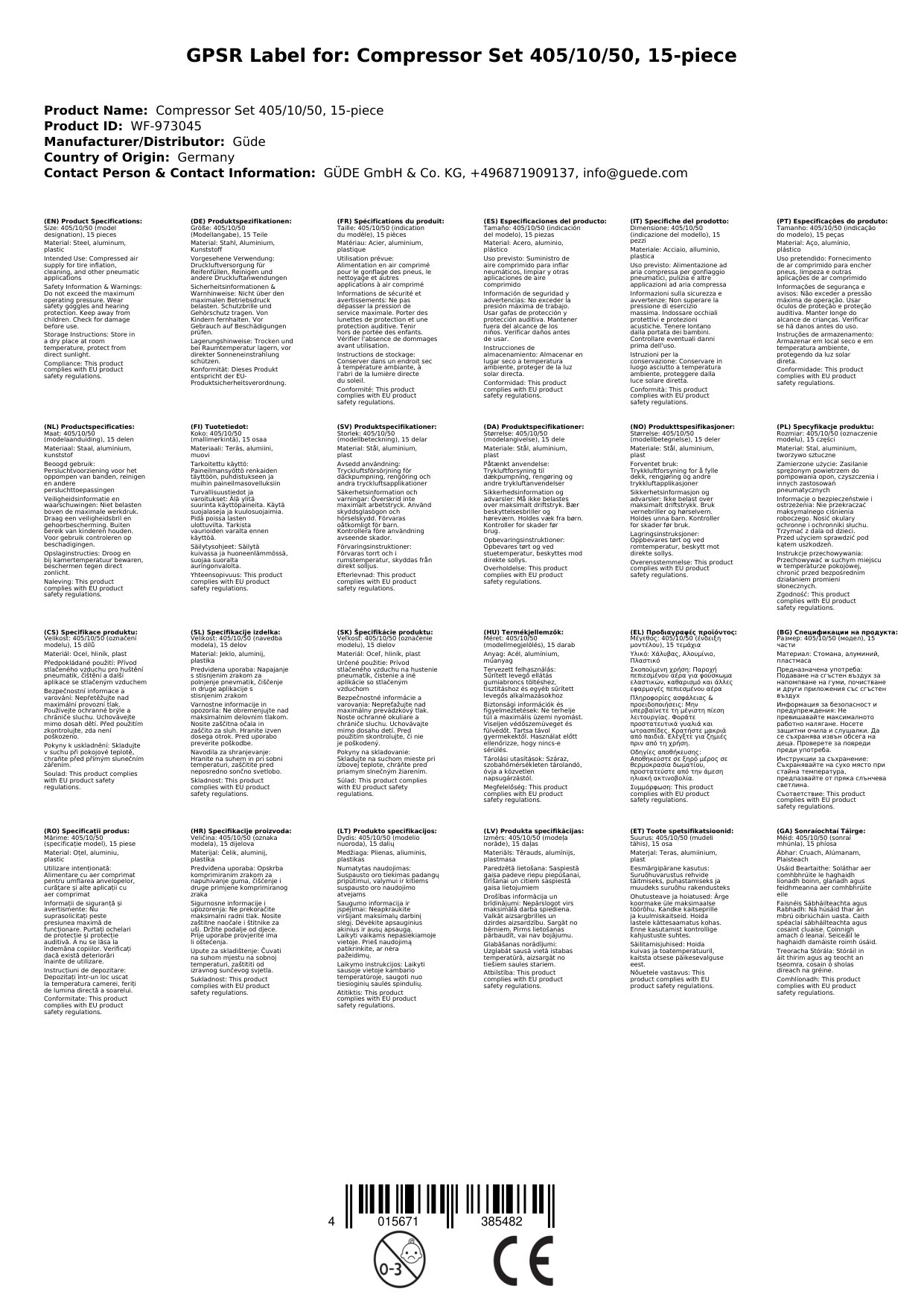

GPSR attachment:
