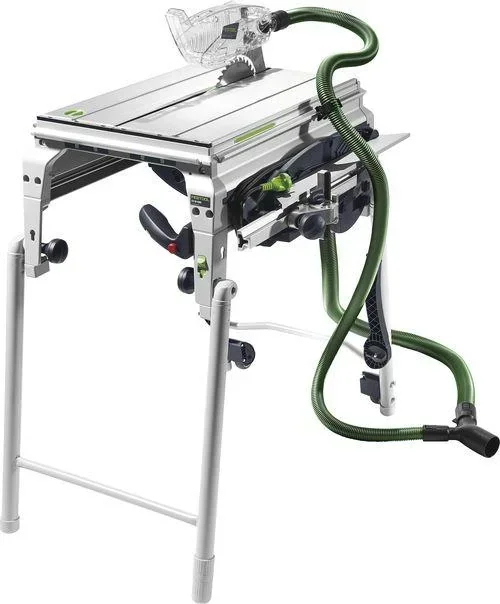

Whether in interior design, furniture construction, or exhibition stand construction: the PRECISIO CS 50 is the ideal solution for cross-cutting and rip cuts. Especially for changing applications, such as in the production of furniture. B. on assembly, it shows its strengths thanks to its low weight and many clever functions.
- Tool-free FastFix saw blade change
- Multifunctional pull handle: One handle, all functions in one hand
- Quickly converts from longitudinal to cross-cutting with the angle stop
- Tear-free sawing on both sides thanks to the moving splinter guard
- Circumferential V-groove for inserting the angle stop
- Expandable as a saw station with extensive accessories
- Saw blade garage (accessory): Saw blades and splinter guard always at hand
Main areas of application:
- Cross cuts up to 300 mm wide, precise and fast by pulling the saw blade
- At 45°, cross cuts up to 200 mm wide
- Rip-cuts up to a cutting height of 52 mm
- Angle cuts from -2° to 47° thanks to pivoting saw blade
- Concealed cuts thanks to retractable riving knife – no removal required
Technical details:
- Idle speed 1600 – 4200 rpm
- Saw blade diameter 190.00 mm
- Incline 0 (-2)° - 45 (+47) °
- Traction path 304.00 mm
- Table height folded 333.00 mm
- Table height unfolded 900.00 mm
- Dust extraction connection Ø 27/36 mm
- Cutting height 52 mm
| Maximum cutting height 45 | |
|---|---|
| Maximum cutting height 45 | 37 |
| Weight | |
| Weight | 21.9 kg |
| Maximum cutting height 90 | |
| Maximum cutting height 90 | 52 |
| Disc/blade diameter | |
| Disc/blade diameter | 190 mm |
| Table size | |
| Table size | 585 x 400 mm |
| Power output | |
| Power output | 1,200 W |
| Idle speed | |
| Idle speed | 4,200 rpm |
