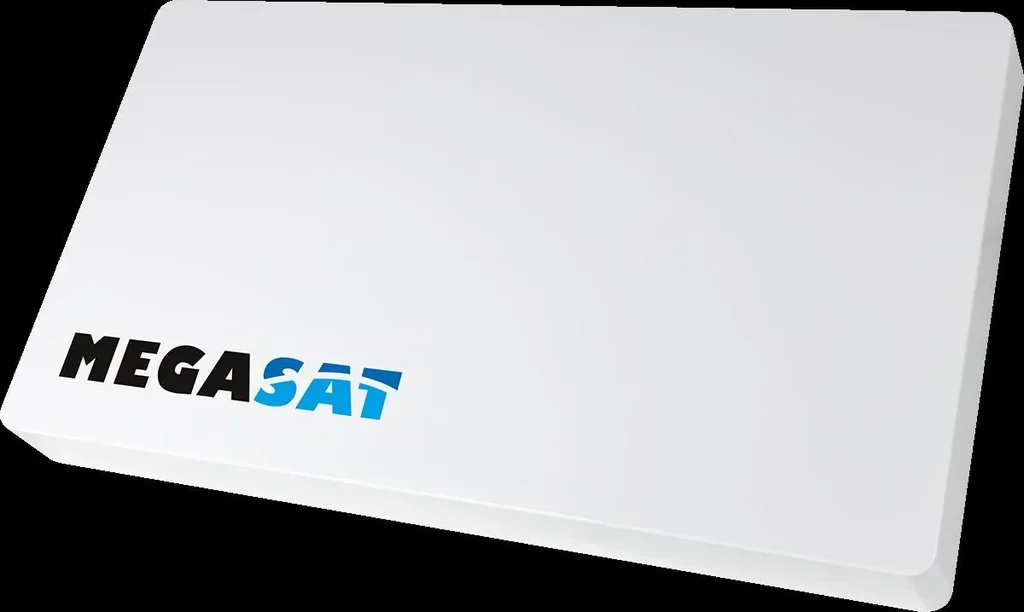

Sat flat antenna D1 Profi-Line II Single, 1 subscriber

• The flat antenna is the ideal solution for receiving satellite TV in a space-saving and unobtrusive manner.
• Its flat, compact, and easy-to-install design makes the antenna (almost) invisible.
• The robust and stable housing protects the high-quality electronics inside from the elements.
• The reception performance is equivalent to a conventional 60 cm parabolic dish and is perfect for mounting on the balcony or directly on the house wall.
• A universal single LNB is already integrated and is connected directly to the receiver with a coaxial cable.

Features

• Flat antenna with universal LNB (integrated and pre-assembled)
• Reception of digital satellite TV/radio programs
• Compact design – simple Installation
• ƒ Unobtrusive and space-saving installation
• ƒ Suitable for use with 1 receiver/TV
• ƒ Reception of Astra, Hotbird, Türksat, and much more.
• ƒ The reception performance is equivalent to a 60 cm parabolic dish
• ƒ Extensive mounting accessories
• ƒ Universal applications (camping, holiday home, truck, wall, roof, floor, balcony, window)

Dimensions: L x W x H: 525 x 290 x 68 mm.

Technical specifications:

• Input frequency: 10.7 – 12.75 GHz
• ƒPolarization: Linear (vertical / horizontal)
• ƒAntenna gain: 33.7 dBi @ 12.75 GHz
• LNB-DVB-S/S2 outputs: 1
• LNB output frequency: 950 – 1,950 MHz / 1,100 – 2,150 MHz
• L.O. Frequency: 9.75 GHz / 10.6 GHz
• LNB gain: 60 dB
• Gain flatness: ±0.5 dB / 26 MHz
• Voltage supply: 12 - 14 V DC (V) / 16 - 19 V DC (H)
• Current consumption: max. 130 mA
• Operating temperature: -20° C to +60° C
• Storage temperature: -40° C to +80° C


Scope of delivery

• Flat antenna Profi-Line II Single (D1)
• Wall mount
• Mast/ Balcony bracket
• Window bracket
• Tools
• Screw set
• Compass
• User manual
