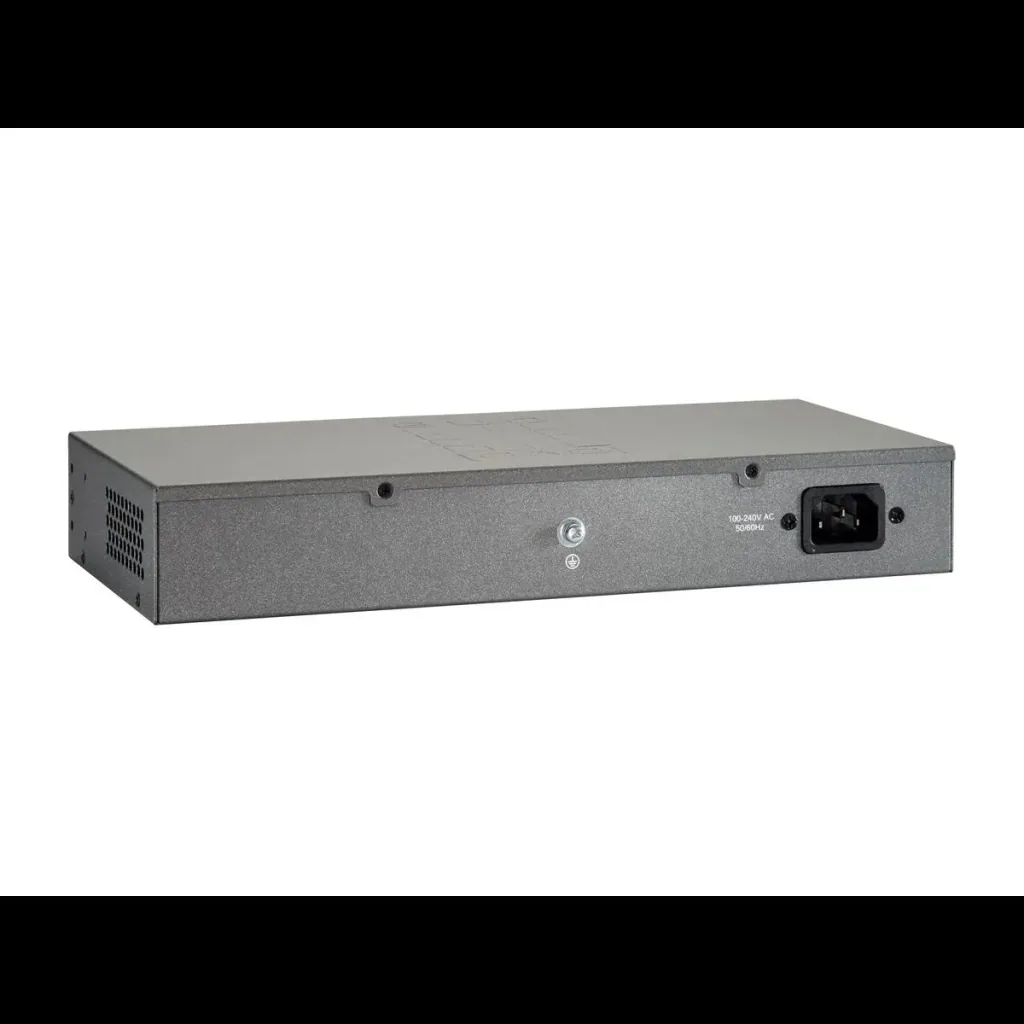

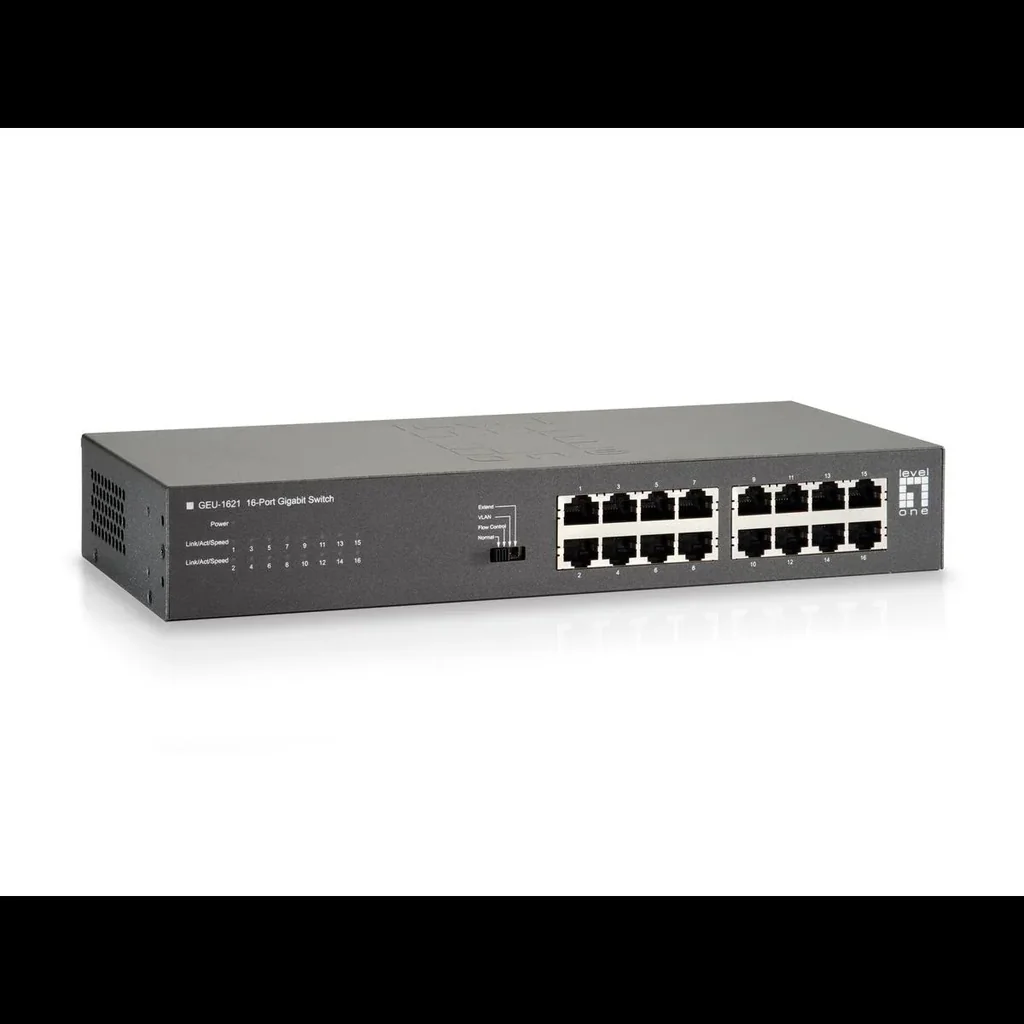

Switch 16x GE GEU-1621

• 16 Gigabit Ethernet ports
• 10/100/1000Mbps transmission speed
• 9K Jumbo Frames for high transfer rates
• Supports auto-learning and auto-aging for up to 8K MAC addresses
• IEEE 802.3x flow control protects against packet loss and ensures reliable data transmission
• Minimizes power consumption through modern energy efficiency (IEEE 802.3az)

The GEU-1621 is equipped with Gigabit ports and offers true Gigabit connections. Users can now transfer large, bandwidth-intensive files faster, providing a real improvement in efficiency.

Provides a fast and reliable network
The store-and-forward architecture filters out errors and forwards data packets in a non-blocking environment. Flow control ensures the correctness of the data sent, while 802.3x and back-pressure flow control operate in full/half-duplex mode.

Energy-saving features
The GEU-1621 supports IEEE 802.3az Energy Efficient Ethernet with power-saving features without compromising performance. The switch automatically enters sleep mode when no further link activity is detected, thus saving energy.

Easy installation and maintenance
The switch supports the Nway auto-negotiation protocol and automatically detects network speeds (10/100/1000Mbps) and duplex modes (full/half). The Auto-MDI/MDI-X function eliminates the need for crossover cables. LED indicators provide easy port status monitoring and switch information.

Technical Specifications

Connectivity

Number of Basic Switching RJ-45 Ethernet Ports *: 16

Basic Switching RJ-45 Ethernet Ports Type *: Gigabit Ethernet (10/100/1000)

Number of Gigabit Ethernet (Copper) Ports: 16

Network

Network Standard *: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

10G Support *: No

Full Duplex: Yes

Half Duplex: Yes

Flow Control Support: Yes

Auto MDI/MDI-X: Yes

Auto-Negotiation Function: Yes

Self-Learning of MAC Addresses Supported: Yes

Auto-Aging of MAC Addresses Supported: Yes

Data Transfer

Routing/Switching Capacity *: 32 Gbit/s

Forwarding Rate: 1488000 Mpps

MAC Address Table Size *: 8000 Entries

Store-and-forward: Yes

Jumbo Frames Support: Yes

Jumbo Frames: 9000

Design

Rack Mounting *: Yes

Product Color: Gray

Performance

Built-in processor: Yes

Processor: Realtek RTL8382L

Flash memory: 4 MB

Energy management

AC input voltage: 100 - 240 V

AC input frequency: 50/60 Hz

Power consumption: 10.1 W

Power over Ethernet (PoE)

Power Over Ethernet (PoE) Support *: No

Operating conditions

Operating temperature range: 0 - 40 °C

Storage temperature range: -40 - 70 °C

Operating humidity: 10 - 90%

Humidity (non-operational): 5 - 90%

Weight and Dimensions

Width 280 mm

Depth 180 mm

Height 44 mm

Weight 2.6 kg
