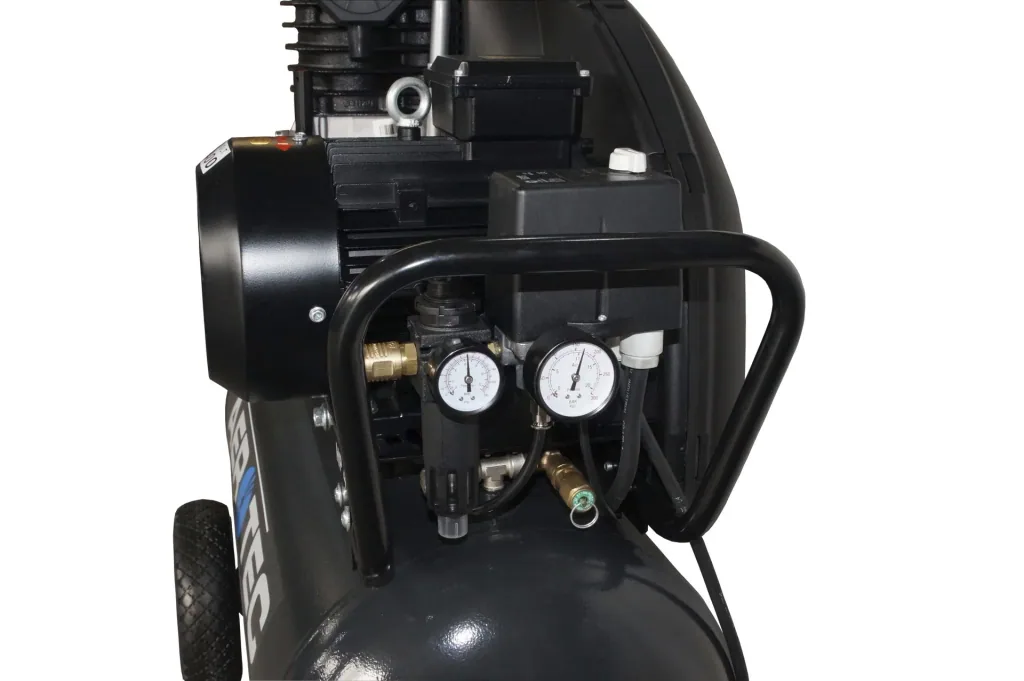

V-belt compressor 400 volts, 15 bar
Guaranteed Secure Checkout
| Item number | WF-975302 |
| Brand | Aerotec |
Reviews
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choice
Questions
There are no questions yet
Ask a question to learn more about the product
0.0
0 reviews
- Mobile piston compressor in oil-lubricated 2-stage design

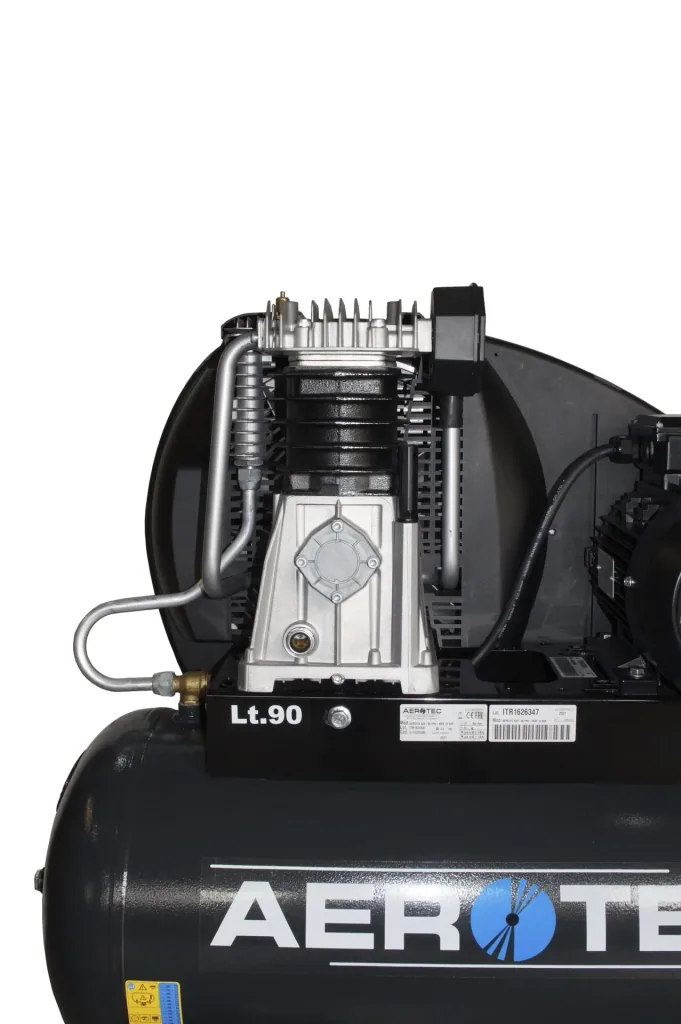

- V-belt driven 2-cylinder in-line unit
- Start-up relief via Condor pressure switch
- With large hard rubber wheels for easy transport
- Condensate is drained via a ball valve
- Supplied with phase inverter plug
- 2 swivel castors on the front for perfect handling
Technical data
- Model: Aerotec 625-90 TECH 15bar
- Vessel size: 90 l
- Vessel pressure: 15 bar
- Suction capacity: 420 l/min.
- Delivery volume: 310 l/min.
- Speed: 900 rpm.
- Sound pressure level: 97 LWA / 78 dB
- Motor: 3 KW / 4 HP
- Voltage: 400 V ~ 50 Hz
Dimensions: 935 x 400 x 1000 mm
Weight: 75 kg
Scope of delivery: 1 x V-belt compressor 400 Volt, 15 bar
| Suction capacity | |
|---|---|
| Suction capacity | 420 l/min |
| Voltage | |
| Voltage | 400 V |
| Tank capacity | |
| Tank capacity | 90 l |
| External dimensions | |
| External dimensions | 935 x 400 x 1000 |
| Weight | |
| Weight | 75 kg |
| Delivery rate | |
| Delivery rate | 310 l/min |
| Delivery pressure | |
| Delivery pressure | 15 bar |
| Motor power kW | |
| Motor power kW | 3 kW |
