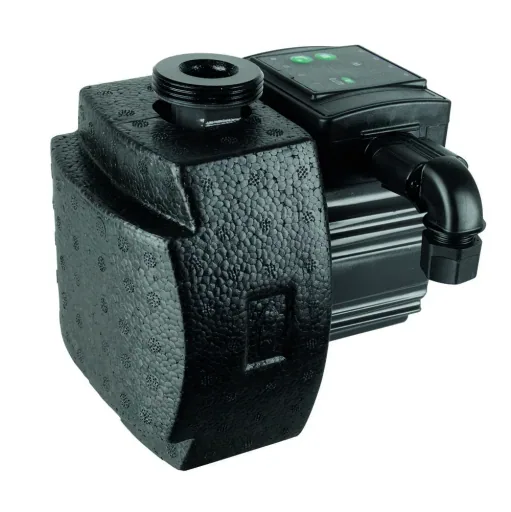

Heating circulation pump HZP 25-40-180 ECO
| Item number | WF-975358 |
| Brand | T.I.P. |
There are no reviews yet — yours could be the first
Share your experience with this purchase and help other customers make the right choiceThere are no questions yet
Ask a question to learn more about the product
0.0
The HZP ECO features a permanent magnet motor and differential pressure control, allowing continuous adjustment of the pump output to current system conditions. Thanks to the AUTO function (factory setting), the pump can be put into operation immediately in most cases, without the need for further adjustment. Energy consumption is significantly lower (up to 80%) than with standard circulation pumps.

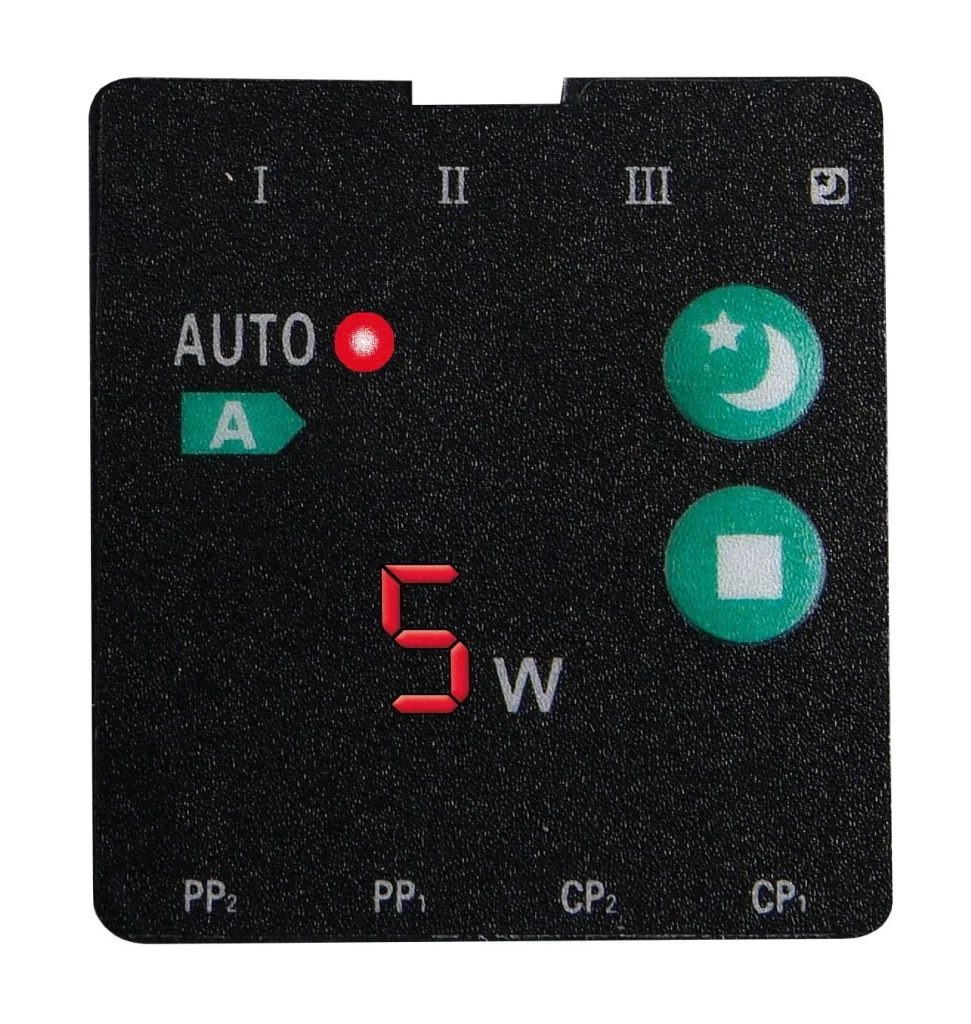

In addition to the AUTO setting, various control modes are selectable, including automatic night-time setback. The Energy Efficiency Index (EEI) of this pump, at 0.19, is already well below the requirements that will come into force in 2015. Incl. Precisely fitting insulation shell and system plug for easy electrical connection.
Technical Specifications
- Mains voltage / frequency: 230 V – 50 Hz
- Pump connection: 47.80 mm (1 1/2") male thread
- Installation dimensions: 180 mm
- Max. liquid temperature: 95 °C
- Max. operating pressure: 10 bar
- Protection class: IP 44
- Insulation class: F
Dimensions: 20.5 x 15 x 17 cm
Weight: 2.3 kg
| Maximum pressure | |
|---|---|
| Maximum pressure | 10 bar |
| Weight | |
| Weight | 2.3 kg |
| External dimensions | |
| External dimensions | 20.5 x 15 x 17 cm |
| Voltage | |
| Voltage | 230 V |
| Frequency | |
| Frequency | 50 |
